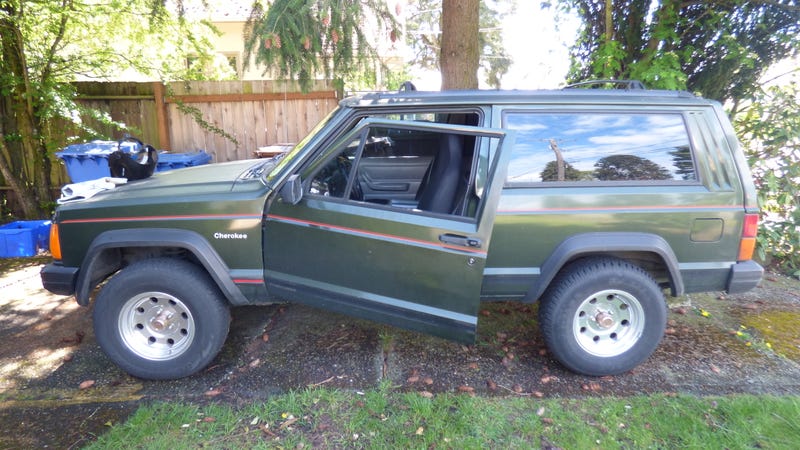

This is a problem. The top hinge completely broke off a couple weeks ago. But I had the other day off, it was sunny, and I was in a rare productive mood. So here is a quick write up of fixing an XJ door hinge.

XJs and MJs have inherently week hinge welds from the factory, especially when you have a two door as the doors are quite a bit heavier.

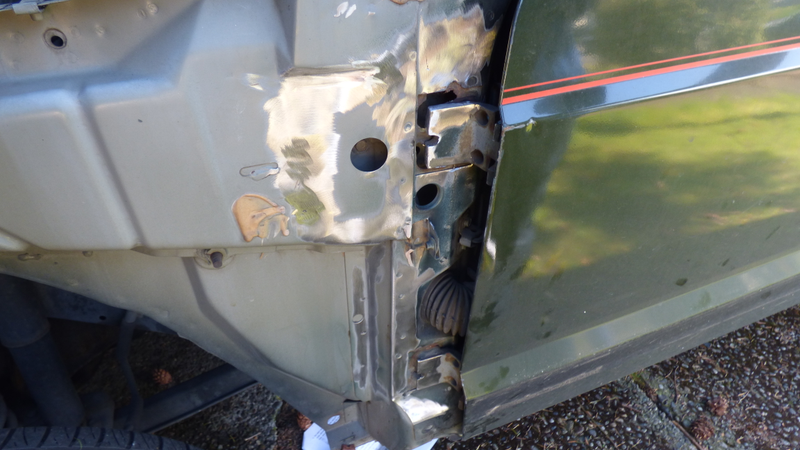

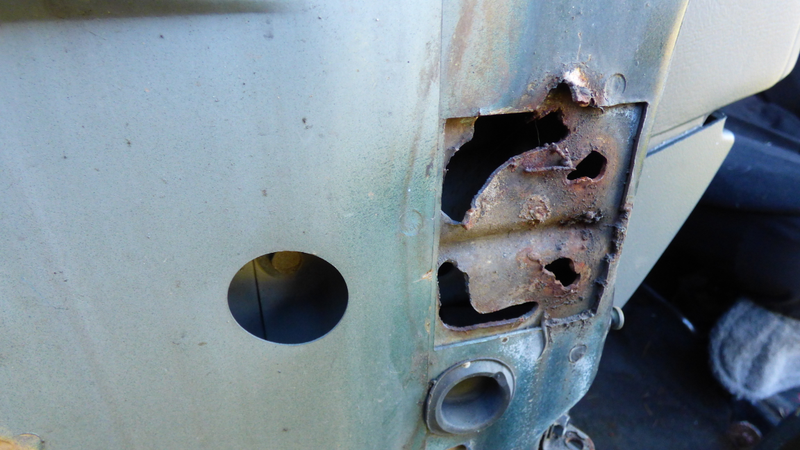

This is where the hinge used to be.

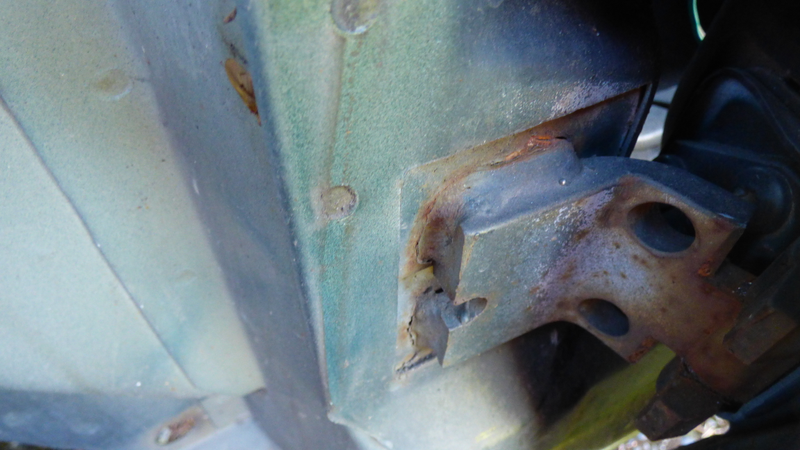

Someone had tried to fix it many years ago and only temporarily helped it. You can see the factory welds on the outside corners. Everything else was added .........poorly.

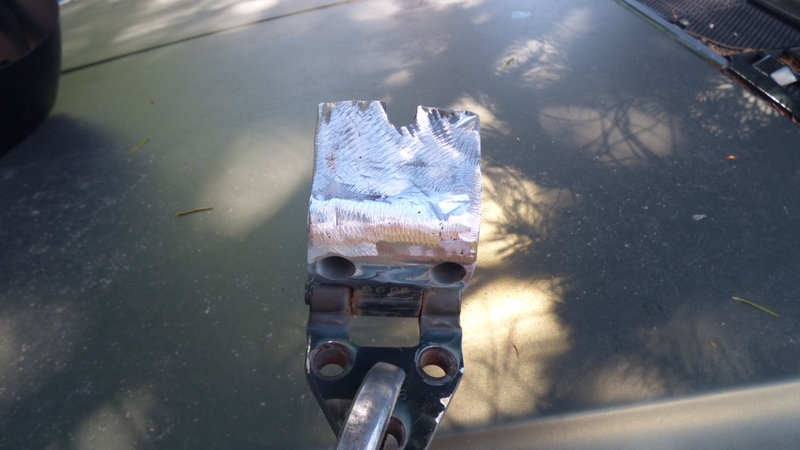

First step was to clean it up as replacement hinges are $170 a piece!. I used a portable bandsaw to take off the big chunks and a grinder to clean it up. I will admit the hinges themselves are very stout, they are just welded on poorly.

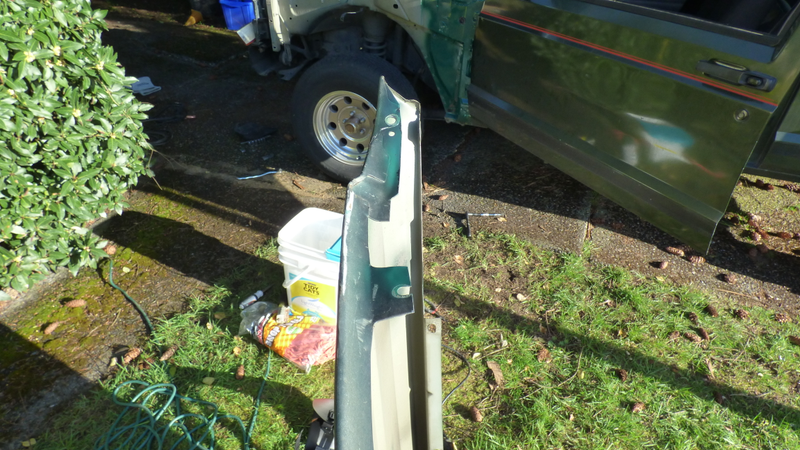

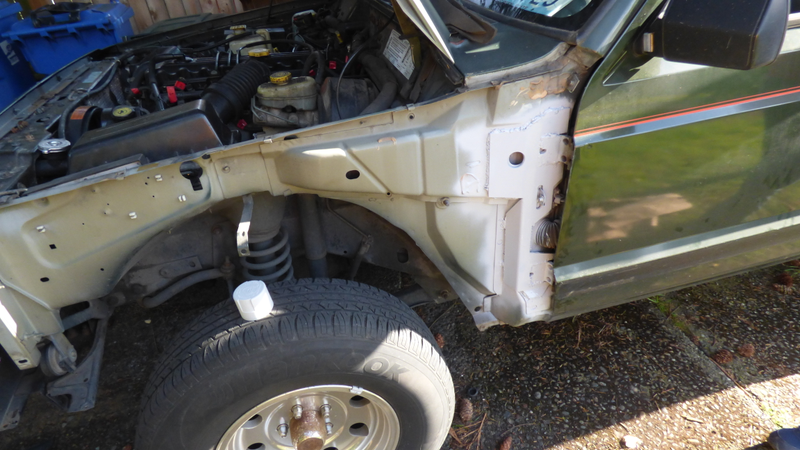

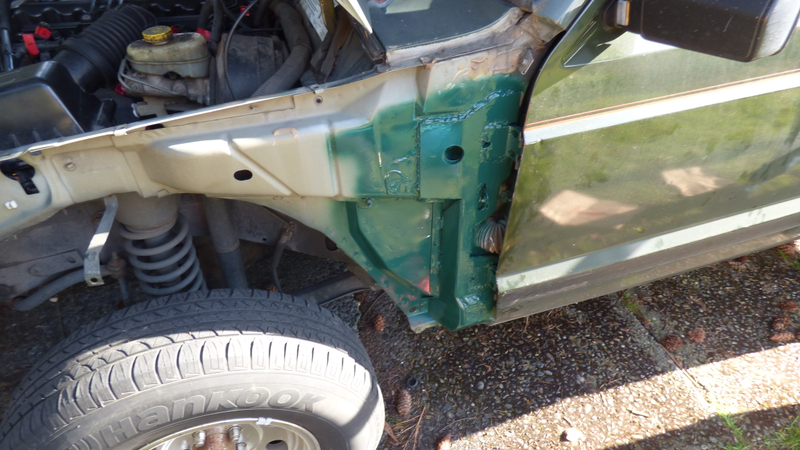

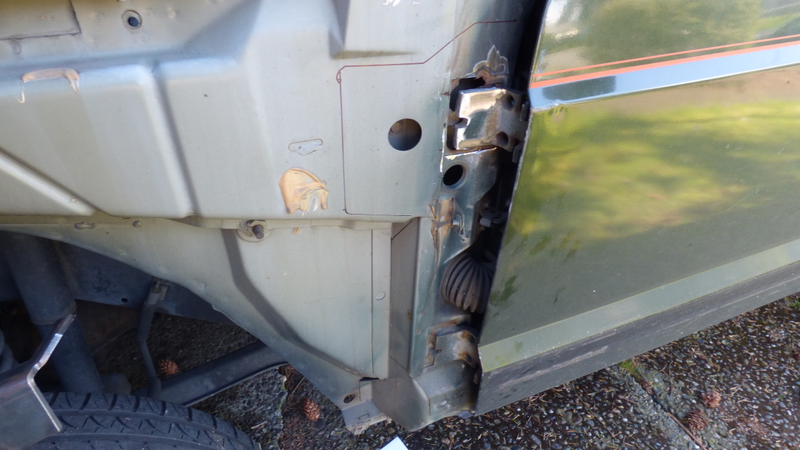

Another shot of the hinge mounting location with the fender removed.

You have to remove the fender for this job which can also only be done if you remove the grill, light assembly, and fender liner.

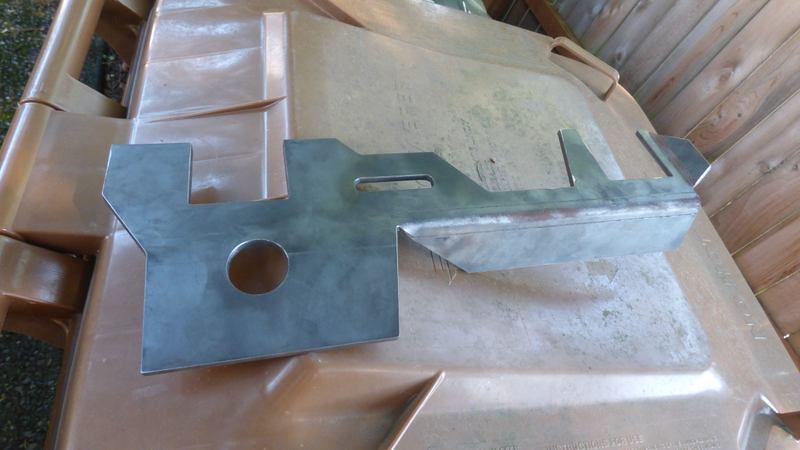

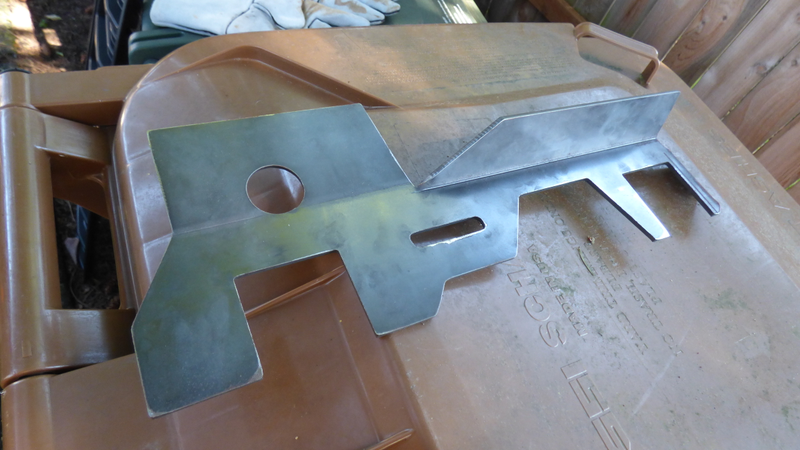

This is the support bracket I installed. This isn’t necessary to fix the hinge but it is infinitely better. These are from Hooligan Offroad in Commerce City, CO. They are 3/16 thick and cost $40 a piece or $75 for a set. I only got one as the passenger door is rarely used. Shipping was slow but otherwise great service. There are a few similar items on the market but they are thinner and more expensive.

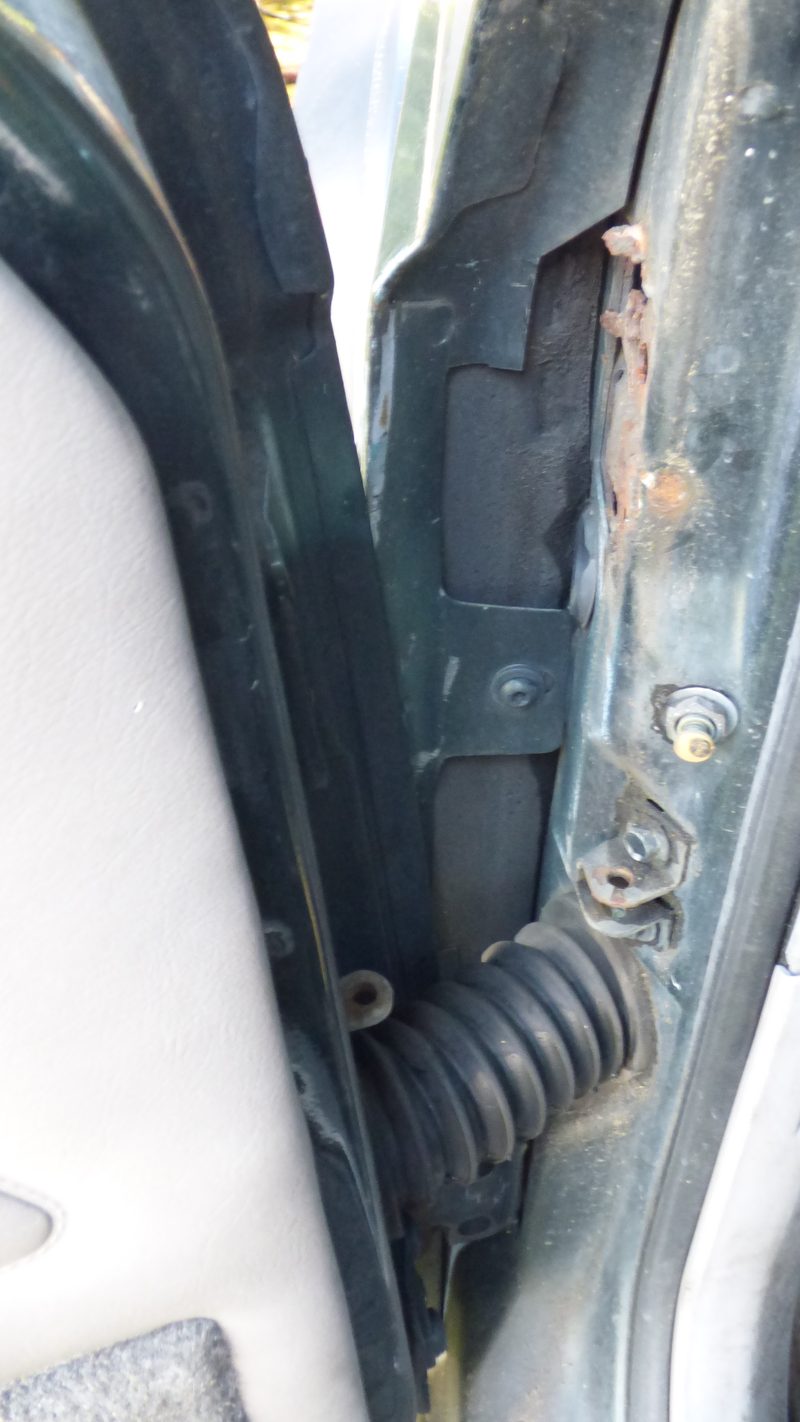

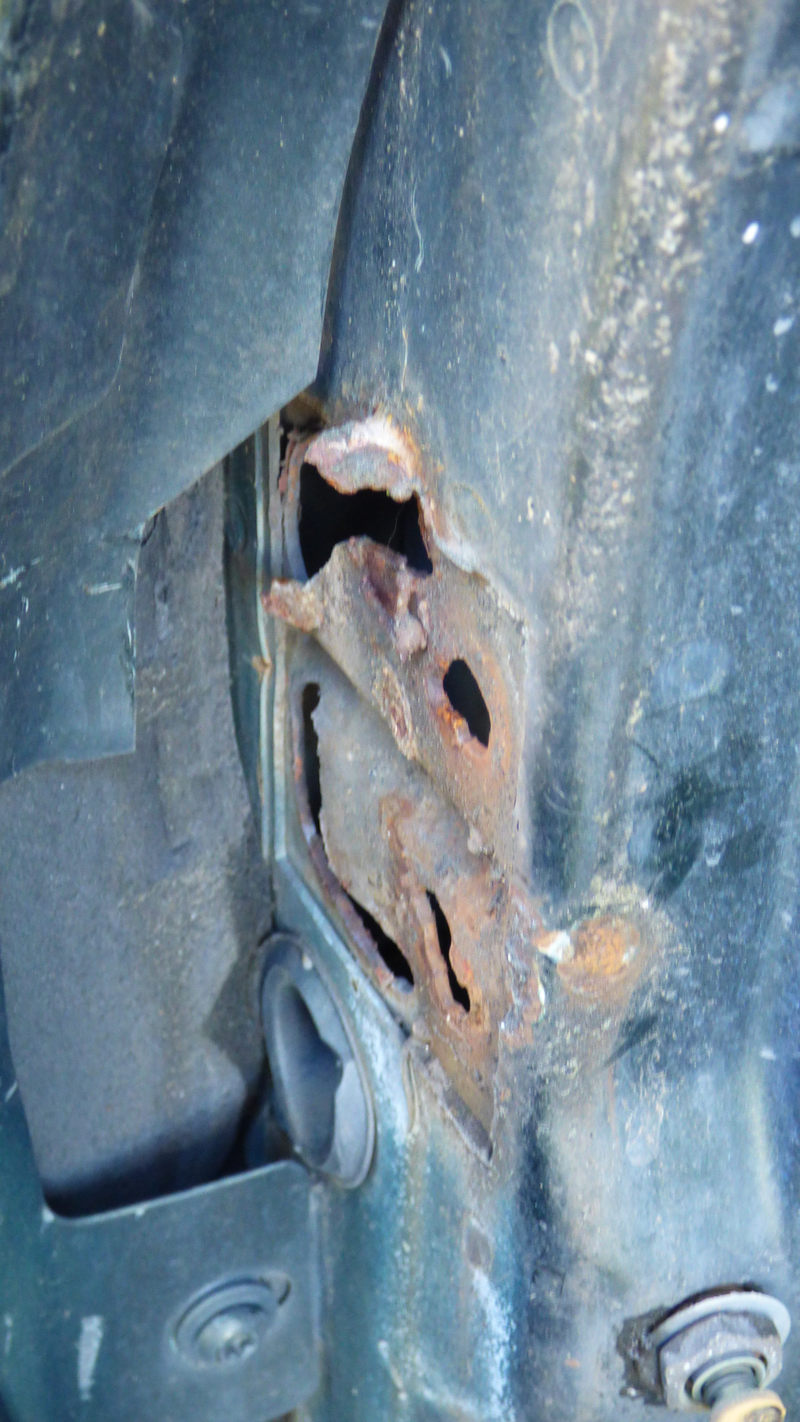

You can see the welds on the bottom hinge were starting to split as well.
I cleaned up any protrusions from the old sheet metal and weld.

I reinstalled the hinge on the door and I put the piece up to mark out where it was going to be welded. You can see how much more surface area will be supporting the hinges.

Then I used a paint stripping wheel on my grinder to clean the surface and then sprayed it with a grease/ wax removing paint prep spray.

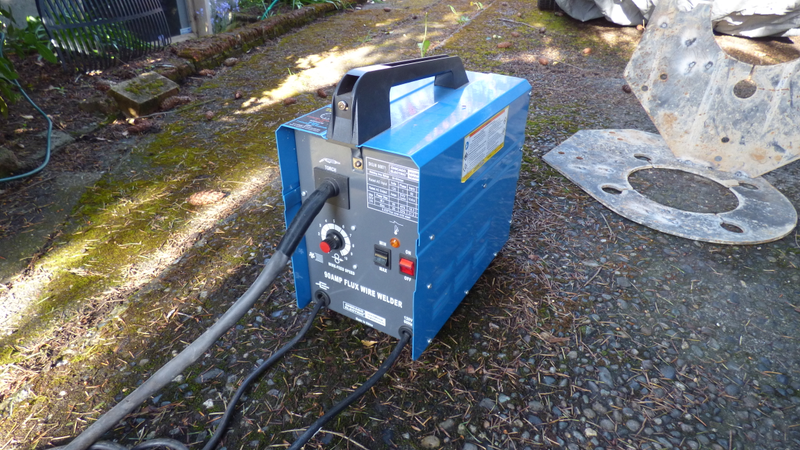

This is the welder I used, a second hand Harbor Freight unit that has been sitting around never used for years and years. I think I payed $60-70 dollars for it. It has a 120v plug, adjustable speed and a min/max voltage setting. It is not ideal. I ran some practice welds on that plate steel behind it and it worked great. I got my speed set right and was ready to go.

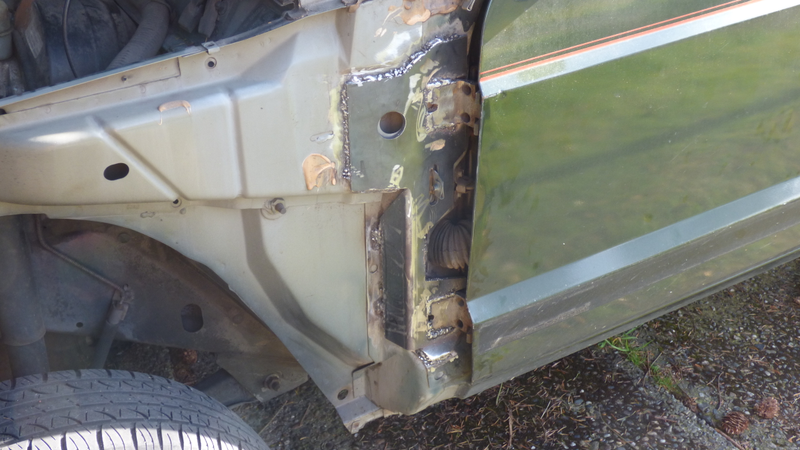

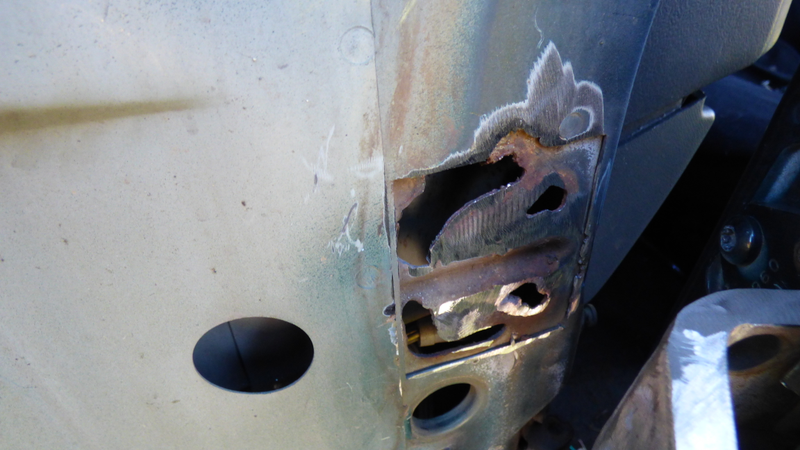

And this is what happened. These very sad welds were the result of a combination of things such as me not welding in the last decade, trying to weld plate steel to sheet steel, and the welder not having a more adjustable voltage. Even on the min setting it punched right through the sheet metal. So I had to tack weld over and over to get it built up. Also a shielding gas would have been nice to have. Oh and a properly feeding handle. I almost didn’t post this picture as I am a bit ashamed of it but I think its necessary to show this step.

I sprayed it with the cleaner again then put two coats of primer on it.
Then a single coat of green spray paint. I was in a hurry and losing light so I didn’t wait more than a few minutes between layers

The moment of truth came and I opened the door and it sagged down. I was about ready to freak out because that hinge is not coming off without significant effort. I had just forgotten to tighten the bolts connecting the hinge to the door when I reinstalled the hinge. I got that aligned and tightened and was good to go.

I got the fender reinstalled and found that the fender attachment brackets ran into the new plate so those had to be trimmed back. It would have been nice to have this mentioned in the instructions.

And Bam! Its reassembled and I only lost 1 screw. I have to go back and adjust the front fender as it is just barely rubbing on the door and I have to repair some speaker wires going to the door that I cut because I thought I had to remove the door before I read the instructions. You can remove the door to do this and probably get a better result but it will complicate your life terribly.

These are the instructions, I found the last one amusing but I did not oblige the second part. The first one most definitely.

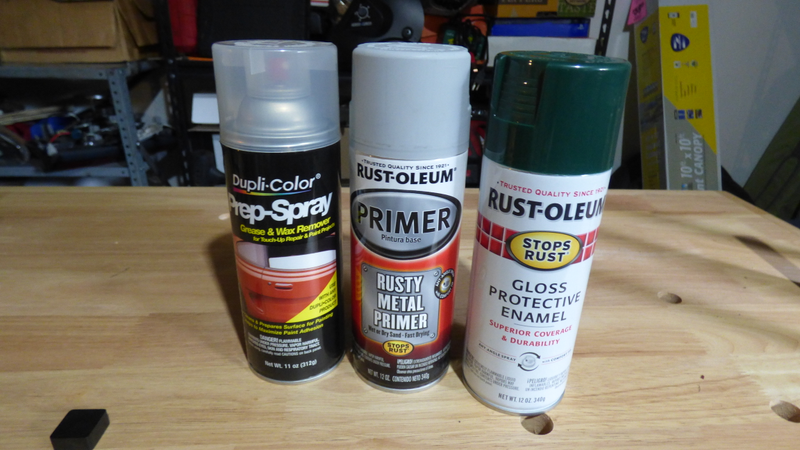

The chemicals I used. They seemed to work well.

I went in to this project pretty nervous as I’ve never done body work before and I hate the responsibility of aligning things. However I came out of it with a renewed confidence and interest. And I really want to get a nice welder because I forgot how much fun welding can be.
