Let me start with an observation so simple that I’ll spend the next few thousand words discussing it: there’s a direct correlation between speed and energy consumption.


Find more Torquelife content at www.torque.life and on Twitter @torquelife.


In my last article about powertrain efficiency, I introduced the basic concepts of analysis and the difference temperature could make on energy consumption for various types of powertrain architecture. I introduced three fuel economy drive cycle tests in that article, but a quick refresher. A graph of the drive cycle speeds versus time can be found here. UDDS simulates an urban driving environment and has an average speed of 19 miles-per-hour. HWFET is the traditional highway driving test, though relatively conservative in terms of speed.

Advertisement

Advertisement

For years, the Highway EPA mileage figure was an optimistic target, sometimes wildly so. In order to provide more accurate fuel economy figures, the EPA revised its testing methodology to include high speed, air-conditioning, and low temperature tests. The high speed test is known as the US06, and though it has the same 48 mph average speed as the HWFET, the highest speed reached during the cycle is significantly increased (80 mph vs 60) and the amount of acceleration is higher too.

Basically, we can look at the HWFET as an idealized highway driving scenario and the US06 as a fairly aggressive driving scenario, with real-world highway conditions falling somewhere in between the two. I provided a graph of energy consumption versus temperature for the UDDS cycle before (link), but using the data provided in D3, we can create similar charts and graphs for the HWFET and US06 driving cycles as well.

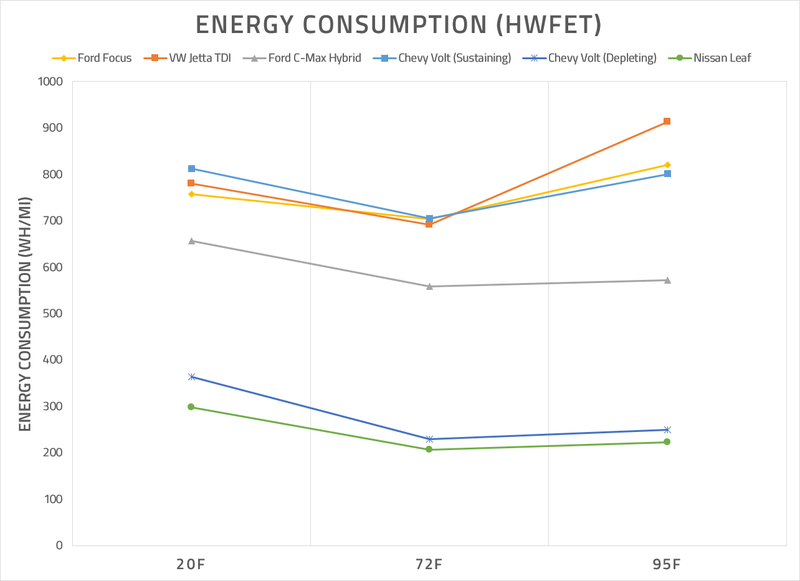

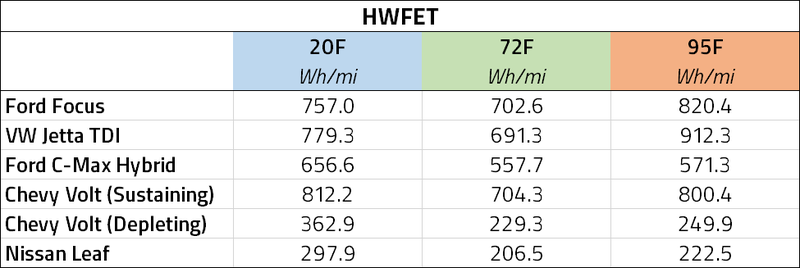

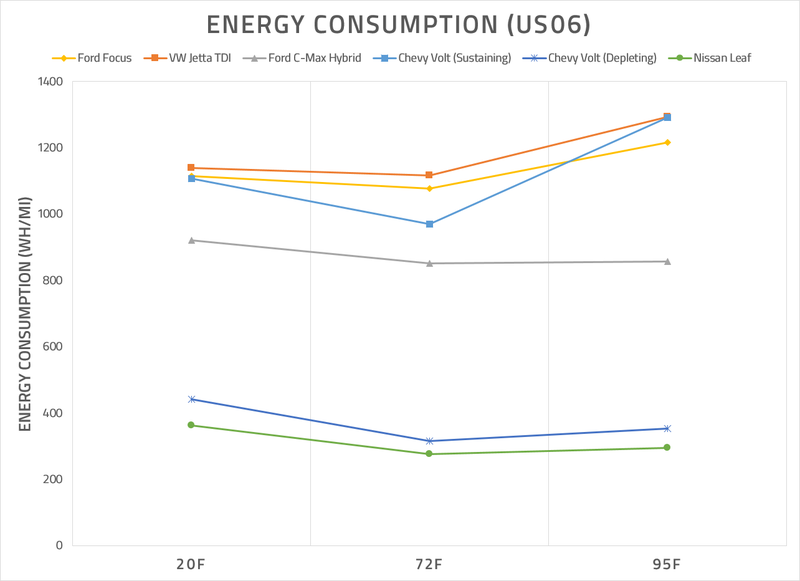

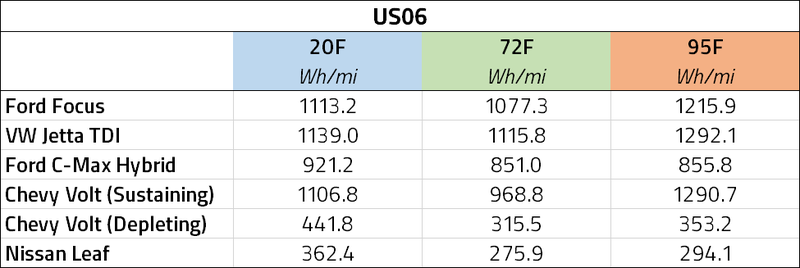

Energy consumption in the HWFET (left) and US06 (right) drive cycles.


There’s a lot of data here - legitimately dozens of articles can be derived from it, and at least one Master’s thesis. Let’s start with an observation so simple that I’ll spend the next thousand words discussing it: there’s a direct correlation between speed and energy consumption.

Advertisement

Advertisement

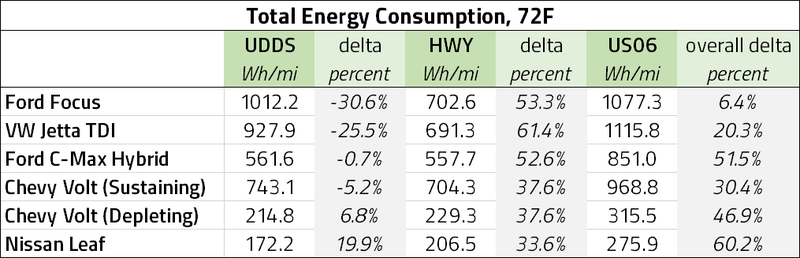

On it’s face, that statement seems pretty obvious. Which, okay, fair enough - this is just basic common sense, right? But let’s actually look at this, taking our five vehicles at 72F with no auxiliary loads and analysing energy consumption during the UDDS, HWFET, and US06 cycles. The cycles are differentiated by more than average speed, and that isn’t the only factor that matters in this analysis, but we’ll get there.

As expected, for the most part, speed and energy consumption do correlate. For the electric and hybrid vehicles in our suite of evaluation, the energy consumption delta between urban and highway speeds is not a lot; this is due to the low speed, start-stop nature of the UDDS cycle versus the higher, but constant speed of the HWFET. It’s worth noting here that while the absolute energy increase for the Leaf from UDDS to HWFET is small, percentage-wise it’s a significant jump. It’s pretty clear that electric vehicles are very ideally suited to city driving environments; cars like the Leaf and Fiat 500e make a ton of sense as urban runabouts, even if they’re not entirely practical to have as an only car.

In all cases, the jump from the HWFET to the US06 is significant. But there’s one pretty big outlier here: the conventional vehicles both have significantly higher energy consumption in the UDDS cycle than in the HWFET.

Advertisement

Internal combustion engines are far from ideal when it comes to city driving conditions. This is why, historically, we’ve been conditioned to seeing highway fuel economy numbers that tend to be higher than city fuel economy by a significant amount. The reasoning is pretty simple - EPA’s highway test is a pretty favorable loading condition for an internal combustion engine, with low engine output requirements and low engine speeds.

When a vehicle is traveling at highway speeds, it’s typically in a higher gear and the engine is turning slower. The engine output required to maintain 60 mph on a relatively flat, smooth road is pretty minimal - the main forces that the engine has to work against are aerodynamic drag and the friction between the tires and road surface. The formulas used to calculate the aerodynamic resistance and rolling resistance are simple:

Let’s go through this exercise using a normal car, say the Ford Focus, which has a drag coefficient of 0.297, frontal area of roughly 2.26 square meters, and weighs around 3000 pounds (Source: Ford). Depending on body style and configuration, that number can vary between 2800 and 3200, though for the SE automatic hatchback, tested weights seem to hover right around the 3000 mark. In kilograms, that’s 1360kg. Coefficient of rolling resistance for a normal tire is in the 0.010 - 0.015 range and between 0.006 and 0.010 for a low rolling resistance tire. For the purposes of this conversation, let’s select Crr as 0.010 - the Focus has relatively small wheels and pretty conservative tires, at least in the more mainstream models. Rho (density of air) is roughly 1.225 kg/m^3 at 15 C at sea level, gravitational constant is 9.807 m/s^2, and let’s say highway speed is equal to 60 mph or 26.8 meters per second.

Advertisement

Using the formulas above, we can see that the aero resistance comes out to 295 Newtons and rolling resistance comes out to 133 Newtons. At 60 mph, the resistance of the car equates to 15.4 horsepower. You’ll notice that in a car that comes with 160 horsepower out of the box, not a lot is being asked of the engine.

Advertisement

At low engine speeds, the engine isn’t very efficient, but the key is that it doesn’t really need to be. It doesn’t require very much energy to output 15 horsepower, so even if that energy isn’t very efficiently used, the overall energy consumption (or fuel economy) number looks pretty good.

In city driving, internal combustion engines have to deal with a large amount of idling and low speed acceleration, which are pretty much the least efficient conditions under which an ICE can operate. Fuel economy at idle is, of course, zero - at zero miles per hour, you will get zero miles per gallon, because you have traveled precisely zero miles. Glad we’ve cleared that one up.

Advertisement

At low engine speeds, ICEs tend to have poor combustion efficiency due to the heat transfer of the engine. Basically, within a cylinder, higher heat transfer to the combustion chamber will reduce the combustion pressure and thus the amount of work done by the cylinder. The slower your pistons travel, the higher your heat transfer is, and thus the higher your specific fuel consumption is. This is the fuel consumption per amount of work done, a simple relationship of energy input versus work output. It’s inversely correlated with engine efficiency - the higher your efficiency, the lower your specific fuel consumption. At high engine speeds, mechanical efficiency is reduced due to increasing friction loss, correlating with the distance traveled by the pistons, and overall engine efficiency goes down with it. So peak efficiency (the point at which specific fuel consumption is lowest) actually happens midway through the rev range, usually at the torque peak. You can see a graph of specific fuel consumption versus RPM for a generic four-cylinder petrol engine at a variety of throttle positions in the image below, taken from a 1972 Repco engine service manual.


Specific fuel consumption versus RPM in a four-cylinder engine. Image: Repco, 1972.


Internal combustion engines are good at running with a constant loading at the speed of peak efficiency. This, as you’ll notice, describes almost no real-life driving scenarios. Literally, zero. Constant engine speed might be fine in a generator, but in a passenger vehicle that would get very annoying, very quickly. If my car’s engine constantly ran at its torque peak of 3500RPM, I might actually unbolt the transmission and light it on fire. So, basically what anyone driving a CVT considers doing every time they get onto the highway.

Advertisement

Advertisement

But in this, you can begin to see the engineering philosophies behind hybrid architectures. Using the ICE purely as a gasoline-powered generator to augment an electronic drive system seems like something that would play to the strengths of internal combustion, since the ICE can be run at a constant RPM and stay at peak efficiency. However, the NVH (noise, vibration, harshness) aspects need to be pretty carefully considered when choosing the size and power output of the ICE. This is fundamentally just the EREV (extended-range electric vehicle) or series hybrid model that is used by the Volt and the BMW i3.

Mild hybrid systems, like Honda’s Integrated Motor Assist, also start to make a lot of sense. The small electric motor sandwiched between the engine and transmission serves primarily to assist the ICE during acceleration and allow for the engine to shut off at idle. Basically, instead of a radical shift in the paradigm, the IMA system increases the efficiency of the powertrain by assisting or eliminating the loading conditions under which an ICE is least efficient. It’s a relatively noninvasive way of going about hybridization and always struck me as a very Honda solution to the problem.

So what can we take away from this? When we’re armed with this much data on the behaviour and characteristics of various powertrain types, it’s actually a bit daunting to begin analysis because there are so many different avenues to explore. Having the graphs laid out in front of us, we can really begin to see the strengths and weaknesses of each type of powertrain. Electric powertrains really have an untouchable advantage in the city, while the turbodiesel has great fuel economy on the highway - even if that doesn’t necessarily translate into an energy consumption advantage relative to a gasoline ICE. The hybrid sits pretty neatly between the EVs and conventional vehicles, but its advantage over conventional vehicles shrinks as speeds increase, particularly under aggressive load.

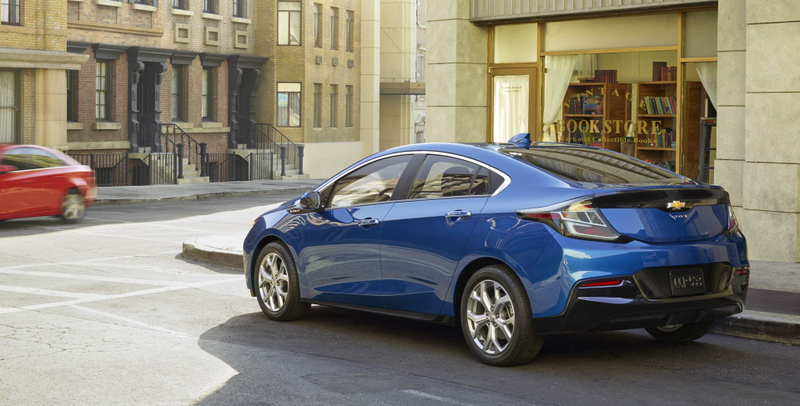

2016 Chevrolet Volt, press photo from Chevrolet. Image: General Motors (source)

Advertisement

Advertisement

The Volt is actually one of the most interesting aspects of this discussion for me. The Volt’s energy consumption depends heavily on charge depleting mode - with range remaining, it’s practically an EV, but as soon as it switches to charge sustaining mode, energy consumption mirrors a conventional gasoline-powered vehicle. It’s like a tale of two powertrains, and after examining this data, it’s very interesting to think about how the behaviour of the current Volt might have influenced the engineering decisions behind the next generation Voltec powertrain that is coming in the 2016 Volt.

This data is from the Downloadable Dynamometer Database (http://www.transportation.anl.gov/D3/) and was generated at the Advanced Powertrain Research Facility (APRF) at Argonne National Laboratory under the funding and guidance of the U.S. Department of Energy (DOE).
