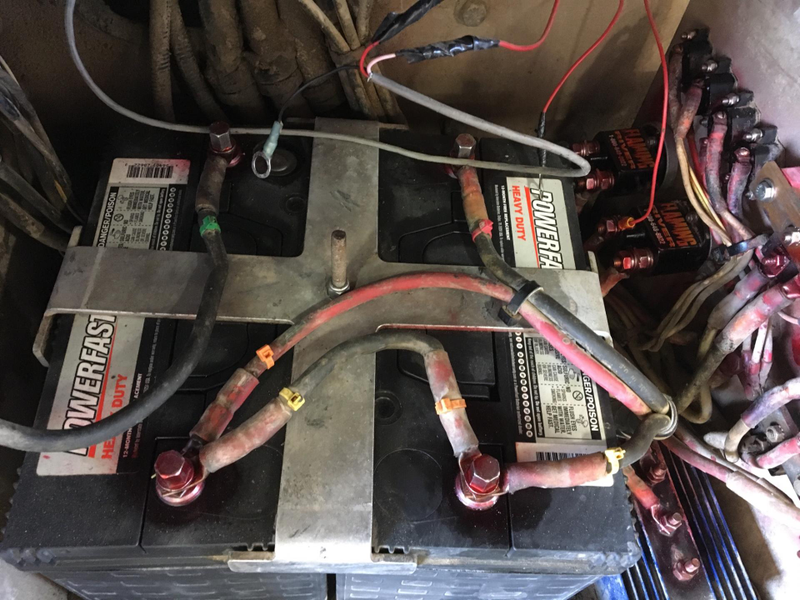

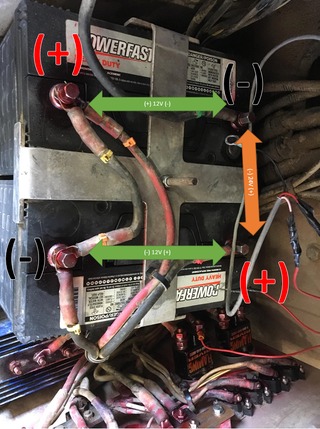

Trying to remotely explain and troubleshoot a 24V battery system to a mechanical engineer through texts and phonecalls is... rough.

Lots of work in Paint too.

Illustration for article titled 24V Systems Are Confusing
Advertisement
Illustration for article titled 24V Systems Are Confusing
Illustration for article titled 24V Systems Are Confusing
Advertisement

I think he’s got it now, but this whole thing can eat a buffet of dicks.

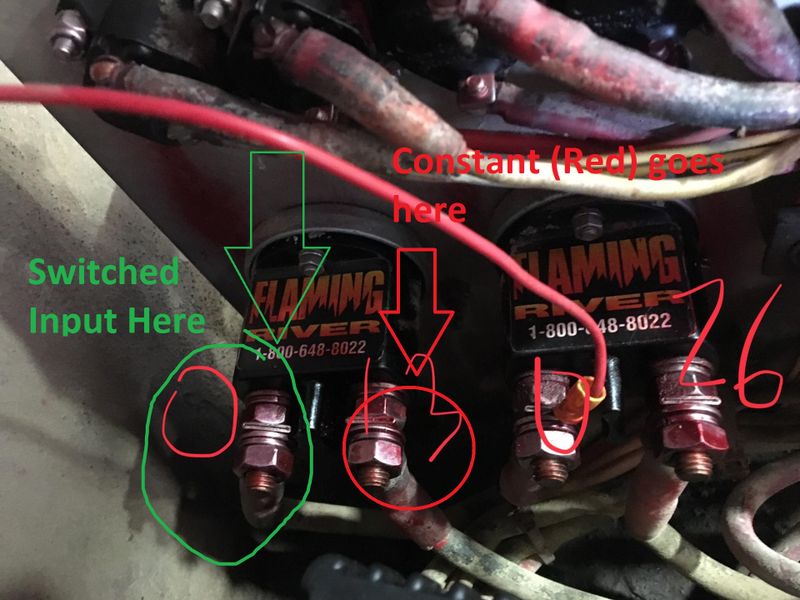

I had the wiring right, but then someone swapped from inline fuses to midget fuses to increase reliability, but apparently put the wires back in the wrong places and made some horrible splices.

Advertisement

We’re talking about putting together a curriculum and doing a crash course in how to not fuck up electrical stuff so Akio doesn’t have to drive to BFE every time something doesn’t work.

I think that’ll be the name of the class.
