41TE Assembly, Pt. V

Illustration for article titled 41TE Assembly, Pt. V

I WANT TO PAHMP... YOO UP

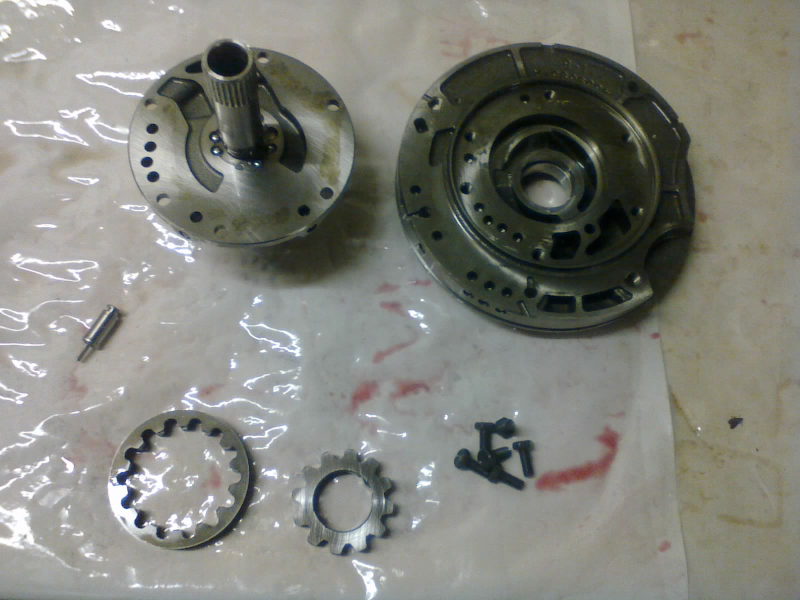

Pump assembly parts & bonus cooler bypass valve
Pump assembly parts & bonus cooler bypass valve
Advertisement

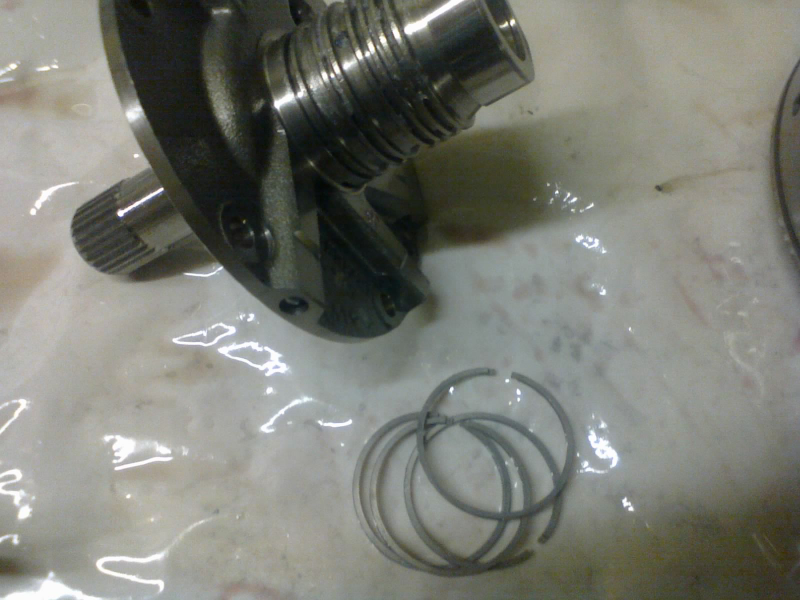

These four new steel rings must go into the grooves on the stator support. Earlier 41TEs had only three, and updating to the 4-ring design is HIGHLY recommended when rebuilding an older unit.
These four new steel rings must go into the grooves on the stator support. Earlier 41TEs had only three, and updating to the 4-ring design is HIGHLY recommended when rebuilding an older unit.

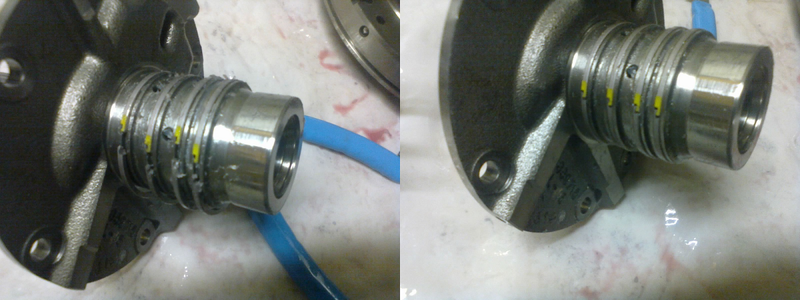

The rings slide into place, then get locked closed
The rings slide into place, then get locked closed
Advertisement

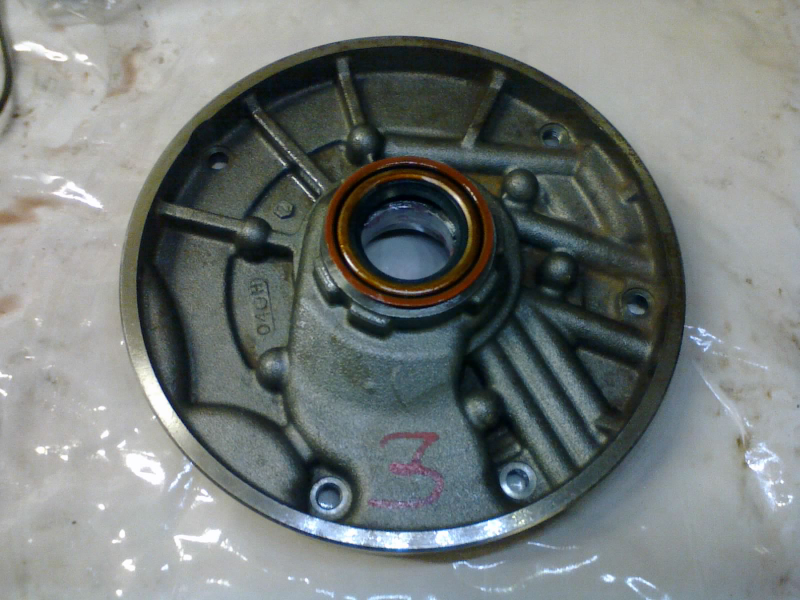

A new seal gets pressed into the pump body. This seal rides against the torque converter snout.
A new seal gets pressed into the pump body. This seal rides against the torque converter snout.

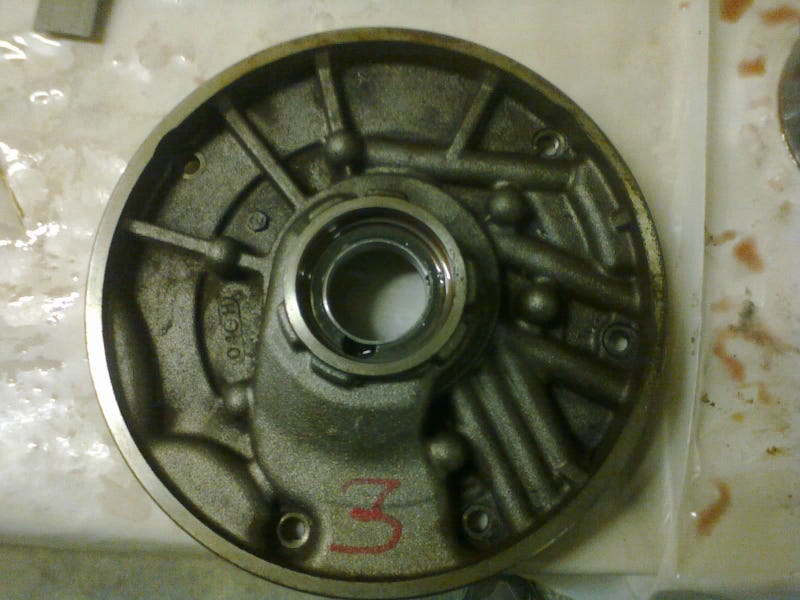

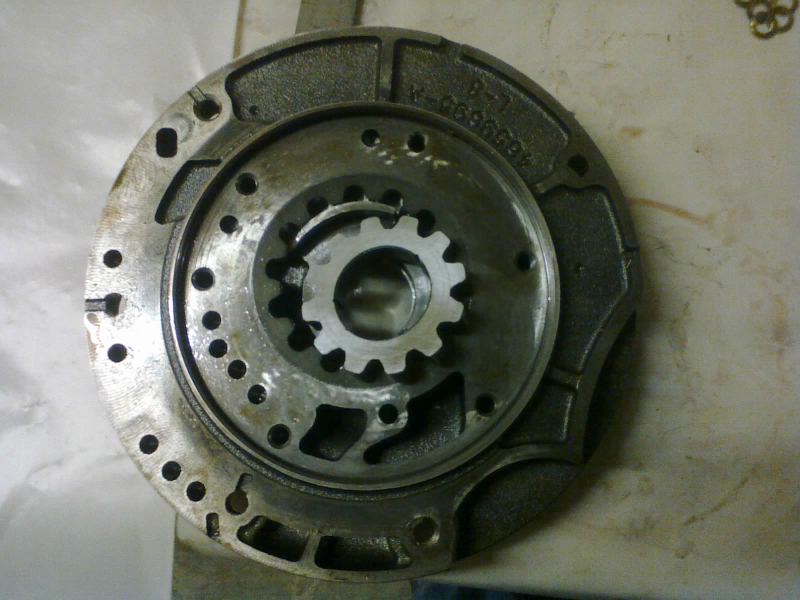

Huh. I guess I don’t have a clean version of this picture. Oh well. there wan’t much cleaning to do, and you probably wouldn’t have noticed anyway if I hadn’t said anything.
Huh. I guess I don’t have a clean version of this picture. Oh well. there wan’t much cleaning to do, and you probably wouldn’t have noticed anyway if I hadn’t said anything.
Advertisement

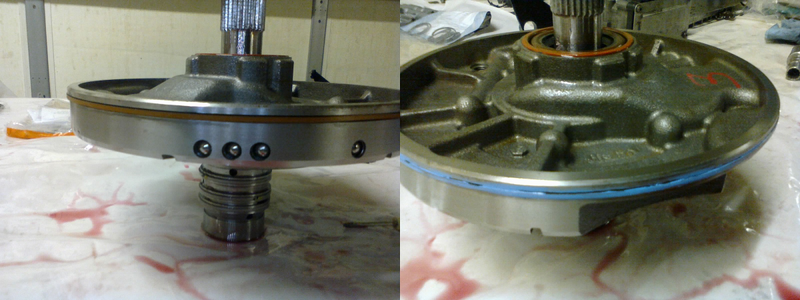

LEFT: After bolting the stator support to the pump body, a new seal goes around the edge. RIGHT: The instructions call for a thin coat of sealant on the O-ring. Weird, but ...okay. I’m not gonna pretend that I’m smarter than the instructions.
LEFT: After bolting the stator support to the pump body, a new seal goes around the edge. RIGHT: The instructions call for a thin coat of sealant on the O-ring. Weird, but ...okay. I’m not gonna pretend that I’m smarter than the instructions.
The rebuild kit comes with new washers for the pump-to-case bolts
The rebuild kit comes with new washers for the pump-to-case bolts
Advertisement
Illustration for article titled 41TE Assembly, Pt. V

Now the core of the transmission is complete, from input shaft to output. Next, we’ll assemble the transfer geartrain & differential... 41TE Assembly, Pt. VI
