41TE Teardown, Pt. I

Photodump time! Who likes potatoes?

This is a Chrysler 41TE, which came out of a 3.8 liter Town & Caravan. Let’s take a peek inside! There are a lot of parts here, but don’t worry; I won’t cram it all into one post.

Advertisement

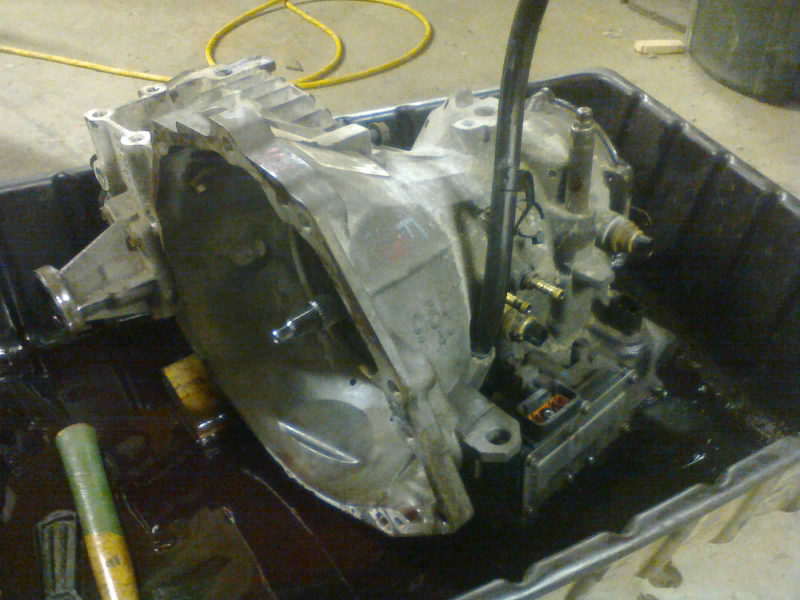

Man, these FWD units sure are compact

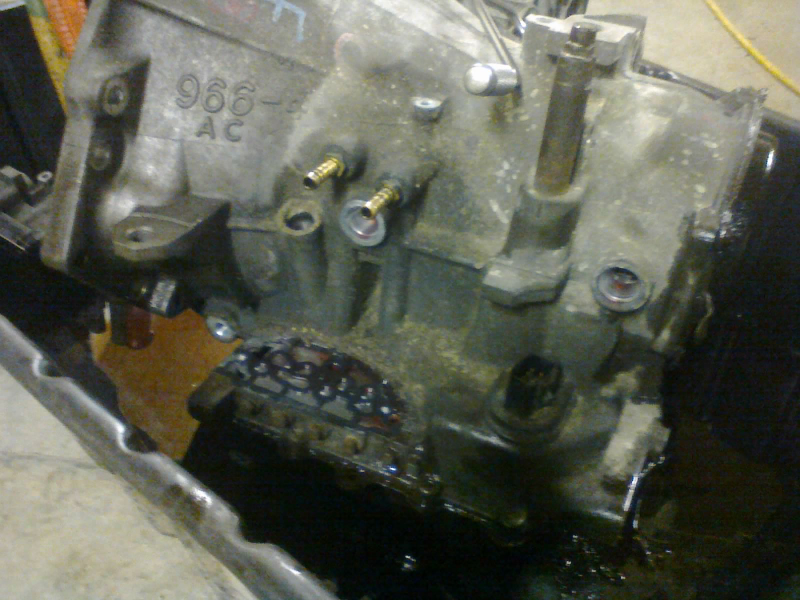

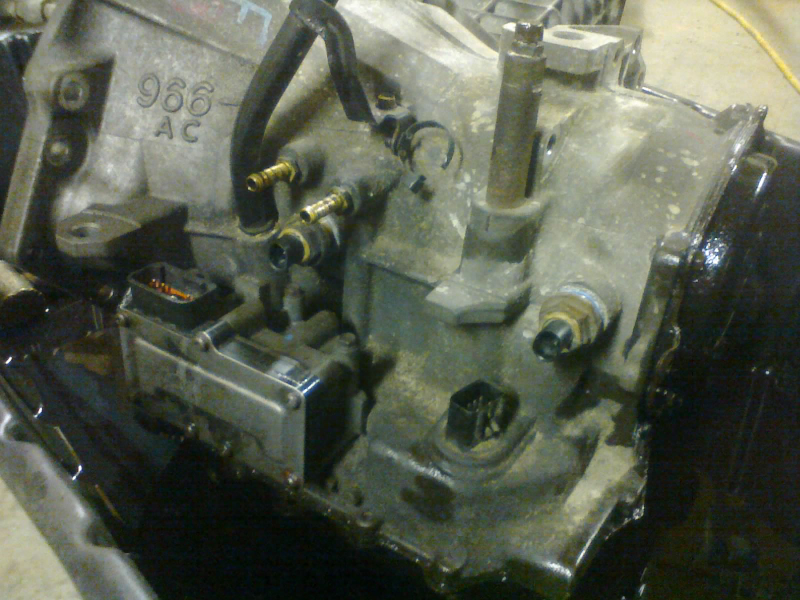

That box below the cooler nipples is the solenoid pack. All together in one block for easy swaps without having to pull the pan. No matter; we’re gutting this thing down to the bone anyway.
Solenoid pack and sensors off
Front pump out (also to be removed: that little cooler bypass valve near the upper-right corner of where the pump was, where you see some ATF pooling)
Advertisement

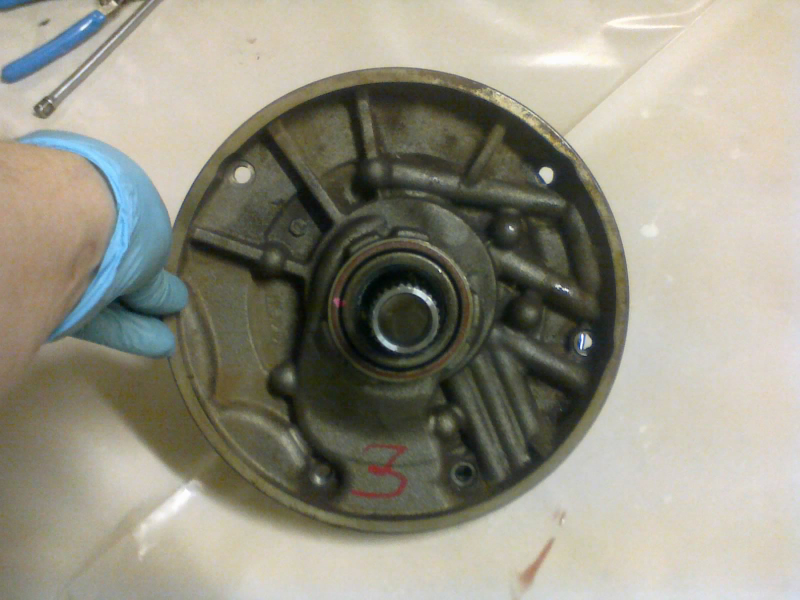

Pump

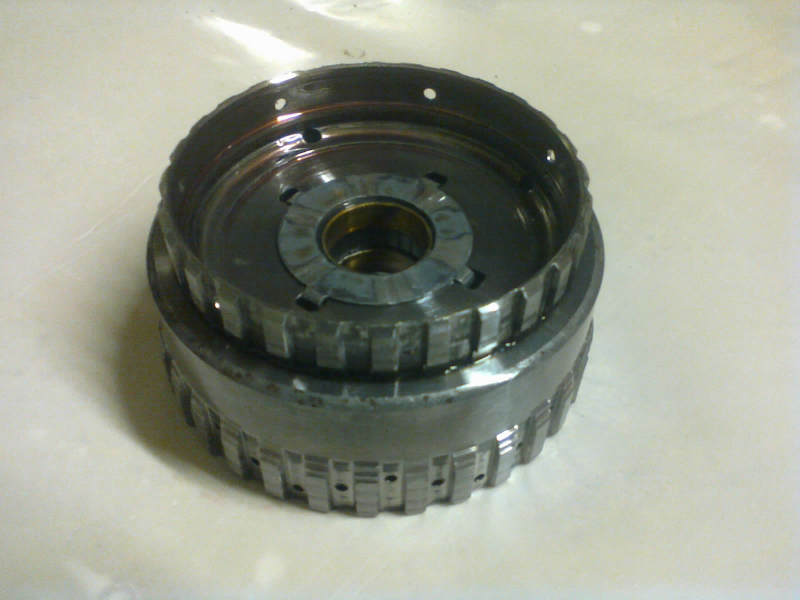

Input drum (THREE sets of clutches inside this thing)
Advertisement

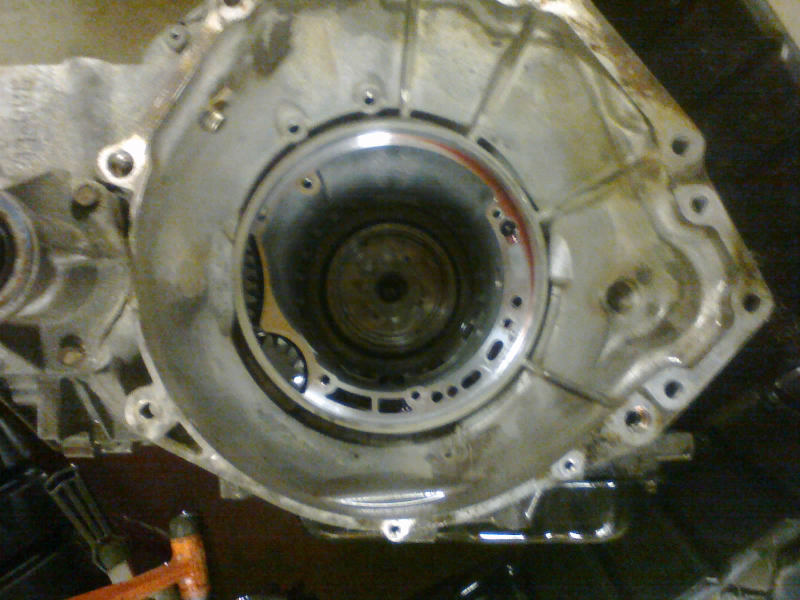

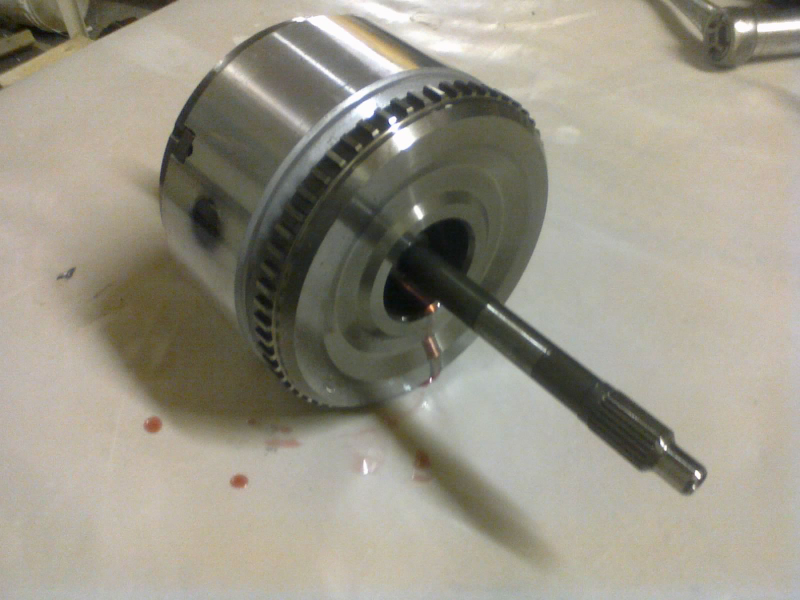

Input drum out
Front sun gear assembly
Advertisement

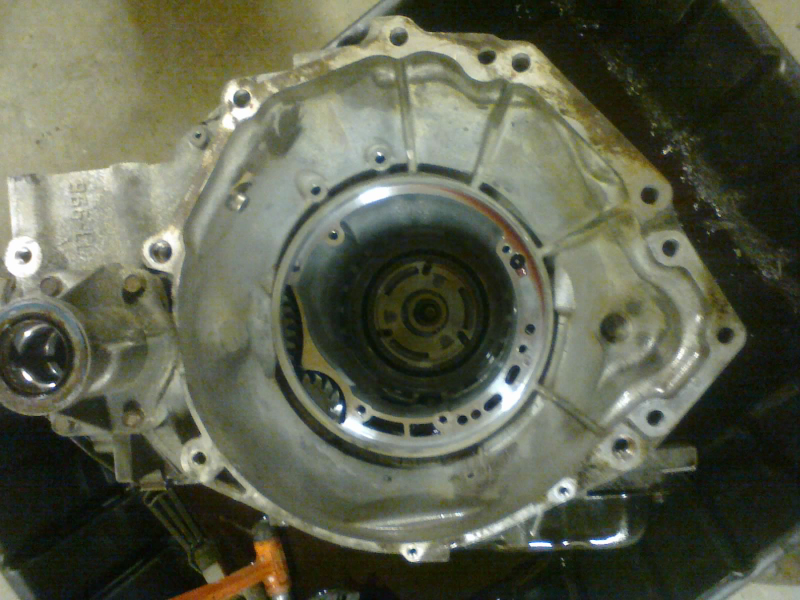

Front sun gear out

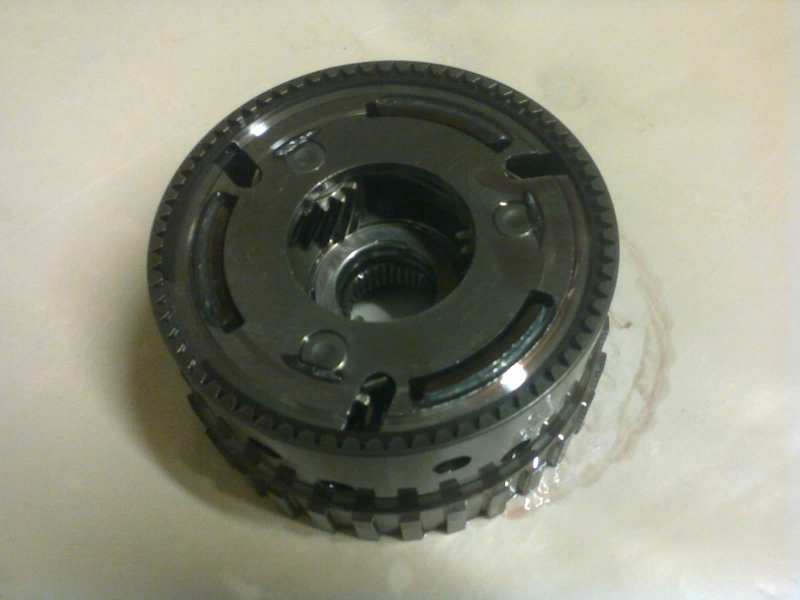

Front planetary
Advertisement

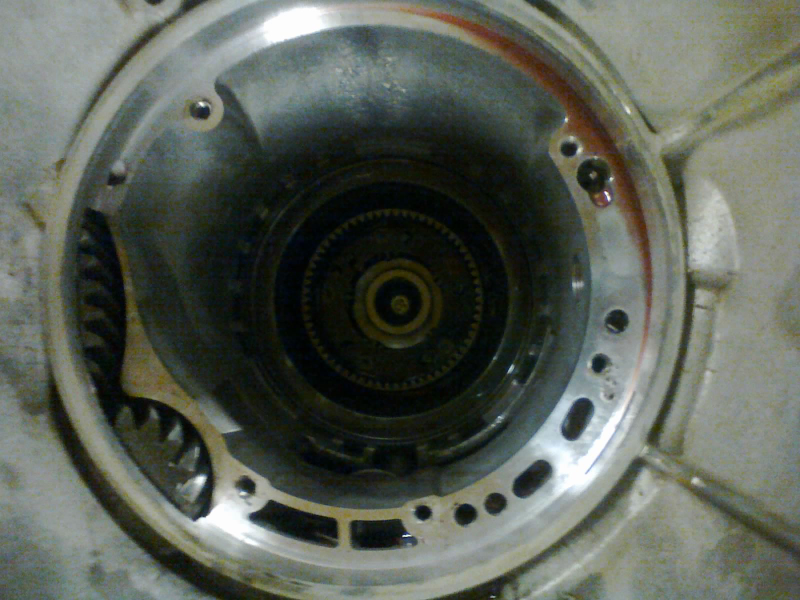

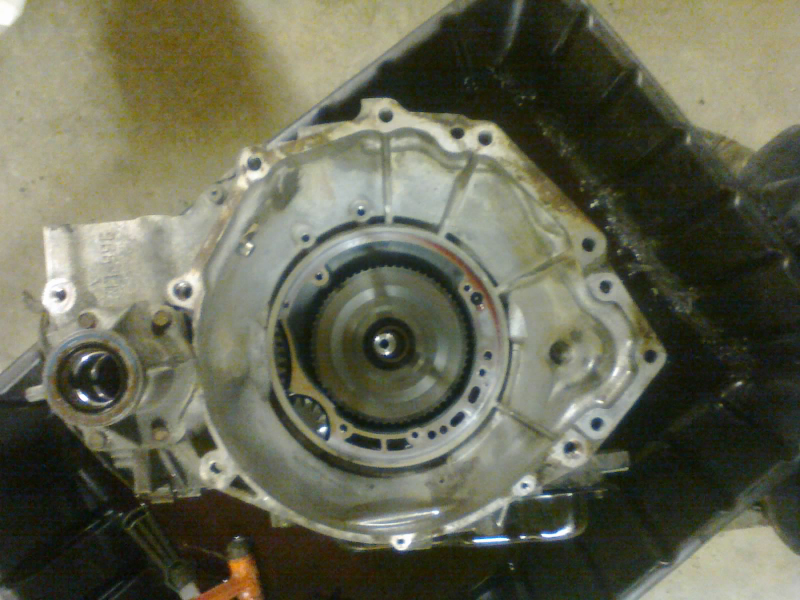

Front planetary out
Rear sun gear
Advertisement

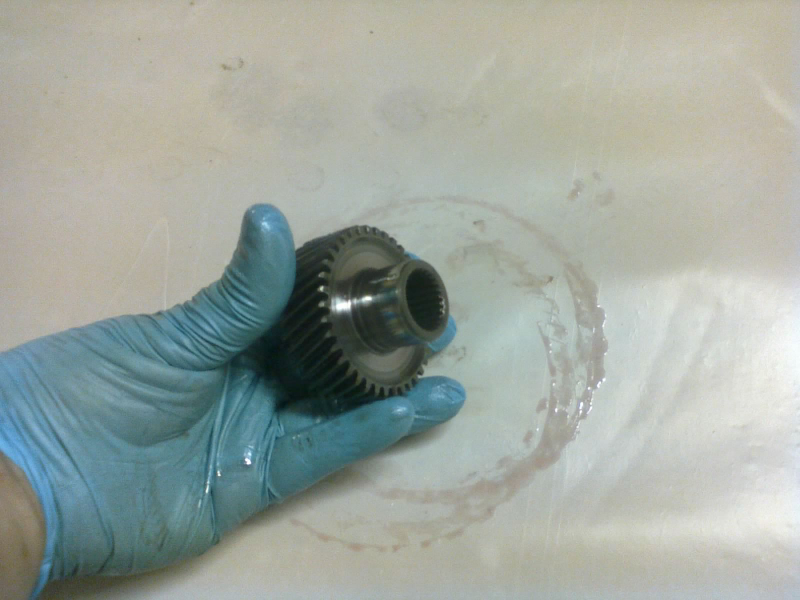

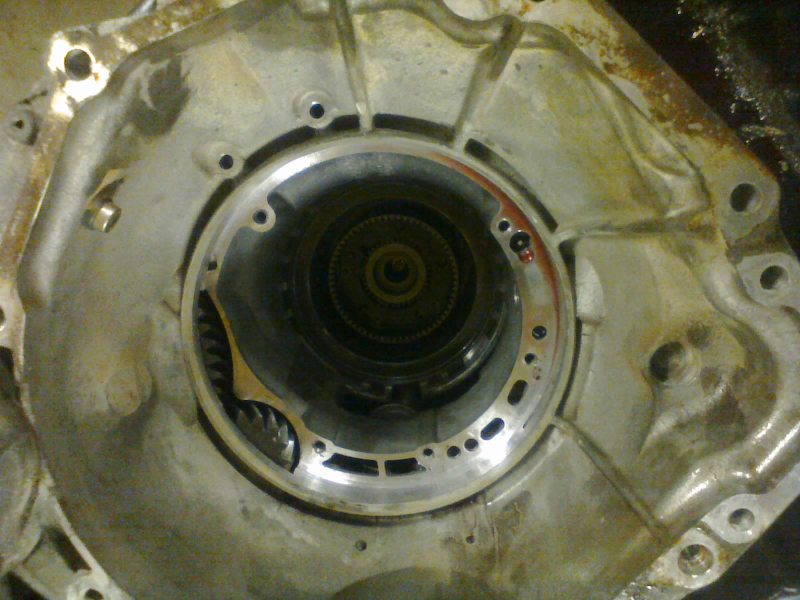

Rear sun gear out

Ok, let’s take a break here. (I hate working on the floor.) Next, we’ll get the case mounted up onto a stand and get some light on the subject so that we can see down in there a little better.
