Friday, 8 November 2013

Theorizing: Red Bulls Splitter/Stay imitating a Mass Damper?

Red Bull's splitter was the topic of some debate at and beyond the Korean GP, I myself looked into the topic when many people on twitter quizzed me over the heat signature Mark Webber's car was showing on the FOM's new Thermal Imaging camera's. In the case of Webber the FOM had decided to utilise a rearward facing camera due to the Hammerhead positioning of the camera housing on the RB9.

2 weeks after my initial post on the topic and on the eve of the Indian GP, fellow Tech analyst Gary Anderson weighed in on the topic lending credence to my original analysis. On the back of this it seems the FIA were also keen to allay any fears that Red Bull may be gaining an advantage from heating the Splitter. Michael Schmidt of German publication AmuS reported that the FIA conducted their own test (in India), heating the front of the Splitter to 300o before performing their usual deflection test on the scrutineering rig.

If you have read both mine and Gary's pieces you'd likely have concluded that we both believed that Red Bull were circumnavigating the deflection test by allowing the Splitter to heat up on contact with the track, transferring the heat to the stay and buckling it. This would effectively allow the Rake of the car to be increased and invariably make gains in downforce from the larger expansion area available at the Diffuser.

Advertisement

The FIA's test disproved this theory but something about the whole situation continued to irk me and so although I have a mounting pile of articles that I have to write, I have spent days trawling through Sutton Images collection and reviewing footage.

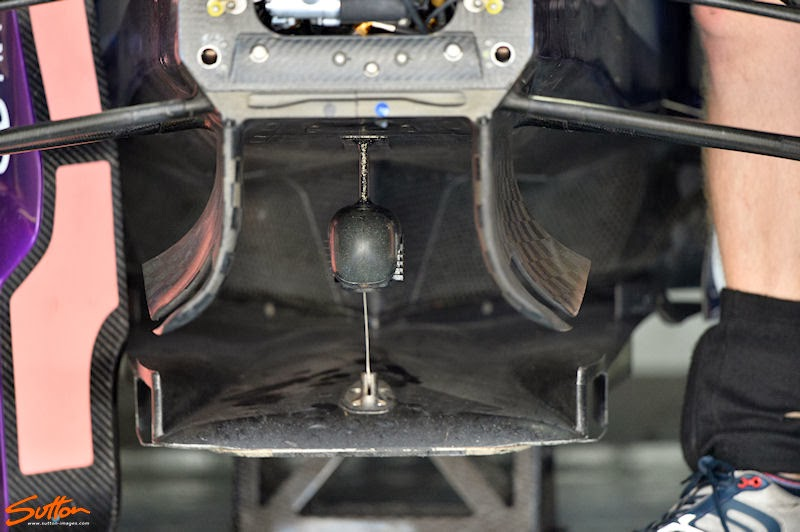

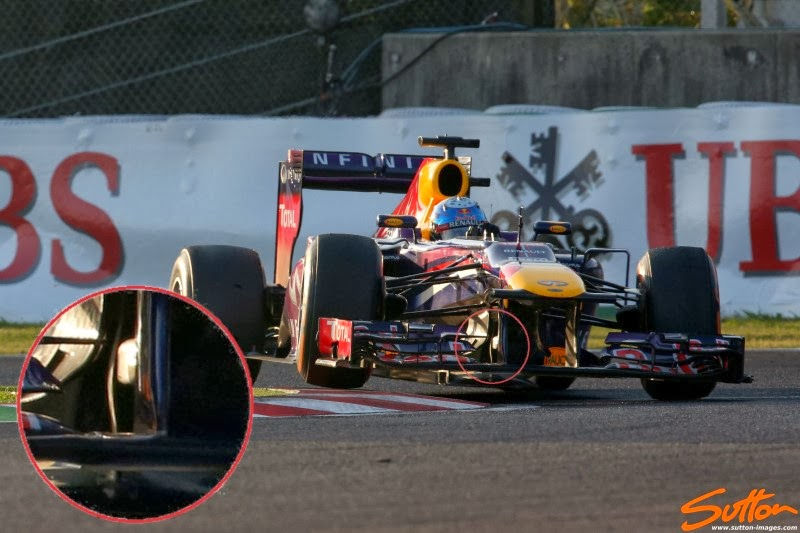

The thing that stood out to me the most when reviewing pictures of the RB9 was that the metal stay that forms the connection between the underside of the chassis and the splitter appears to be buckled. As you will see from the pictures below, the flexion shown in the Stay isn't consistent and appears to move when the car is in motion.

Advertisement
Advertisement

This of course still sent me off down the wrong garden path being distracted by the heating of the Splitter by the titanium skids underneath and once again raising the question of whether heat played a role in the upward deflection of the Splitter (by virtue of the stay being buckled under heat). At this point I decided to take heat out of the equation (as the buckle remained a component of the Stay's design even at rest) and look at why the team might want the Splitter to move, then it dawned on me...

Advertisement

Mass Damping

But didn't the original Mass Dampers get banned?

Yes they did, however the Mass Dampers of 2005/06 consisted of a spring mounted within the nosecone that utilised a weight floated within it (around 9kg's). The premise is that as the tyre deforms under load (without a Mass Damper) you lose both mechanical grip and downforce consistency. We have however all seen the slow motion replays in the past that show the amount of oscillation the tyres have as they ride kerbs, this oscillation has a frequency and if you were able to determine this frequency you could dampen it's effects.

The original Mass Damper's employed in 05/06 were rumored to give a lap time advantage of around 3 tenths but 8 years on and re-designed who can guess what it would be worth? (Last time around we were in the middle of a tyre war with the Michelin runners gleaning a larger advantage than their Bridgestone counterparts)

I therefore propose that in the case of Red Bull the Stay acts like the spring in the Mass Damper whilst the Splitter is the weight required to make the spring act. How about the Splitter's deflection test? I hear you say. Well the stay in itself is rigid and impervious to the 2000NM or 200KG's of force placed upon it on the rig and must not deflect more than 5mm. What you will see in the following video though is that the stay whilst in motion however is resonating at a frequency that allows it to move beyond that 5mm. (Be warned you may have to watch the video several times to see the Stay buckling, also pay close attention to the fact that the stay buckles even though the plank/splitter doesn't impact with the track. Moreover it seems to deflect in opposition to the tyre oscillation). Matching the frequency of the tyres oscillation has a 2 fold effect:

Advertisement

Tyres: As the car corners and exerts load into the tyres they begin to slip, if you can delay this slip then not only should you be able to extract more grip (by virtue of a bigger contact patch) but you will also over a sustained period see less degradation.

Downforce: The damping of the chassis against the tyre deformation means that aerodynamically the car becomes more consistent, this of course means not only are Red Bull perhaps creating the most downforce on the grid, it isn't being spoilt by the natural movement of the car.

Advertisement

The effects of resonance can be widesweeping and suffice to say that doing what I believe Red Bull have doing here would be beneficial in terms of both creating downforce and reducing drag. Having concluded that the Splitter is indeed in motion, albeit not being caused by the heat generated by the titanium skids transferring their heat into the upper face of the Splitter, we can now look at this with more certainty.

The FIA deflection test is conducted in order to ascertain whether the Splitter moves upward as it hits the ground. What of course isn't tested is how much it droops when the stay resonates at the frequency of the tyres. The buckle that resides in the stay when it's at rest allows the stay to deform at resonance therefore moving not only vertically but perhaps also horizontally pivoting in the opposing direction to the deforming tyres.

Advertisement

Lets think of the movements of the car as it enters a corner:

Braking: As the car decelerates the tyres deform, with the sidewall of the tyre squishing outward at the same time the stay would deform vertically, this also minimises the Splitter's interaction with the ground (which due to Red Bull's Rake angle it's already in close proximity) allowing a consistent level of airflow to pass over and under the splitter an onward to both the Diffuser and driving the airflow around the Sidepods.

Advertisement

Turn In: Working in opposition to the tyres oscillation, the splitter and stay dampen the cars movements causing less rolling resistance and therefore hysteresis. As we know heat management of the Pirelli tyres is crucial in terms of degradation and so less hysteresis equals better degradation. As the tyres are having to perform less vertical work we can also assume that a net grip gain and loss of tyre slip is leveraged too.

Apex Speed: Less resistance from the tyre and chassis equates to a more stable car and results in the driver being able to carry more speed through the corner.

Advertisement

Top Speed: With the car able to carry much more speed throughout the cornering phase it's therefore conducive to the car being able to attain a higher top speed. A peculiarity in the case of Red Bull who in terms of setup always tend to favour the generation of downforce. If you have been following my work this season though you'll have undoubtedly noted how much Rear Wing angle the team have shed since the middle of the season. This is of course because downforce generated at the Rear Wing is 'dirty' and invariably comes with a much larger drag penalty than the downforce generated in the Diffuser. By reducing the wing angle and changing the gear ratios the team have been able to become fast not only in the corners but on the straights too.

So what was all that about with the Splitter heating up on the Thermal Imaging camera?

Advertisement

Red Bull as we know run an aggressive amount of Rake which means occasionally under braking etc the Splitter and the plank housed within it could contact the ground. If this were to occur over a sustained period it would mean the car would fail the post scrutineering check which allows 1mm of the plank to be worn away. The titanium skids are placed under the plank to stop this wearing from happening and in the case of Red Bull it appears the heat is then transferred into the upper surface of the Splitter and dissipated, like a heatsink. This is why we see the team putting drill marks in the upper surface too as it helps to increase the surface area and promote the direction in which they want the heat to dissipate.

If we were to look back at the history of the original Mass Damper's in F1 we would of course know that Renault pioneered the device that was subsequently copied by others before the FIA banned it. It's a name though that we really should turn our attention to; Rob Marshall, Red Bull's Chief Designer pioneered the original Mass Damper when he worked at Renault. So it's no wild stretch then for the team to take advantage on an area of the car that worked so well in the past and redesign it for the prevailing trend / regulations / technology available. If you'd like to cast your mind back to this time last year I also posed the same question on the aeroelasticity of Red Bull's nose in creating a similar effect. Rarely in F1 do we truly see an new innovation, the boundary pushing is usually a team taking a pre existing idea and applying it a new way, this I believe is another case of just that.

Advertisement

So if they are doing it, is it legal?

Well only Charlie Whiting and the boys can truly determine that factor but as the Stay is allowable in the technical regulations and only need pass the upward 200KG deflection test on the rig I don't see why it wouldn't be. Although just like the original Mass Damper if it were to be found in use does it constitute a 'Moveable Aerodynamic Device'? Red Bull could argue just like Renault did that the device is moreover there to stabilise the car through harmonic matching.

Advertisement

Why hasn't X,Y,Z copied it?

Perhaps because they haven't noticed it, someone has to start a revolution for there to be one in the first place... (Renault started the last one, in terms of Mass Dampers) or perhaps they have but just haven't implemented it to the same level as Red Bull... Ferrari are their closest rivals who have a chance to, as they too run the metal Stay. Mercedes don't utilise a Stay, whilst Lotus use a Carbon Fibre one.

Advertisement

I'm guessing Red Bull had the option to run this at the start of the season, then swiftly found that the tyre construction wasn't conducive to it's application or didn't yield as large a result as on the 2012 construction tyres. As we can see below Red Bull actually utilised a different stay prior to the change of construction mid season.

There are a few more pictures in the article that help further illustrate his point, but I think y'all get the gist. I think he may be on to something, and I always think it's interesting to see teams come up with unorthodox ways around the rules so I found this very interesting indeed. What do y'all think?
