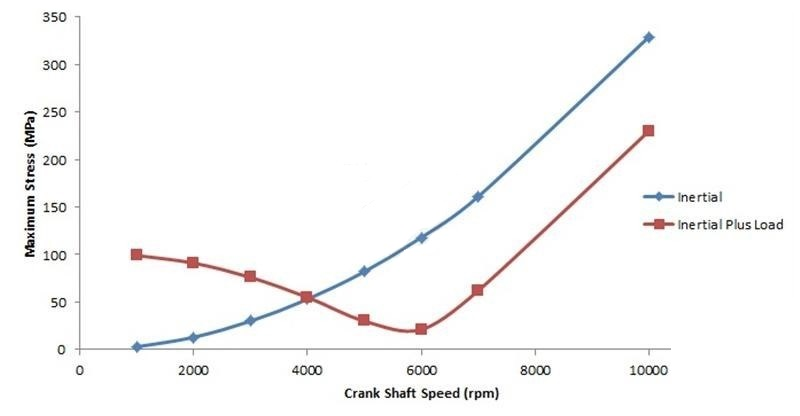

That as engine speed increases, the net forces on the connecting rods decreases up until a critical rev range? What happens is the combustion pressure acts against the inertial force from the piston/rod. So as the inertial forces increase, the compressive force from combustion is negated. Past a critical speed however, the exponentially increasing inertial forces will surpass the compressive combustion forces and the net stress in the connecting rod at tdc is actually in tension not compression!

Illustration for article titled Did you know
Advertisement

I should add, if you decrease the mass of the connecting rod/piston you delay the critical minimum stress to a higher engine speed. Likewise, if you also decrease structural integrity of the components while lightening, structural failure of the connecting rod at lower speeds becomes more probable.
