Technical innovation is what makes Formula 1 so different from any other form of racing. The on track action is as much played out by the engineers and aerodynamicists as it is the drivers. We are here to admire, study, and discuss this beauty that exists on the ragged edge of what we think is possible, or at least what we thought was possible.

Advertisement

Discussions and questions are welcomed and encouraged in the comments section below.

Testing - Jerez, Spain

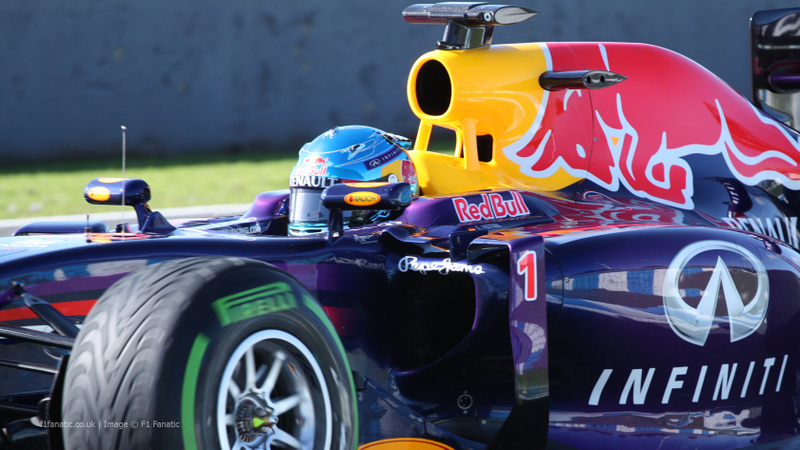

Red Bull

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

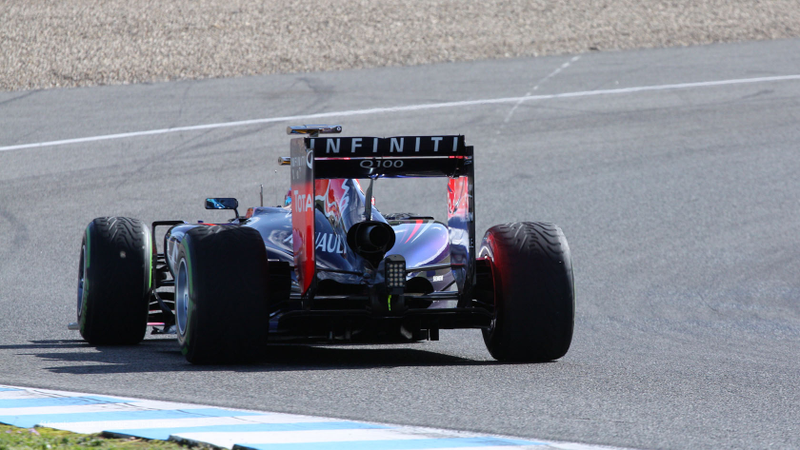

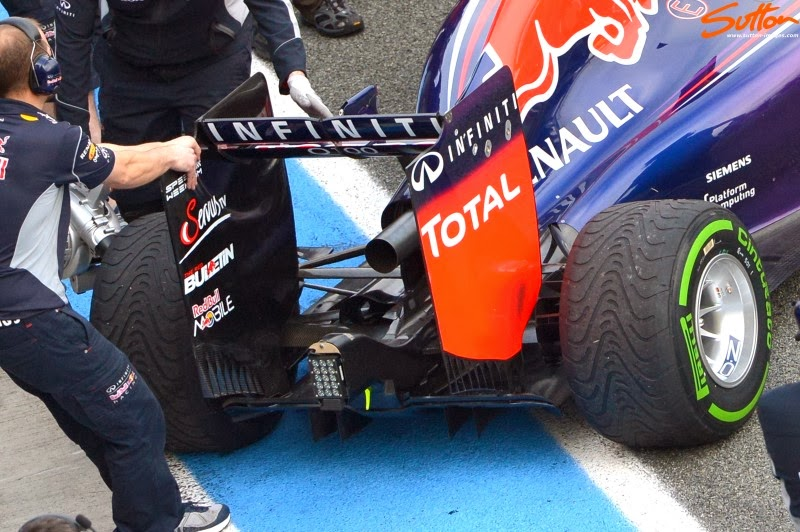

RB10 rear end detail.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

The RB10 chassis is sporting a single central rear wing support that is mounted from the top of their engine cover bodywork, instead of going all the way down to the floor like other teams.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

Red Bull have retained their flow modifiers/voracity generators despite the lack of a coanda-style exhaust.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

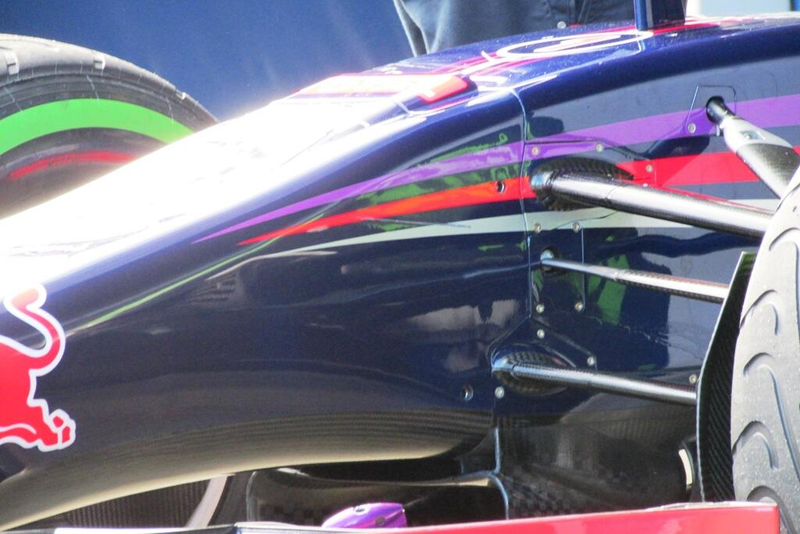

The outlet for Red Bull's 'S-Duct' can be seen exiting the top of the nose, just before the bulkhead separation; the inlet is just below, on the underside of the nose.

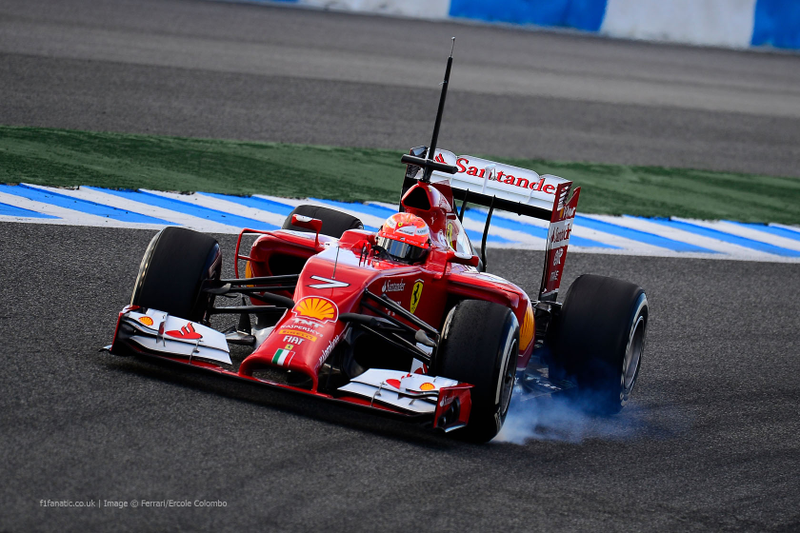

Ferrari

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

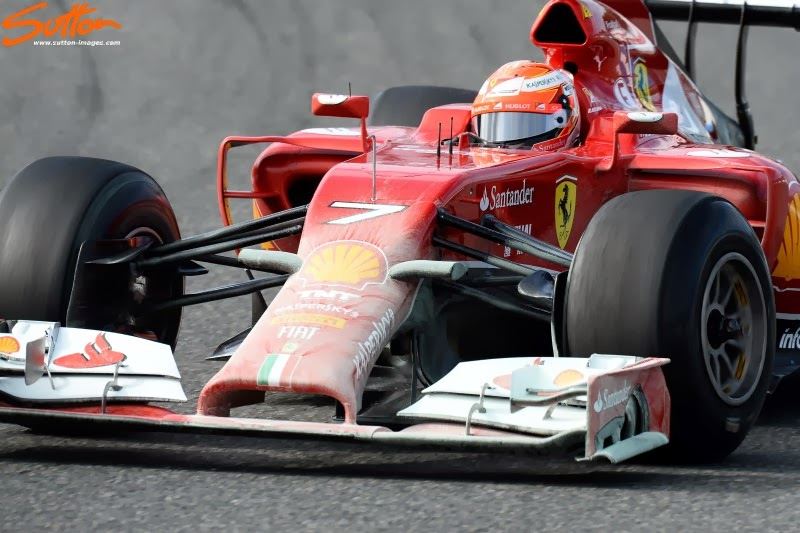

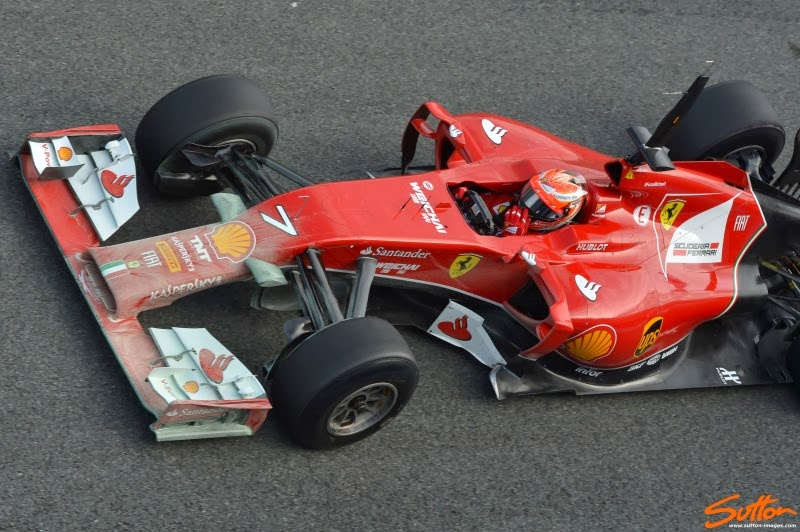

Ferrari utilizing flow-viz paint on the front of their F14T, both on the nose, and on their front wing. this paint will flow with the air moving around the car and give the engineers a better understanding of how their aerodynamic parts are working around a circuit that computer and wind-tunnel models just can't quite replicate.

Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

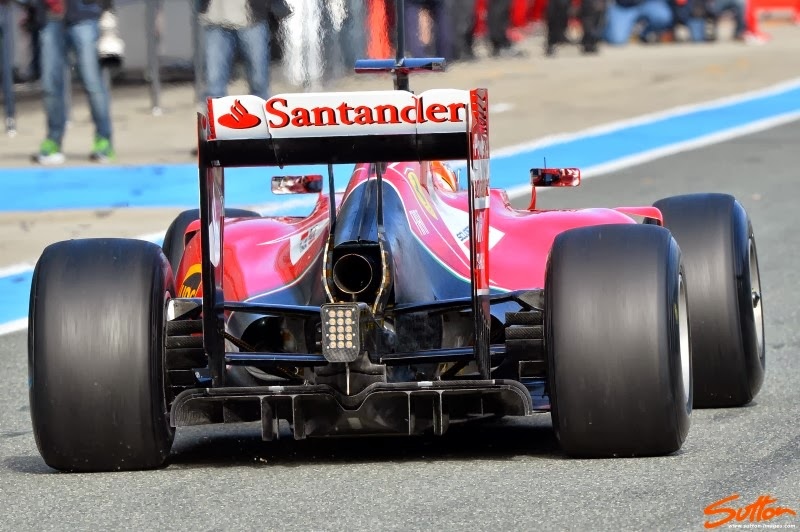

F14T rear-end detail.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

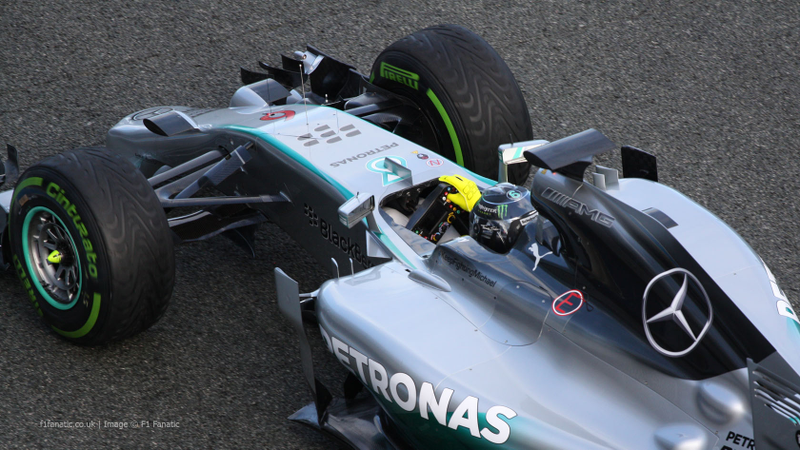

Mercedes

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

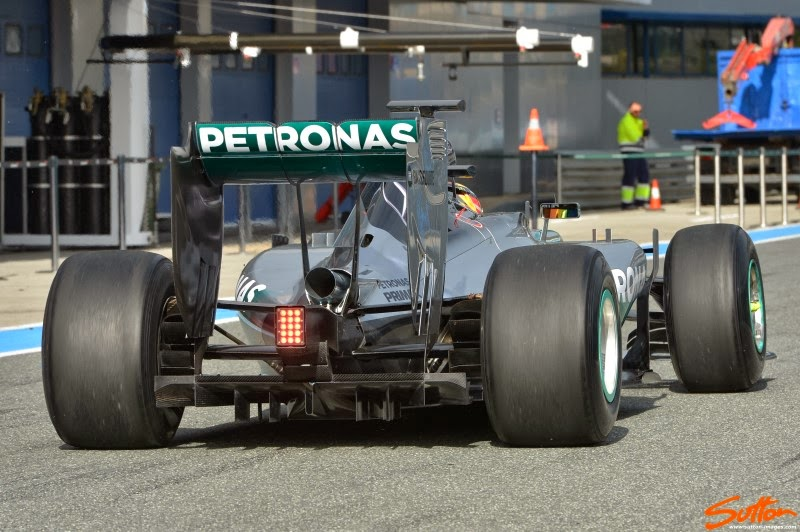

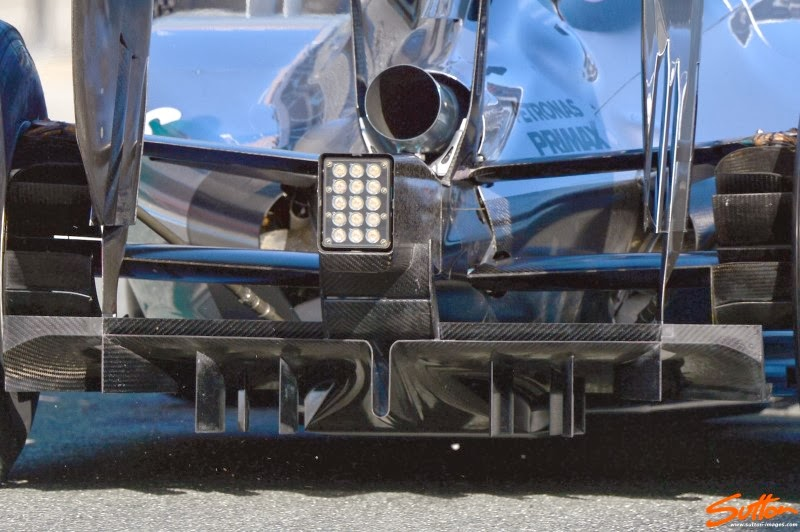

Note the looped diffuser strake on the centerline of the W05 chassis; each team run different rear diffuser configurations.

Advertisement

Also note the W05's lack of rear cooling vents relative to the Toro Rosso chassis below.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

McLaren

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

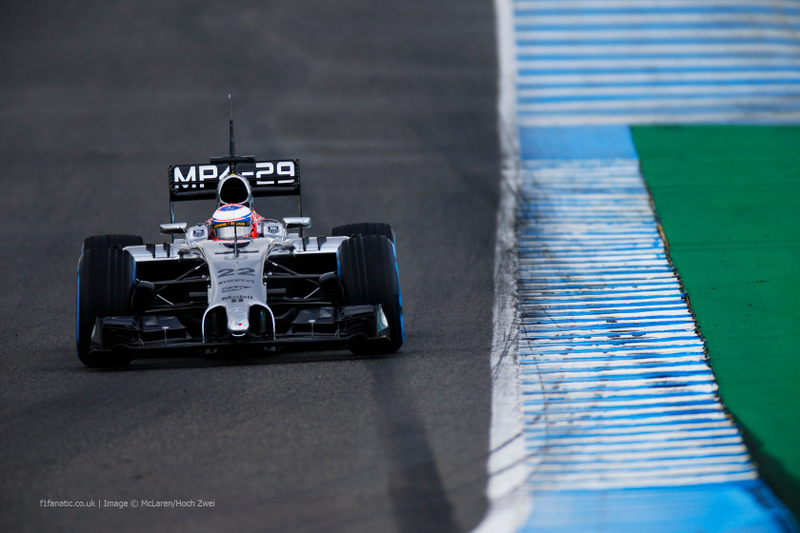

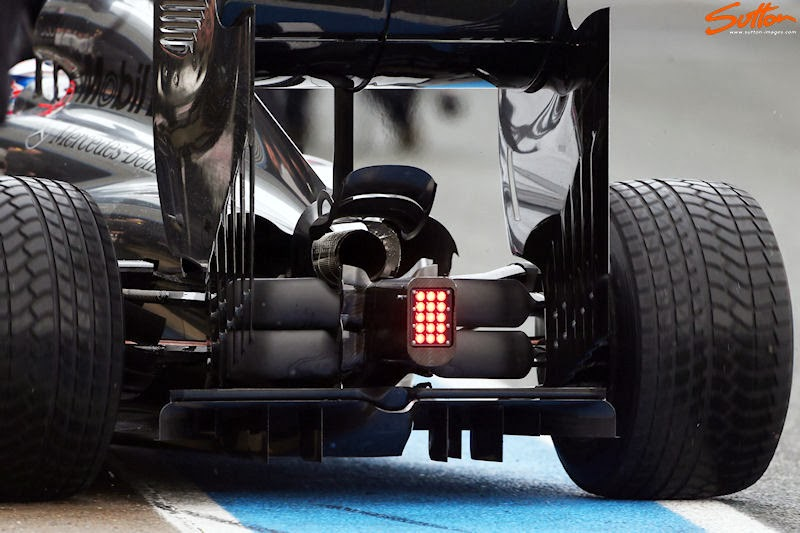

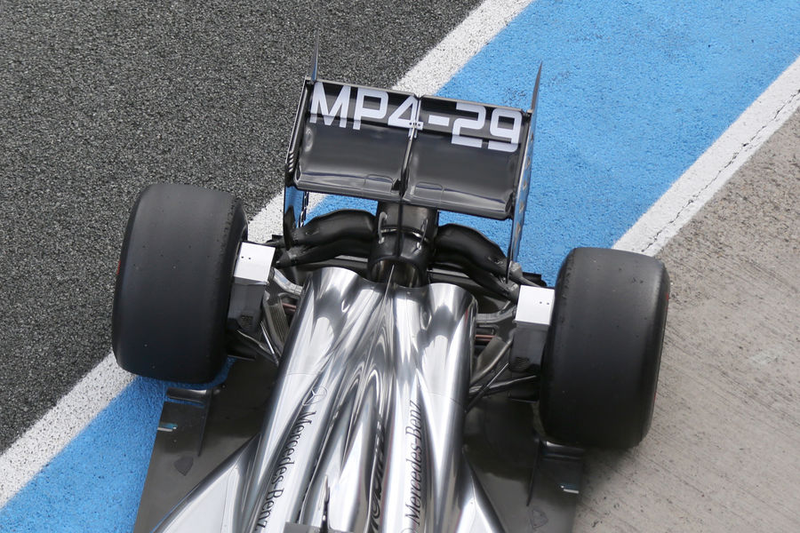

McLaren may be the keeper of a certain silver bullet (2014's double diffuser, blown diffuser, coanda exhaust, f-duct, etc). See if you can sort out what it is in the pictures below, before clicking the link.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

Toro Rosso

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

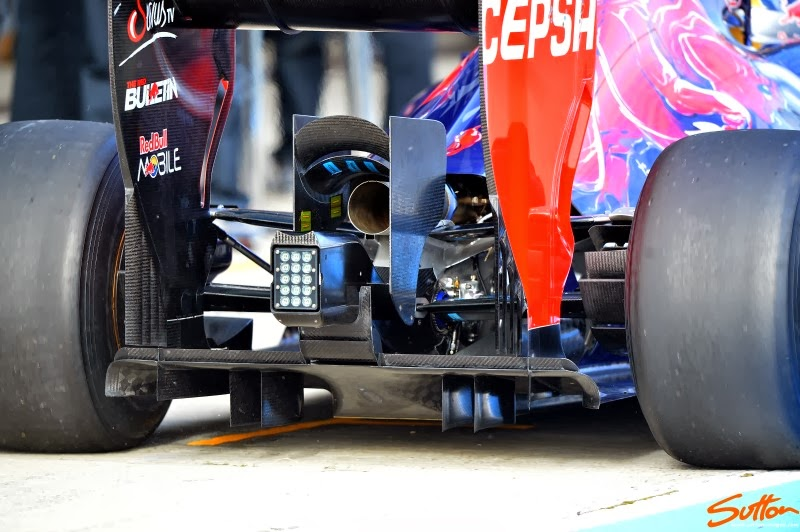

Toro Rosso is one of the teams to utilize a Y75 winglet (aka monkey seat) above their exhaust outlet to try and flow the gasses up toward the underside of the rear wing. The blue and yellow stickers on the underside and supports of the monkey seat measure temperature; this way the team will make sure the carbon doesn't deform or melt.

Advertisement

Sauber

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

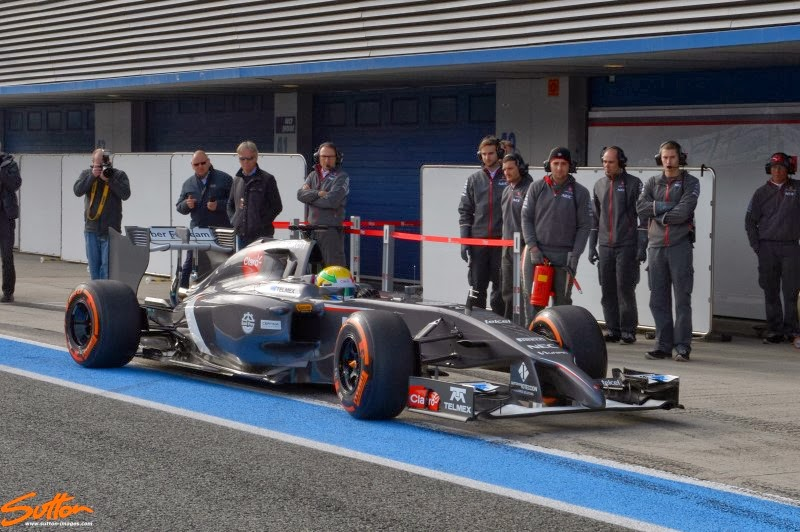

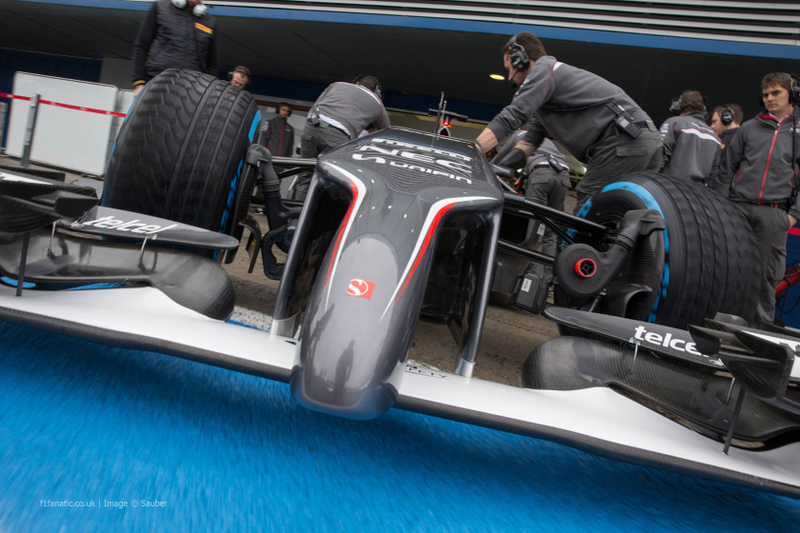

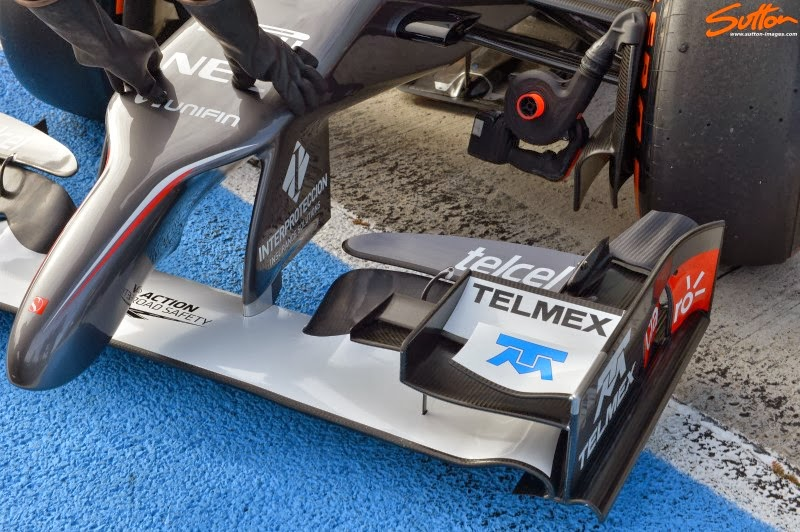

Sauber seem to have a relatively minimal front wing on their C33 chassis, as least for font-downforce sake.

Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

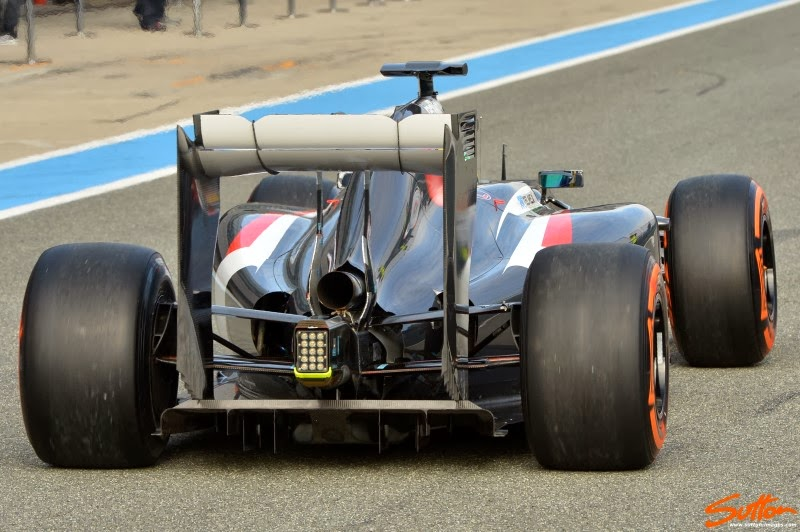

C33 rear-end detail. the top of the diffuser looks to support some sort of gurney flap, though I can't be certain on the bodywork's purpose.

Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

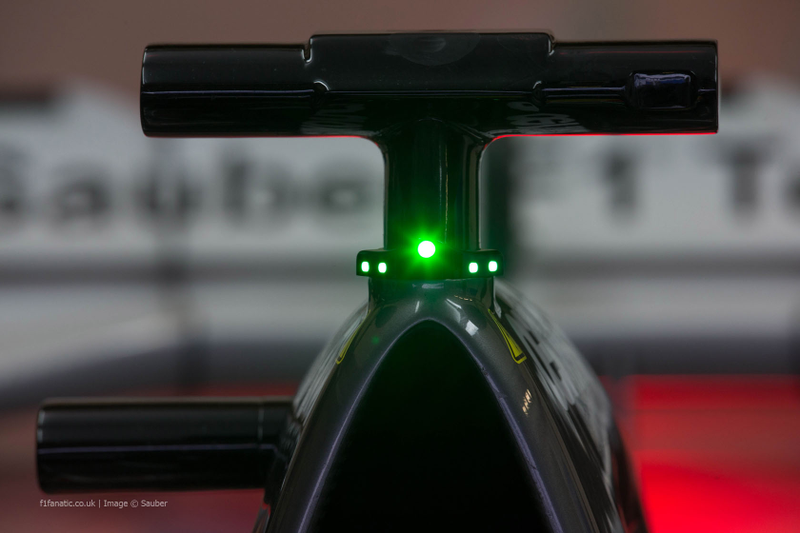

These new LED lights adorn all of the new 2014 chassis. Green means that the electrical systems are okay, and it is safe to approach the car. Red means that the electrical systems are in some sort of hazard, and it is not safe to approach the car in a normal fashion.

Force India

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

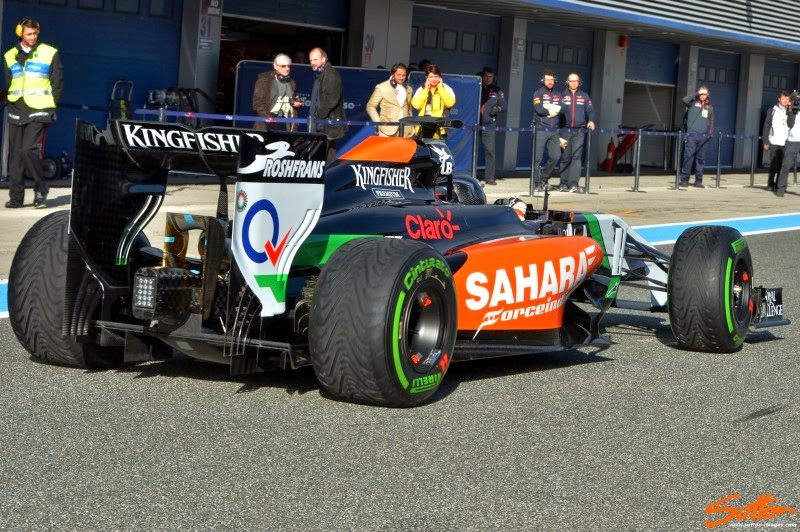

VJM07 rear-end detail. Force India also run a Y75 winglet, though the design supports only 1 element.

Williams

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

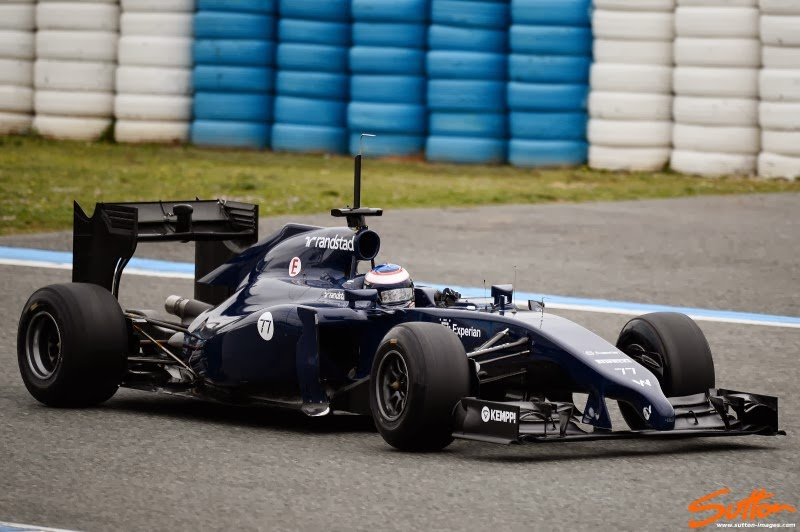

If you look closely enough, multi-element wing mirrors can be made out on the FW36 chassis.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

Notice the undercut on the sidepod of the Williams chassis for routing the maximum amount of air back toward the top of the rear diffuser..

Caterham

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

The CT05 runs possibly the biggest sidepod inlets of the entire f1 paddock.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

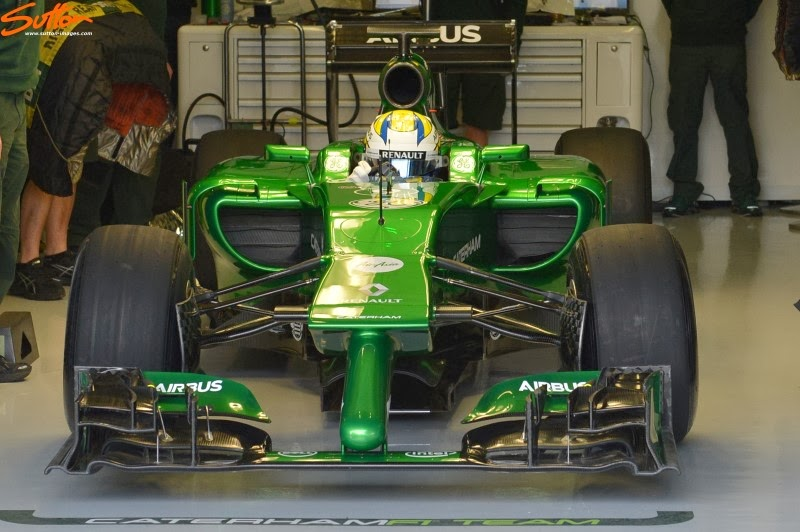

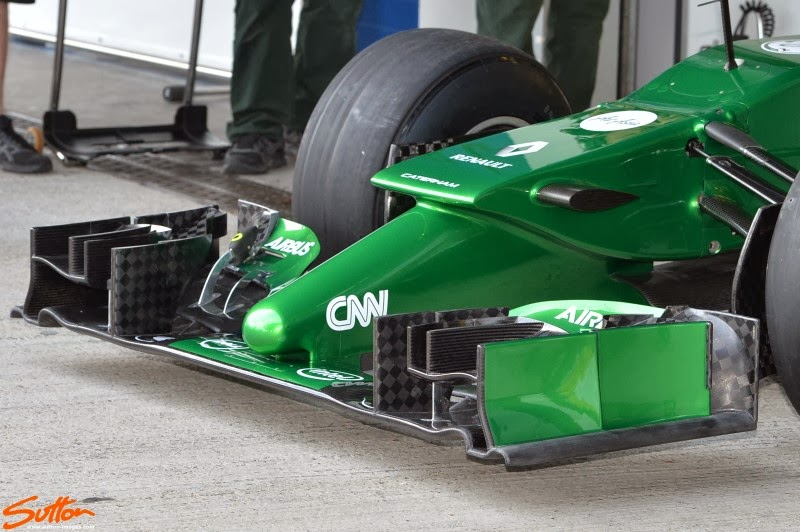

CT05 nose and front-wing detail. I am worried about the lift the underside of the thicker section of the Caterham's nose creates.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

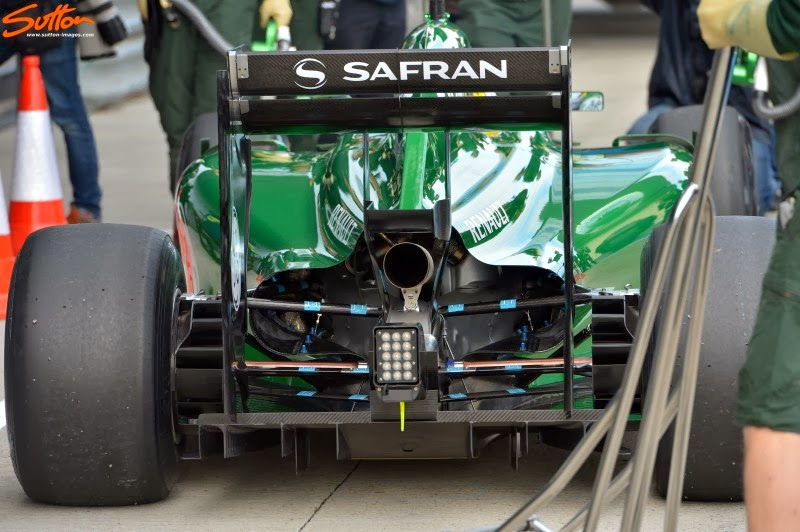

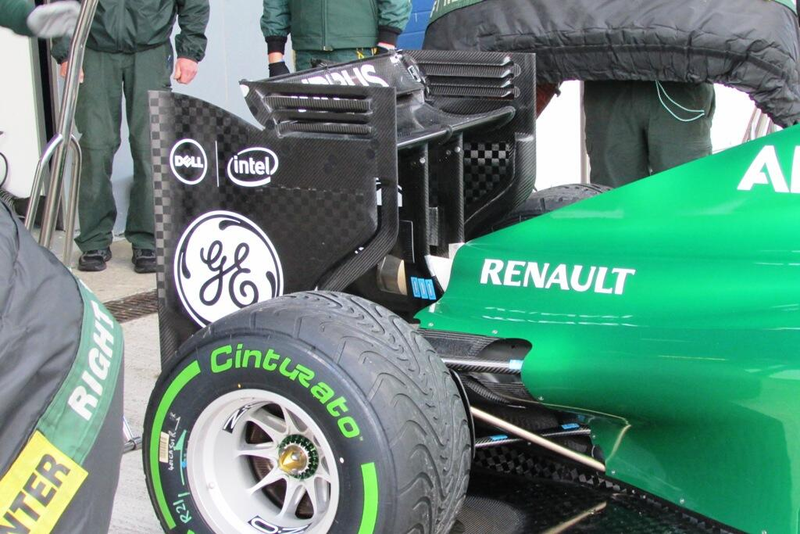

CT05 rear-end detail.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement
Illustration for article titled Technically Formula 1 - Jerez Testing Day 1

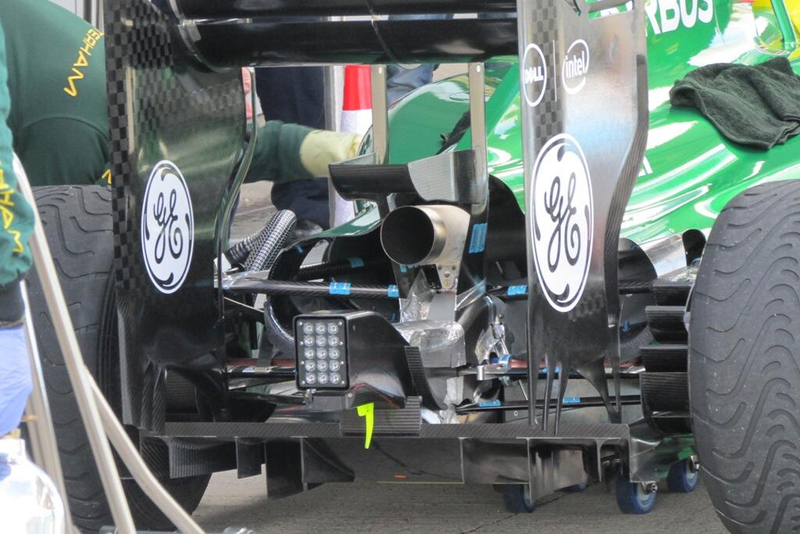

CT05 rear-end detail.

Illustration for article titled Technically Formula 1 - Jerez Testing Day 1
Advertisement

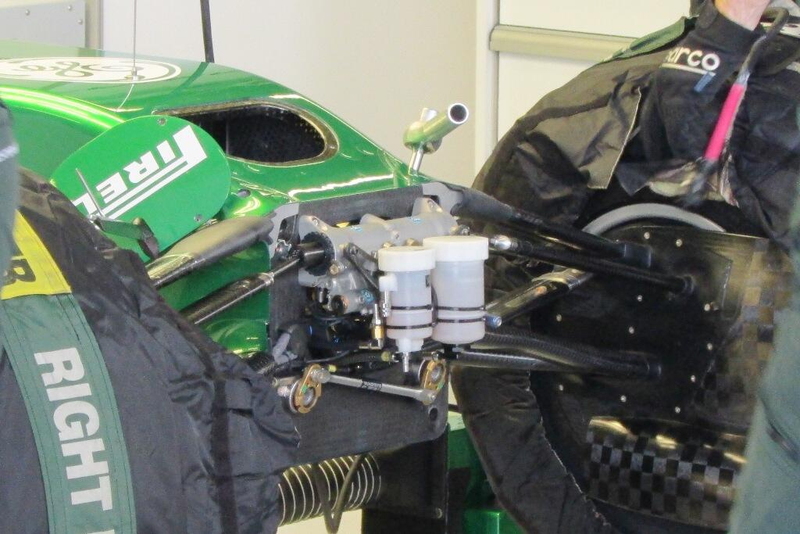

Caterham have made the switch to pull-rod style suspension.

[Select images from Somers F1, F1 Fanatic, and Craig Scarborough]
