Technical innovation is what makes Formula 1 so different from any other form of racing. The on track action is as much played out by the engineers and aerodynamicists as it is the drivers. We are here to admire, study, and discuss this beauty that exists on the ragged edge of what we think is possible, or at least what we thought was possible.

For more technical intrigue, be sure to check out this year's previous testing days.

Discussions and questions are welcomed and encouraged in the comments section below.

Advertisement

Testing Day 4 - Jerez, Spain


Red Bull

Advertisement

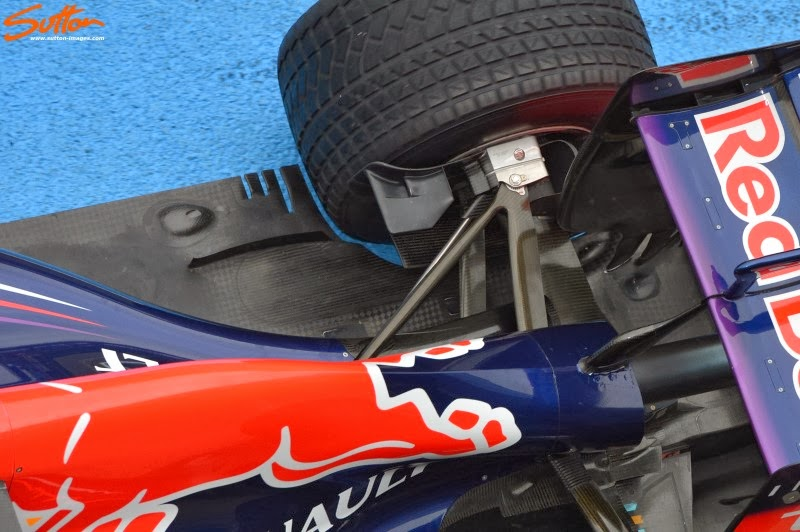

Notice the slots in the floor and the elongated strake leading up to the edge of the tire. These are what the teams have to now run, somewhat in excess due to the loss of the blown diffuser in an attempt to deal with tire squirt, the turbulent air running off the rotation of the tires.

Advertisement

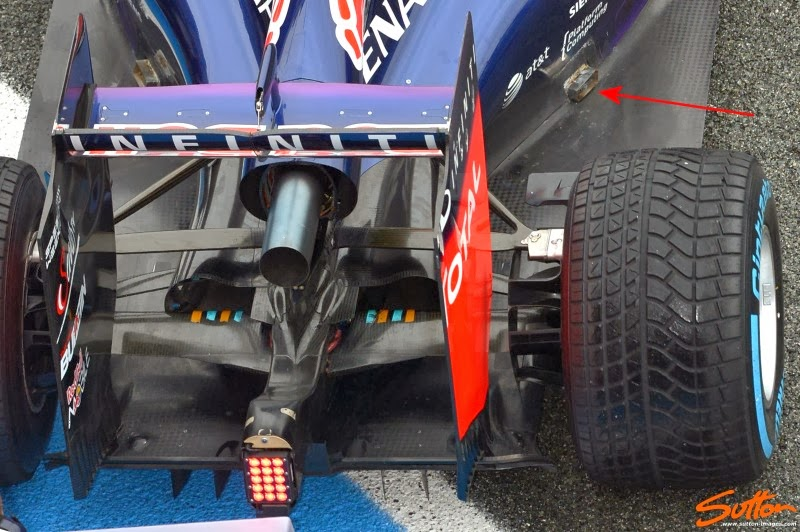

The red arrow above is pointing to venting outlets that were made in a hurry. Red Bull, and their engine manufacturer Renault, are having quite a bit of trouble in Jerez; the former for cooling issues, and the latter with engine problems.

Mercedes

Advertisement

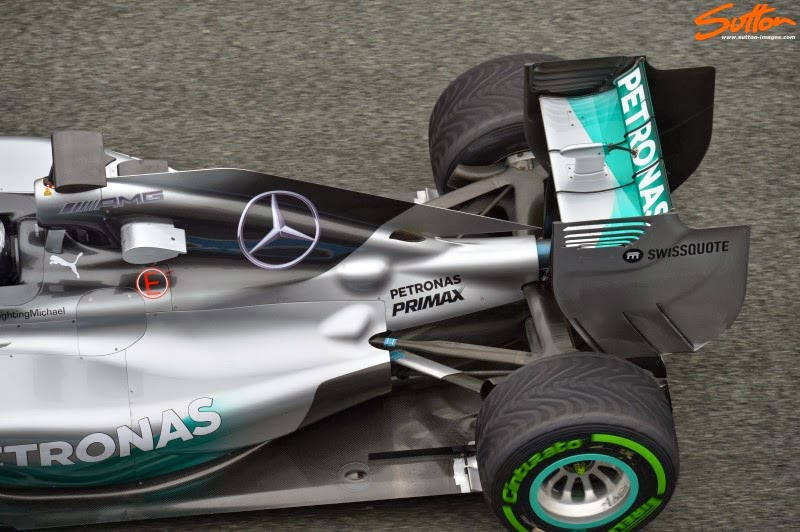

W05 rear end detail.

Ferrari

Advertisement

Rumor is that the Ferrari powered cars have the easiest time dealing with cooling; this is why Ferrari can sun such small sidepod and airscoop inlets relative to the rest of the field.

Advertisement

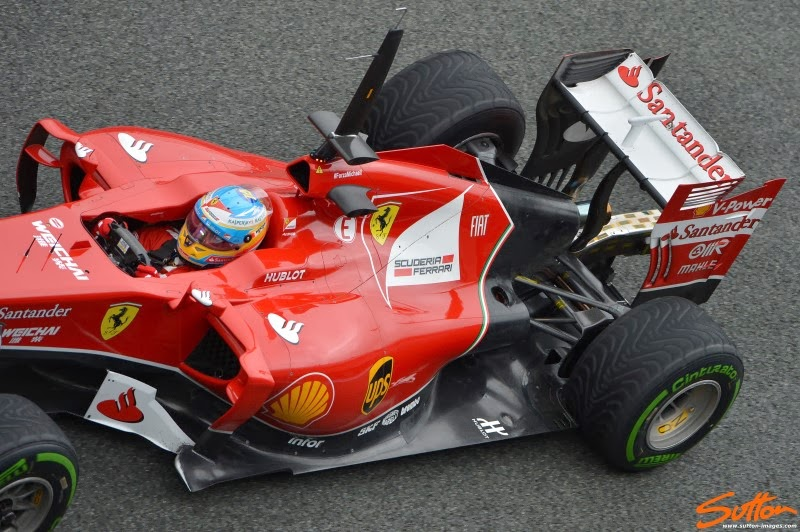

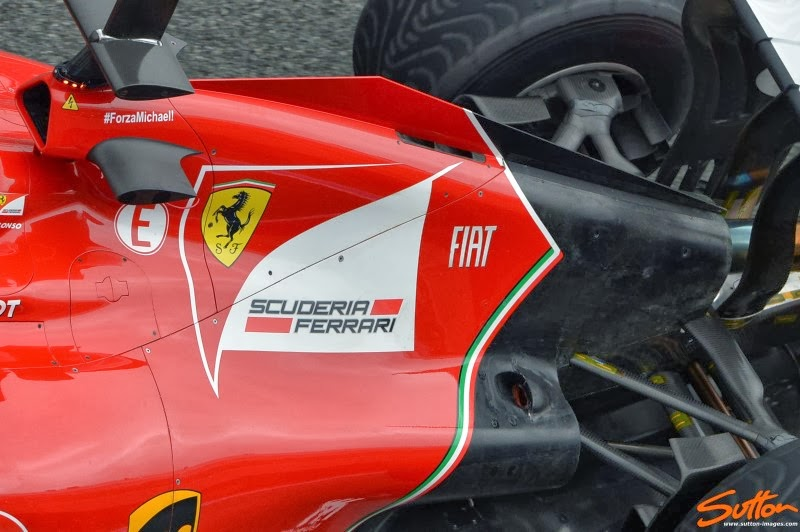

A small opening at the rear of the sidepods, just before the cooling exit, has appeared on the F14T.

McLaren

Advertisement

Some overhead shots of McLaren's Wishbone Wings, Butterfly Suspension, Shroomspension, or whatever you want to call it, that came out from under the covers on day 2 of testing.

Advertisement

Advertisement

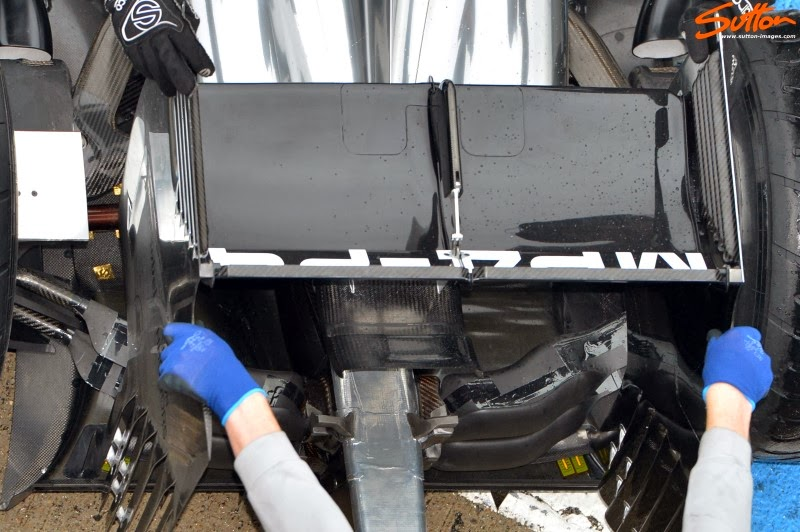

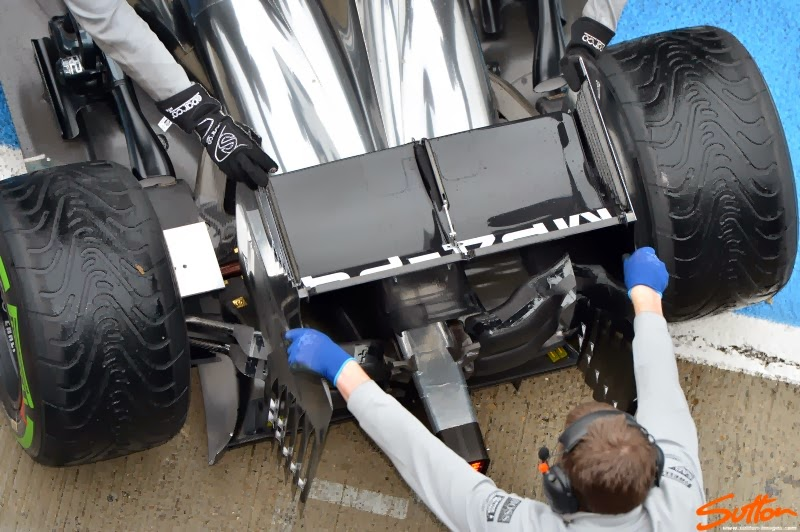

It becomes a bit easier to visualize how these aerodynamically designed wishbones work from this angle.

Advertisement

Advertisement

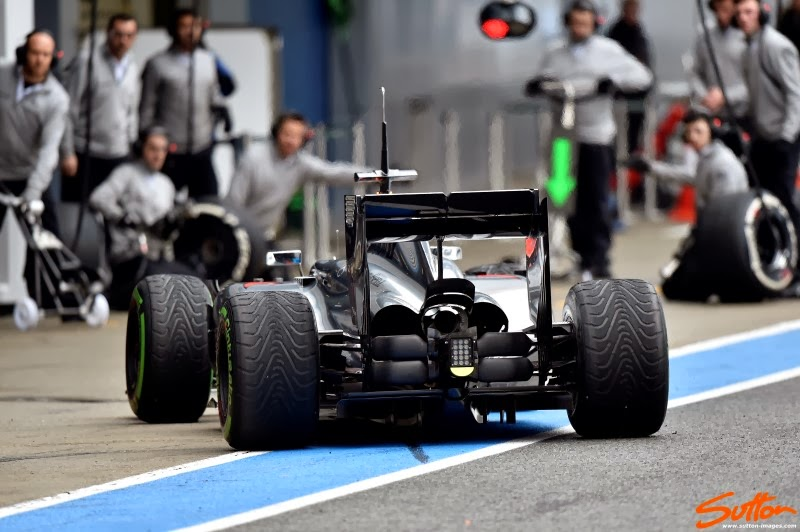

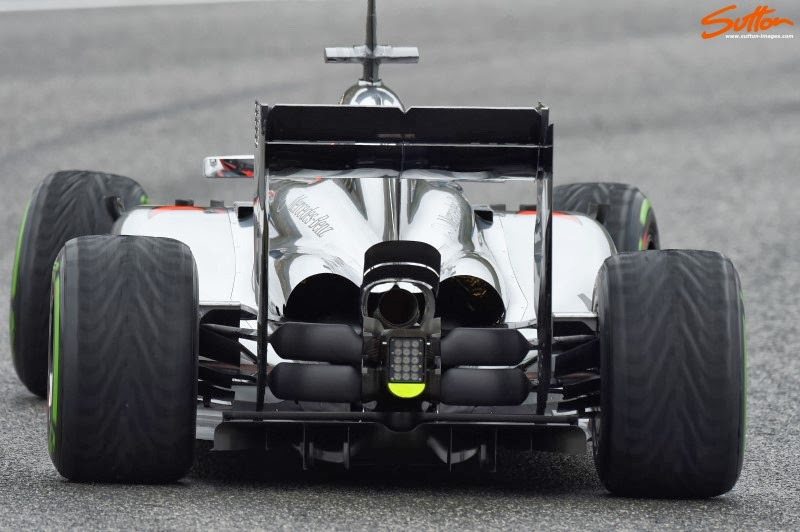

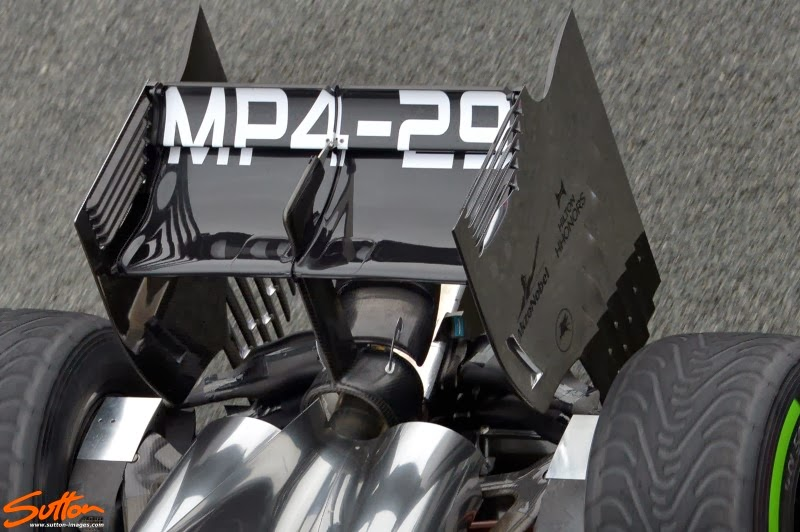

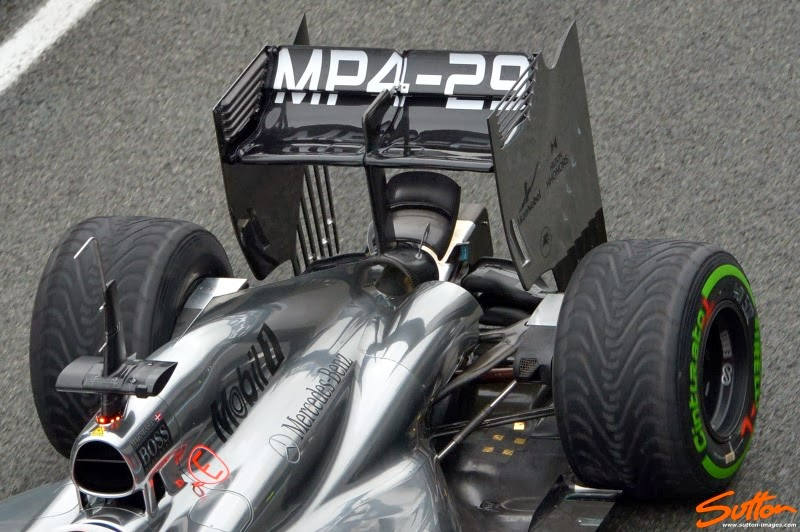

MP4-29 rear end detail. Along with the Shroomspension helping to replicate the beam wing in creating a conglomerate stream of upwash in coalition with the rear wing and diffuser, the Y75 winglet modified flow from the exhaust also helps to a degree.

Force India

Advertisement

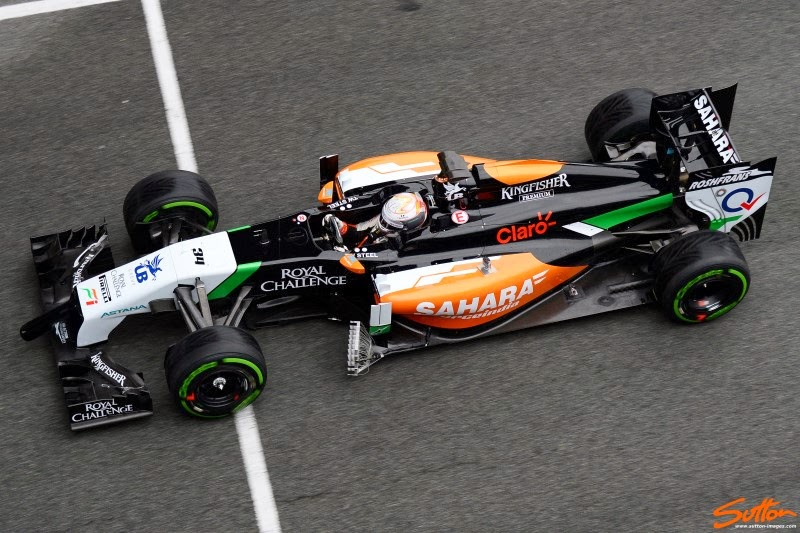

The VJM07 pitot tube testing. Interestingly enough, the tubes seem to be pointing a bit inward, something I've not typically seen.

Advertisement

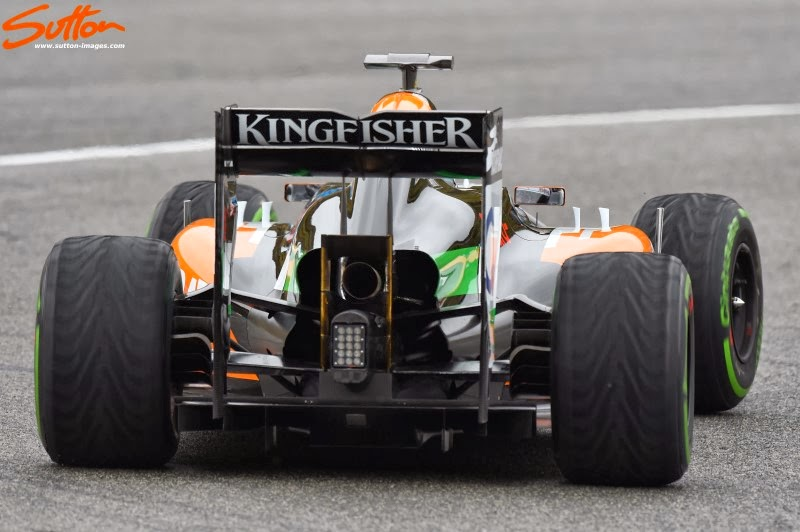

VJM07 rear end detail.

Sauber

Advertisement

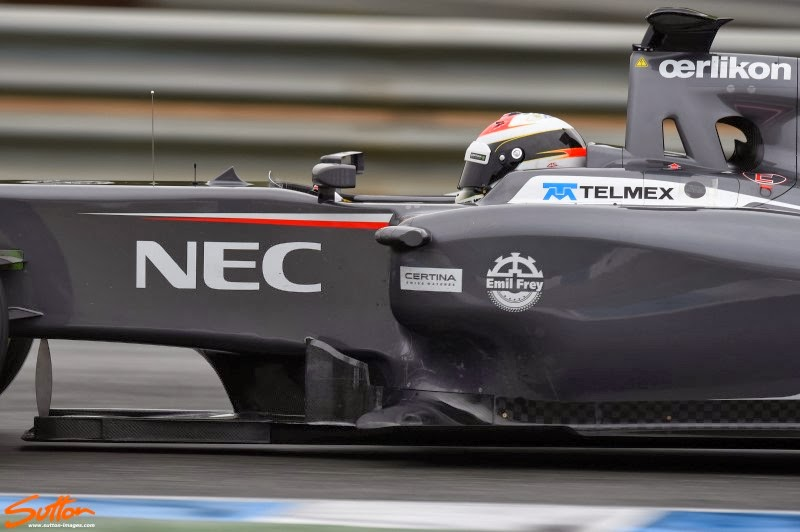

Sauber, along with Marussia, do not seem to be running a vertical strake at the corner of the sidepods.

Advertisement

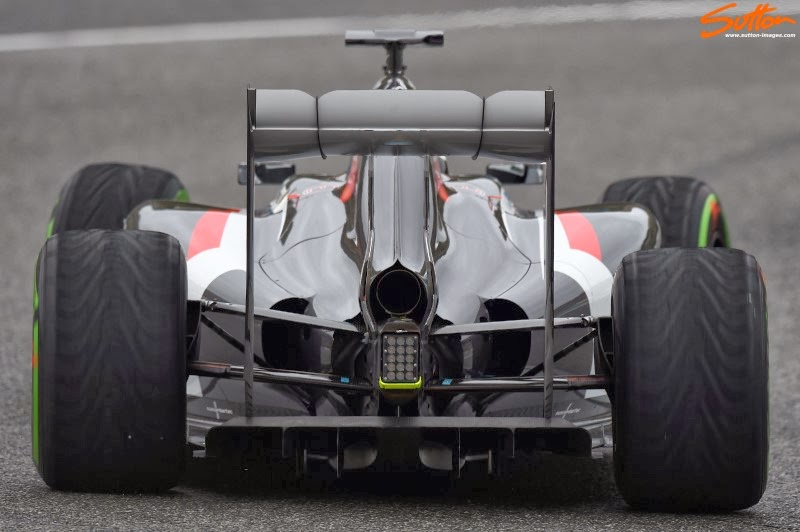

Sauber are also running a Ferrari engine, and can get away with running substantially less cooling vents than either a Renault or Mercedes powered chassis.

Williams

Advertisement

Another rumor circling the paddock is that Williams will be running a Martini liveried chassis come the first race in Melbourne, though they will continue to run this blue paint up until the end of testing.

Advertisement

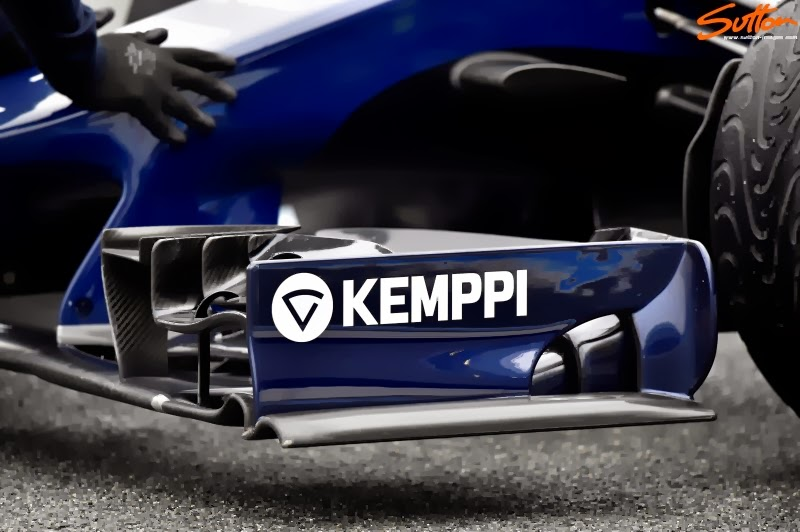

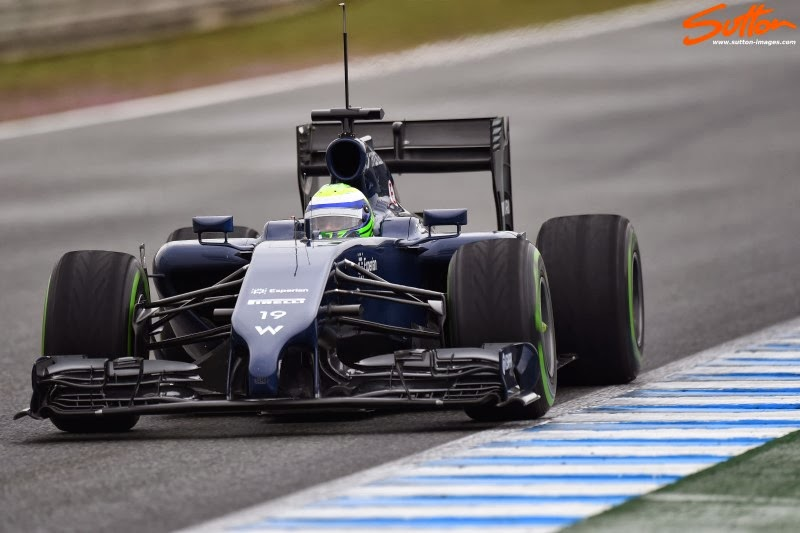

FW36 front wing detail.

Advertisement

FW36 rear end detail.

Marussia

Advertisement

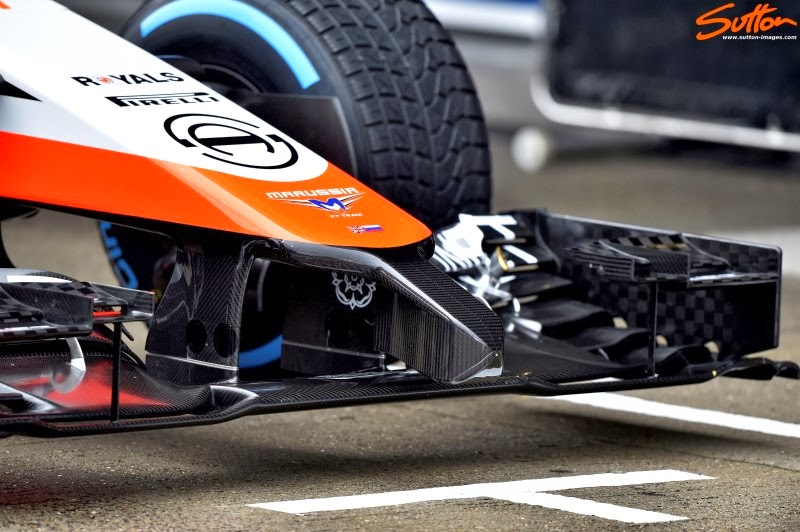

MR03 front wing and nose detail.

Caterham

Advertisement

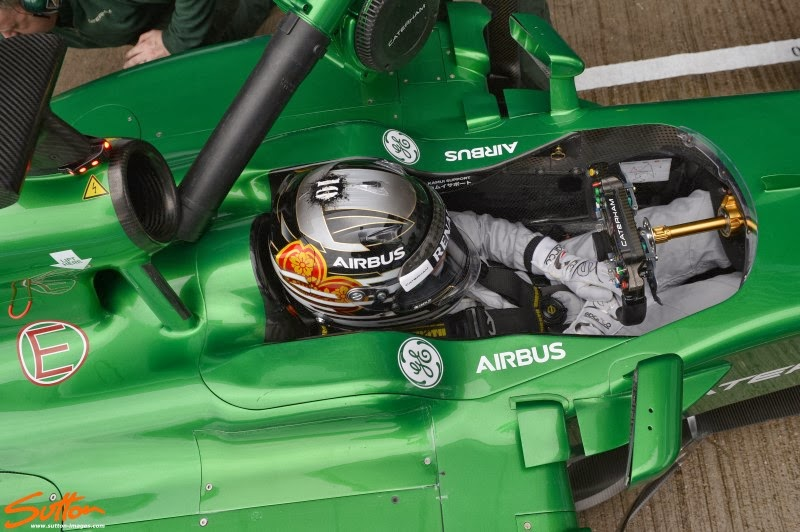

an interesting view inside the cockpit of the CT05 chassis.

Advertisement

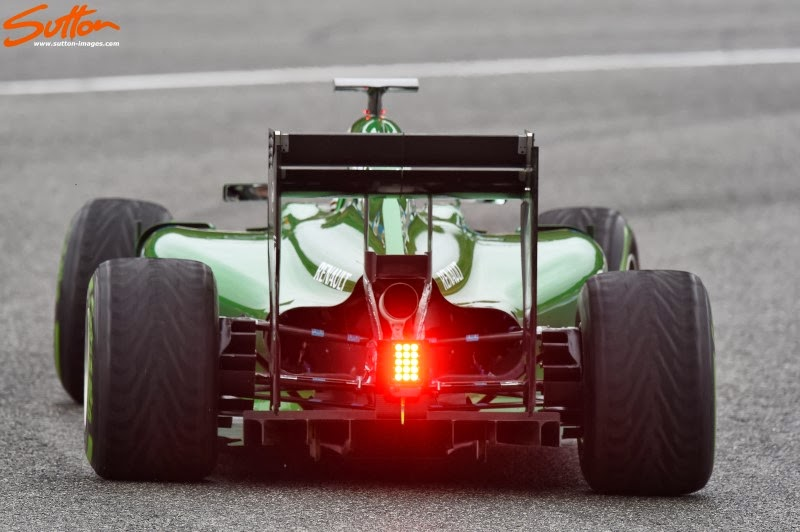

CT05 rear end detail.

[select images from Somers F1]
