So almost 2 weeks ago, I crashed my drone. Today I finished troubleshooting, recalibrating, and testing my rebuild. Test flight complete!

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

Total teardown time: about 3 hours (including motor dismount).

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

Bork bork bork

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

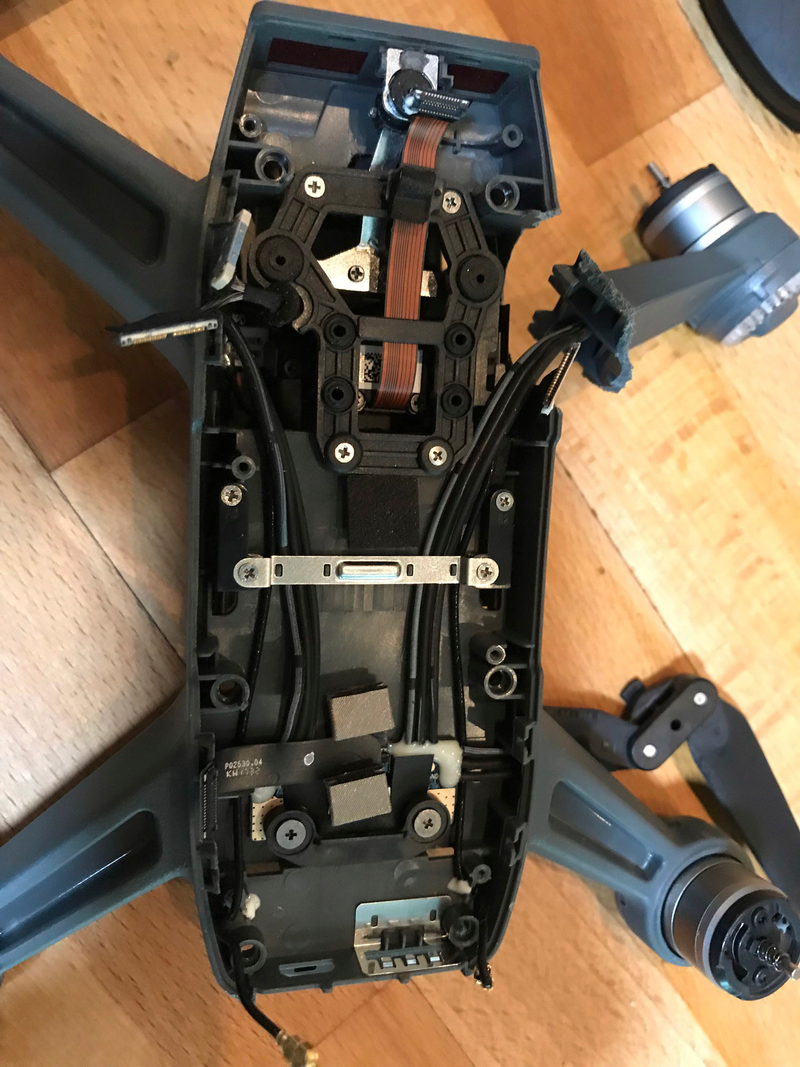

GPS, main PCB, and front sensors out; camera and gimbal and still in.

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

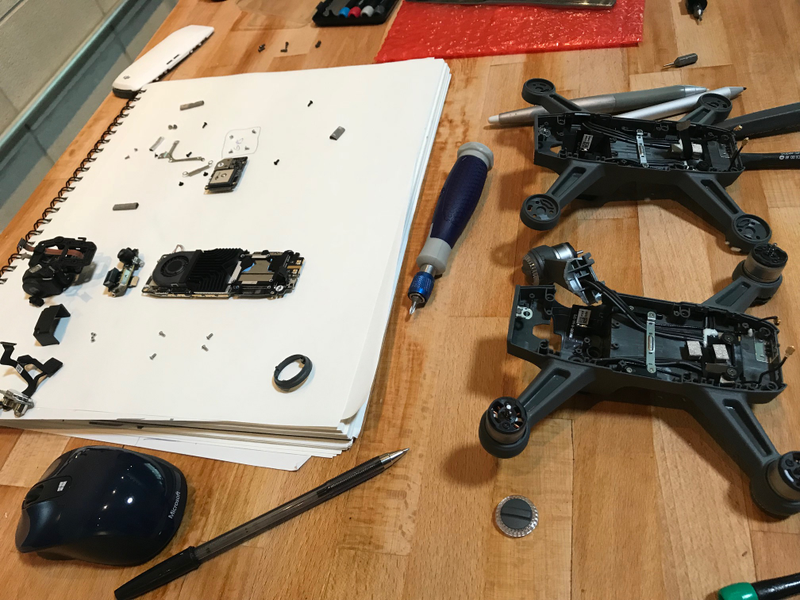

Everything out but the motors, new chassis ready to go.

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

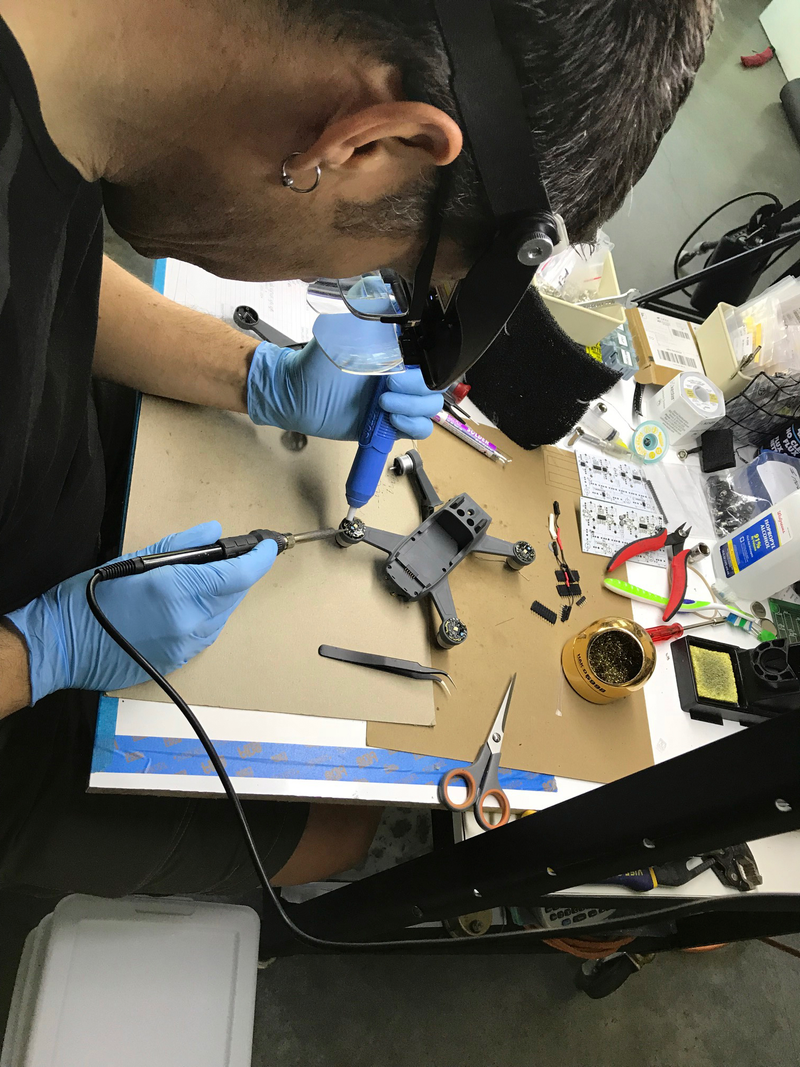

Motor swapping with the help of my awesome neighbor.

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

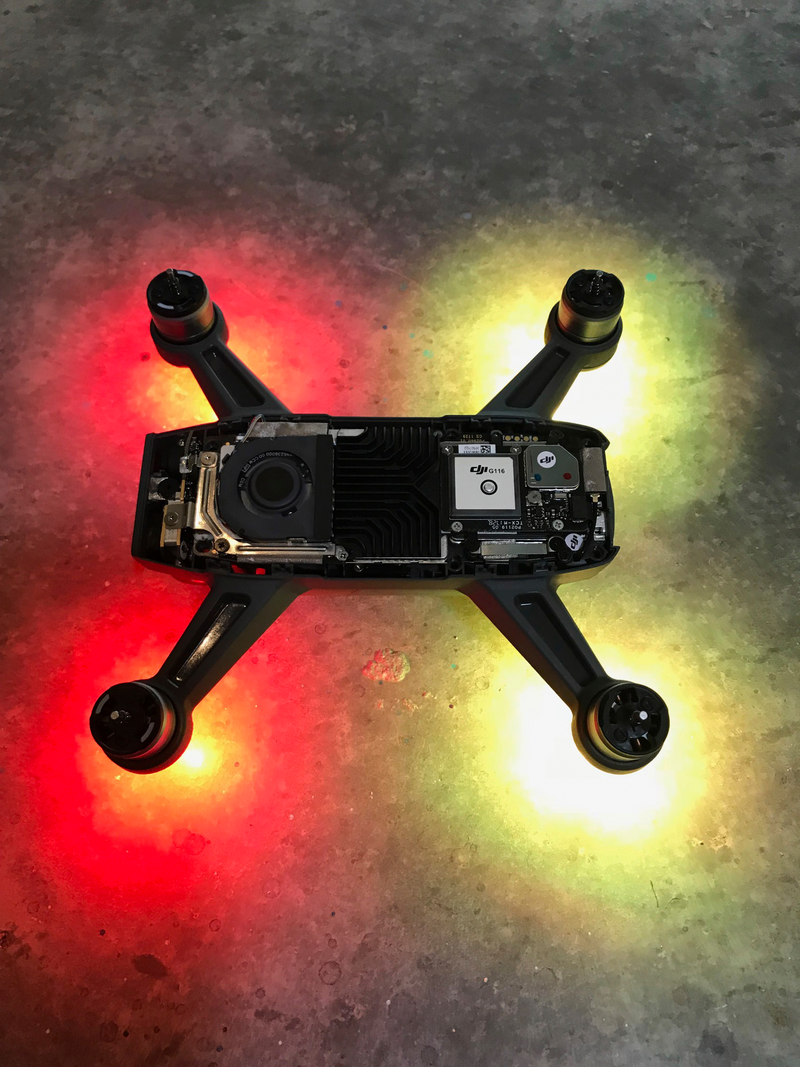

Powered up, systems testing.

Illustration for article titled Gentlemen, we can rebuild him.
Advertisement

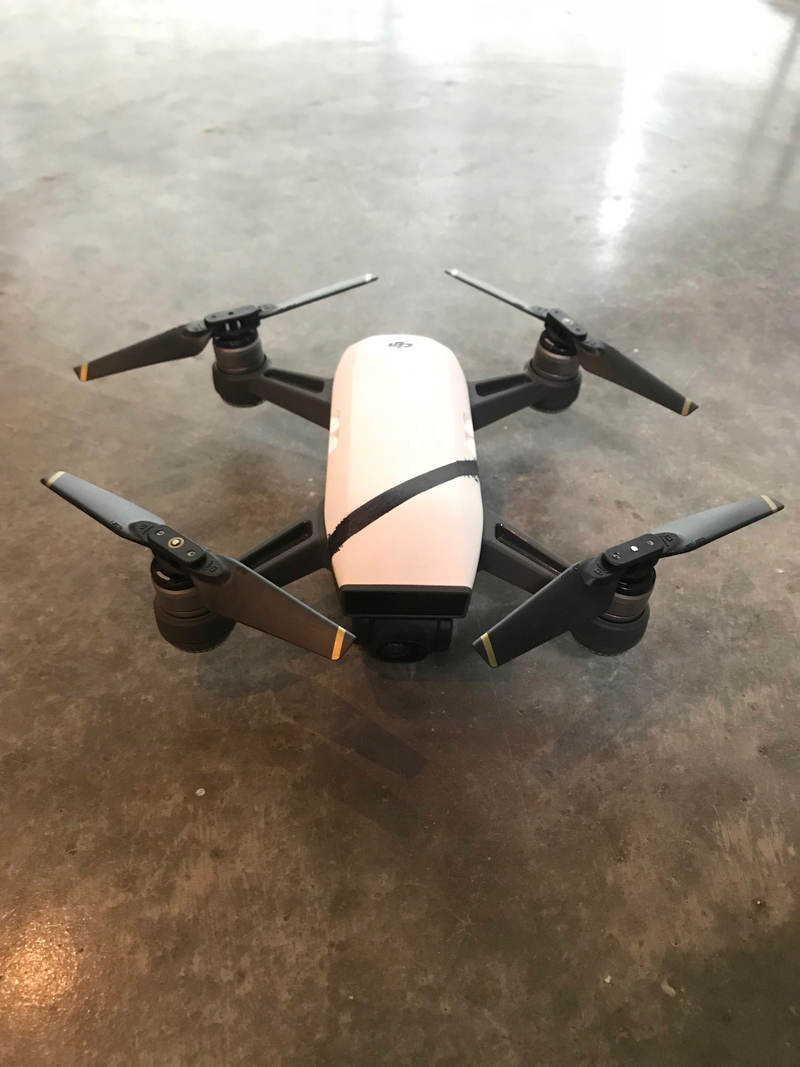

Back in business, test flights complete!

In all, about 7 hours’ work, for a first-timer who knows his way around electronics a bit, but had never taken a drone apart before. The new OEM chassis came pre-wired for the motors and battery connection, which is HUGELY helpful, but getting the camera and gimbal back in was a real bitch, as was all the silicone glue they drop in there. In all, I cannot recommend breaking the arm on your drone. But if you do, and you can get the parts, I definitely would go the DIY repair route, as long as it’s not too far gone.
