After my shitty electric coffee grinder broke, my Mother gave me one that belonged to her grandparents. It was filthy and the internals rusted, but I wanted to try it out.

Advertisement

It’s an Arcade Crystal model No. 3, produced sometime around 1918. Same year my grandmother was born.

Advertisement

My Mother remembers it being used when she was a kid but figures it hasn’t seen use since the 70’s. My Grandmother had repainted it sometime in the 80’s and hung it in her kitchen for decoration. After she passed in the mid 90’s it made its way to my Mother and now me.

Illustration for article titled Grinded to the Grind
Advertisement

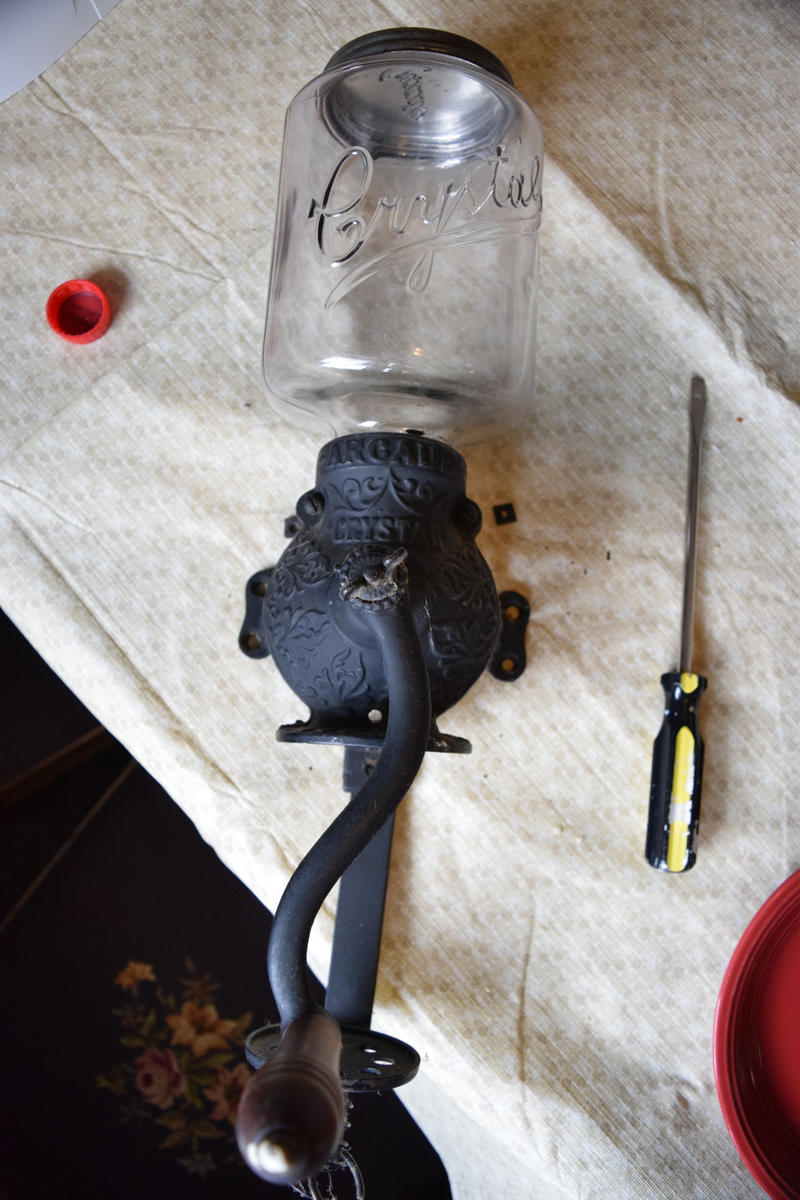

Dismantling is easy. There are two slotted machine screws that go into square nuts on the back. This allows the body to separate and permits removal of the glass hopper.

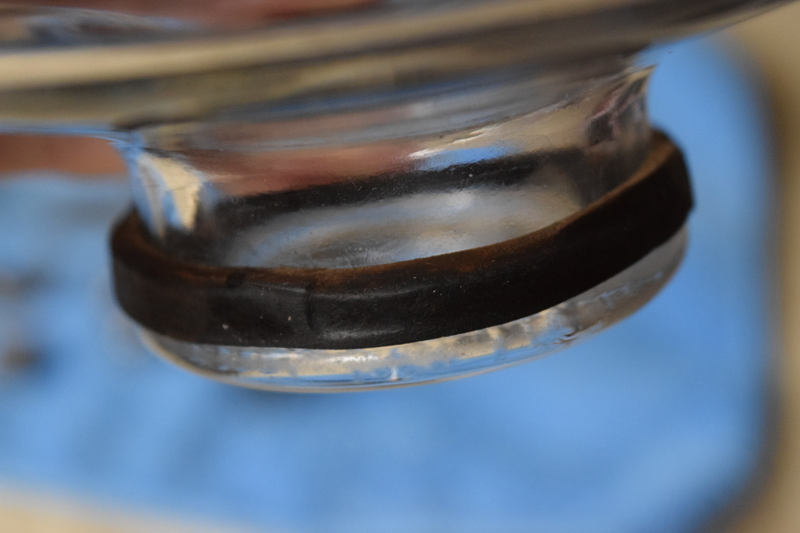

Don’t drop the glass! Amazingly the rubber seal is still soft and kind of like a putty in that it almost holds a shape when pressed. Natural rubber?

Advertisement
Illustration for article titled Grinded to the Grind

This is the front half.

Illustration for article titled Grinded to the Grind
Advertisement

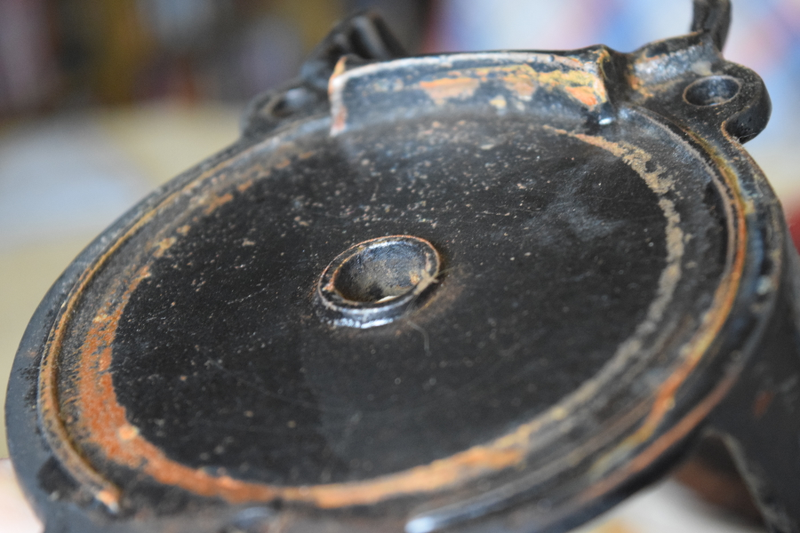

And the back.

Illustration for article titled Grinded to the Grind
Advertisement

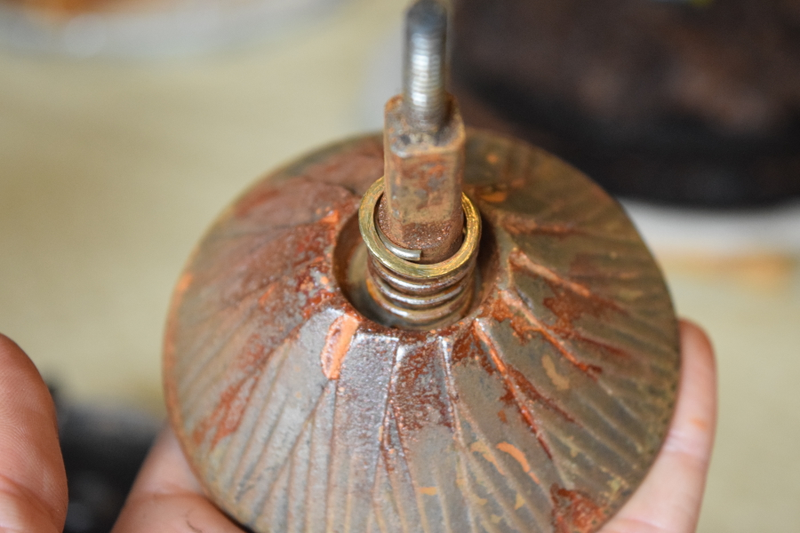

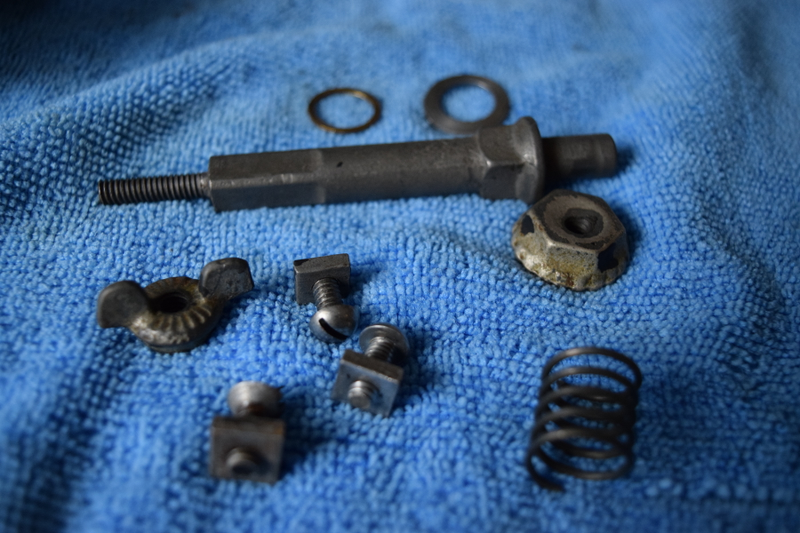

There are two nuts which lock against each other that hold the handle and shaft/drum in place. Once those are removed and the handle set aside, the drum and shaft just slide out of the front half.

Illustration for article titled Grinded to the Grind
Advertisement

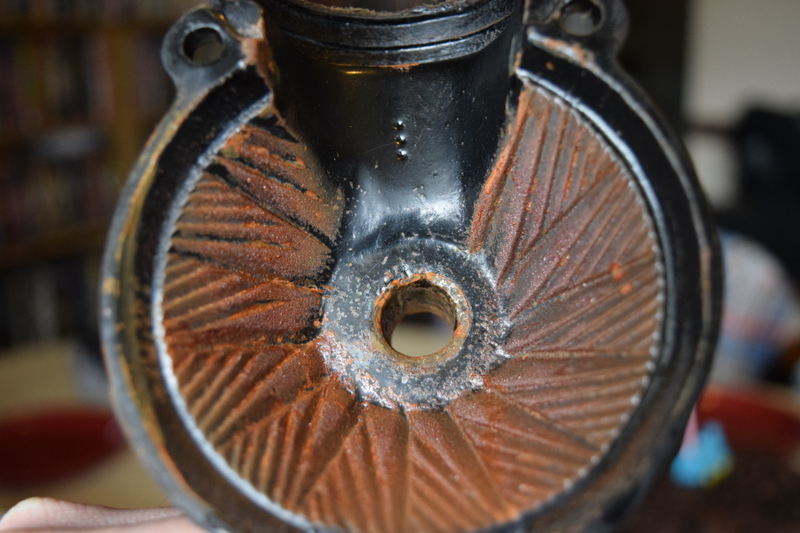

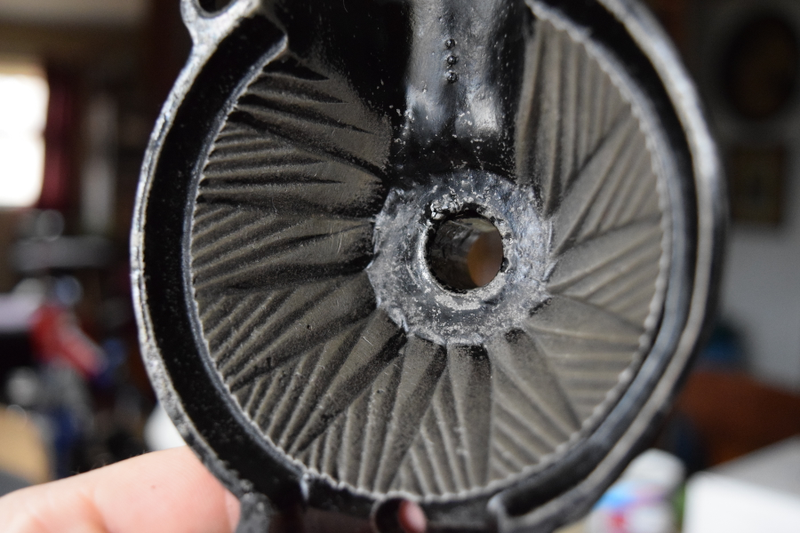

The front half with the drum removed.

Illustration for article titled Grinded to the Grind
Advertisement

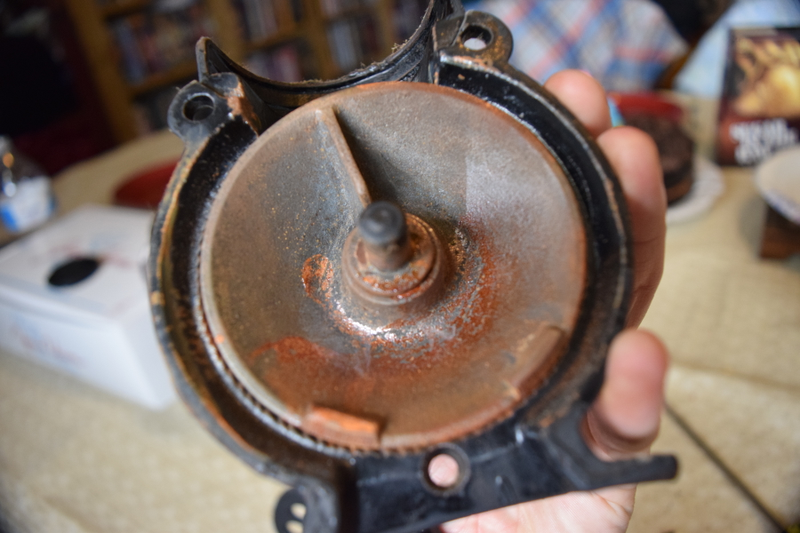

Not too bad for decades of disuse.

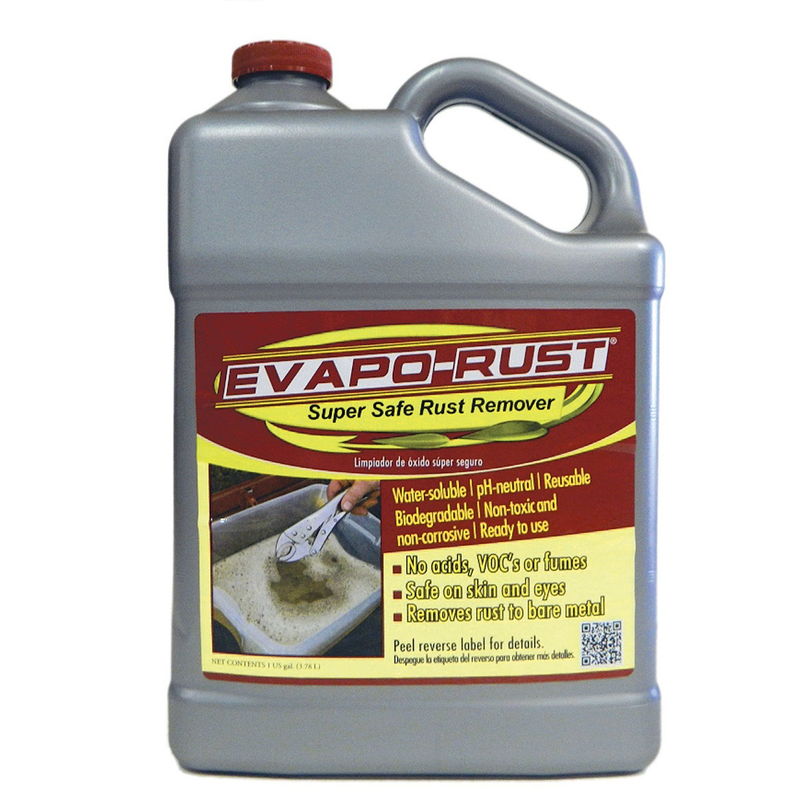

For rust removal I decided to try this stuff out instead of a wire wheel.

Illustration for article titled Grinded to the Grind
Advertisement

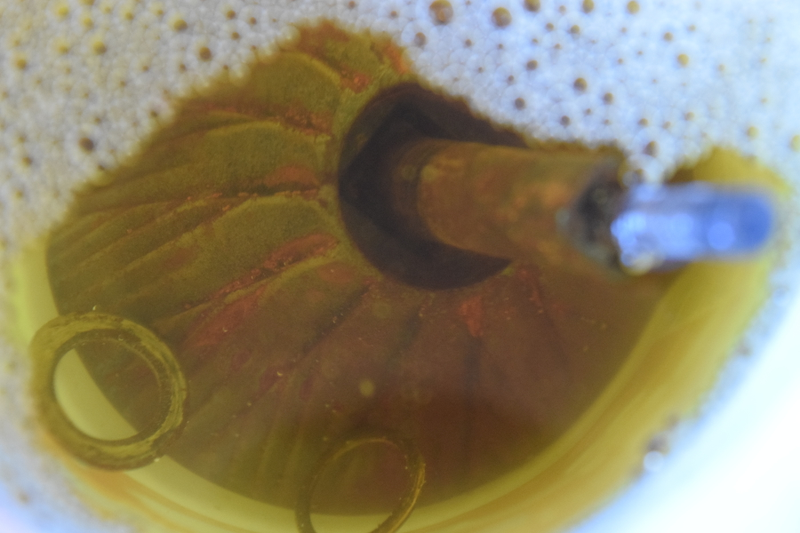

Two hours in the bath.

Illustration for article titled Grinded to the Grind
Advertisement

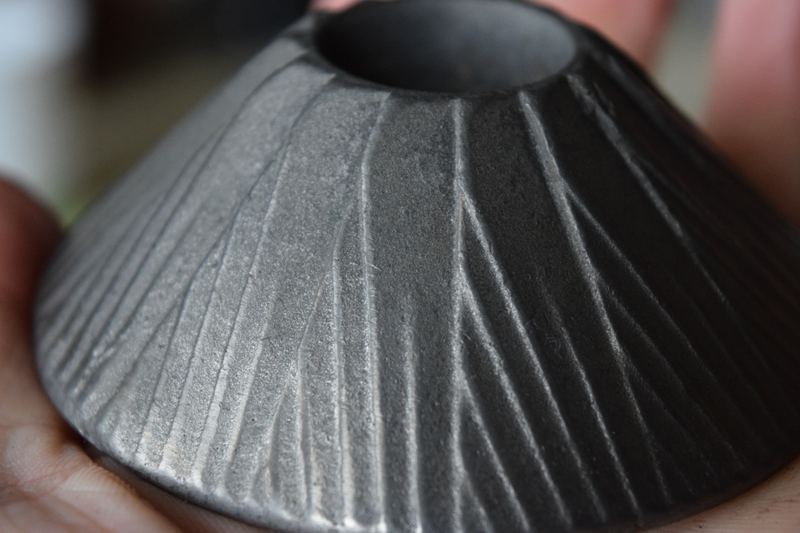

Holy Shit! That stuff works great.

Illustration for article titled Grinded to the Grind
Advertisement
Illustration for article titled Grinded to the Grind

Some paint came off during the process. Not sure yet if I want to repaint it or leave it be.

Advertisement
Illustration for article titled Grinded to the Grind

I put it all back together for a test run.

I’ve determined that you don’t really want that grinding noise at all. The two nuts that lock each other in place and hold the handle on also control how much the internal drum presses against the housing. Too tight and you can’t turn it. Too loose and the handle wobbles around. I did a test run with the tension backed off to where the drum and housing barely meet and got some fine ground coffee.

Advertisement
Illustration for article titled Grinded to the Grind

Next was to figure out a place to mount this thing.

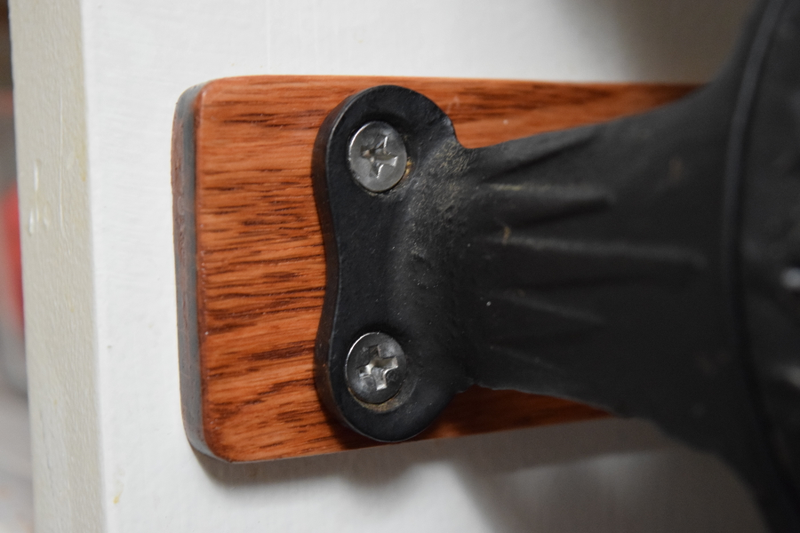

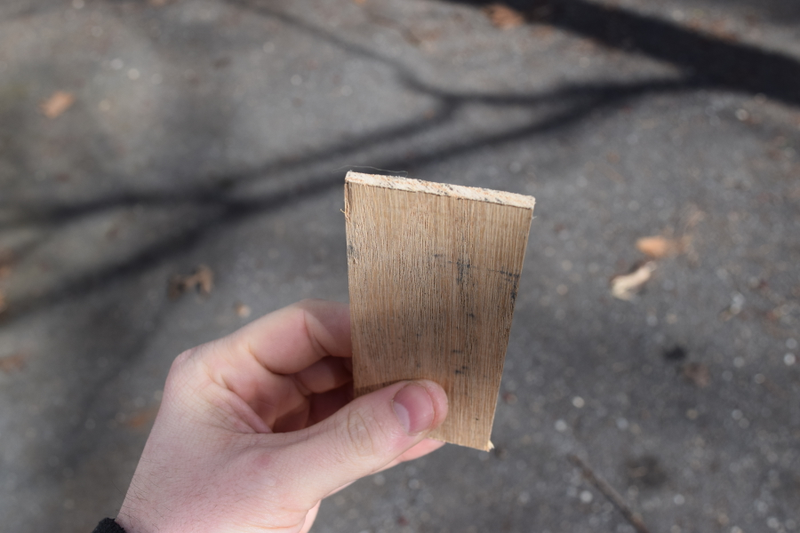

It needs to be shimmed out a bit since that lower catch arm is further back than the rest of it. I found some scrap wood from when I made a key for my MB.

Advertisement
Illustration for article titled Grinded to the Grind

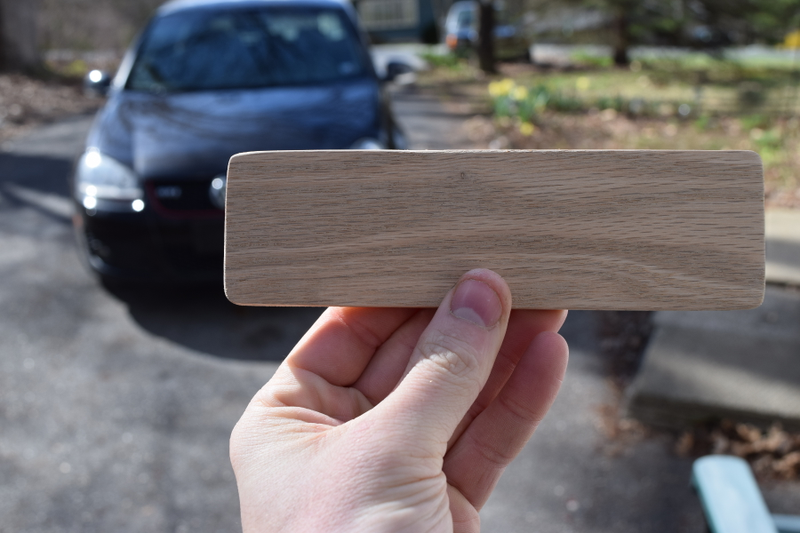

I ended up gorilla glueing two of these together to get the appropriate thickness. Then rounded the edges using my bench grinder and sanded smooth. I should have drilled my holes at this point. I did not.

Advertisement
Illustration for article titled Grinded to the Grind

Had this stain laying around so that took care of that.

Illustration for article titled Grinded to the Grind
Advertisement

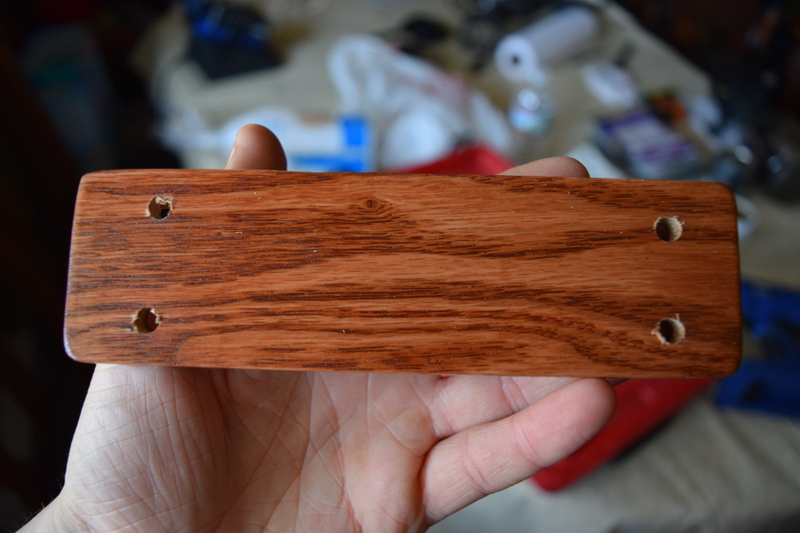

After two coats.

Illustration for article titled Grinded to the Grind
Advertisement

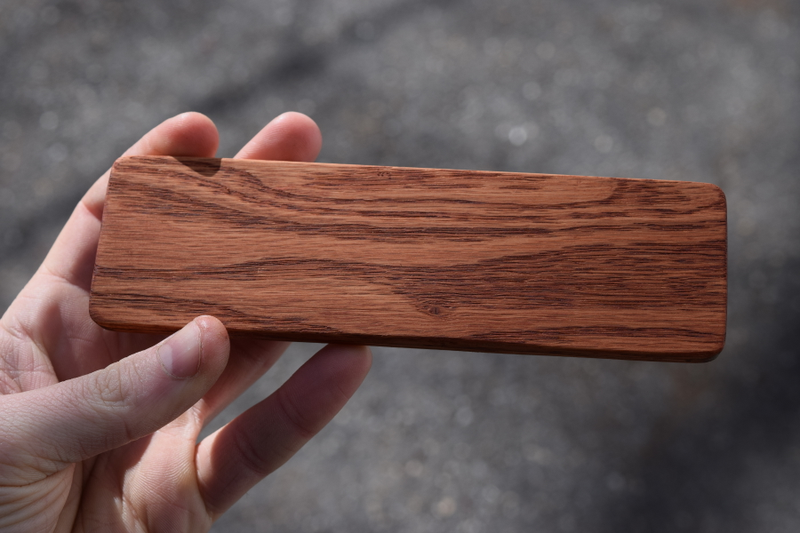

Three coats of poly.

Illustration for article titled Grinded to the Grind
Advertisement

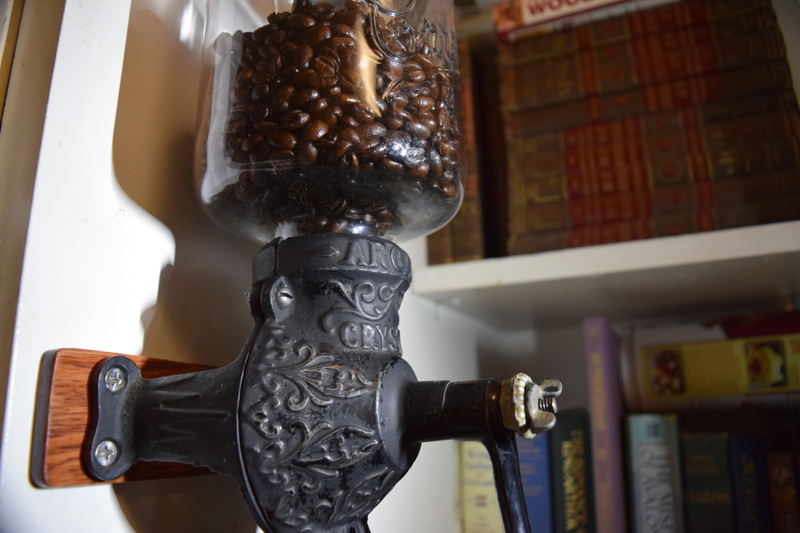

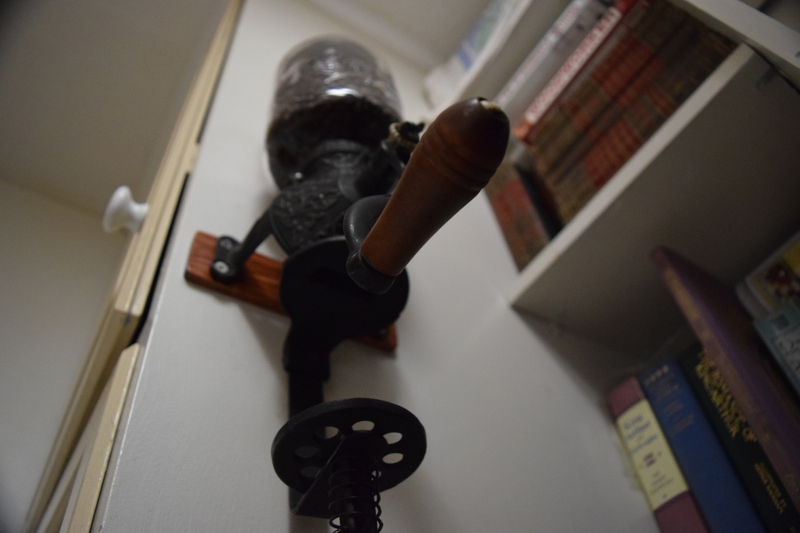

I found a good spot to mount it in my kitchen where it will be out of the way and in close proximity to all my coffee supplies.

Illustration for article titled Grinded to the Grind
Advertisement
Illustration for article titled Grinded to the Grind
Illustration for article titled Grinded to the Grind
Advertisement

Had gotten some beans for my birthday so let’s give it a shot.

Takes a bit longer than anticipated but it’s worth it.

This much took about 3 minutes.

Illustration for article titled Grinded to the Grind
Advertisement
Illustration for article titled Grinded to the Grind

Pretty cool to be using something that is almost 100 hundred years olds. Even cooler that it’s something my Great Grandfather/mother purchased and used for years. I still may paint it and want to replace the two washers on the inside but overall I’m incredibly pleased.
