If your Ford had a Matthew McConaughey, it would be a Lincoln

Here's how the Focus RS awd system works

Having owned a few awd/4wd vehicles, I have learned that not all awd/4wd is created equal. Some gadgety kinds of awd are fine, while others...not as much. Most of the articles on the new Focus RS say it has some kind of torque-vectoring awd system but don’t go into details. Luckily, Ford has more information.

UPDATE 11/30/2015: this post is kind of old. But it keeps getting linked back to, and there’s more recent information, including this press release that says the Focus RS uses the GKN Twinster system. You can see more details about the system in that press release. My speculation about it being a Haldex system, well, it was just speculation. The rest of the original post and my initial update a couple of days later is as follows...

Advertisement

The Ford Performance All-Wheel-Drive system is based on twin electronically controlled clutch packs on each side of the rear drive unit. These manage the car’s front/rear torque split, and can control the side-to-side torque distribution on the rear axle – delivering the “torque vectoring” capability that has a dramatic impact on handling and cornering stability.

The control unit in the rear drive unit continuously varies the front/rear and side-to-side torque distribution to suit the current driving situation, monitoring inputs from multiple vehicle sensors 100 times per second. A maximum of 70 percent of the drive torque can be diverted to the rear axle. Up to 100 percent of available torque at the rear axle can be sent to each rear wheel.

During cornering, the rear drive unit pre-emptively diverts torque to the outer rear wheel immediately based on inputs such as steering wheel angle, lateral acceleration, yaw and speed. This torque transfer has the effect of “driving” the car into the bend, achieving improved turn-in and stability, and virtually eliminating understeer.

Translation: There isn’t a center differential, but the rear diff has an electronically-controlled clutch pack that can send up to 70% of the power to the rear axle. It has another clutch pack that acts as an electronic LSD for the rear axle. The rear diff does active (i.e. not brake-based) torque vectoring.

Advertisement

To deliver optimum driving dynamics, the Ford Performance All-Wheel-Drive system was calibrated alongside the car’s advanced Electronic Stability Control, in particular the brake-based Torque Vectoring Control system that works in parallel with the torque-vectoring AWD.

Translation: The front differential is an open differential with brake-based torque vectoring.

Advertisement

The big question this press release doesn’t address is the default front-rear torque split. Ford doesn’t mention the word Haldex anywhere in their press release, but it’s sounding pretty Haldex-y to me. At least that’s my guess. The overall description seems very similar to Saab’s XWD system, which was a Haldex Gen IV awd system combined with a rear eLSD. Here’s a detailed description of Saab XWD:

Advertisement

The hardware consists of a Power Take-off Unit (PTU) in the front final-drive that transmits engine torque through a prop-shaft to the Rear Drive Module (RDM). This incorporates a Torque Transfer Device (TTD) and an electronically-controlled Limited Slip Differential (eLSD). Both are wet, multi-plate clutch units from Haldex.

Also, both the Ford press release and Haldex’s website talk about preemptively sending torque to the rear wheels, and Ford has used Haldex awd in other transverse-engined cars with similar platforms to the Focus.

Advertisement

Haldex is sometimes a bit of a dirty word. Many people have the partly-mistaken impression that Haldex awd doesn’t send power to the rear wheels until the fronts slip. “Oh your car doesn’t have real awd, it’s just Haldex.” But remember, Haldex and Ford talk about preemptively sending torque to the rear wheels.

Haldex can actually work pretty damn well for sporty handling, especially combined with a rear LSD of some sort. I used to have a Mazdaspeed 6, which had Haldex awd and a Torsen mechanical rear LSD. It was stupid easy to take turns way too fast, and rocket out of them. It was basically just an exercise in braking late, turning in, and then stomping on the gas. Based on the steering & throttle inputs, the Haldex awd would preemptively send power to the rear wheels before the fronts would spin, and that plus the Torsen rear diff gave plenty of rotation through the turn.

Advertisement

Really, the only major downside of a properly-tuned Haldex awd + rear LSD system is deep snow. Because there’s no fixed resting torque split, Haldex tends not to keep all the wheels churning, and then you’re more like in a fwd car. My MS6 with Blizzaks on it was a very capable winter car, but I got stuck a couple times in the deep stuff precisely for this reason. Even with the traction & stability control fully disabled, I couldn’t get all 4 wheels to spin together. The computer couldn’t quite make up its mind. Luckily that car had a handy-dandy tow hook that screwed into a mount behind a plug in the rear bumper.

So, for sporty driving and 90% of most winter driving situations, I’ll bet the Focus RS is great. But if you’re planning to drive through foot-deep snow drifts on a regular basis, well, can I perhaps interest you in something with a real center differential?

Advertisement

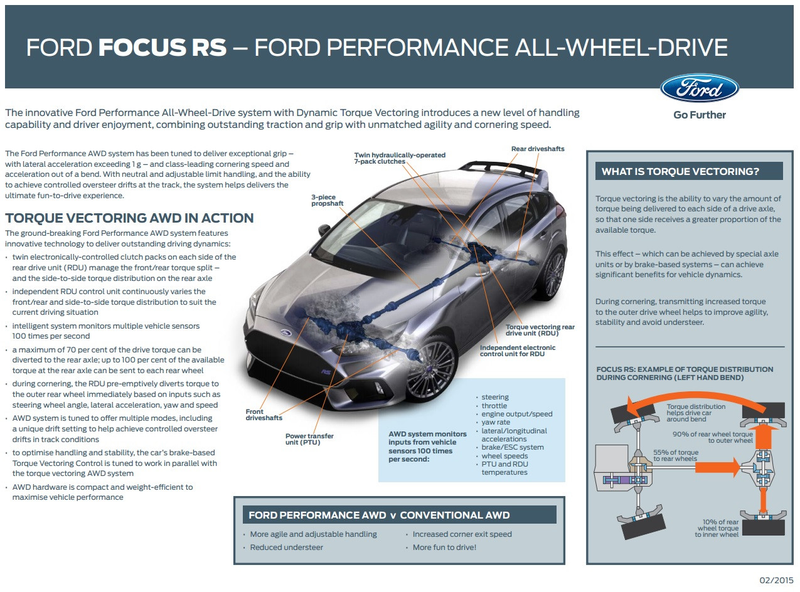

UPDATE: There’s a slide from Ford that goes into more detail on the actual mechanical layout than the wording of their press release. Turns out the system is somewhat different mechanically than the Haldex/XWD although likely achieves a similar function.

Advertisement

(H/t to burglar can’t heart click anything and Will with a W8.)
