How to rebuild your big window Camaro/Firebird into a small window car

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car

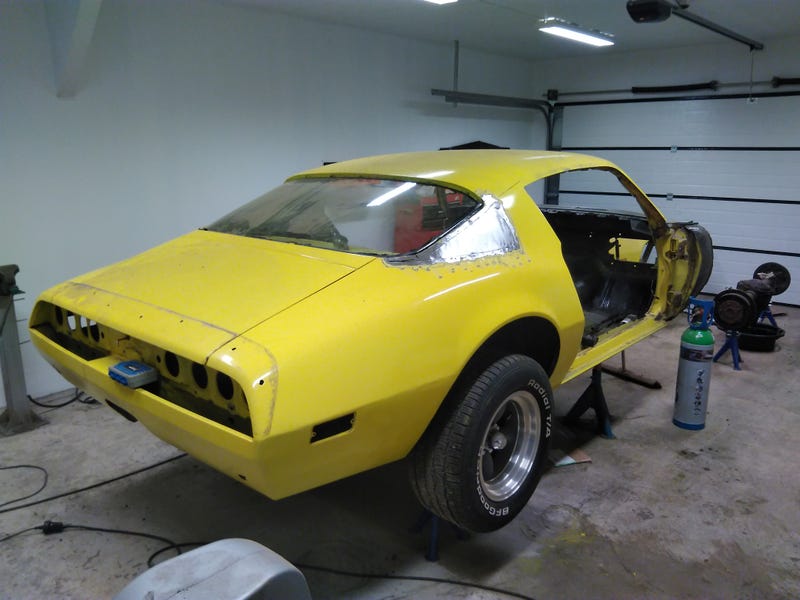

So I’ve gotten a lot done on my car recerecently. Mainly rust repairing but also something I’ve wanted to for a long time; converting from the big 75-81 rear window to the smaller 70-74 one.

Advertisement

Before attempting this I did a lot of research (Googled*) to see if someone had done and documented this before but unfortunately I couldn’t find any info at all on this subject.

So I decided to do it in a way I figured out myself that I think is the most logical choice in doing this. I also named the post so it will hopefully pop up in a lot of searches for other people looking to do this.

Advertisement
Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car

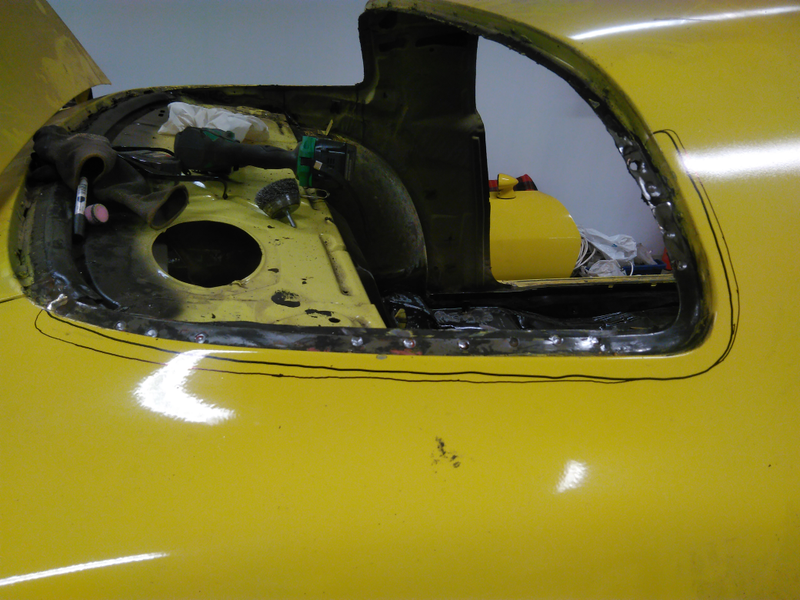

Marking out where to make the cut, I tried to do around one inch from the edge so that I’d have enough material to work with later on

Advertisement
Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car

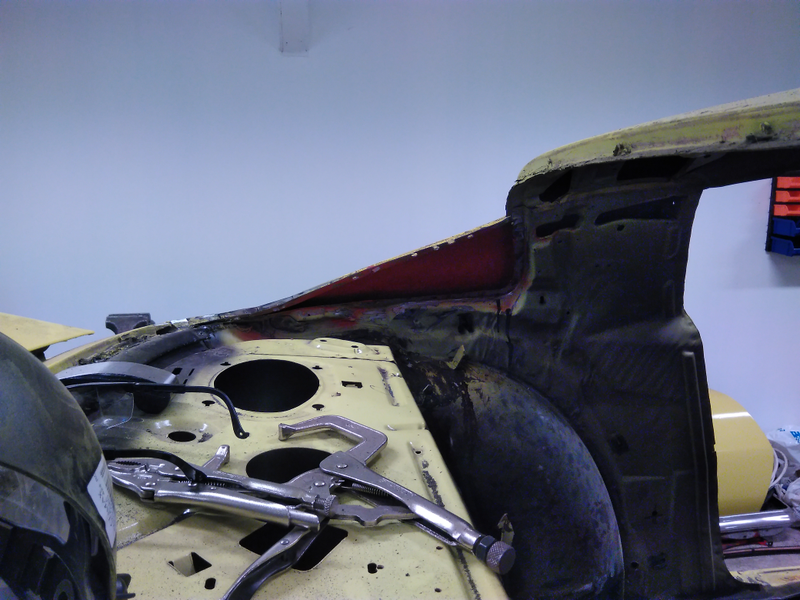

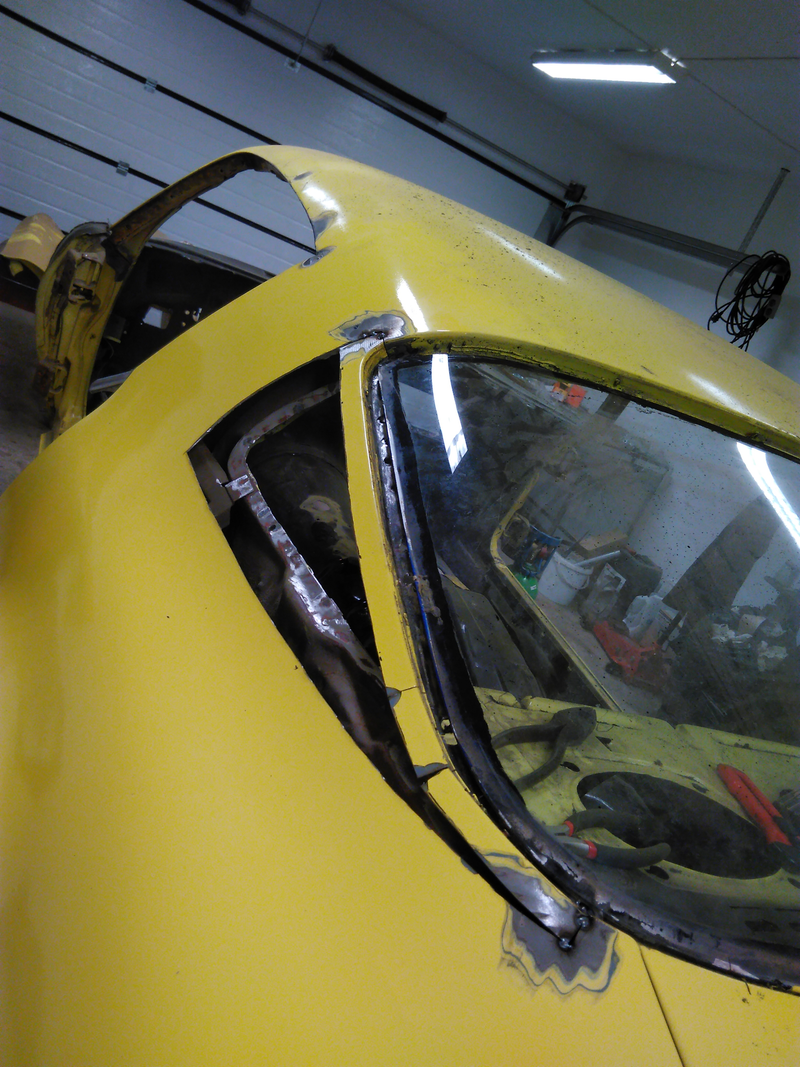

Edge is cut and spotwelds have been drilled out.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

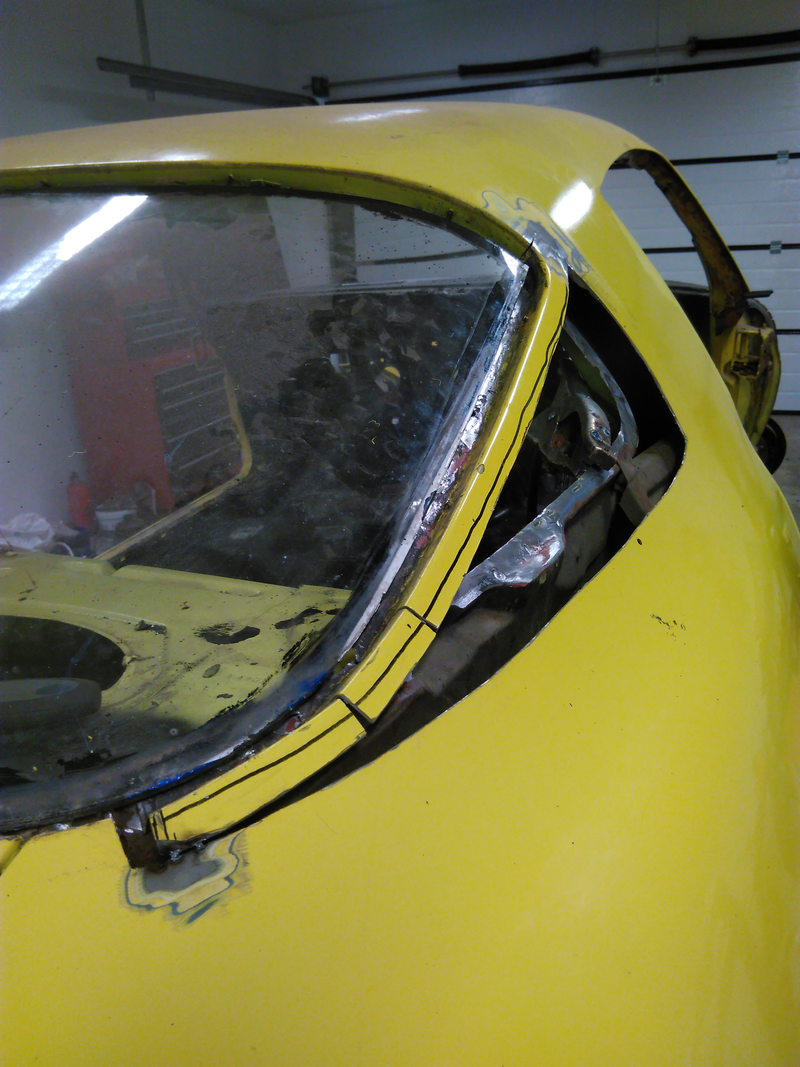

Edge is testfitted with window in place and spotwelded into place.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

Using a piece of cardboard to measure up the sheetmetal I need to make.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

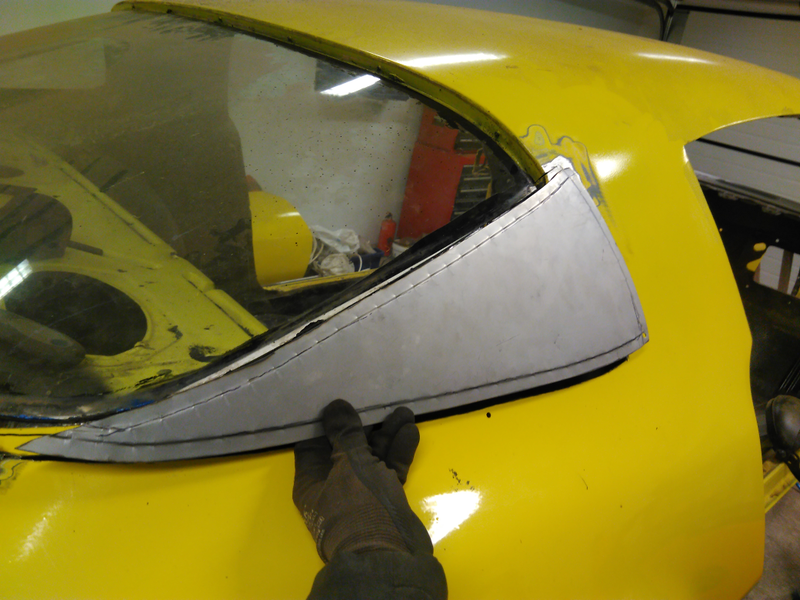

Sheetmetal have been made with about 1/2 inch oversized edge that is then flanged with a flange tool.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

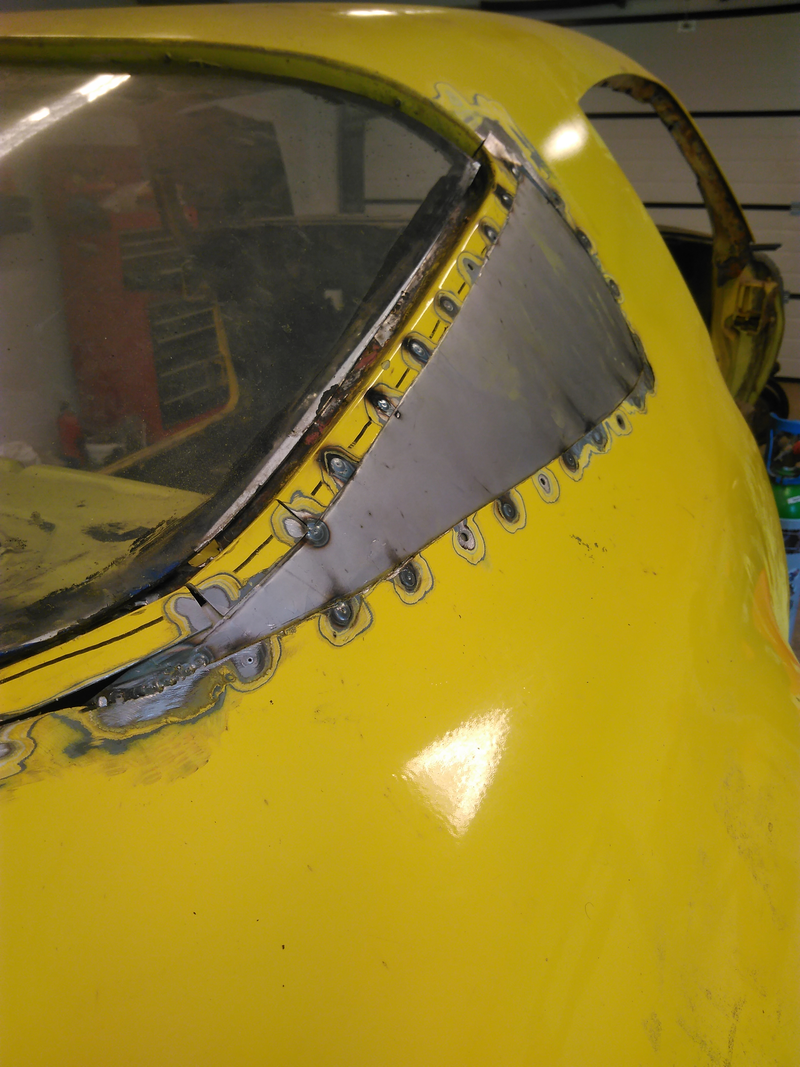

Holes for spotwelds are made and the piece is welded into place.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

Same thing is done to the other side.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement
Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car

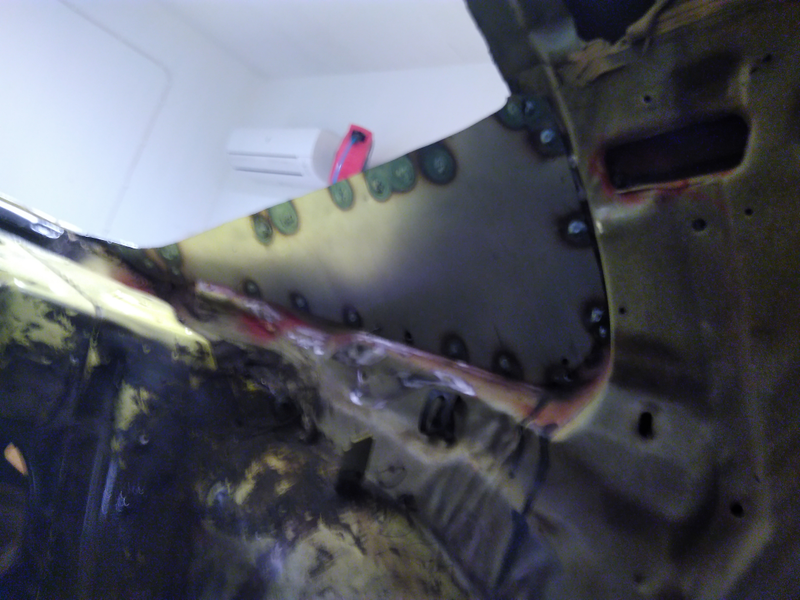

Inside is primered and inside piece is measured up.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

And spotwelded into place. If you have the correct interior trim piece the metal plate will not be seen in the final result.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

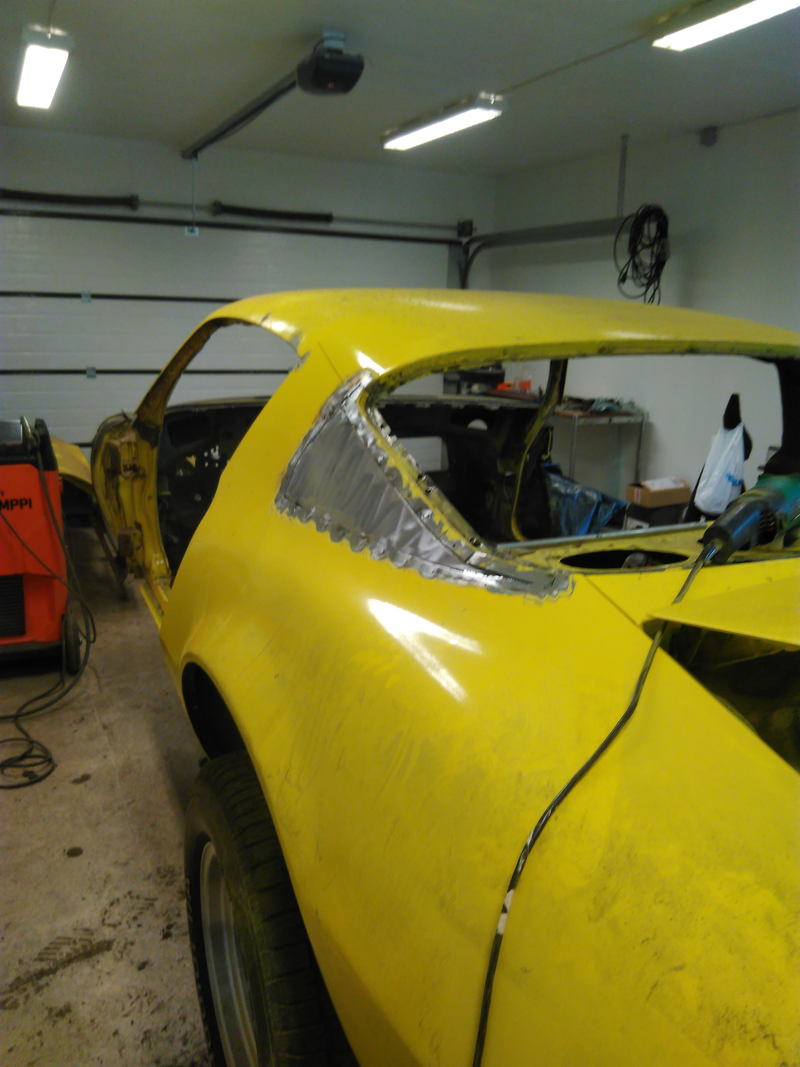

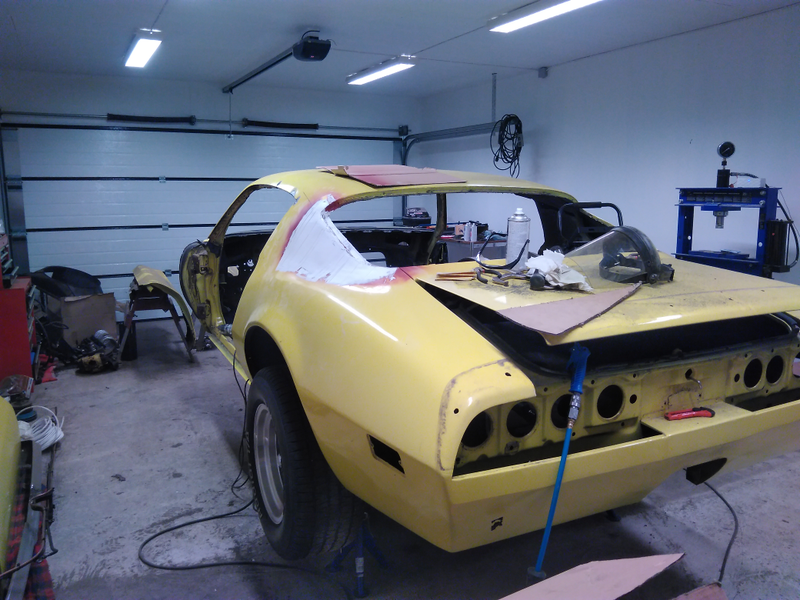

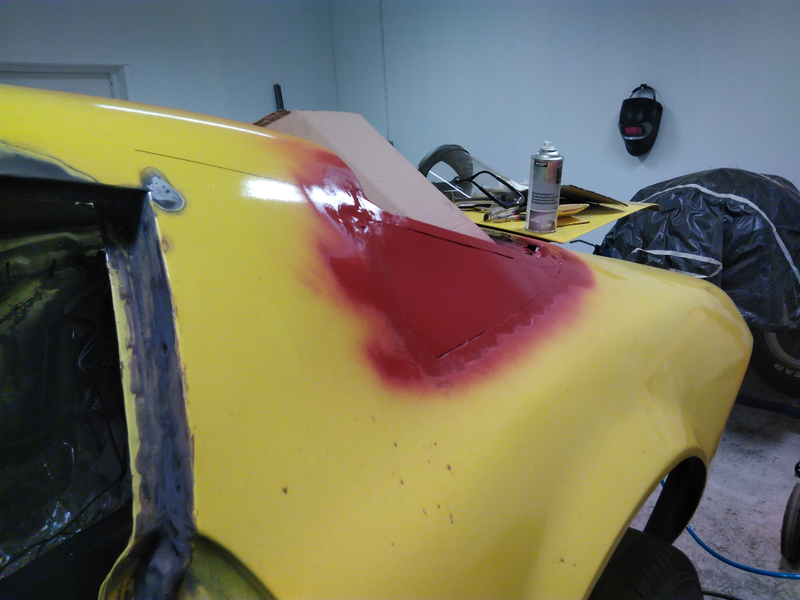

Primer is applied to the outside when everything has been welded up.

Illustration for article titled How to rebuild your big window Camaro/Firebird into a small window car
Advertisement

And finally some Bondo is applied to smooth it all out (not smooth in the picture but this is where I’m at right now. End result looks really promising).

Questions?...
