Hydraulic Clutch Conversion (Part 1)

In this photo-heavy series, I’ll go through in detail the work going into fitting a hydraulic clutch to the Chevelle in place of the factory z-bar mechanical linkage.

To recap, I previously bought a kit which purported to be a bolt-in affair, which was nowhere near correct and presented nearly-unsealable gaps in the firewall, as well as questionable quality components (plastic master cylinder, for example). I returned that and bought a kit from American Powertrain (with Wilwood hydraulics) that doesn’t pretend to not require firewall modifications.

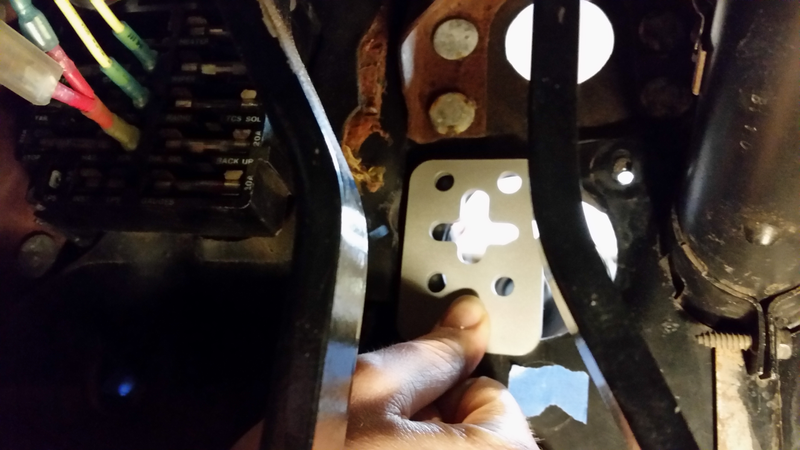

First up, inside the footwell the original pushrod and boot was removed, and using a straightedge I determined where-about the mounting plate for the new master cylinder must go. I also checked, and while tight I do have clearance (, Clarence) for the heim joint.

A matching plate on the other side clamps onto the firewall to spread the loading.

This has some good and bad - the bad part is most of it is in the large hole required for the stock linkage boot (which I had to cut about 2 years ago when swapping in the 4-speed; this is a solid plate on automatics). The upside is that the whole thing lands on this plate, which will further spread the load across the firewall to prevent metal fatigue.

Since there’s a big hole there, I took the plate out and sought to make it not have a hole.

It is worth mentioning you can buy reproduction plates for automatic cars, which are solid, but that’s like $40+ vs a little sheet metal from the pile and an hour of time.

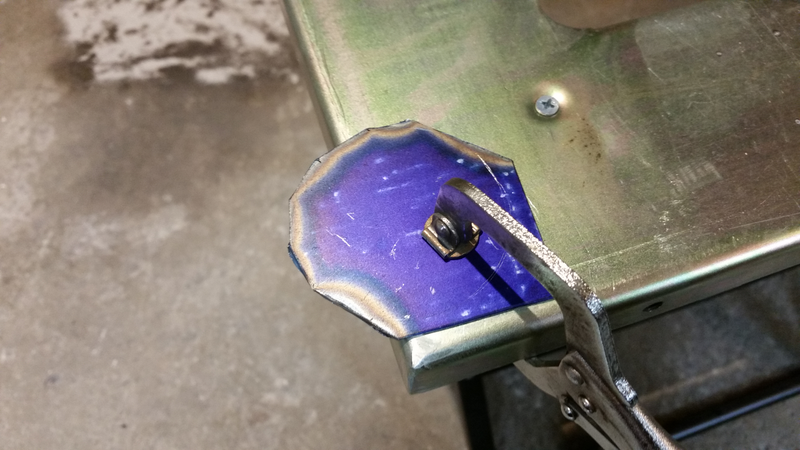

I traced the hole with a scribe on 16ga steel (the plate is 14, which I don’t have. Close enough). I then cut it with the angle grinder and remembered that dykem doesn’t like heat.

Not bad

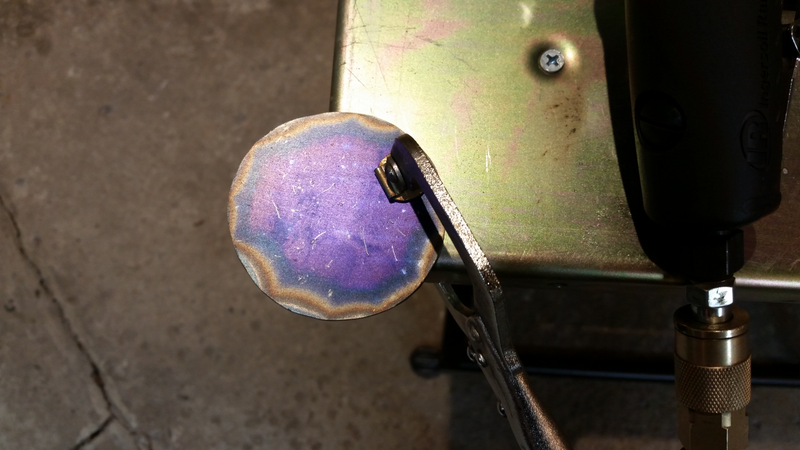

Fortunately the scribe line was still visible, so out came the die grinder with some 60 grit paper to make it actually round.

Everyone should have a die grinder with a roloc spindle

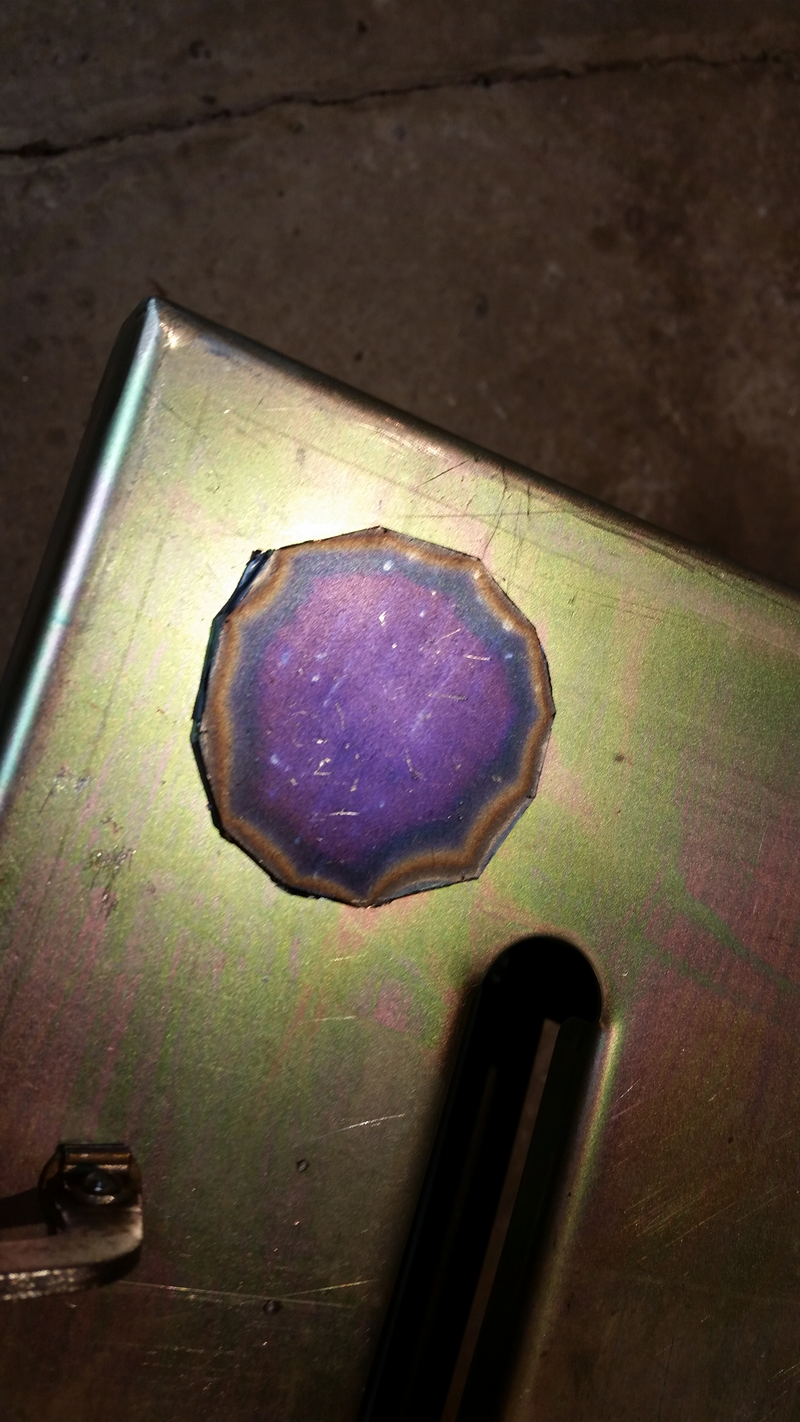

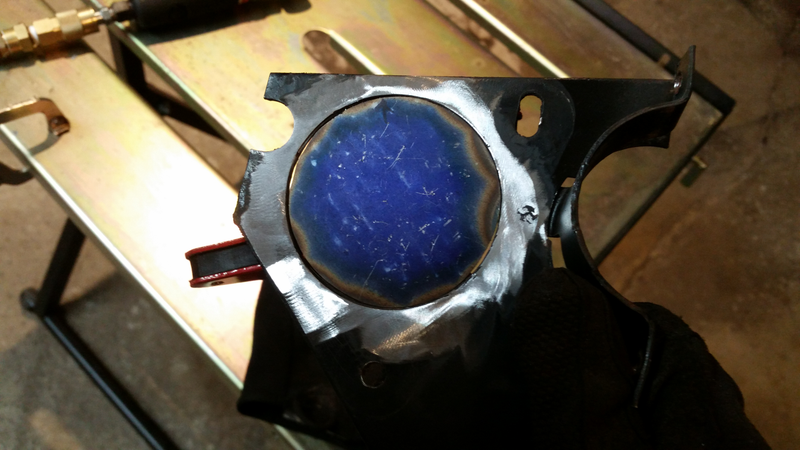

After a little more adjustment, it actually fits the hole (with a bit of clearance as required)!

I kind of like the scratched up blue, like a round starry dusk

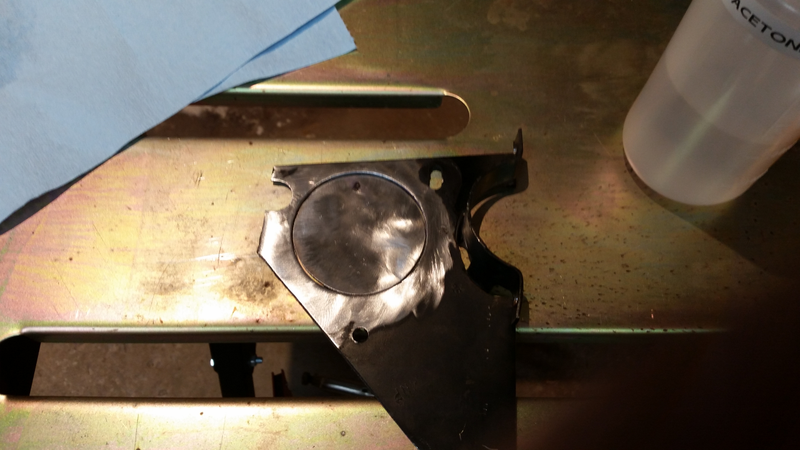

Everything was then cleaned up for welding (above I’ve already removed the paint from both sides and the inside edge of the hole).

Cheap and worth having: polypropylene wash bottles for things like acetone. Way easier than a can.

You can see two pictures ago there is a black arrow on the part, I made a punch mark where this was, and used that to re-arrow it after cleaning. This is just so I know which ways is up, since the hole isn’t perfectly round.

The plug had a slight bend which probably is from clamping and grinding, but I fixed it, hence the X (that was the high spot)

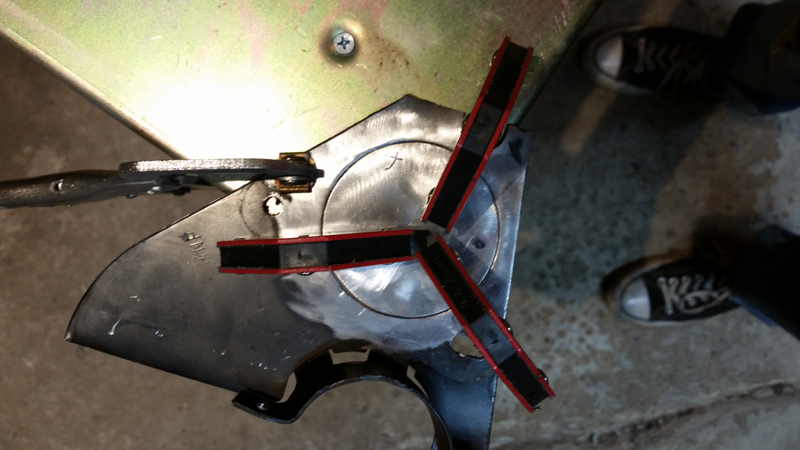

The patch is then held in place with some magnets to be welded in place. It’s then, well, welded.

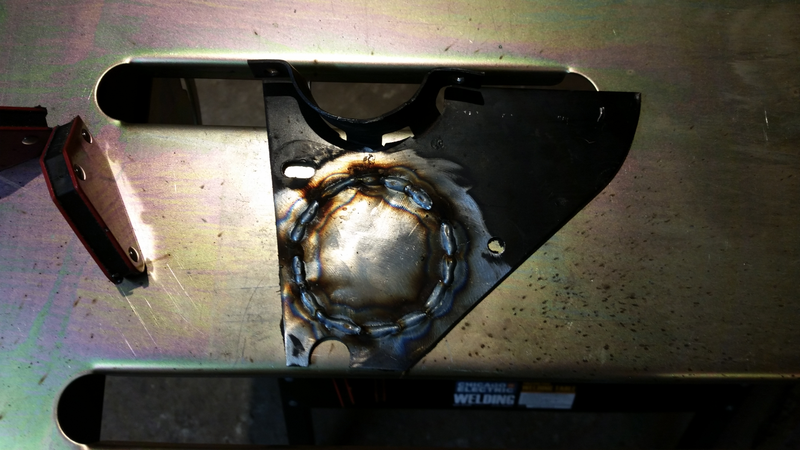

A little longer beads than I’d usually risk on something this thin, but it turned out okay (didn’t turn into a taco!)

If anyone here who actually knows how to weld has any feedback, it is welcome. I make no claim to know what I’m doing beyond being able to stick stuff together, and in this case without warping it. In any case, a grinder...

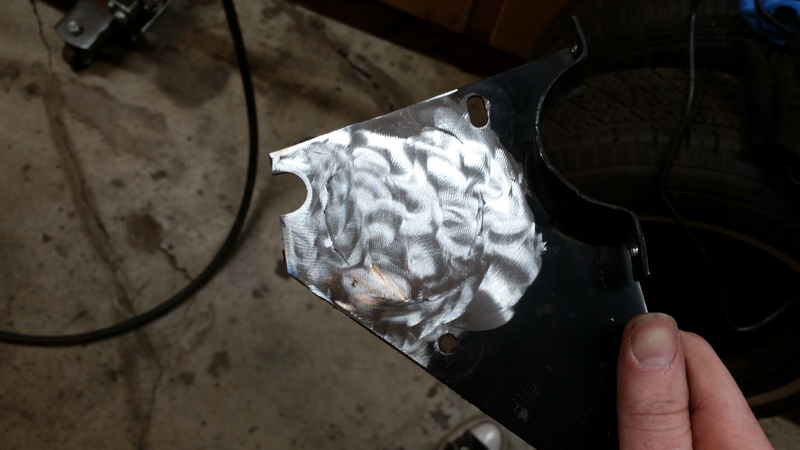

Again, die grinder and roloc sanding discs - much more control than a flap wheel on the angle grinder, good for small stuff like this

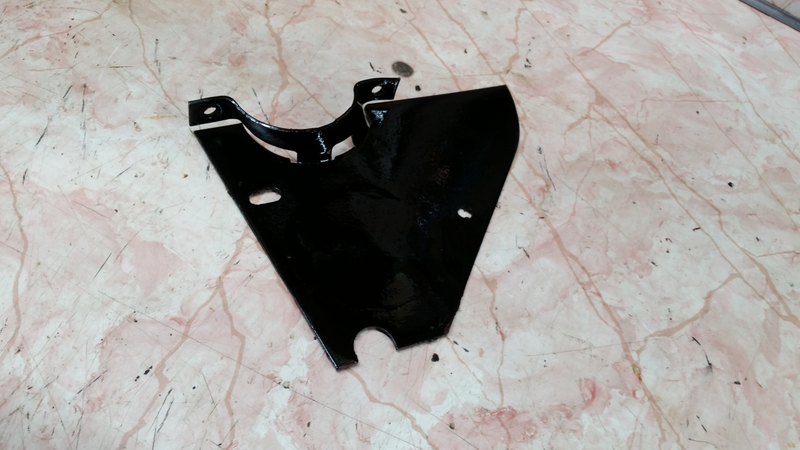

...and paint...

This will dry semi-gloss, still very wet when photographed but I was hungry and wanted to eat more than I wanted to watch paint dry for the sake of taking a picture of it.

...makes it look like it did a while ago.

This is all the further I have gotten so far. The next step will be to put this plate back in the car temporarily to make a final determination of where the new MC has to mount, then ironically drilling holes through my patch. There’s some other fiddly stuff I probably should do to make it as robust as possible as well. All this should be part 2. Much later, part 3 will be the transmission-end of the fun.
