And that’s more than I knew before!

One of the things that’s always on my mind when driving loaded-down work trucks is exceeding their rated capacity. Sure, you can cheat those ratings a little, but it’s always a compromise. Even if the engine can “handle it”, there’s so much more to it than that, and the given rating is a great starting point.

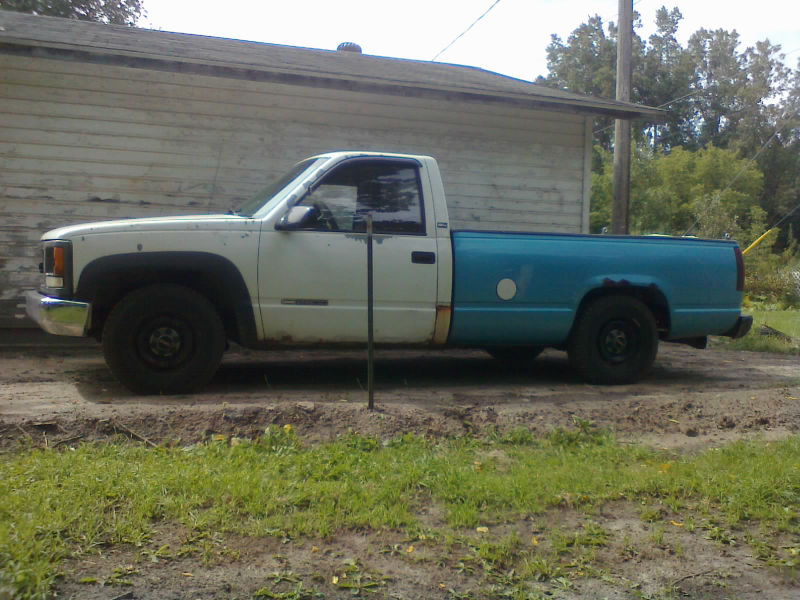

My truck, a 1995 C2500 Sierra, has a clearly labelled GVWR of 7200 pounds. But that’s just the maximum overall loaded weight. It doesn’t spell out just how much it can carry.

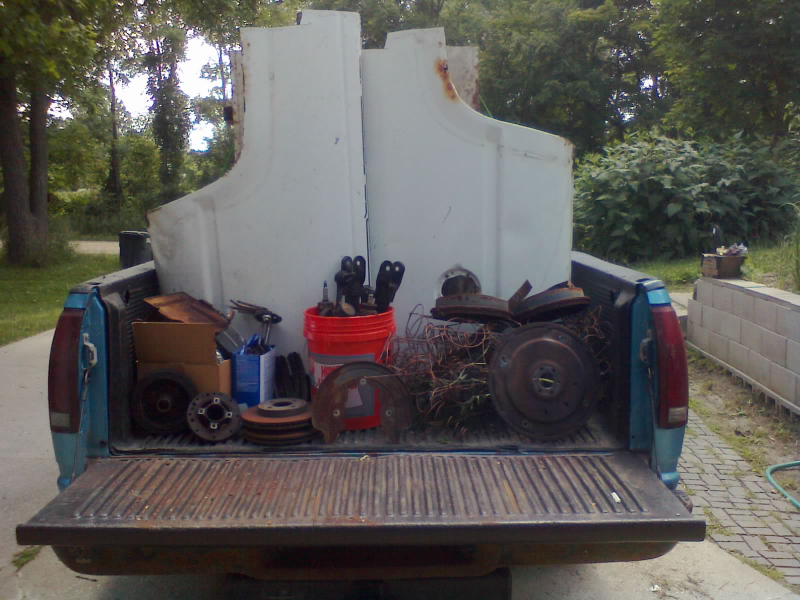

So during a scrap metal run, I made sure to get a reading from the scale after unloading. I want to know what my truck weighs empty, so that I can subtract that from the GVWR and get a sense of what its hauling capacity is, since I can’t find a reliable source for those kinds of numbers that will match my truck’s configuration. Luckily, these scales (truck scales too), have to be re-certified frequently. And from what I’ve been able to find, they’re supposed to be within 0.01% of dead-on balls accurate. That’s a 10 lb tolerance for a 100,000 lb capacity scale. Not bad!

Advertisement

But first I wanted to have my truck prepared as best I can for a true baseline reading. I don’t trust my fuel gauge to be 100% accurate when it claims to read 3/4 tank, or 1/2, so right before visiting the recycling facility, I topped off my fuel tank at the nearest station. I’d rather get a “worst-case scenario” scale-reading with a full tank, which is only going to get lighter as I drive.

I also decided to leave any extra cargo at home: my ball-mount, extra ratchet straps, spare fluids, etc, even though that’s stuff that I always carry in the truck. It doesn’t amount to much, but I really want to get as close to a naked-truck reading for my baseline as I can.

I got my reading, then went home and weighed myself on the bathroom scale so that I could subtract that, too. The result: my truck weighs 4400 pounds totally empty of cargo (but all fluid tanks & reservoirs full).

Advertisement

Subtracted from the GVWR, that means that the truck can carry 2800 pounds. But let’s not forget that some of that weight is going to be spoken for: by me the driver, and any passengers riding with me.

This morning I went to pick up a load of concrete: 42 80# bags! 42 x 80 = 3360 pounds Yeah, I better split that into two trips. So I calculated how many bags would constitute a full load, after subtracting an overly-cautious 400 pounds from the cabin to accommodate me and my passenger. If I wanted to do a full maximum-capacity load, I would have to take 30 bags of concrete.

Advertisement

Well, I’d like to know what my truck looks like with a full load, so that if I ever find myself hauling more than I can measure, I can use the squat level of the truck for reference.

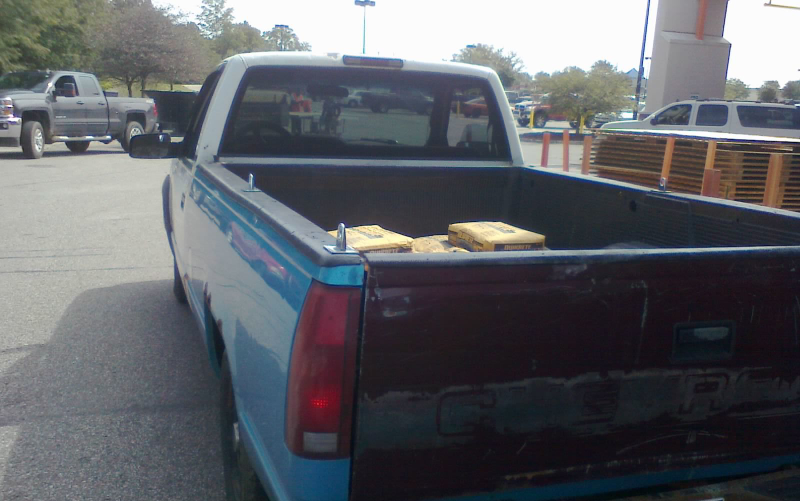

So we loaded up 30 bags, and I took some pictures and measured the distance from the ground (in this case a level, paved parking lot). We then took 9 bags back off and made the first trip, returning soon afterward for the equal remainder.

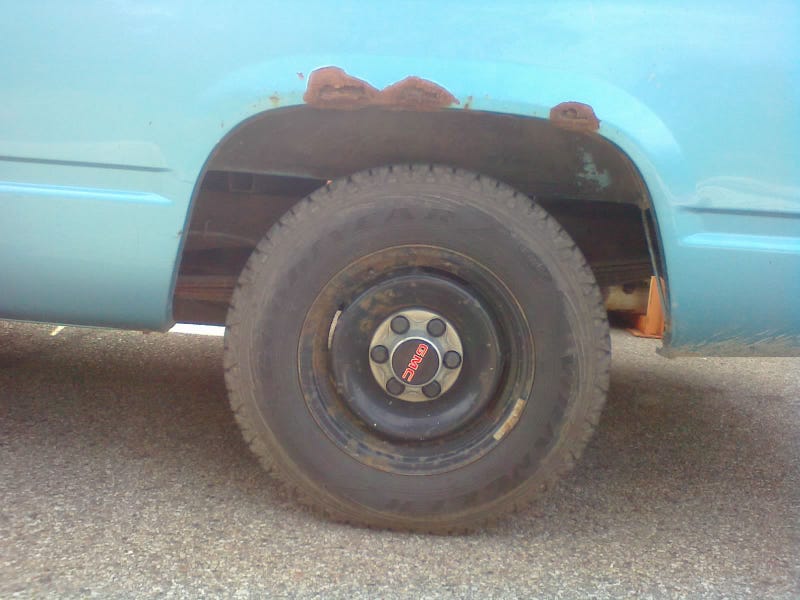

After taking some measurements at home, I can now save these pics and measurements for future reference. The top of the unloaded bed railing stands about 50 inches above the ground with the truck empty. But with a full load, that distance is only 46 inches.

Advertisement

Good to know!

21 bags of concrete (1680 lbs) onboard, sags the bed rail down to about 48 inches
