Lenovo/IBM ThinkCentre A60 8991-DGU case
Corsair CX750M 750W semi-modular power supply
ASRock B450M PRO4 mATX AM4 motherboard
AMD Ryzen 7 2700 3.2GHz 8 core processor
MSI AMD Radeon RX580 8GB Armor PCIe video card
Scythe Kabuto 3 cooler
2x Arctic F9 PWM 92mm fans
Samsung 970 EVO 500GB NVMe SSD
TSST DVD+-RW TS-H653A SATA DVD burner
Seagate ST2000DM001 7200RPM 2TB SATA hard drive
Front/rear USB 3.0 and USB 2.0 ports
Serial port
Windows 10

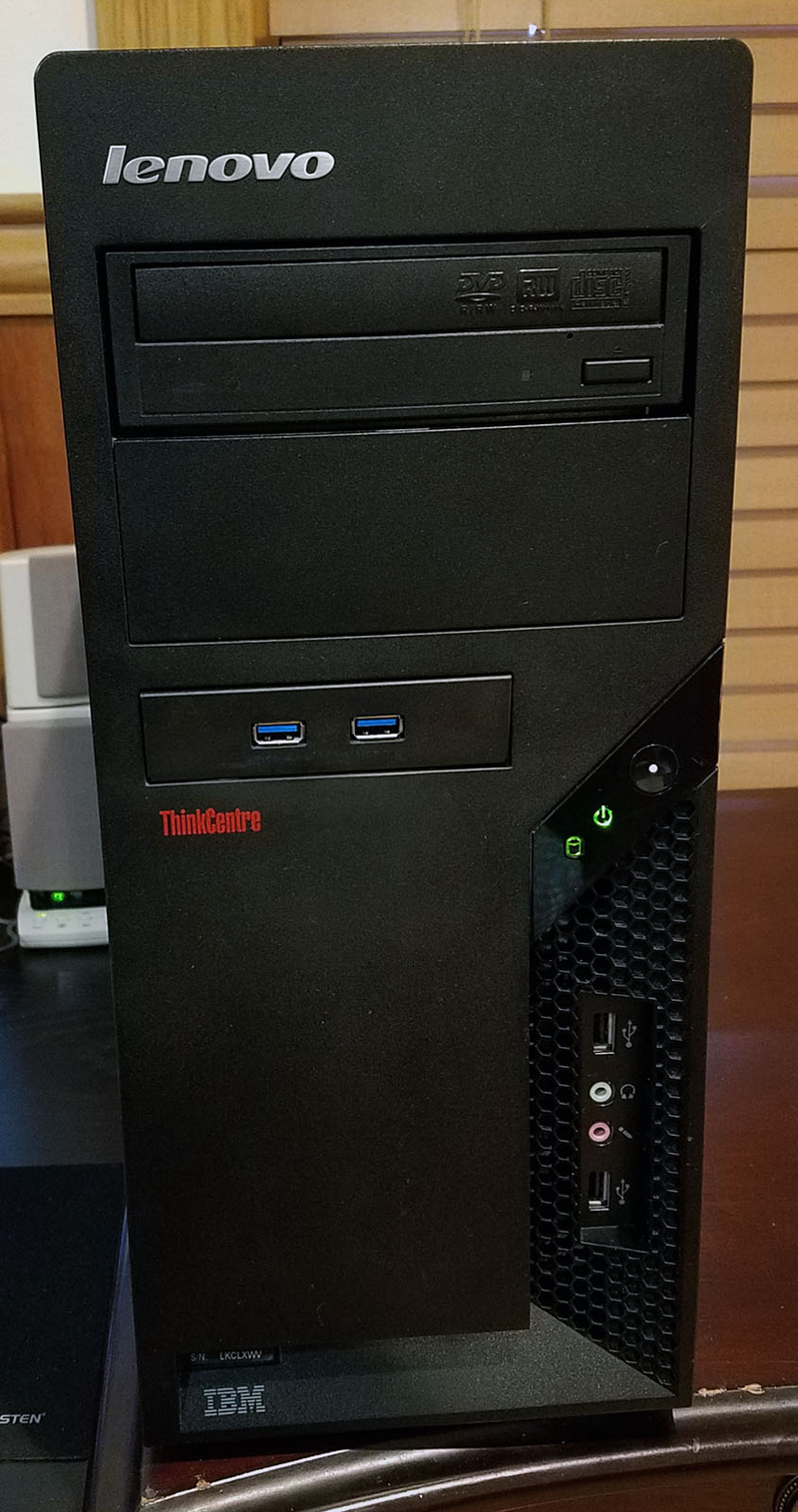

Chose this case cause I’ve always loved IBM’s and Lenovo’s business class computers like their ThinkPad, ThinkCentre, and NetVista lines. This one also was in remarkably good shape.

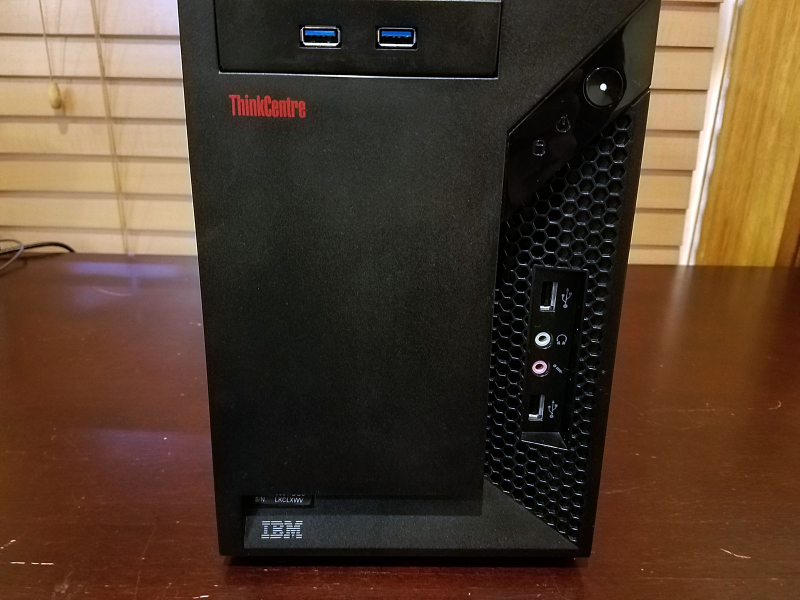

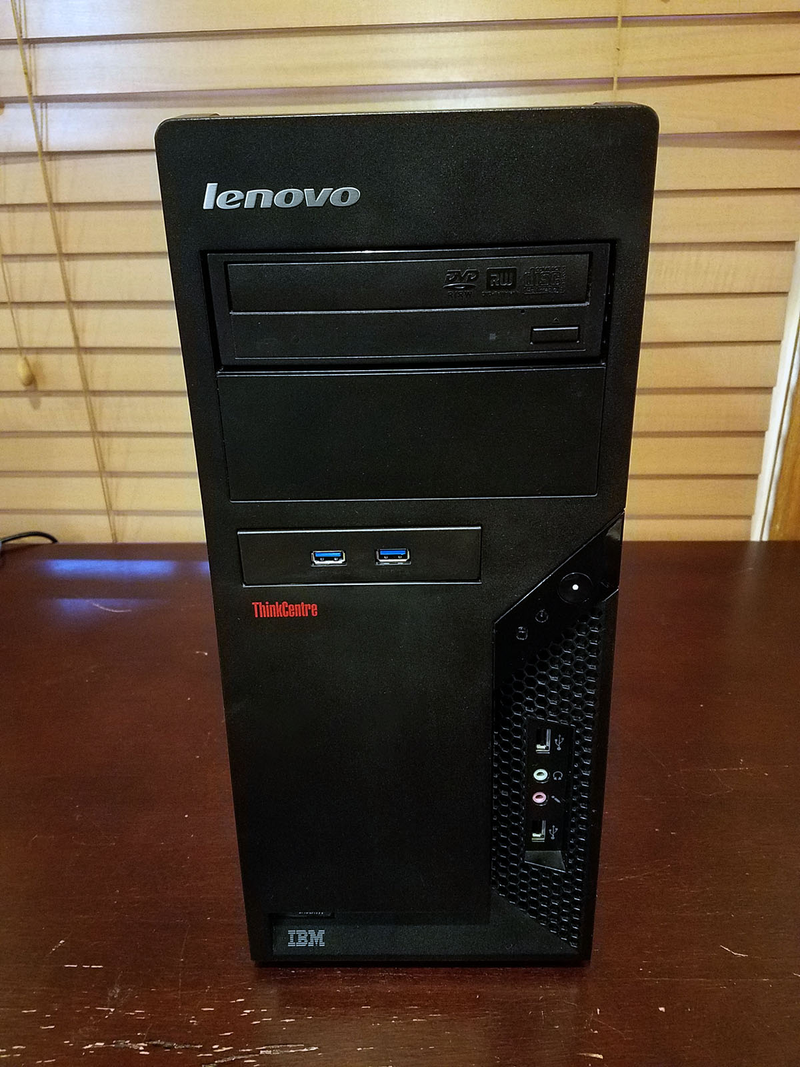

Tossed in a USB 3.0 front panel module in there. The USB 2.0 ports also work.

Advertisement

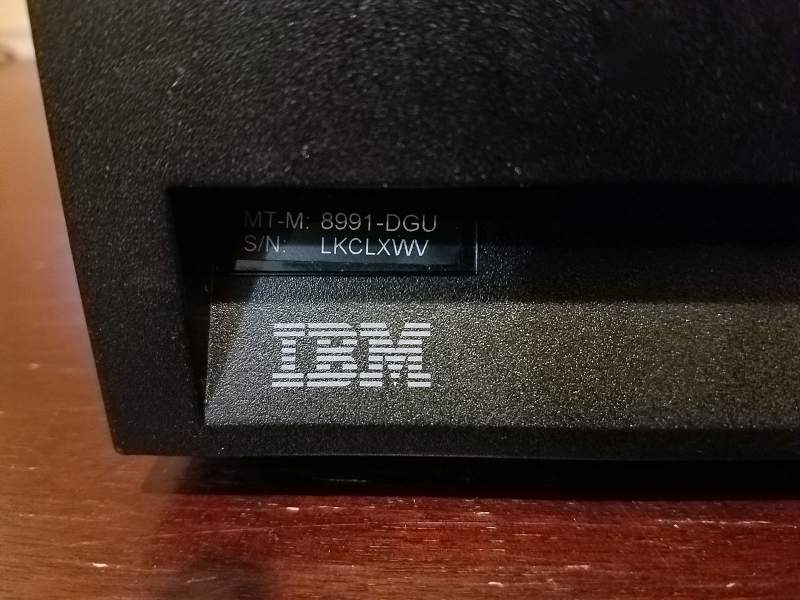

Closeup of the original sticker... It housed an AMD Athlon X2 4400+ with 1GB RAM.

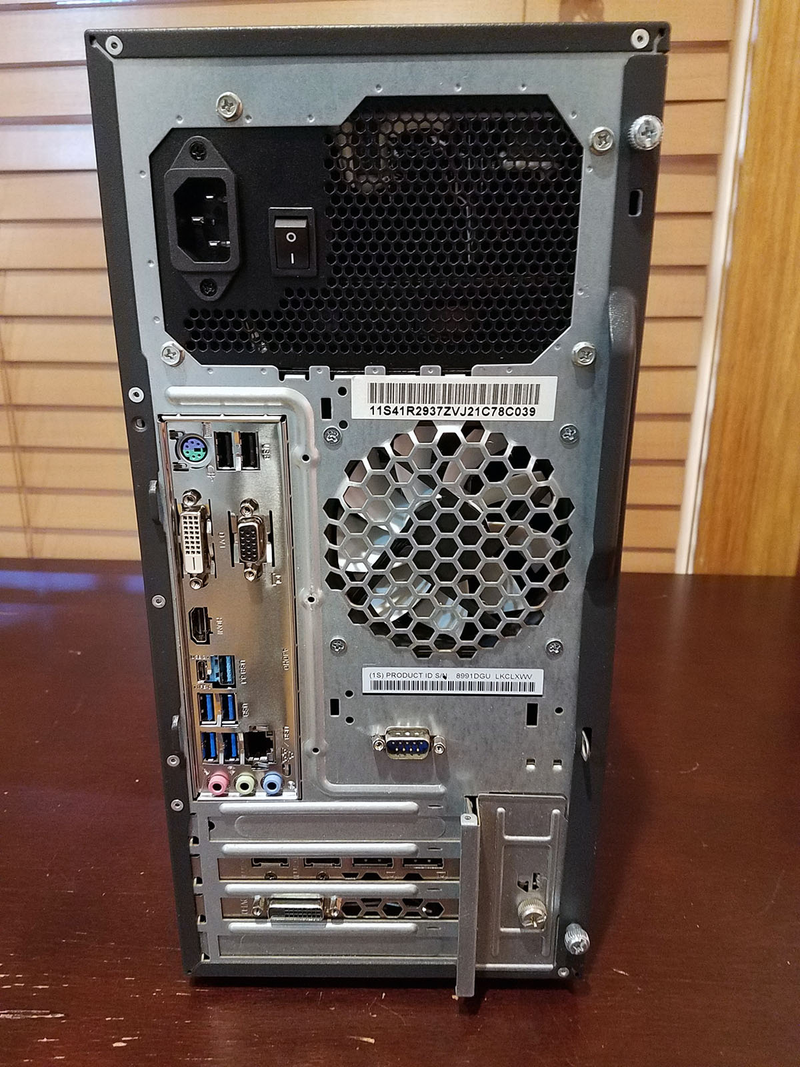

The rear, ports galore! Serial port works thanks to COM1 header on motherboard.

Advertisement

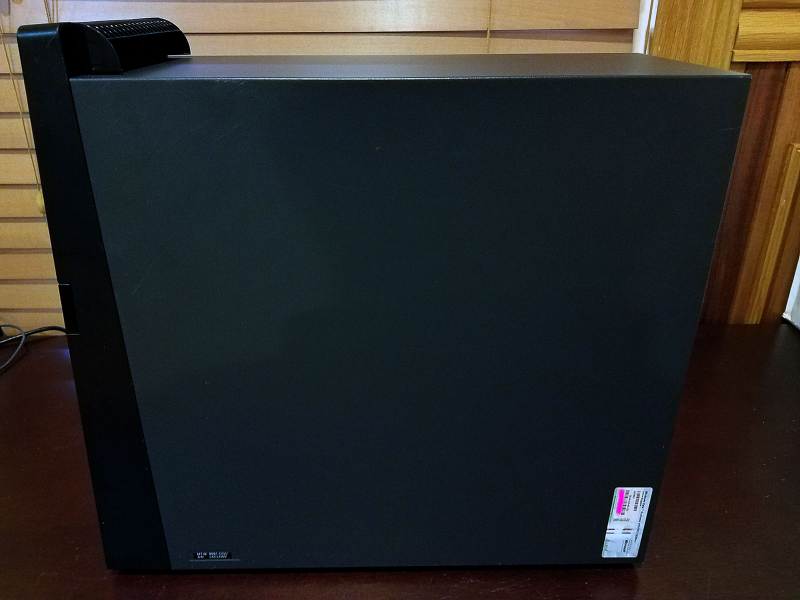

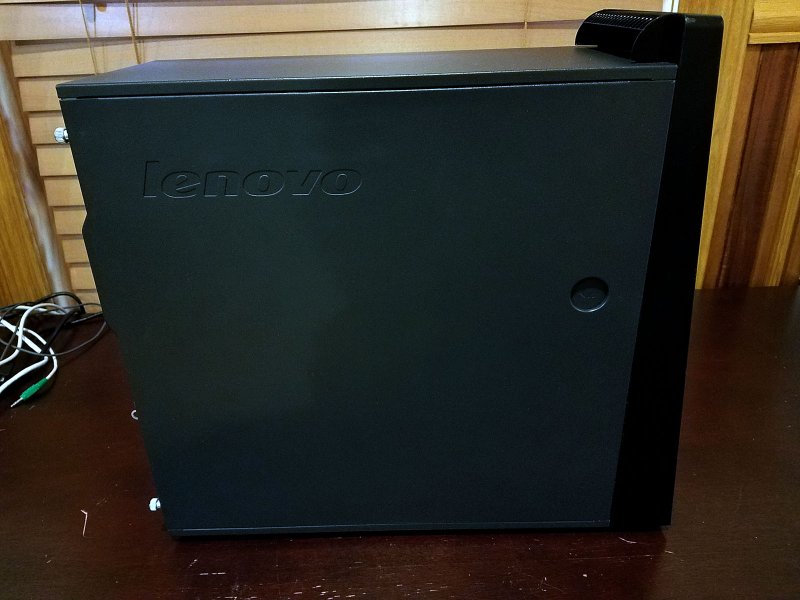

Side of the case

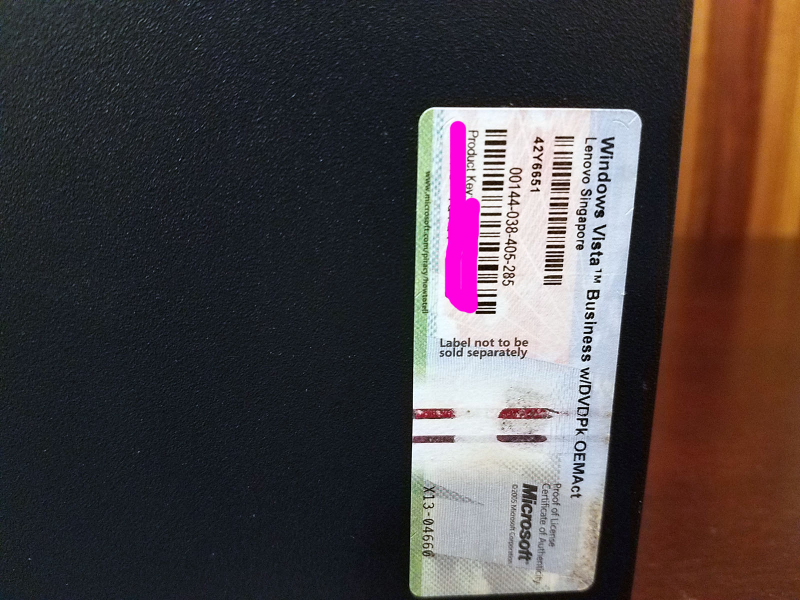

Authentic Windows Vista product key + label.

Advertisement

Side panel is secured with 2 thumbscrews and easily slides out by pressing the tab on the middle right then gently sliding out the panel.

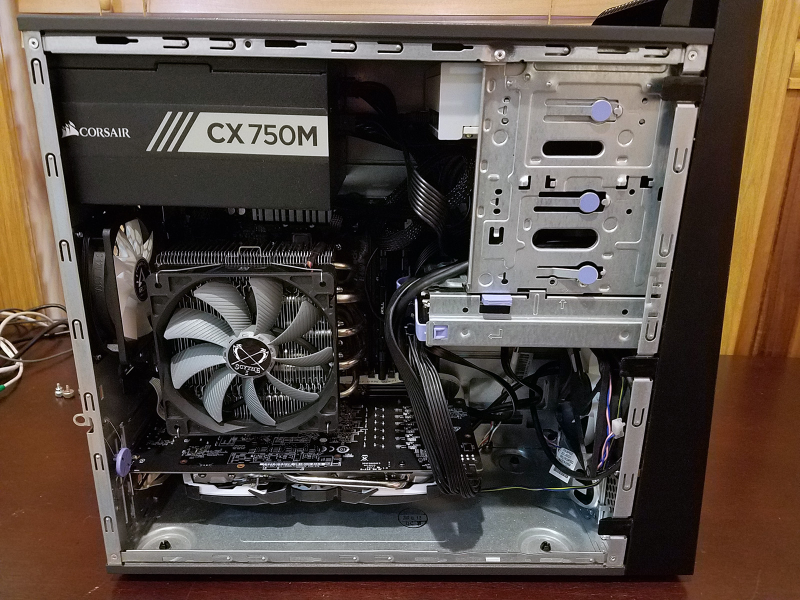

All the parts! A tad messy in there. Got a nice black theme going on as well. No lights or RGB or any of that sort here.

Advertisement

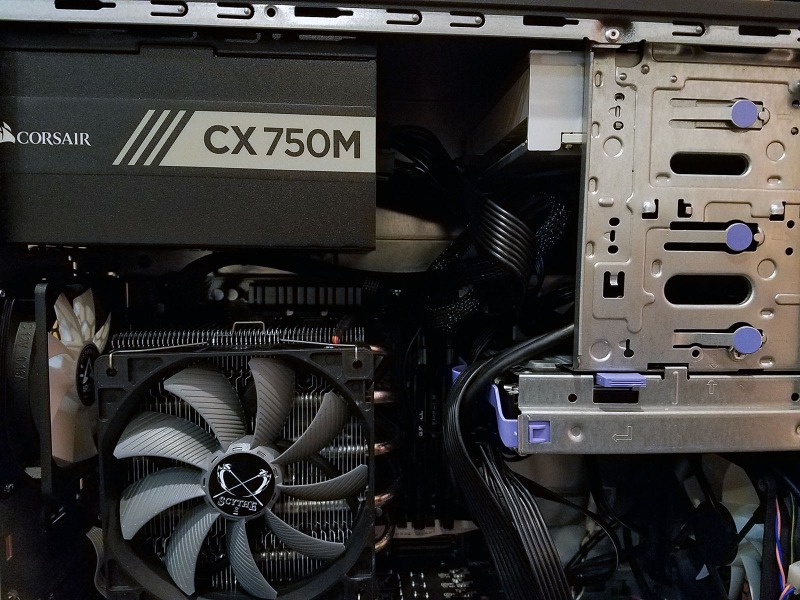

Closer view of the top half of the case

Advertisement

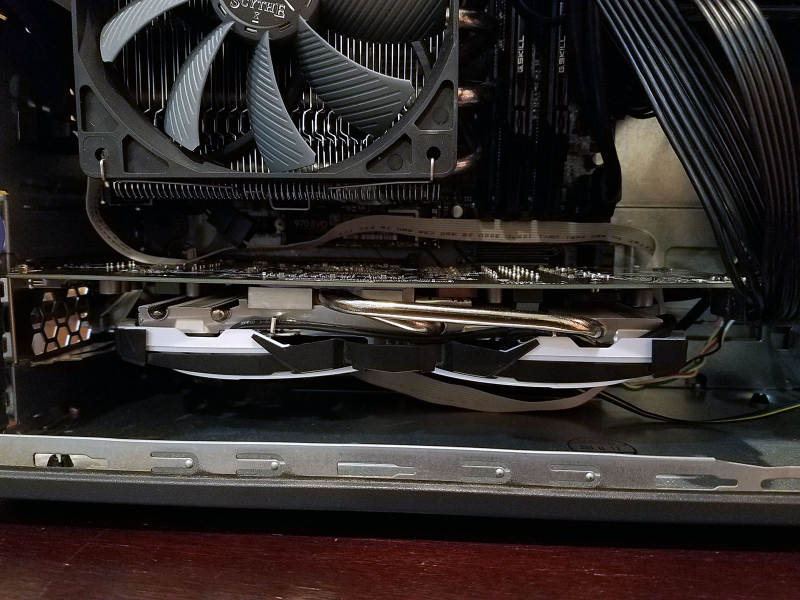

Lower section... you can spot the 970 EVO right below the cooler.

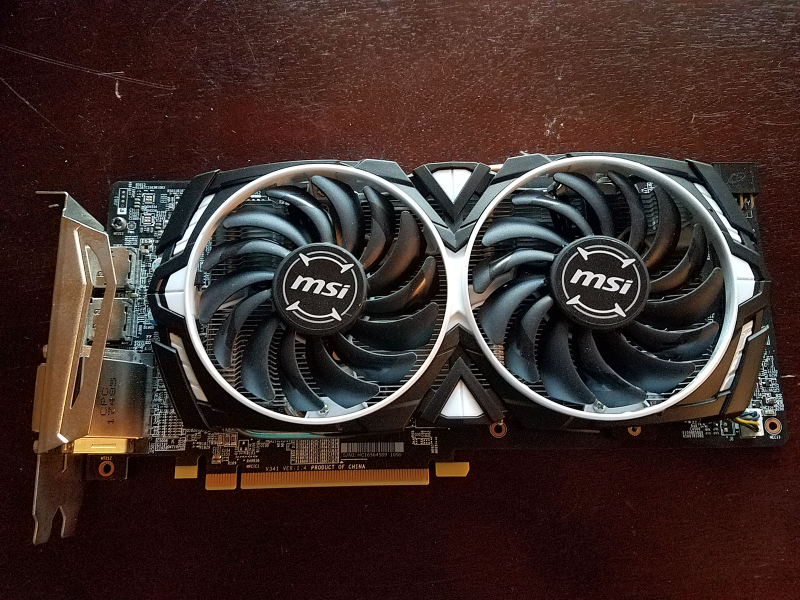

MSI Armor RX580 8GB

Advertisement

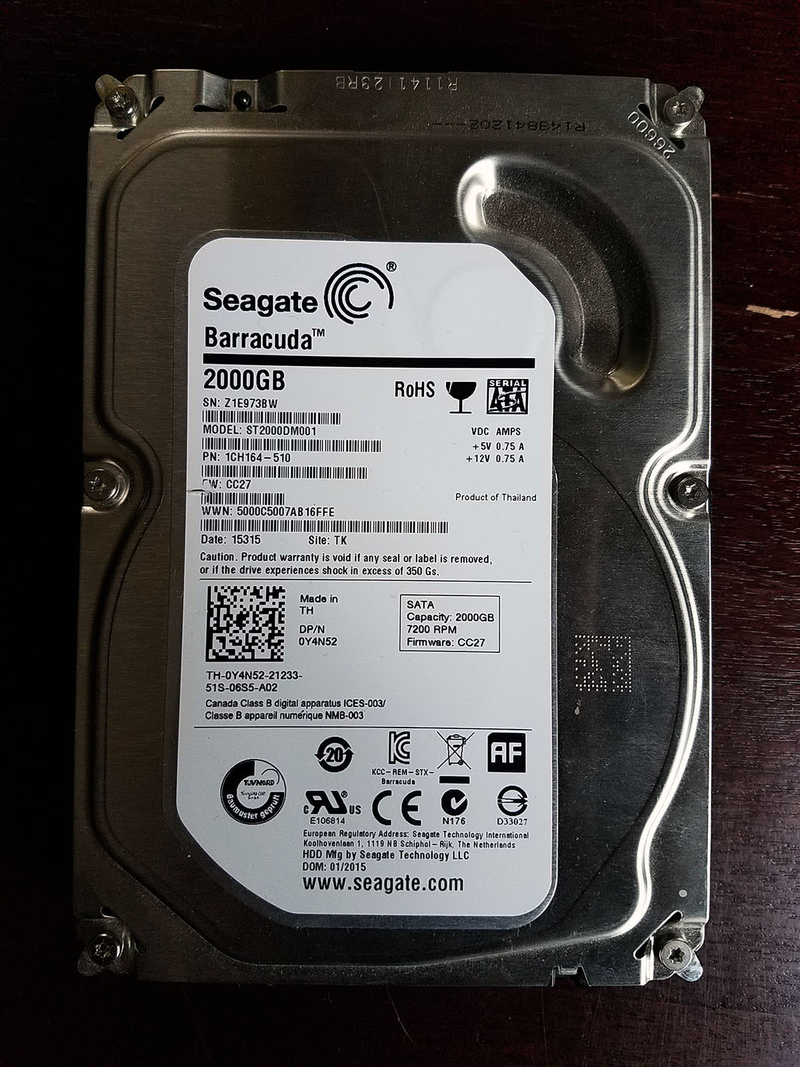

Seagate 2TB hard drive

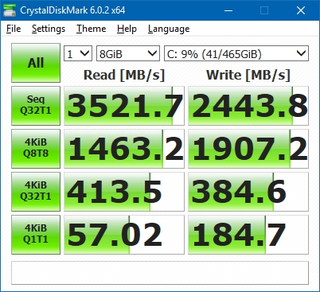

First run of CrystalDiskMark on the 970 EVO

Advertisement

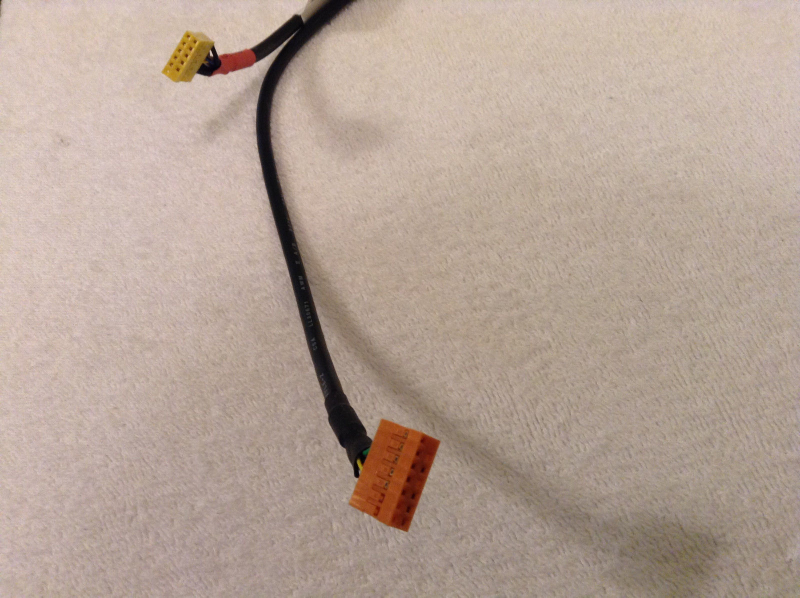

The front panel headers for the USB and audio needed some work. The USB one was easy, Lenovo just had 2 extra ground wires. Removed them and it works fine.

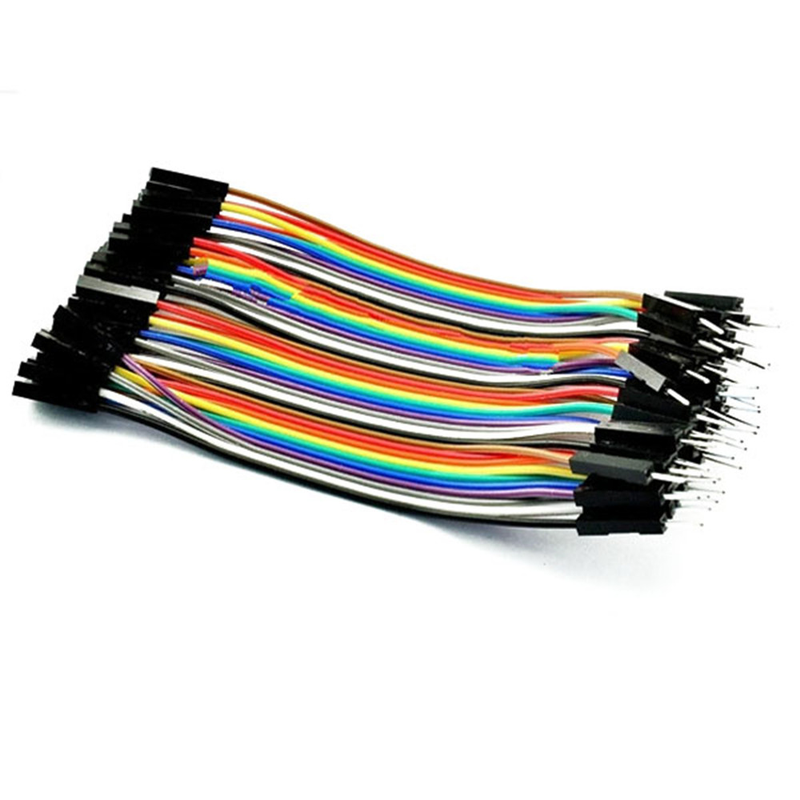

The audio one required some work. Got a 40 pack of Arduino male to female pins like this for less than $3 shipped on eBay.

Advertisement

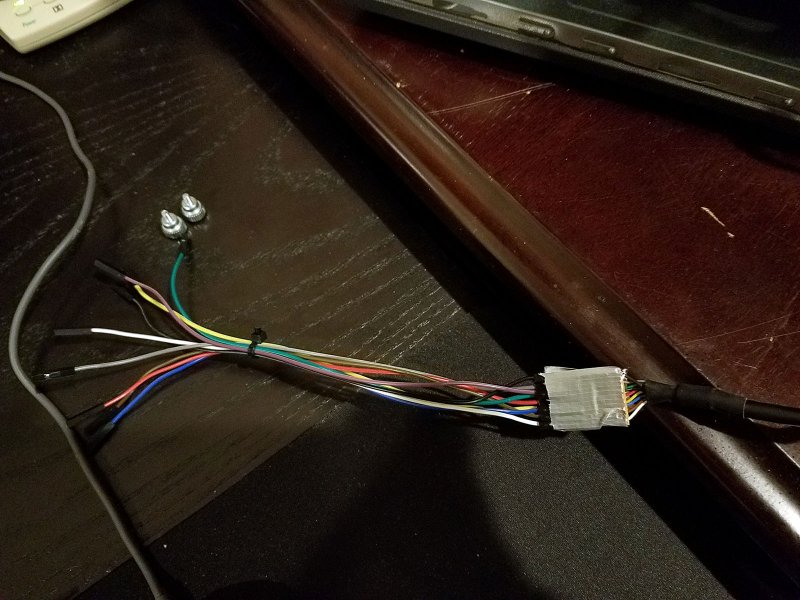

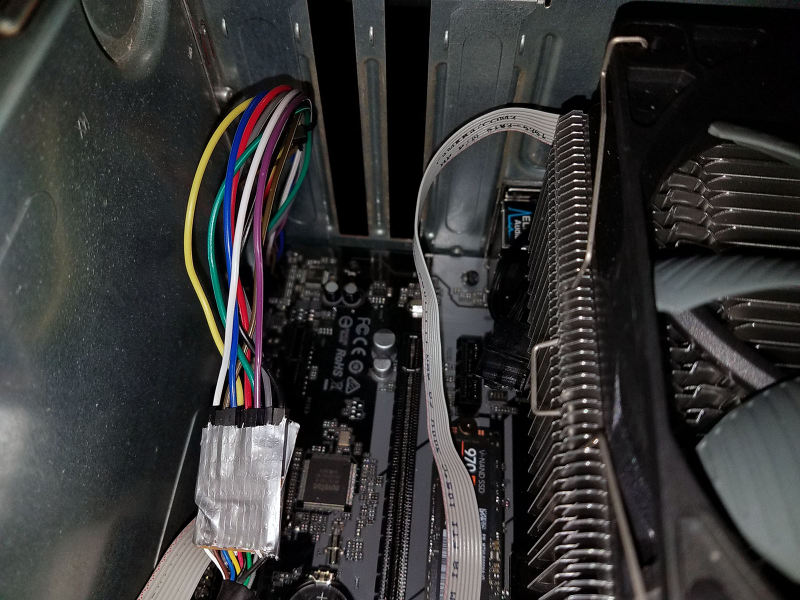

First thing was to extend the pins individually, all color-coordinated. Taped it together to be a bit more secure.

Advertisement

Here it is plugged in correctly thanks to...

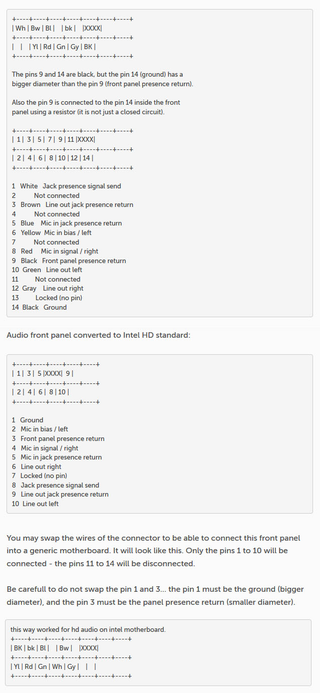

This diagram found on a Lenovo forum

Advertisement

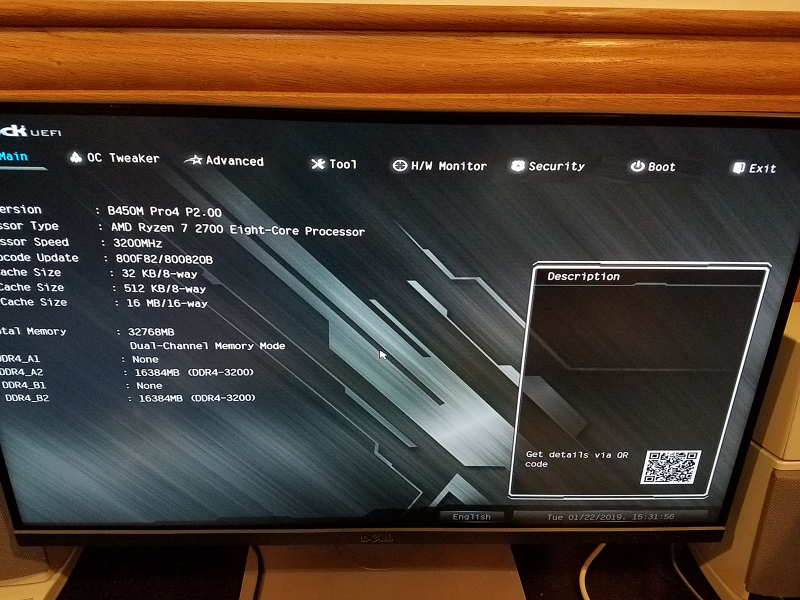

ASRock UEFI

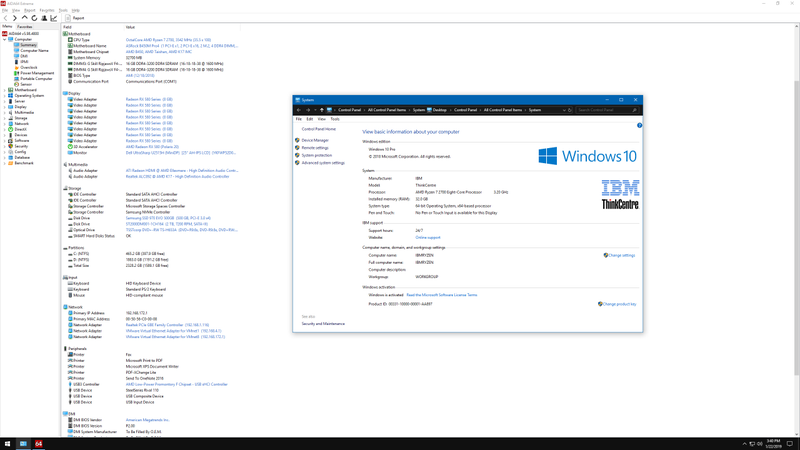

System info

Advertisement

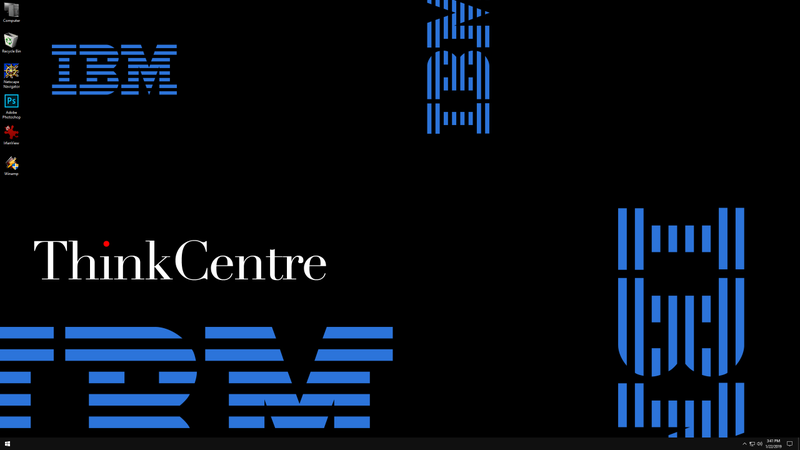

A slew of wallpapers

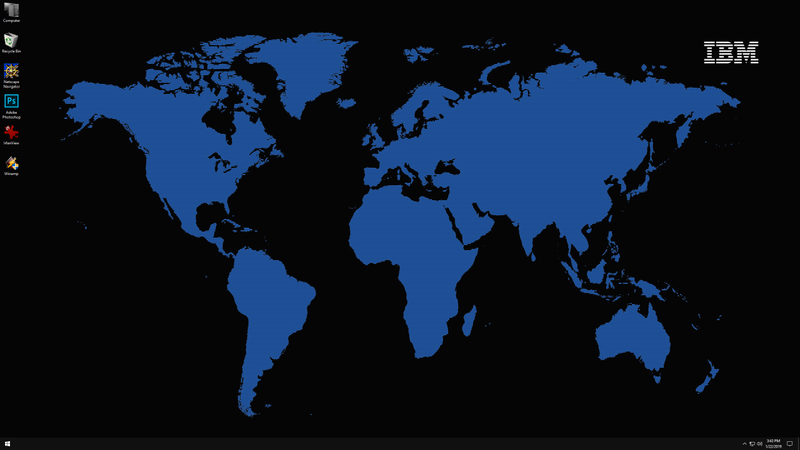

IBM world

Advertisement

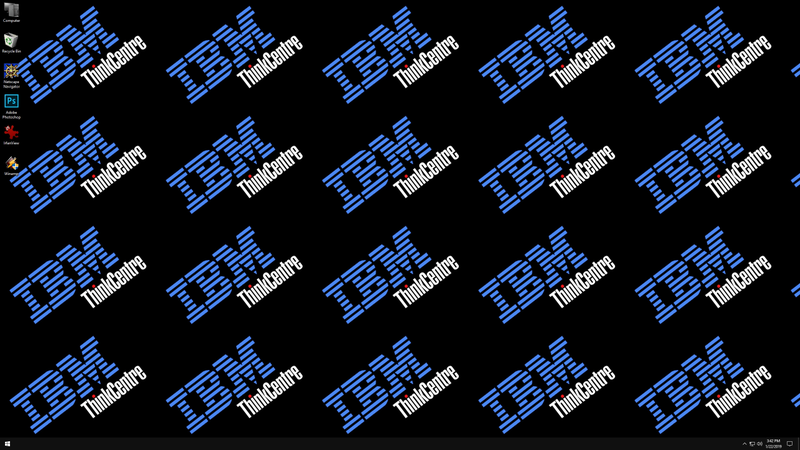

Tiled blue IBM

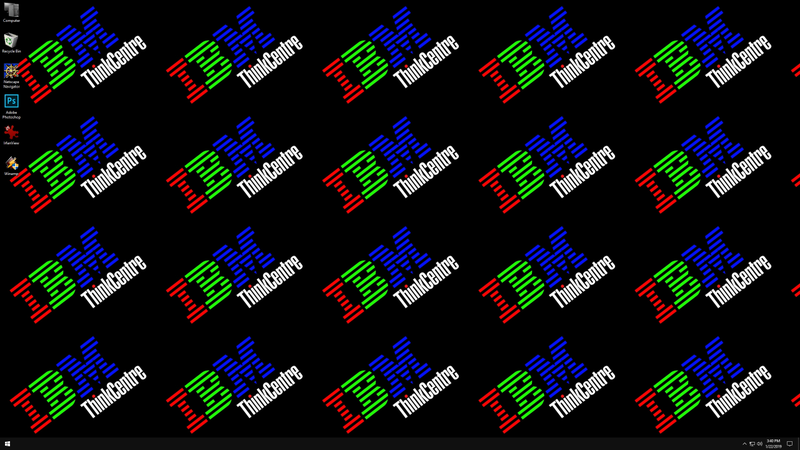

Tiled RGB IBM

Advertisement

A ThinkCentre icon

Here it is running.
