IBM NetVista / Lenovo ThinkCentre Sleeper Build

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em

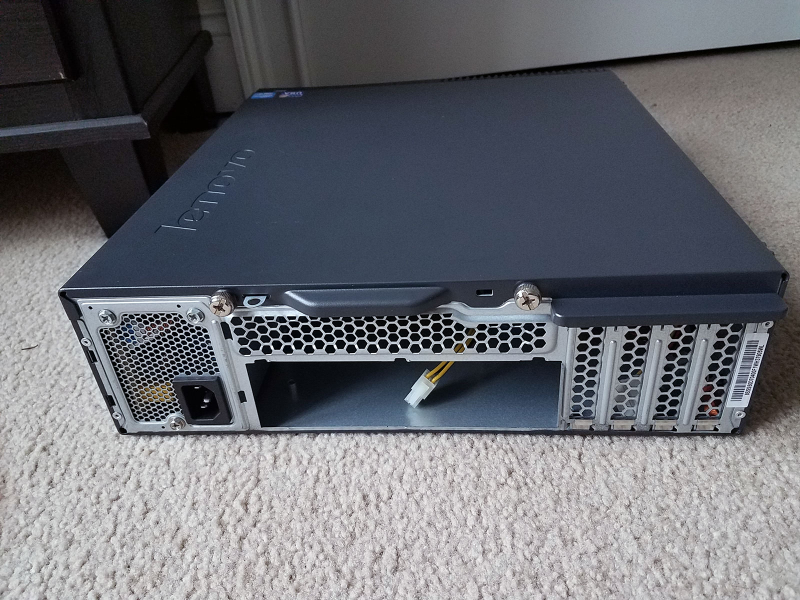

Acquired a Lenovo ThinkCentre M72e and an IBM NetVista 6578 with a faulty motherboard.

Advertisement
Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em

Gutted most of the M72e

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

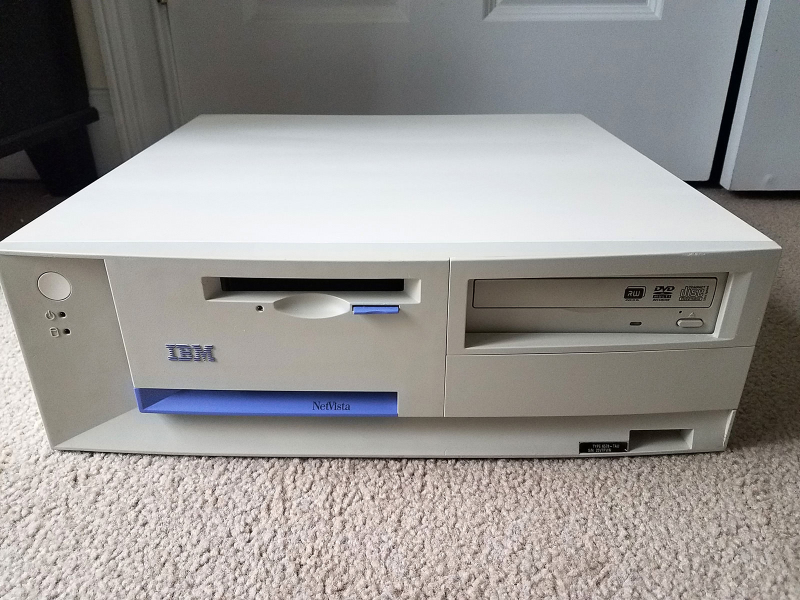

This is the final result!

Specs:
IBM NetVista A40 6578-TAU case
Arctic F8 Pro PWM 80mm fan
80mm fan installed in front (pulled from M72e)
SeaSonic SS-350SFE 350W SFX power supply
Lenovo ThinkCentre M72e motherboard
Intel Core i5 3470 3.2GHz quad core processor
8GB (2x4GB) DDR3 RAM
DVD/RW drive
128GB Samsung SSD
500GB 7200RPM Western Digital hard drive
1GB AMD RADEON HD6570 PCIe video card
USB 3.0 PCIe card
Windows 7 64 bit

Advertisement
Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em

Spraypainted the metal part of the case. Closest color I could find. Hides the scratches well. The front bezel’s plastic doesn’t really seem to like spray paint much and it peeled off quickly.

Advertisement
Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em

Case is really easy to open. Push 2 buttons on each side and lift it upwards.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

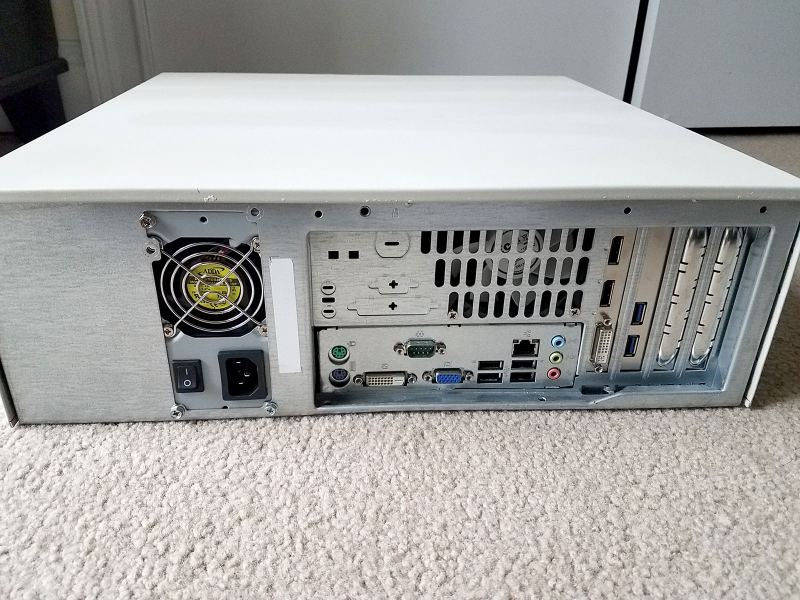

The rear. I/O shield is kinda just stuck on there. Plugged in cables keep it in place. Those are the original NetVista PCI slot brackets.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

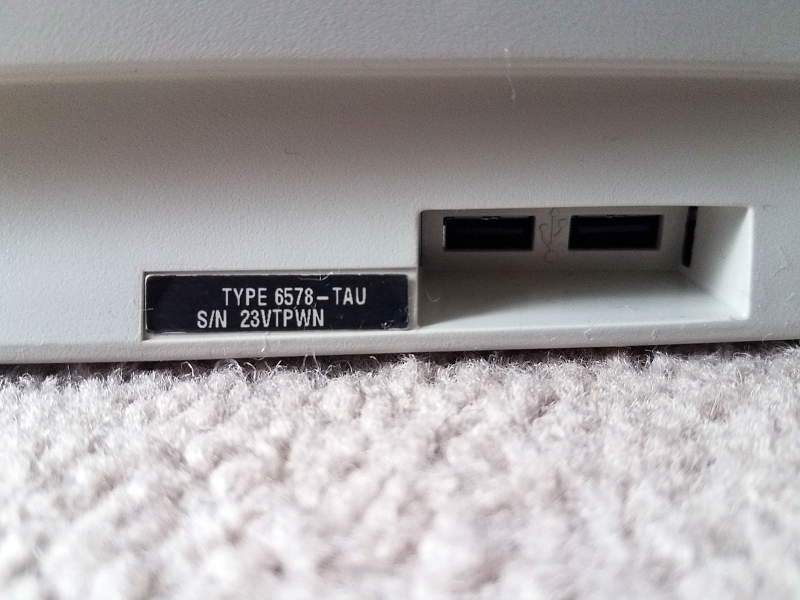

Front has USB 2.0 ports on the bottom right corner.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

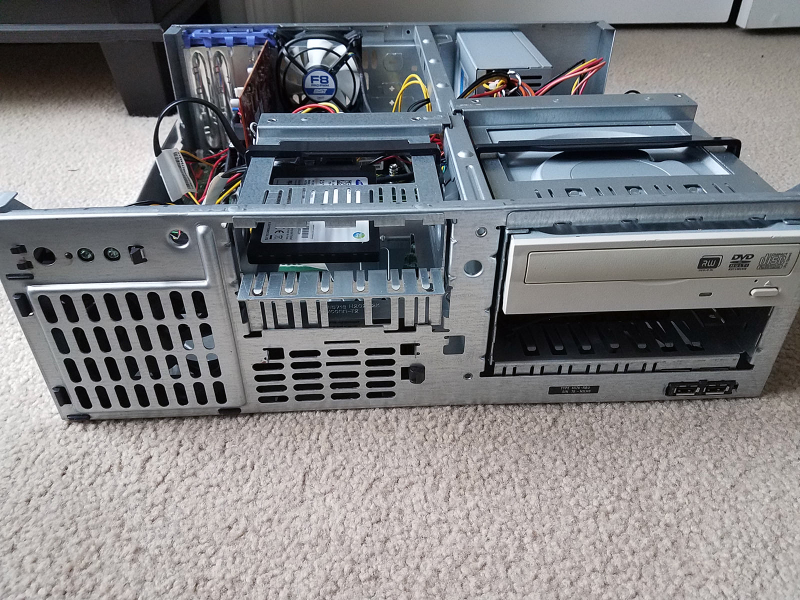

Cover removed

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

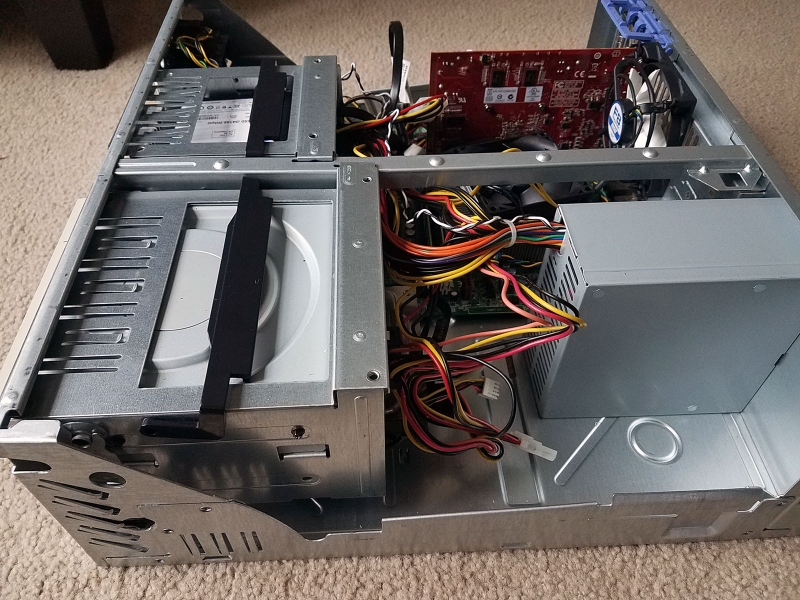

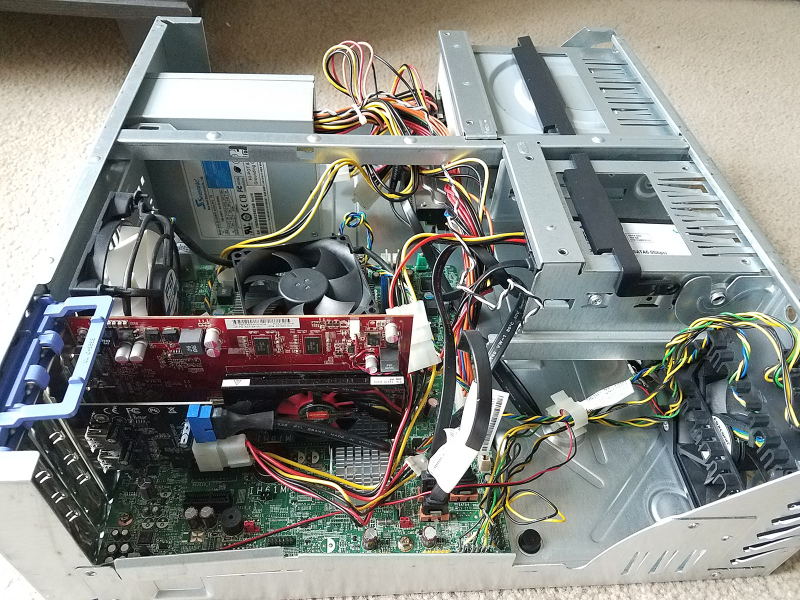

The guts

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

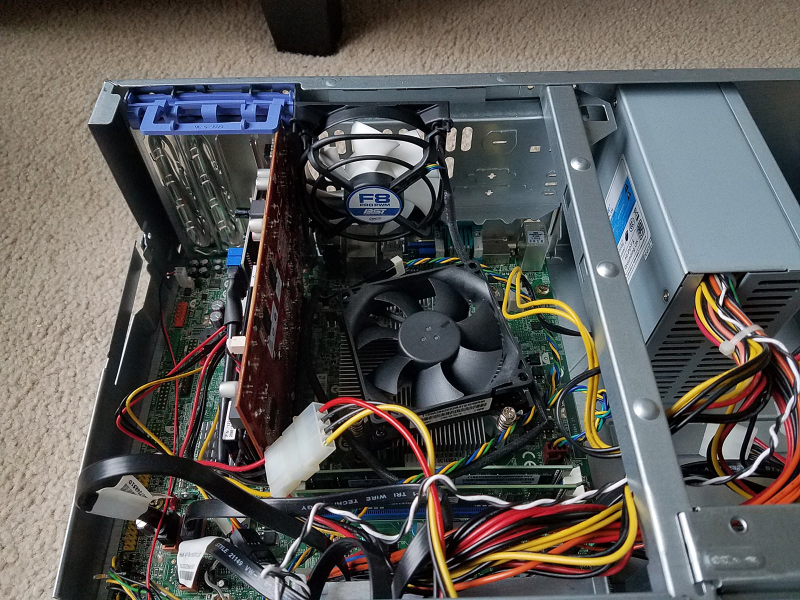

Another view

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

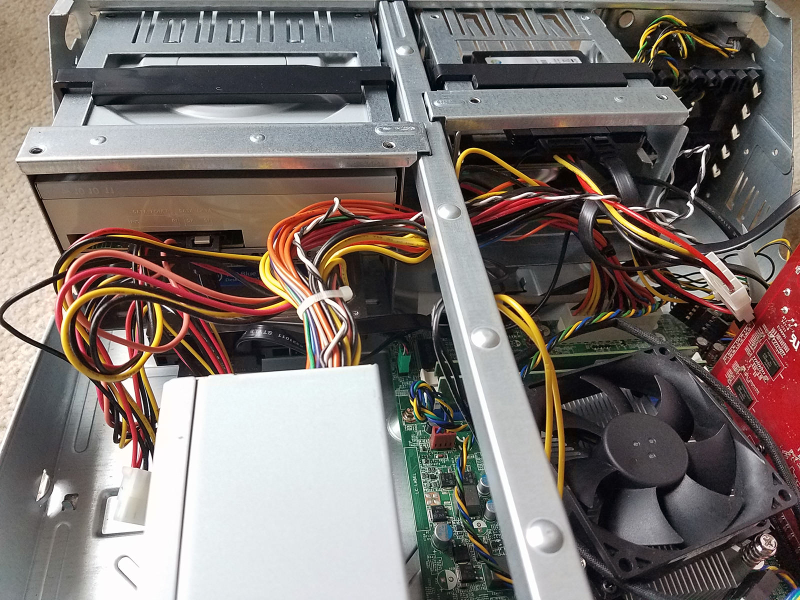

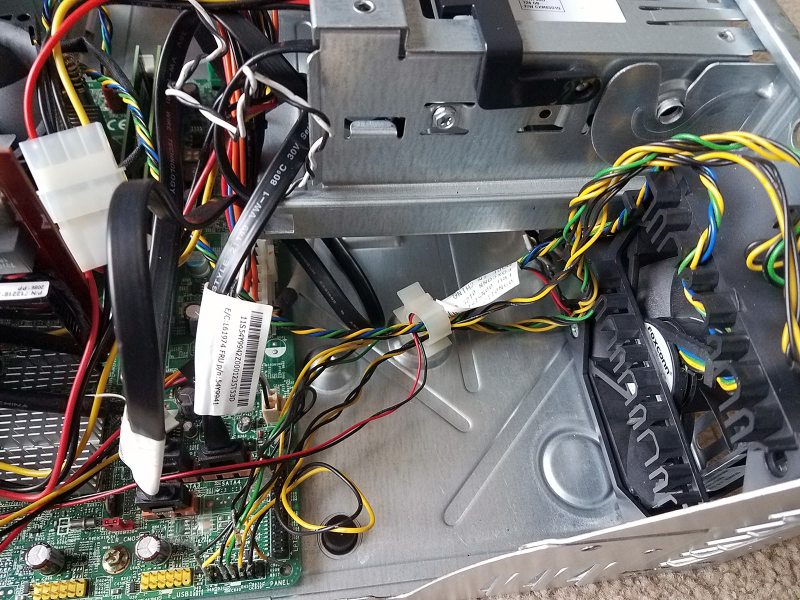

Messy cables galore. Might end up using zipties to settle those down.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

The drives can be flipped easily.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

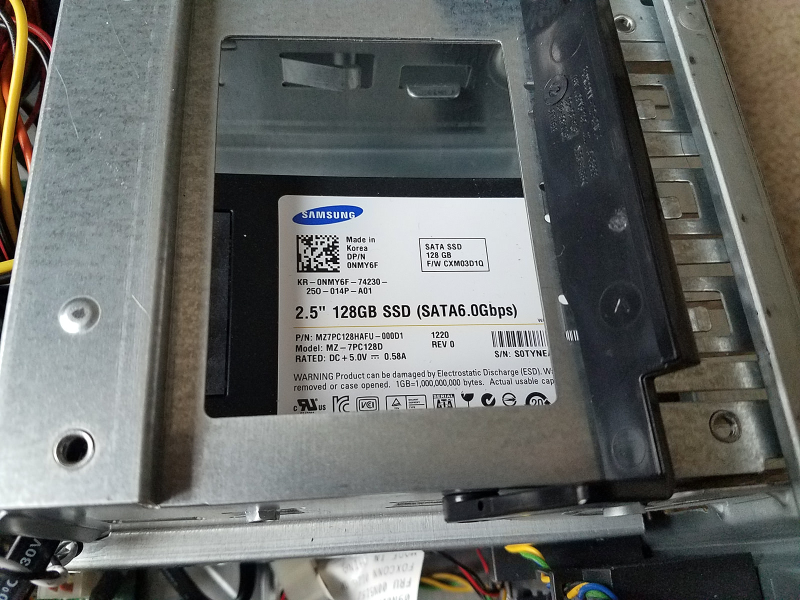

Samsung SSD

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

Front panel pins needed some rearranging and trial + error.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

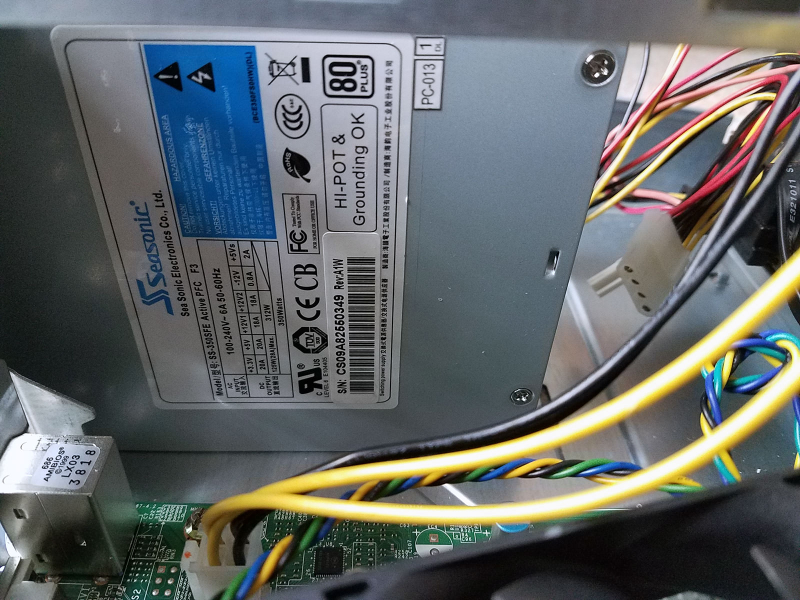

Closeup of the power supply label.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

IBM Model M made by Lexmark 42H1292

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

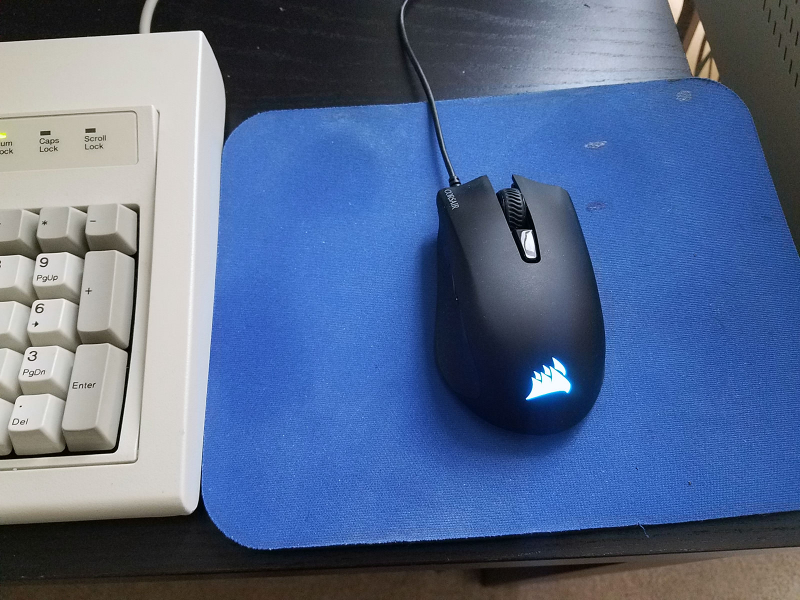

Corsair Harpoon RGB mouse

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

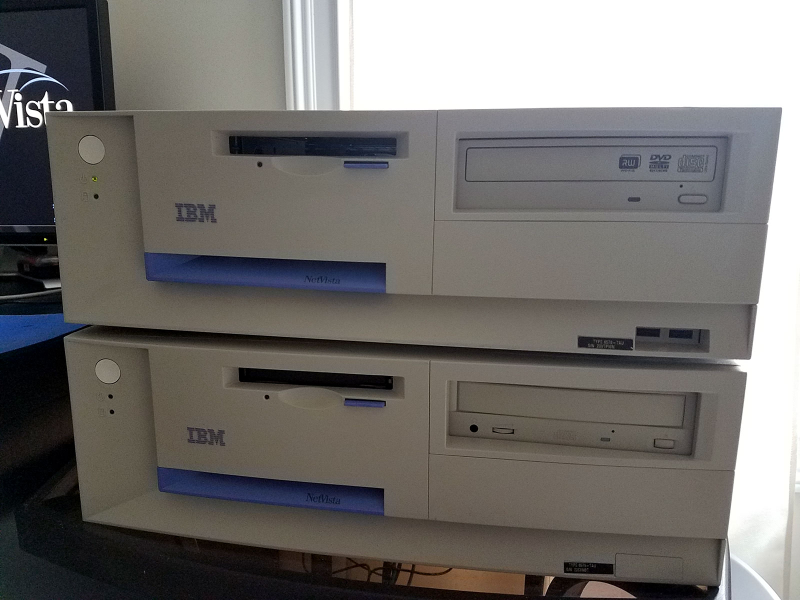

Here it is in action, stacked on top of a complete working original NetVista with a Pentium III 1GHz processor.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

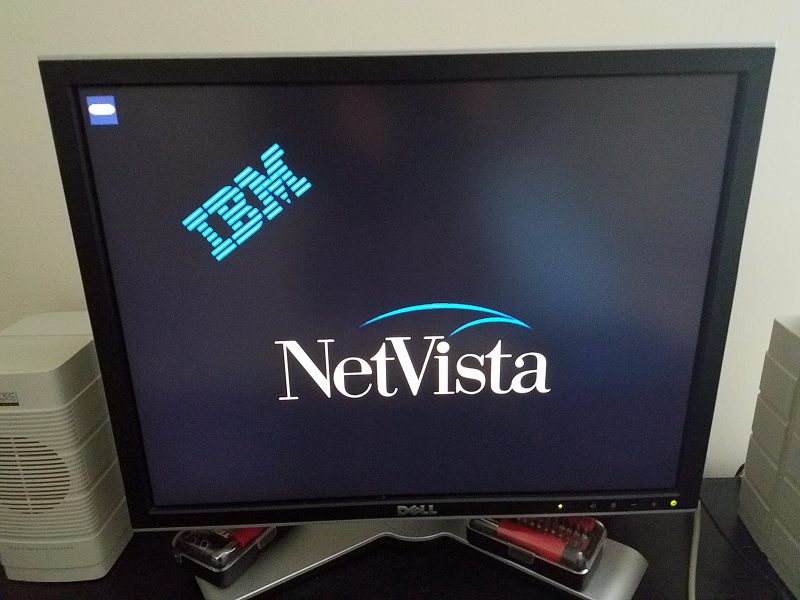

Customized BIOS logo

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

The desktop

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

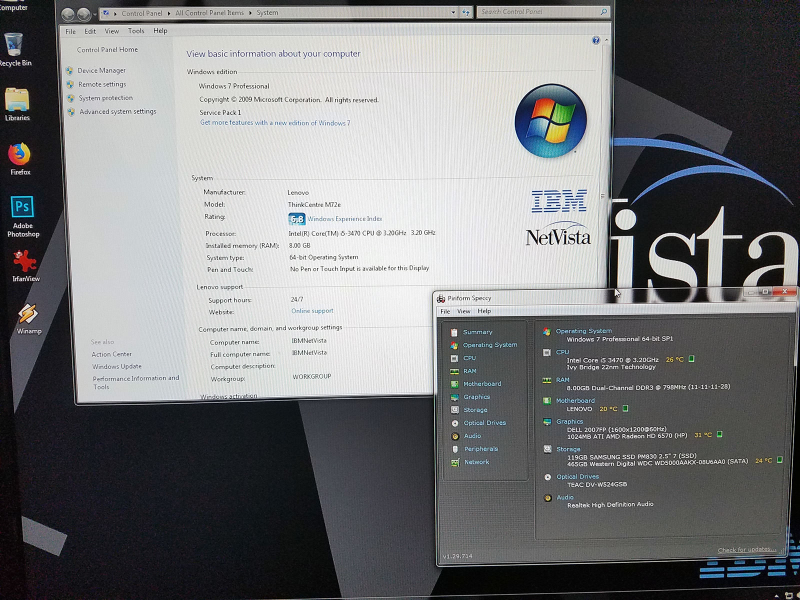

System info

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

The desk, complete with old Altec Lansing ACS 5 computer speakers.

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

NetVista 4:3 wallpaper

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

NetVista 16:9 wallpaper

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

Black NetVista 4:3 wallpaper

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

Black NetVista 16:9 wallpaper

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

NetVista icon

Illustration for article titled IBM NetVista / Lenovo ThinkCentre Sleeper Buildem/emem/em
Advertisement

NetVista icon with IBM logo
