Alright, so you’ve learned all about suspension and setup. You’ve also got your eye on those nice fat tires and wide wheels. That’s all fine and dandy, until you realize that your beloved chariot is a narrowbody model and was never designed to fit more than a 215 section width front tire. That part is not so fine.
Well, it seems like we’re going to need a few things. First up is camber, tilt those wheels inwards and the tire is more likely to clear the fender. Next thing to do is mount up your new wheel and tire combo, and get to measuring. What we care about is inner and outer clearance. How much room is there between the tire and the suspension, and between the tire and the fender?

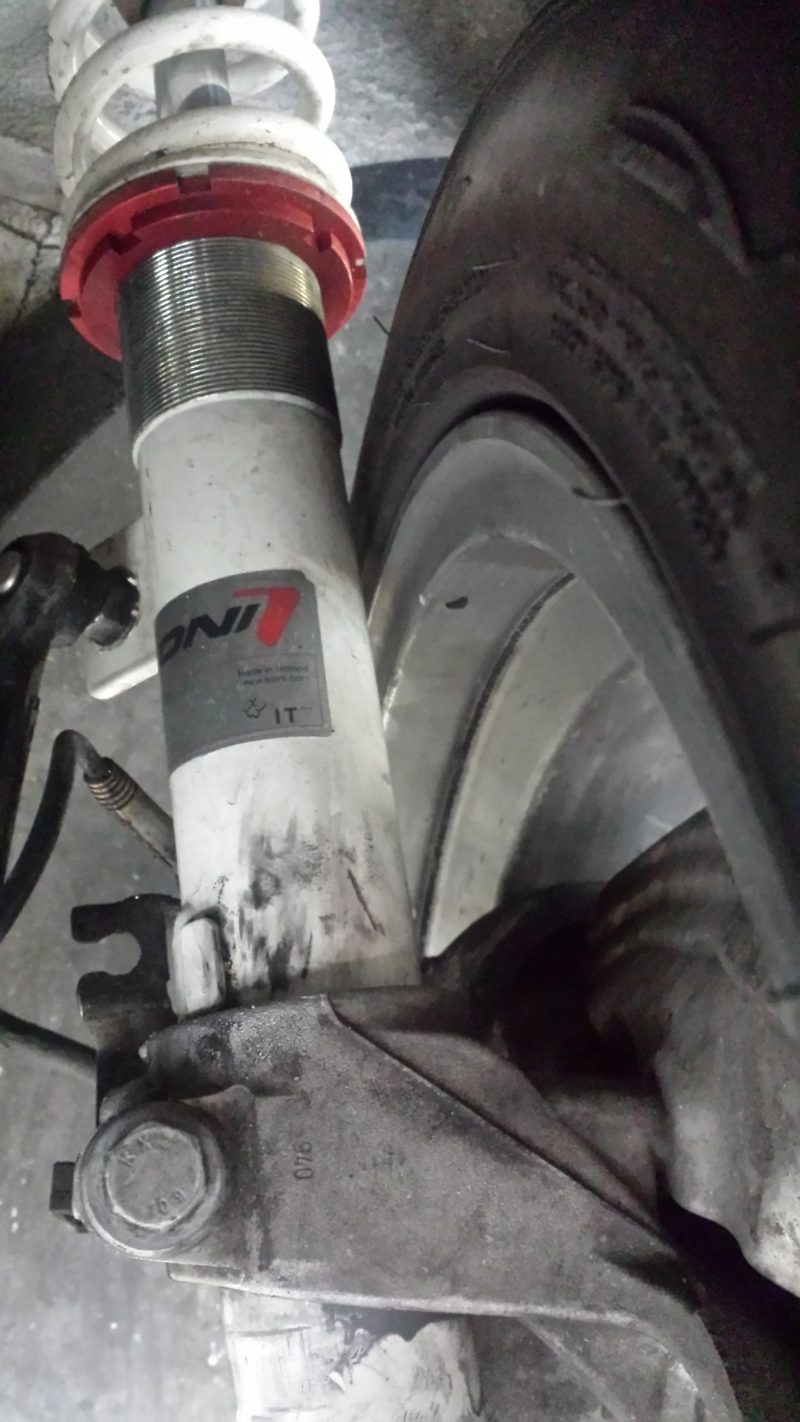

Not much. I can slide a few pieces of paper between the strut and the tire.
The strut isn’t going anywhere, so from here, the only way forwards, is outwards. That means our fenders are going to need some careful manipulation to run the maximum amount of rubber without the dastardly detriment that is tire rub.
Looks like I have a date with Mrs. Eastwood.
The Eastwood fender roller is the golden standard of the Stance Nation set. With this tool, the door is opened to destroying fenders and winning mad Internet cred.

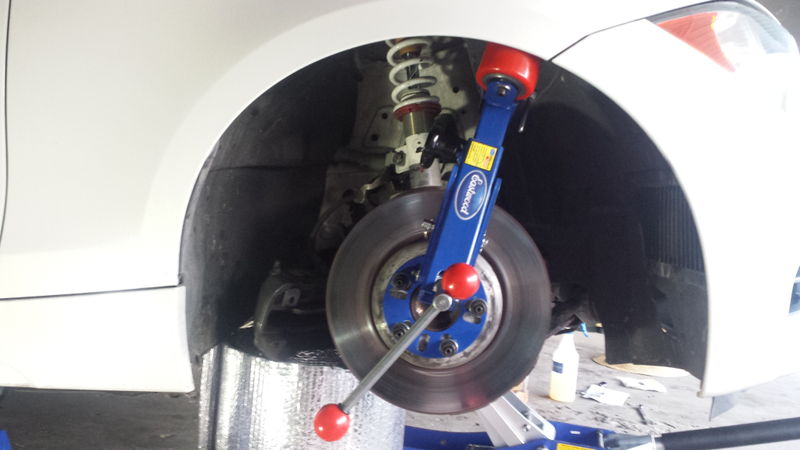

In all honesty, if you’ve ever been to the track and seen how much rubber people are stuffing under their cars, you’ve likely seen a car that’s been on the receiving end of some Eastwood working. It’s an ingenious little tool, consisting of an adjustable arm and a stiff urethane rolling/forming wheel that can be made to fit any vehicle. The tool mounts to hub and is secured by your lug nuts. From there, the arm of the tool has multiple points of adjustment to optimize rake, arm angle and roller wheel angle to completely reform the vehicle’s fender to the user’s needs.
What exactly is this tool reforming? Well, beyond the ability to physically reshape the fender itself (often referred to as a “fender pull”), the most common source of rub is the inner “lip” of the fender. A byproduct of the manufacturing process, the inside of the fender has an inner lip approximately 1/2” long that is used to strengthen the panel and increase conformity during it’s manufacture.

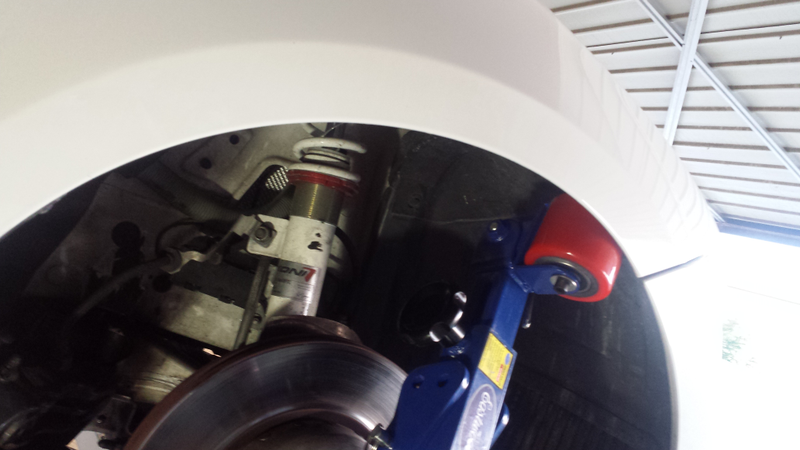

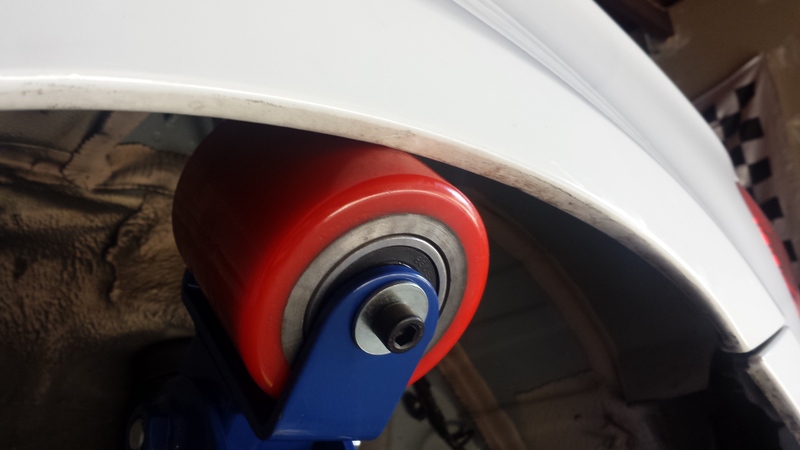

The front fenders were pretty painless. I made a few passes over them the radius of the lip, until the lip was pinched flush with the rest of the fender’s sheetmetal.

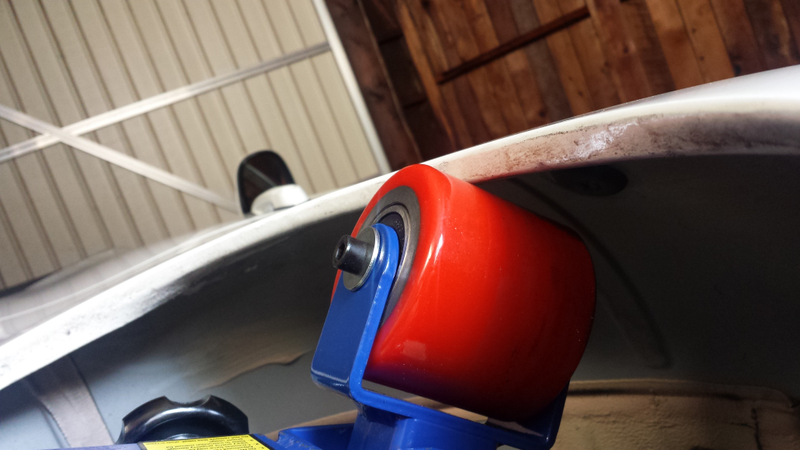

Eventually, I had the roller wheel completely vertical, ensuring that the fender lip was flush and the fender had a very mild pull.
While I was working up front, I decided to adjust the fenders for that extra bit of clearance.
Fenders, as well as doors and indeed most body panels, have some amount of adjustment build into them to ensure good panel gaps and repairability in the case of an accident. This is a quick 2 minute trick to gain a hair of extra clearance with a completely reversible process.

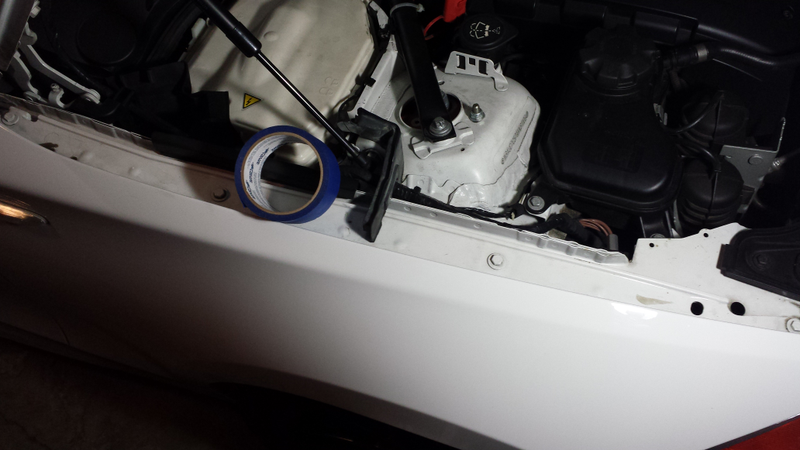

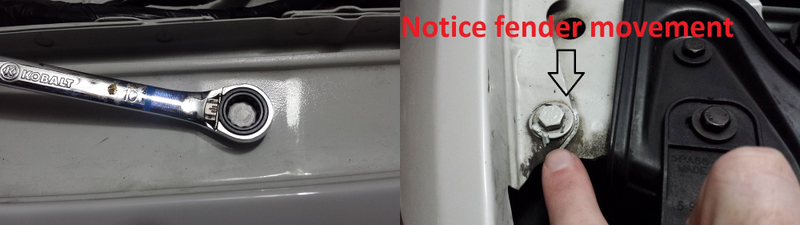

Pop the hood and look down the fenders. Most cars are designed exactly like this, with upper bolts mounting the fender to the apron/upper frame rail. Loosen those bolts and pull the fender out.

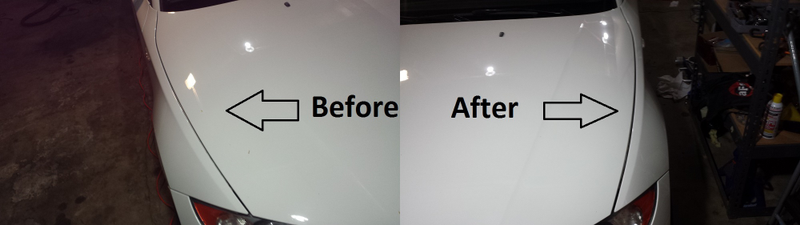

Here is what this does to the panel gaps:
And from tire-to-fender, how much clearance did we gain? Drumroll, please!
Just over an 1/8th of an inch. in a game where every millimeter counts, that’s huge for a two minute, fully reversible trick.
On my particular car, the driver’s side fender about an extra 1/16” to give versus the passenger side. Unsure if this is manufacturing variance, but I’ll take what I can get.
With the front end fully sorted, it was time to move on to the back. Working on quarter panels is a tricky business. Unlike the front fenders, quarters are welded to the body of the car, so if you wreck them, you’re hosed. Compounding to the difficulty is that on modern BMW’s the quarter panel lip is made more stiff with the use of panel bonding/hardener. If you try to roll the lip, it just blows out since the hardener is in between the lip and quarter panel sheetmetal.
What does all of this mean? It means it’s time to bring out the Dremel and get to work. Yes, I spent about 6 hours carefully grinding all of the excess hardener from behind the quarter panels so that they could be worked on. Grinding the hardener off resulted in a lot of rubbery “dust” in the garage.

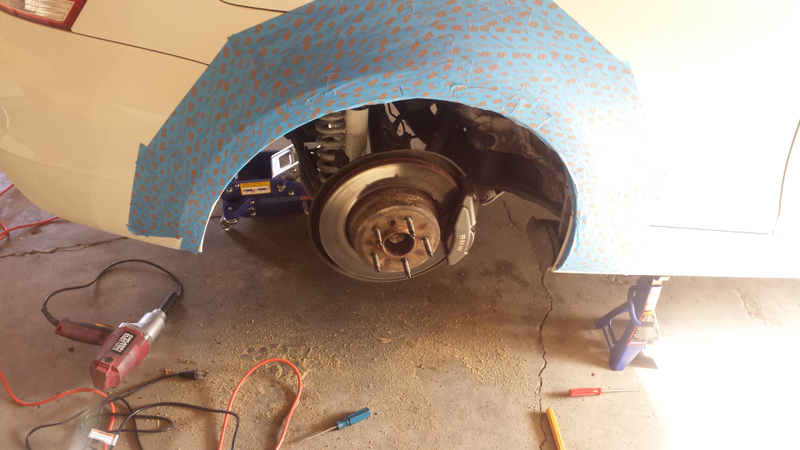

See all that lovely triple walled masking tape? I wish I thought of it before dropping the dremel on the quarter panel.
Such sad. After staring at it for about 10 minutes and contemplating ending my life, I moved on, resigned to my fate of a track car with a small scratch on it.
The lips on the quarter panels of this car are very thick, and cannot be rolled flat like most cars. Having rolled fenders before, I pushed it as far as I felt comfortable doing.
If you look to the far left, you can see how thick the lip is, and how much was able to be rolled without blowing the fender out.
Rolling fenders is pretty much a prerequisite when you’re trying to run as much tire as a 1M under the narrow body of the 135i. Stay tuned for more DIY, modifications and track days.
