Last night I discovered that the lights I bought didn’t have integrated turn signals so I had to figure something out. I decided to order some 4x2 inch LEDs and mount them just under the lights. That mean’t I also had to design the mount. Yay - more 3D printing fun.

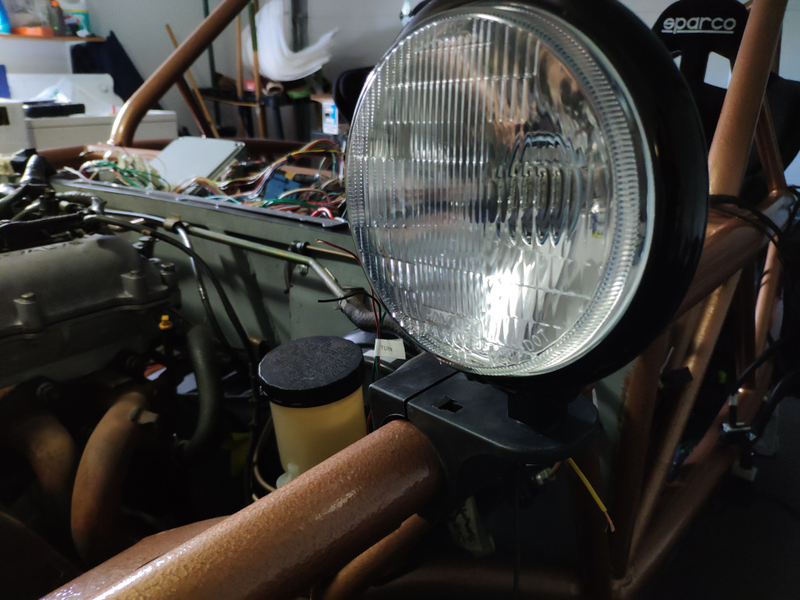

I figured it would be a good idea to mount it in the same spot as the headlight.

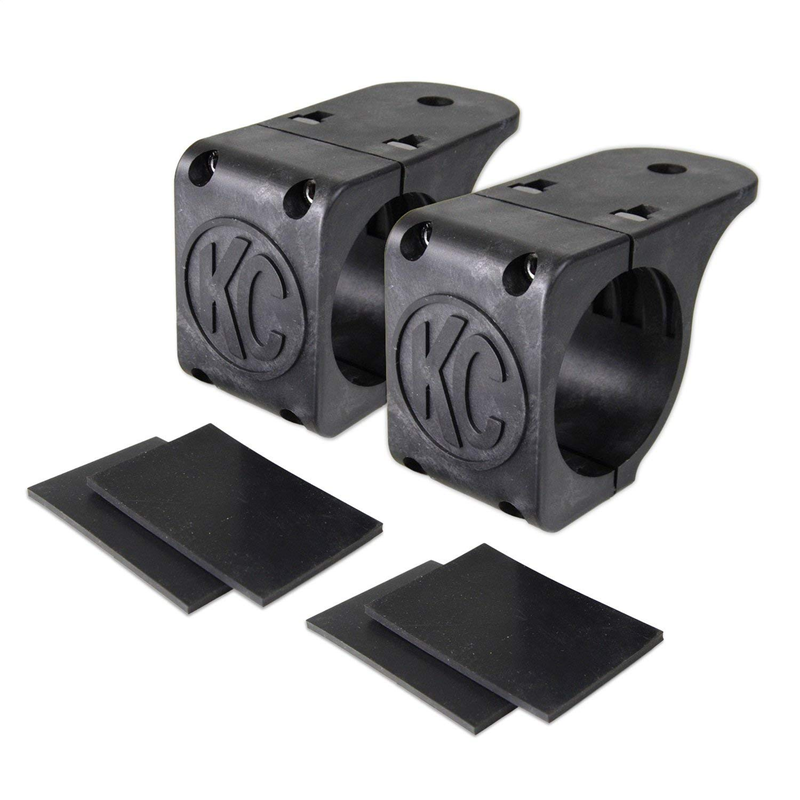

Photo: This is the clamp that holds my light - the side marker assembly will sandwich directly between flat top and the light (with the light’s post going through the middle).

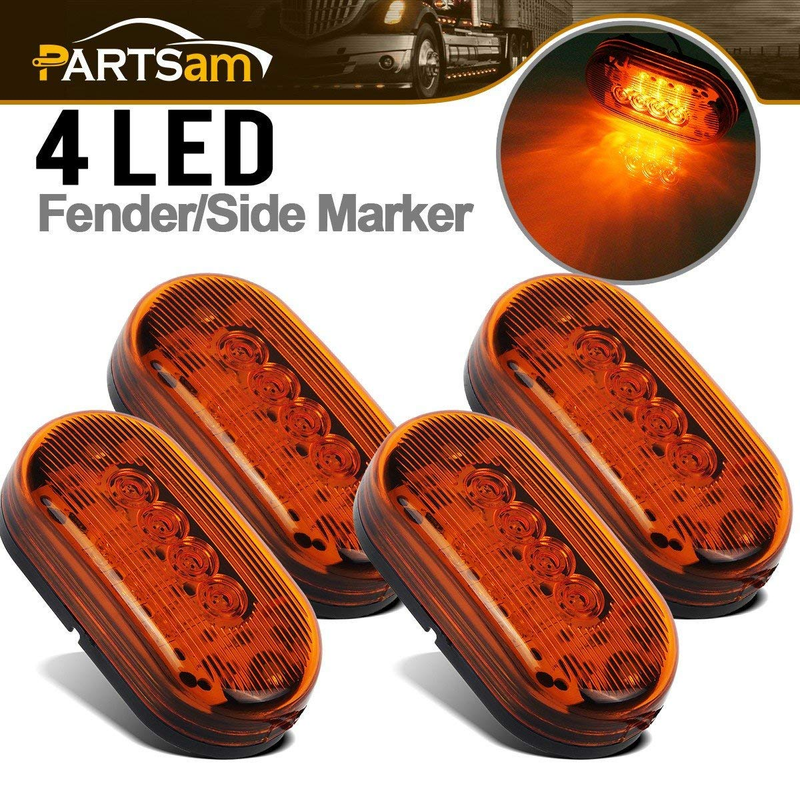

I founds some cool truck lights. These will work!

Advertisement

The lights are 4 inches by 2 inches. They will mount fine on the front. I also have some little 18mm LEDs that I’ll mount on the side.

Advertisement

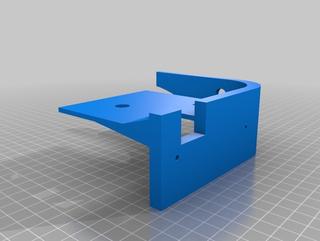

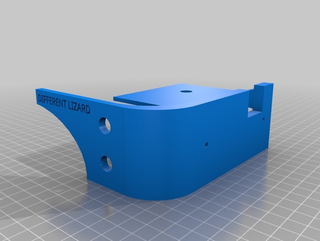

If you want to the assemblies out in 3D, click here:

I may need to trim the inside plastic support to clear the existing clamp geometry, but that’s fine.
