A little click baity on the title. This is more 3d prototyping car parts if I’m honest.

The problem:

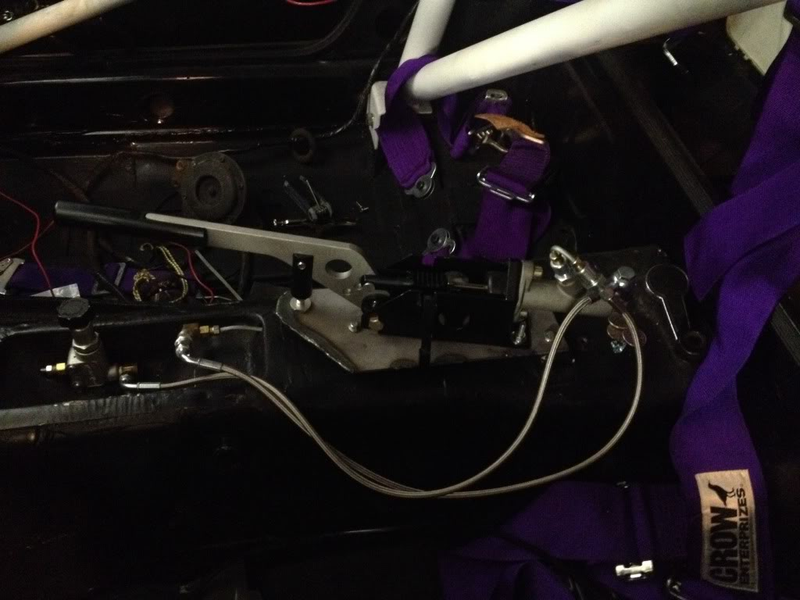

This is the hand brake I have in my car.

It is loose, wiggly, and has a short handle. While fine for most things, this handle does not lock up the rear wheels while in motion.

Plan is to go to a drift school in the near future. While most likely a simple extension would suffice and I doubt I’ll need a handbrake on my first outing, it is a chance to play around with 3d design a bit, and I’m all for doing that any time I get a chance.

I think the essence of functional design needs to be an analysis of what is available, and a noted improvement on general improvements on the design.

Advertisement

http://www.asdmotorsports.com/product/16-pull-back-e-brake/

The two main providers of upper level hydraulic hand brakes are ASD and Nameless as far as I can tell. The tricky thing I found is they basically use a wilwood pedal assembly and replace the pedal and arm with a handle.

Advertisement

In reality you could either adapt off the pedal holes or cut the pedal arm and weld on an extension and have a fully functioning hand brake for quite a bit less (almost 1/2 really), but I digress, the point is to improve upon a design. The fact I didn’t know you could buy the pedal assembly until after doesn’t help either.

First off is making a rough design with your improvements in place. For my design a goal was to remove the slack present in the system. This could easily be done with more frictionless surfaces and spacers, but that would be too easy.

Advertisement

So how does one keep something perfectly spaced, yet allow for rotation around an axis?

Bearings! Bearings do a great job of maintaining location while allowing axial rotating.

So I grabbed a pack of bearings to play with and design off of.

First thing to make is the blank plate. The only thing of reference we want to keep is that the pivot point has to be inboard enough to leave room for the bearing, which in real life will be welded so will need room for welding as well.

Advertisement

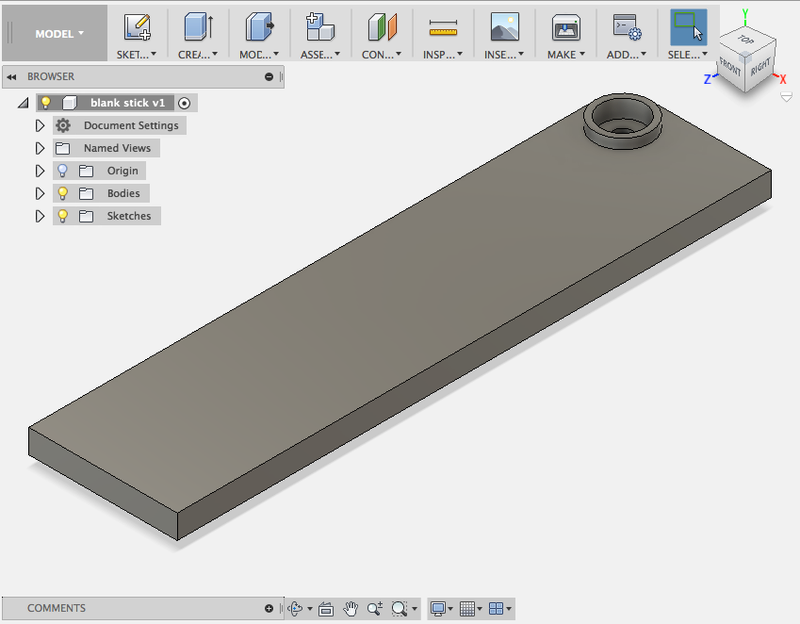

From this blank we can play around. Using some simple design you can come up with a pretty basic handle.

Advertisement

I will say when designing something very long it is very hard to avoid a phallic shape. After looking up the cost of CNC machining or water jetting handles as well as the weight, I decided to forgo this and the phallic shape and just go for a simple handle a long tube. That meant all I needed from the pivot was room to weld on a pipe and to house the bearings.

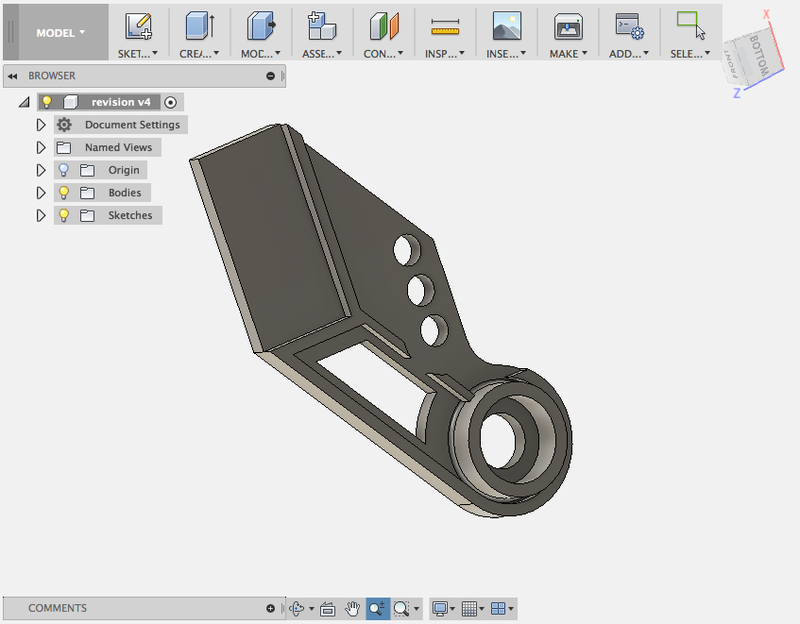

That means the blank now only has to have enough room for the tube in question to be welded on drastically cutting down the size. I added some bracing for support, some extra holes for adjustment, and a window to save on some printing material. Voila the handle pivot.

Advertisement

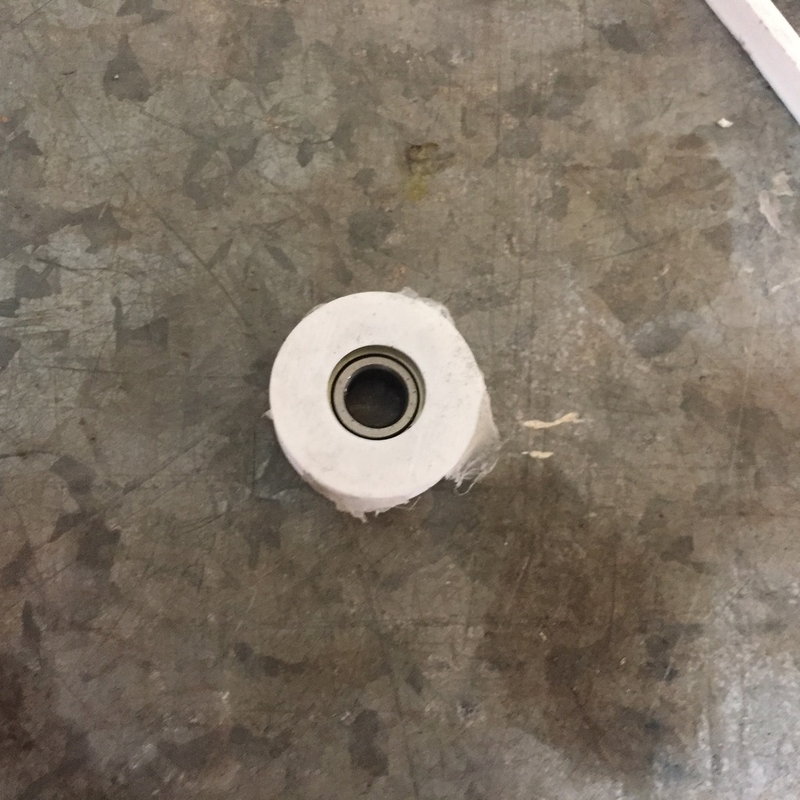

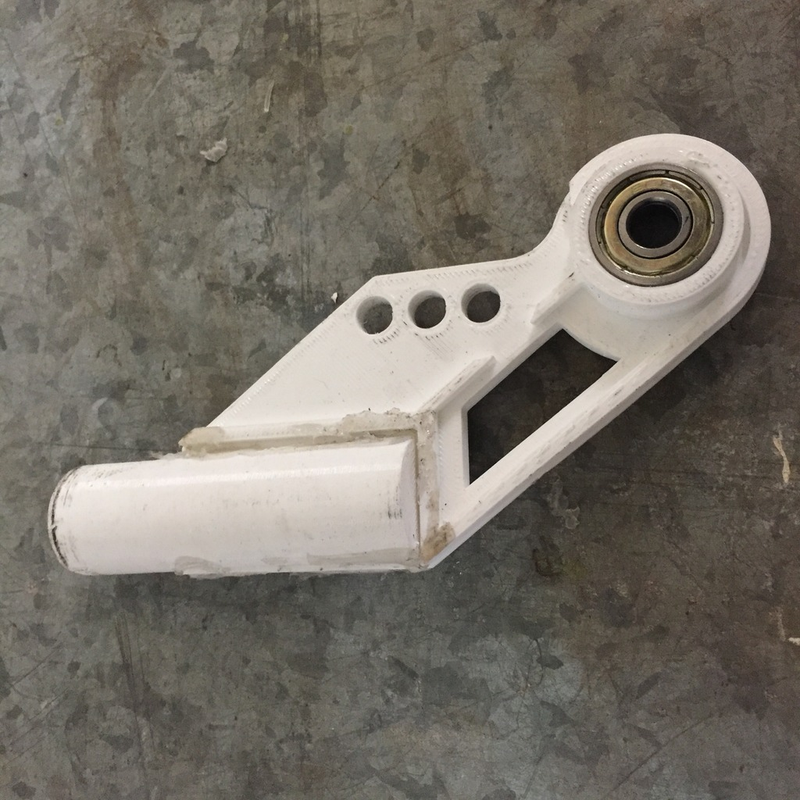

Since I didn’t want to have a massive gap and I wanted two bearings under tension to make the handle truly centered and essentially frictionless, I printed the second piece separate.

(note after shot, the remnants are of hot glue used to assemble the piece for mockup)

Advertisement

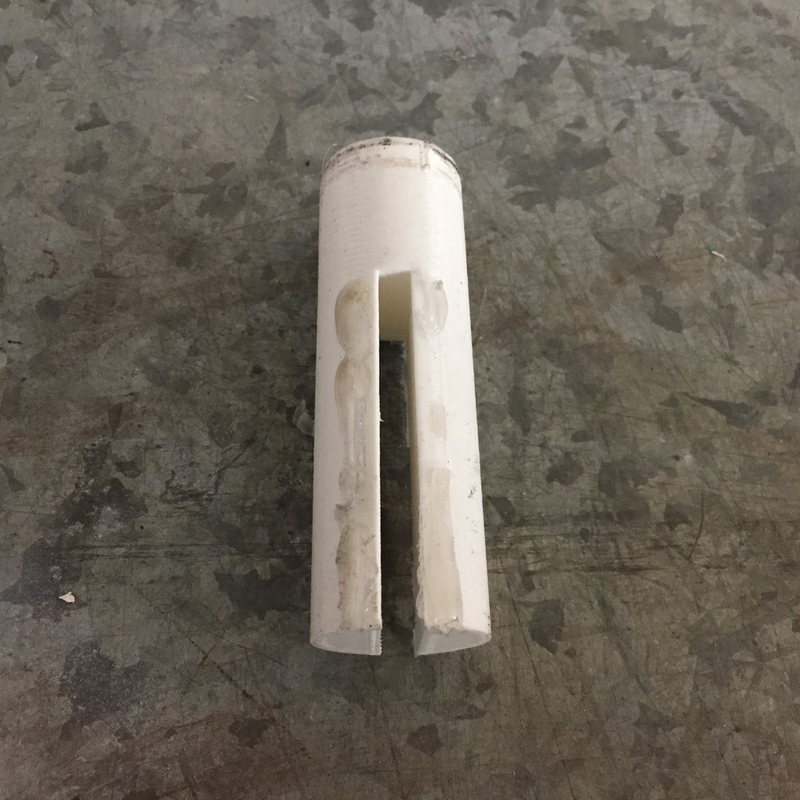

While the final handle would be welded on, for mock assembly I made an adapter to the handle.

All 3 pieces together.

Advertisement

Then the base design. Without actual parts to go off, I made a simple mock sketch just based off of some random numbers.

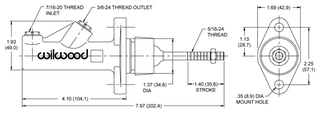

Then I found this nice diagram online of the wilwood master

Advertisement

Which allowed me to generate a more to scale diagram.

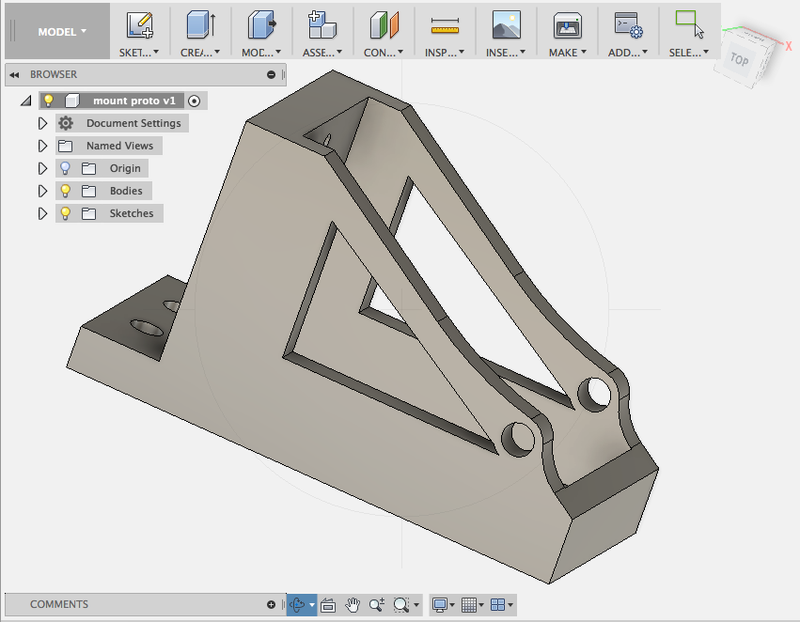

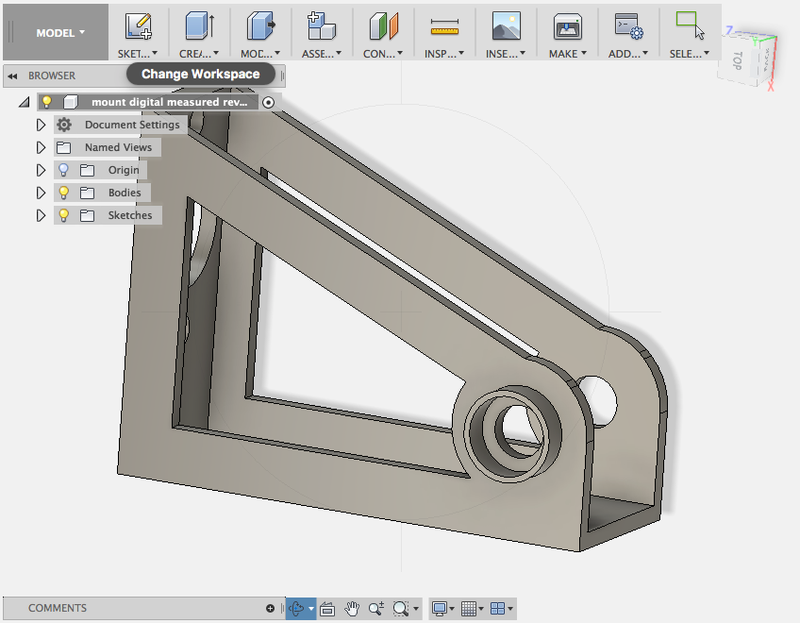

Then I simplified the design since it would be easier to just fabricate out of steel rather than having it machined.

Advertisement

Since I had bought a couple of the cheaper hand brakes I didn’t need a base to test my setup. So testing was done on another base. After function was confirmed, I ordered the metal that would be needed for this endeavor.

The design would be simple and with my bandsaw this wouldn’t take very long.

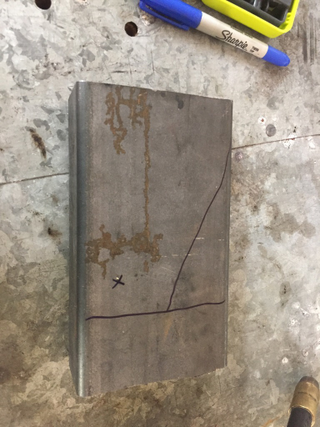

First is to mark all the holes.

Advertisement

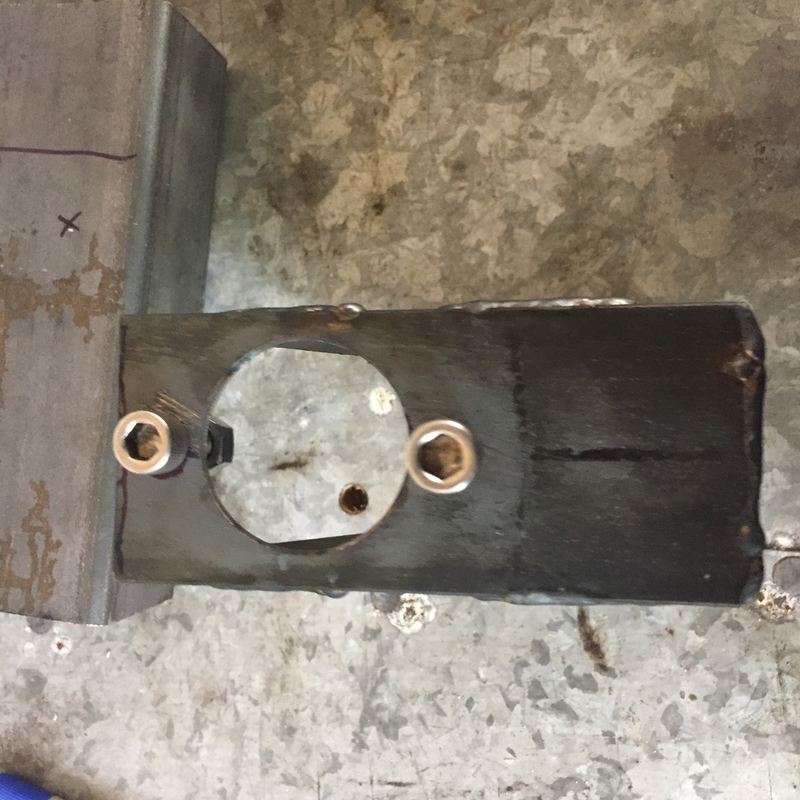

Then to punch a divot to make sure the drill bit doesn’t deviate. Make sure to file around the divot so your drill bit doesn’t wander on the raised edge.

Next we cut our pieces to size. The tubes are easily cut with a tube cutter. Several spacers were made for testing the bearing stops.

Advertisement

Next we weld the pieces together. Since these are prototypes the welds don’t particularly need to be complete or pretty, so don’t critique me >.<. If I wanted it pretty I would have setup and used a TIG or at least ran a pattern with the MIG instead of just a straight line.

Advertisement

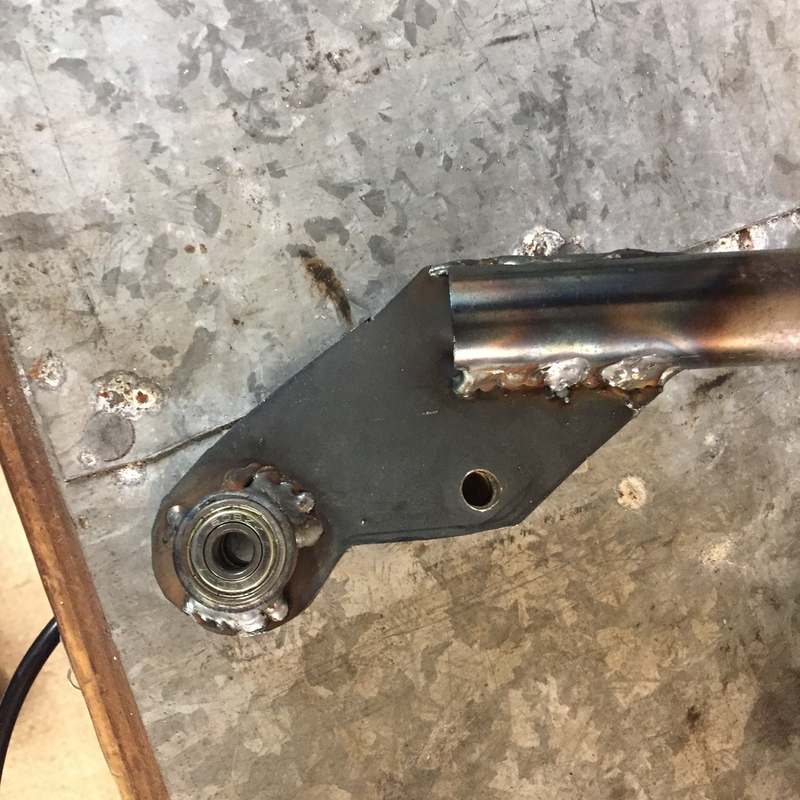

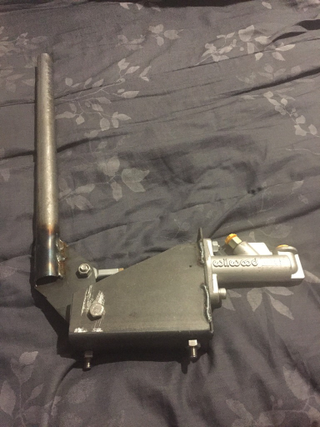

With the base and the handle welded we can now assemble the whole setup.

Since we measured everything, everything goes together perfectly. The handle has 0 play on every plane except the forward and backward plane. The only actual play is forward which is the slack from the master (or else the master would be engaged all the time, I suppose I could add a magnet or spring to keep the handle pushed forward a tad).

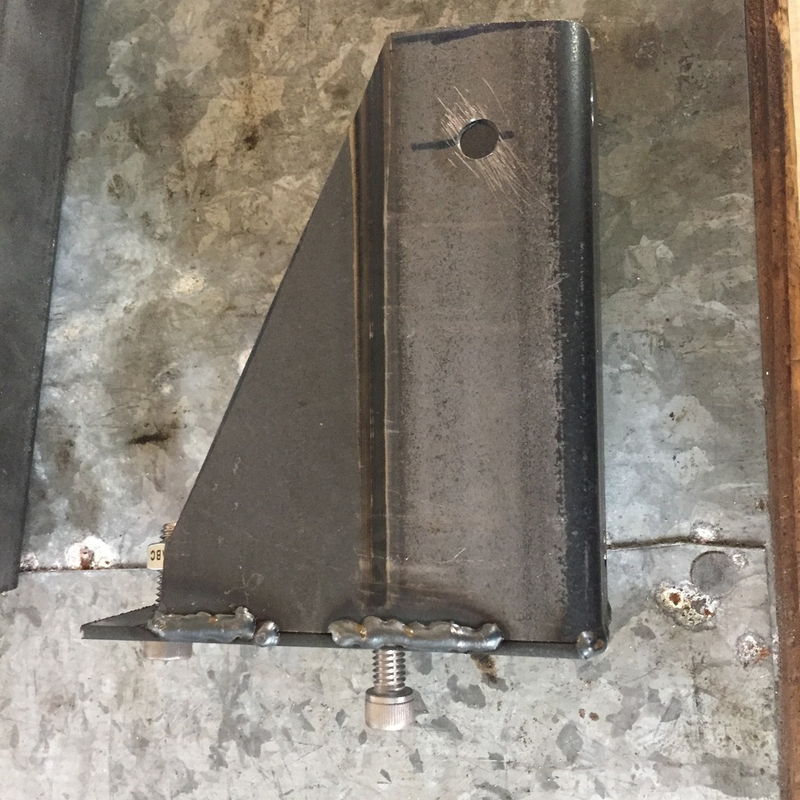

Some extra holes on the bottom to mount the piece and done.

Advertisement

The kind of sad news was that a couple days ago, I heard and found out about the villains hand brake.

Quite similar with similar ideas and more sanely priced in my opinion. I think my design has a couple improvements, one being the raised height of the master for more distance (shorter throw), and the other being the bearings and stops for butter smooth pivoting and precise action. Still some work do be done with skeletonizing it, maybe playing around with some type of parking brake mechanism and such as well, but good enough to test out in a couple weeks.
