An overview of what you need to know for when you decide to swap out your coil over spark plugs for the first time.

(A while back I wrote a piece Why You Can and Should Wrench On Your Ride to encourage people to work on their cars whenever possible. Sometimes you tend to follow model-specific instructions so closely that you lose track of the bigger picture. Here is what I learned after changing my spark plugs.)

What is a Spark plug?

Let me just paraphrase Wikipedia a bit here (http://en.wikipedia.org/wiki/Spark_plu…):

A spark plug is a device that processes an electric current from a car’s ignition system and creates an electric spark in the engine’s combustion chamber. The spark ignites the compressed fuel/air mixture in the chamber which moves the piston (cylinder) and makes the car go.

Still confused? No problem, have a diagram.

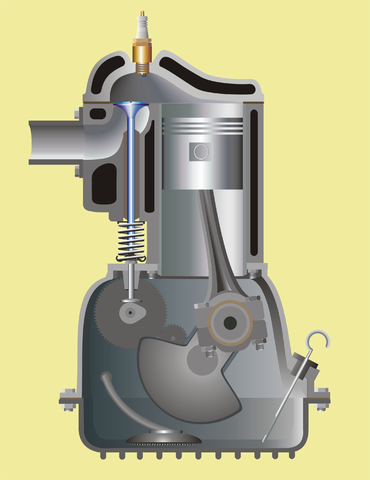

This is a cutaway of a combustion chamber. The gold/white thing sticking out at the top is the spark plug. When the spark plug creates a spark, the gases in that upper chamber ignite, which means they expand. Since they have nowhere to go they push down on the cylinder. When the cylinder moves it rotates the crankshaft and with the help of some other hocus pocus that rotational energy translates into forward motion for your vehicle! Seriously though, let’s just stick to spark plugs for now.

Advertisement

This next image is one that I love and it demonstrates the cycles of a four-stroke gasoline engine. This is really interesting shit and you can spend hours reading up on it but for the purpose of this writeup we can isolate our interest to step 3 - the Power step. That’s when the spark plug does its thing and produces that spark/explosion in the animation. Notice how I said gasoline engine: don’t try to change the spark plugs in your diesel car, because you don’t have any. Diesel engines operate at much higher compression ratios than their gasoline counterparts and that greater pressure is enough to heat and ignite the gases on its own.

One last thing that deserves a mention is the device that supplies the current to the spark plug. It is called a coil and sits on top of the plug. You have to remove it in order to access the plug. There is (usually) one coil/plug combo per cylinder.

Advertisement

The Job

All you need to do in order to replace a spark plug is to take out the old one and put in a new one. However, the plugs aren’t just waiting to be removed when you open the hood - you need to get to them first and in some cases it can be a bit of a pain. Here is a generic list of steps:

  1. Pop the hood and disconnect the battery.
  2. Remove whatever may be in the way between you and the spark plug coils. This can include engine covers, wiring harnesses, hoses and tubes, intakes... you name it.

Advertisement

  1. Disconnect the electrical harness plug for the coils - making note of which plug is connected to which coil if not already labeled - then remove the coils (pictured on the left).
  2. Use a spark plug socket with an extension attached to a ratchet wrench to reach into each chamber and remove the spark plug.
  3. Apply some anti-seize lubricant to the threads of the new spark plug and, using the extension, put the new plug into its chamber.
  4. Tighten using a torque wrench to your car’s specifications. It’s important not to over-tighten because you can strip out the threads.
  5. Put the coils back in place and reattach the plugs from the electrical harness.
  6. Replace anything else you disconnected, tidy up, and start the car to see if you messed anything up. But you didn’t because you followed these simple steps.

Advertisement

What To Look For

If your manufacturer likes you then you might be presented with one of the following views:

Advertisement

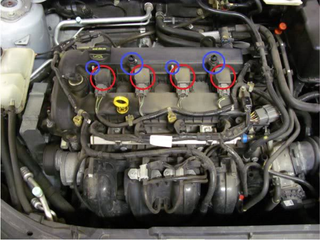

This is a Mazda 3. The red circles are the coils and the blue circles are the bolts that hold the coils down. The only thing that needed to come off was the engine cover which was held in place by clips. The tutorial is here: http://www.mazda3forums.com/showthread.php…

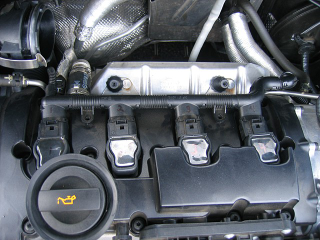

The next image is of a VW GTI. Once again, after removing the engine cover the author was presented with the coils (semi-transparent bits with a shiny cover on top) and a very neat harness. Those Germans really thought of everything and you can see the numbers indicating which plug goes to which coil. Source: http://www.golfmk6.com/forums/showthr…

Advertisement

However, if your manufacturer does not like you, you might see something like the following:

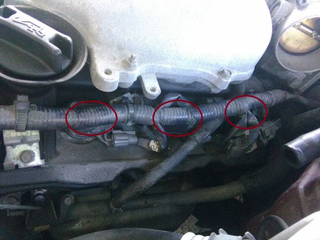

This (above) is my Infiniti G35x with its V6. The driver-side coils - circled in red - are behind a difficult-to-move harness which is ziptied and secured in multiple places. Also I had to remove my intake tube to even reach this point. The other 3 plugs on the passenger side were even more difficult to get to. Other Opponauts have complained primarily about transverse mounted engines (one side of the “V” faces the front of the car and the other faces the back, which is much more difficult to access) so I probably had it easy, even though it took me a few hours.

Advertisement

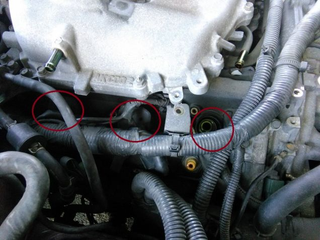

This is the passenger-side after I removed many things. If you take a look at the right-most circle you’ll notice that I have already removed the coil and spark plug. It’s a bit hard to tell from the pic but the spark plug sits several inches deep.

Special Parts and Tools

On top of the “regular” tools you might need to reach your spark plugs, here is a list of tools you will need that you may not have.

Advertisement

Extension

A socket/ratchet extension simply gives you more reach. You will need one of these to get access to the plug in its chamber. These can be purchased individually but I’ve seen sets of 3 for not much more than getting just the one. Make sure the drive matches your socket wrench. 10” should be enough for most vehicles.

Advertisement

Spark Plug Socket

This is a deep socket that also contains a rubber insert. When you push the socket over the plug it will squeeze into the rubber insert and stay in place, allowing you to lift the plug up and out of the chamber. Otherwise you can flip your car over and let the spark plug fall out on its own, I guess.

I have heard of some people using a spring-loaded pickup tool. Either will work, though a spark plug socket will also let you lower and screw the plug back in. I’d recommend it. Note: spark plug sockets do come in different sizes so you will need to get the right one for your spark plugs. Somewhat frustratingly my spark plugs did not indicate their size on the packaging so I opened up one package, compared the size to different sockets, and bought what I needed right in the store.

Advertisement

Torque Wrench

This is a good tool to have in your arsenal and you can use it for almost anything. Believe it or

Advertisement

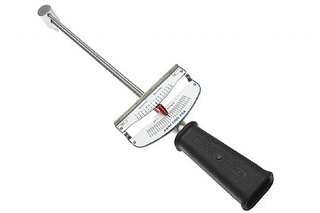

not, sometimes parts need to be tightened to specifications instead of “one-half turn past hand tight” and this is very important for spark plugs because most engine blocks are aluminum and it is softer than steel so you can strip the threads. Torque wrenches come in two flavours: an old-school one that uses a metal arm to indicate how much torque you are applying on a printout of a gauge (pictured), and something that looks just like a normal socket wrench but gives you the ability to set a maximum torque and it won’t tighten past that (it can even have a digital display). The first one is much simpler and, as a result, significantly cheaper. The second style is somewhat easier to use, depending on who you ask (just remember to set the torque setting back to 0 when you store the wrench or you can mess up the calibration).

Anti-Seize Lubricant

You can usually buy this in a tube or jar, and even a small amount will probably be enough for a lifetime’s worth of spark plug replacements. This lubricant is crucial to ensuring that your plug does not get forever stuck in your engine - it counteracts the high temperatures in the engine and keeps the two metals (your engine and the plug) separate.

Advertisement

Note: the use of anti-seize was advocated to me by a coworker who has been doing his own maintenance for many years, and it is mentioned in online tutorials. However, NGK has a PDF (http://www.ngksparkplugs.com/pdf/dyk_5point…) where they say that their spark plugs are installed dry. However the document is a few years old now and you can do your own investigating to decide whether or not you will use it.

Tips

Removing the Spark Plug

Attach the spark plug socket to your extension and the wrench and insert it into the chamber. Push down, and you will feel when the plug goes into the rubber insert. Now, rotate (just remember: lefty loosey righty tighty)! It may be difficult but it will come free. I was surprised by just how much force I needed to apply to get past the first turn so don’t hold back (keep in mind that it’s a car, not a faberge egg).

Advertisement

Putting in the new Spark Plug

It’s best to screw the plug into its chamber by hand the first few turns to ensure that it got seated correctly so you don’t need the wrench for this part. Attach your spark plug socket to the extension and insert the spark plug into the rubber part of the socket. Lower it down into the chamber and screw it in a bit. Once you are certain the plug is going in straight you can attach the wrench to the extension and tighten it.

This might be the end of the story for many of you but I ran into an interesting (and nerve-wracking) scenario. After I screwed in my first plug and torqued it, I pulled the extension bar out and... the spark plug socket did not follow suit. The grip that the rubber insert had on the seated spark plug was more powerful than the force of the socket head sitting on the extension, so the socket remained on the plug all the way down in the chamber. I started to freak out a bit but always remember that you can put the extension back onto the socket and take the whole assembly out. So what I ended up doing was: very loosely fitting the spark plug to the spark plug socket, lowering it down and screwing it in just a bit, removing the socket head and putting in a regular (no rubber insert) deep socket onto the extension, and then finishing the job.

Advertisement

Mark Your Progress

Use a system that YOU can understand which will easily tell you which plugs you’ve already swapped. Obviously it’s best to just go in order but it doesn’t hurt to have a fail-safe. I would clean the tops of the coils before securing them back onto the plugs. If a coil was clean - the plugs were new. It was pretty simple.


Hopefully some Opponauts more knowledgeable than I can share their experiences with changing plugs.
