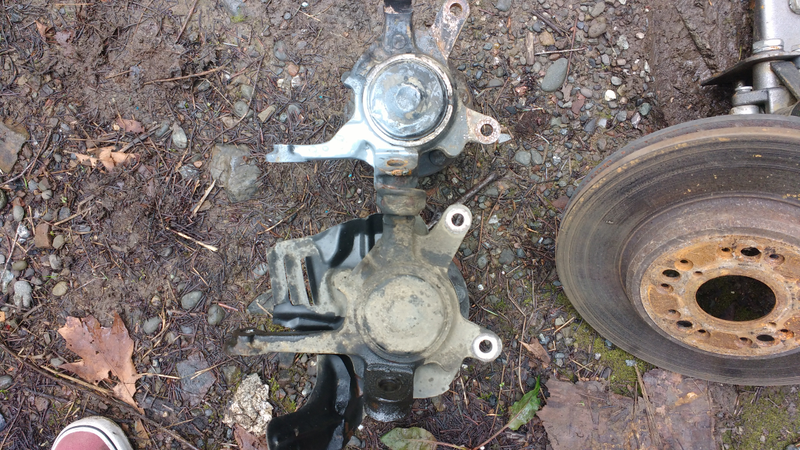

Knuckles and 5mm rack spacers
With 5mmĀ rack spacers

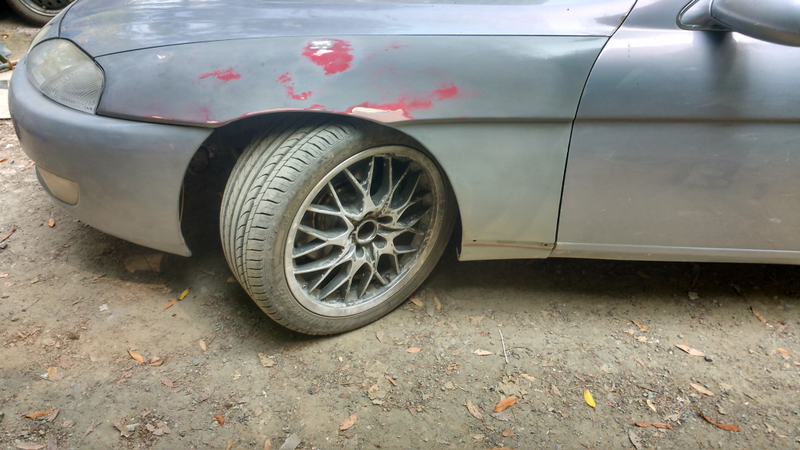

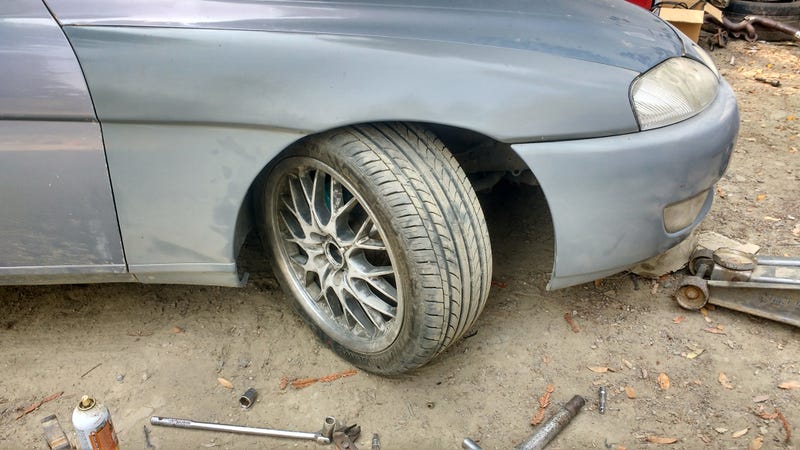

The stock steering radius is terrible considering the cars size.(not much shorter than an ls400) Fixed that with Battle Version rack spacers and modifying the knuckle.

13/16 of an inch was removed and the pickup was lowered as a bump-steer correction. Some halfassed calculations were done to ensure centering wouldnā€™t happen(tie rod being parallel with the knuckle leading to a lock on the steering, because the arc to pull against is gone)

They sat out in the rain for a little while so the bearings were toast but I finally got new bearings pressed in and got the knuckles back in the car.

Advertisement

Better photo of the forklift steering from a while ago
