Alright, so we’re nearing the end of the paint and body phase for the Jurassic Park Jeep! Last week primer was applied and this week means paint! So, as this phase draws to a close, its time for the phase that includes wiring 4 Jabsco marine search lights to the lightbar!

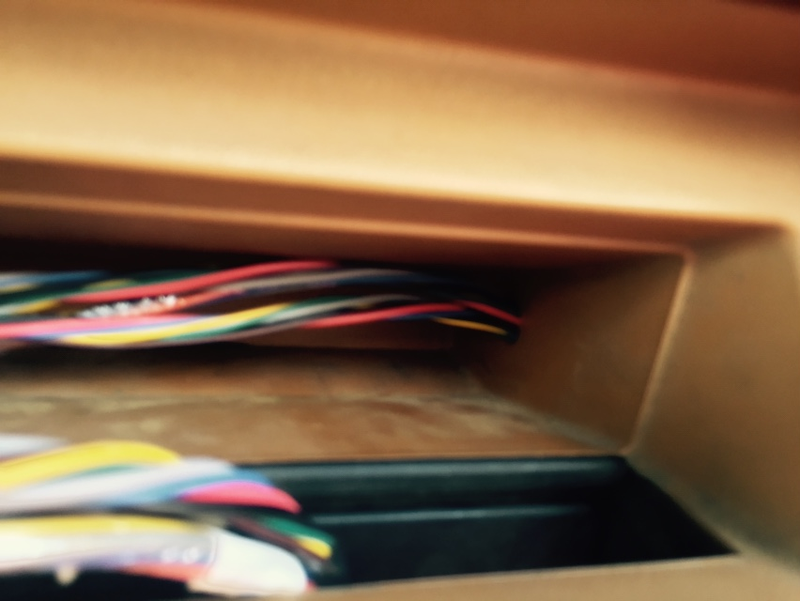

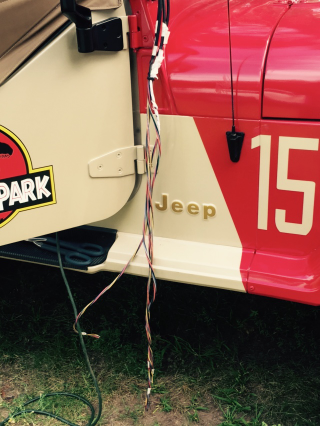

so how it works is, wiring runs through the light bar down into the dash as pictured below

Advertisement

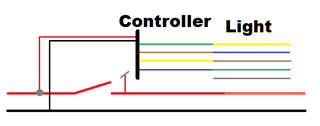

hooking it to the controllers in the dash is all pretty straight forward thanks to the wiring diagram:

the thing i’m having trouble with is the best way to power these things. I’ve seen some people use a junction block and a relay but im not sure if that’s the best way. any tips would be helpful as I am not well versed in the magical world of wiring.

Advertisement

More details on the actual lights here: http://www.safety-marine.co.uk/downloads/Jabsco-135SL-Searchlight-Instruction-Sheet.pdf?did=348
