So... the time has come to “get ‘er done” on the lights. I’ve laid out how I think it should work, but I need to know whether having all 4 XL Sports running off one battery connection/fuse/switch is too much for them or not.

Illustration for article titled Paging Lighting Oppos
Advertisement

From the Baja Designs the Wattage/Amps of each light is 26W / 2A which would mean the total draw would be 104W / 8A?. The switch appears to be 15A as well.

Illustration for article titled Paging Lighting Oppos
Advertisement

Do I need a relay? If so, what kind? I am pretty out of my depth with electrical shit. Mounting the bar is going to be a different ballpark for me too.... but I can do it.

From left to right below you can see how the power/switch wires split into the two paths that hook up to the four lights.

Illustration for article titled Paging Lighting Oppos

Below is the switch, battery terminal connections and the fuse (15 amp).

Illustration for article titled Paging Lighting Oppos
Advertisement

Here is a closeup of a second set of switches/connections and fuses from the second set of lights (comes in 2 sets of 2).

Illustration for article titled Paging Lighting Oppos
Advertisement

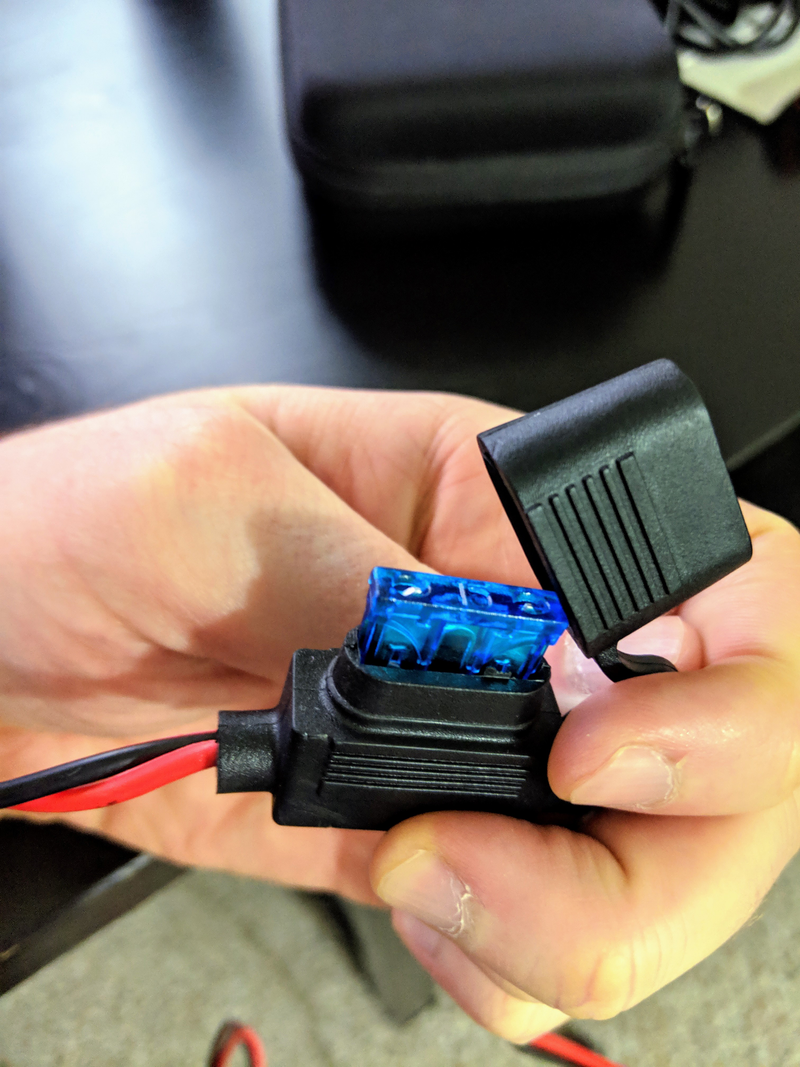

Here is a closeup of the fusebox. Really high quality!!

Illustration for article titled Paging Lighting Oppos
Advertisement

Wish me luck, starting this tomorrow.
