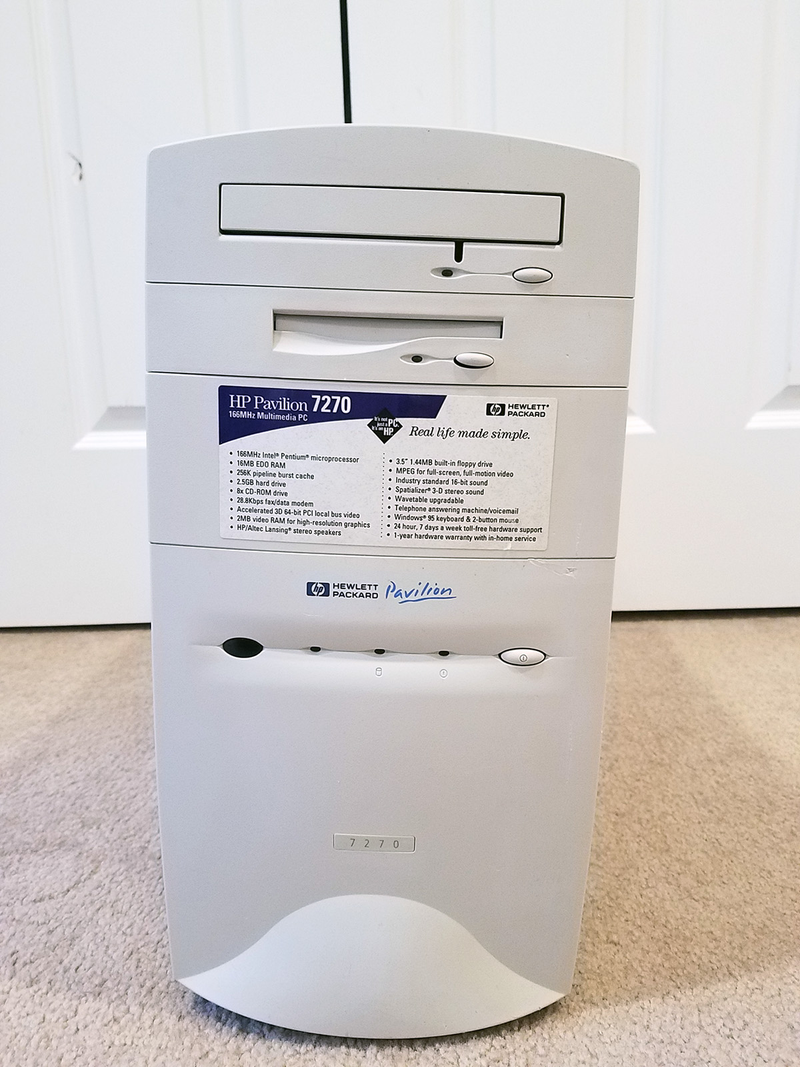

Got an HP Pavilion 7270 today. Specs are exactly as it says on there, looks completely original. Pentium 166MHz, 16MB EDO RAM, 2.5GB hard drive, 2MB onboard S3 graphics, some proprietary HP sound card with an ESS chip, Windows 95 on the original hard drive too.

Was pretty scratched up

Advertisement

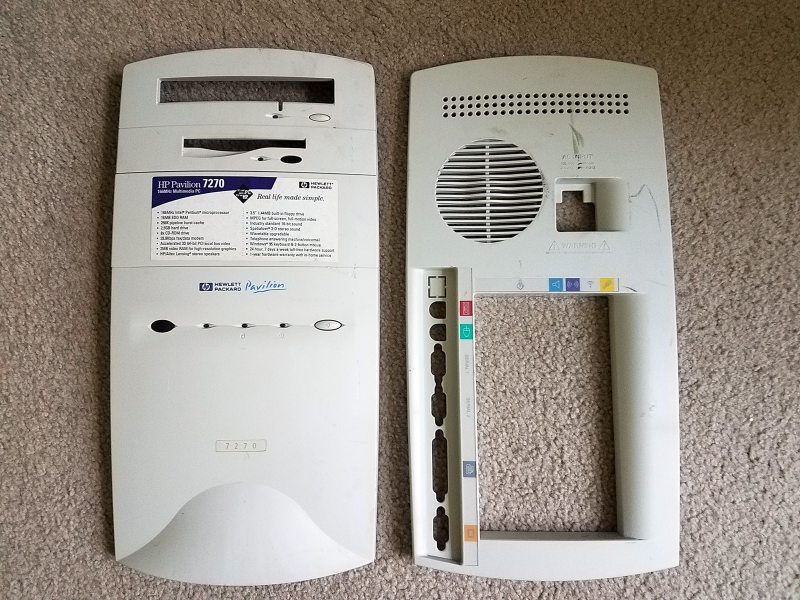

Front and rear plates removed

Advertisement

yucky old dust

Advertisement

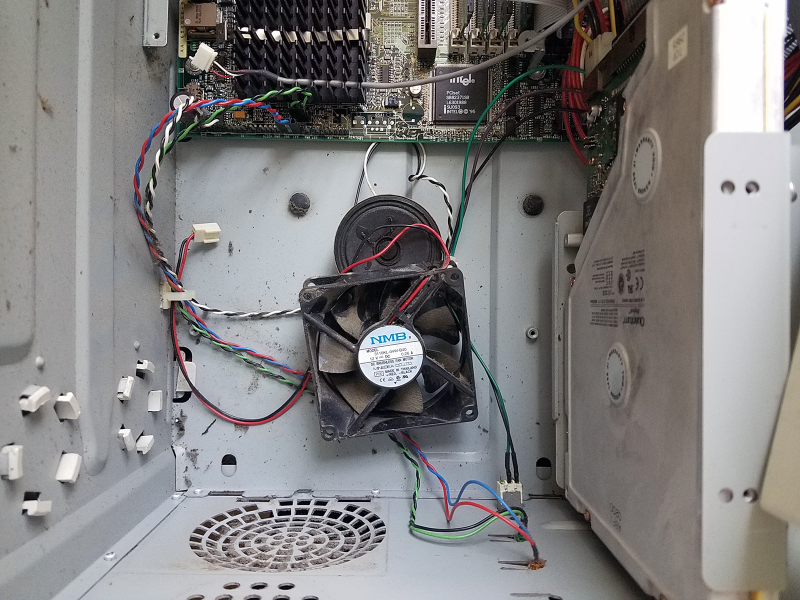

More dust and such. The fan cover had all sorts nearly black decade+ old dust on it. Fun fact, the case had a date imprinted on it, 7-18-1996. Exactly 21 years today.

Advertisement

All cleaned up! Magic eraser and sand paper. I used an air compressor to dust out the inside and wiped down every surface with a lightly damp paper towel then dried up.

Advertisement

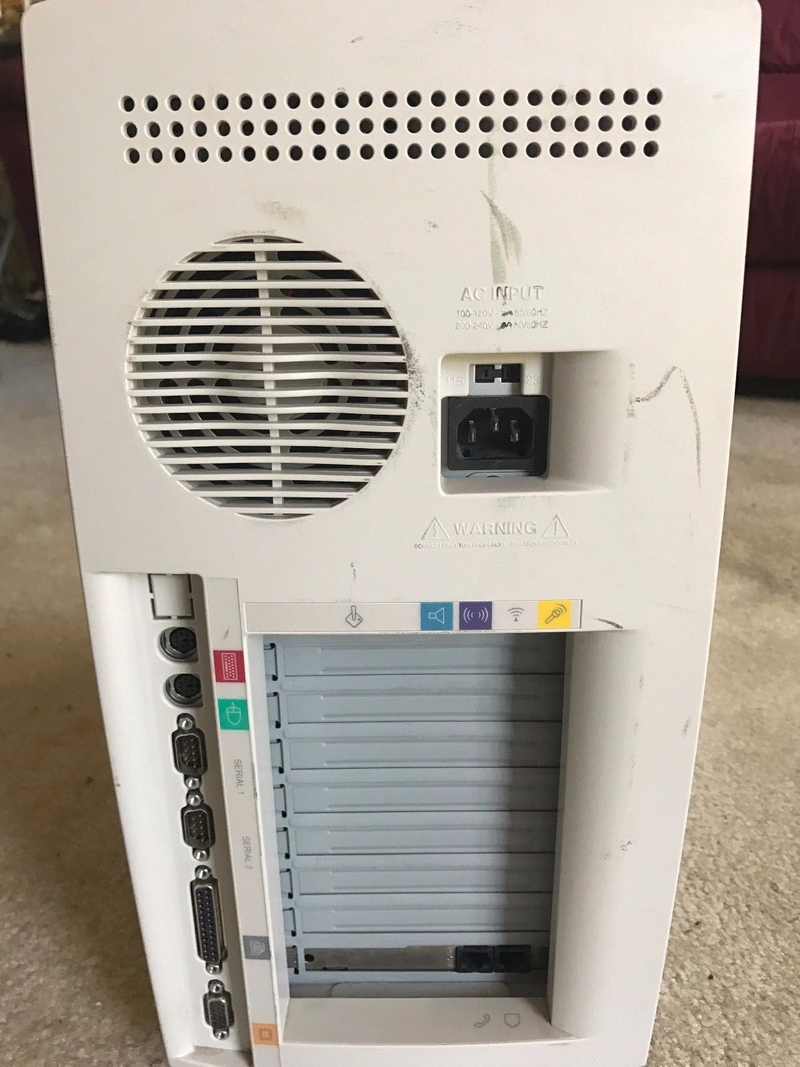

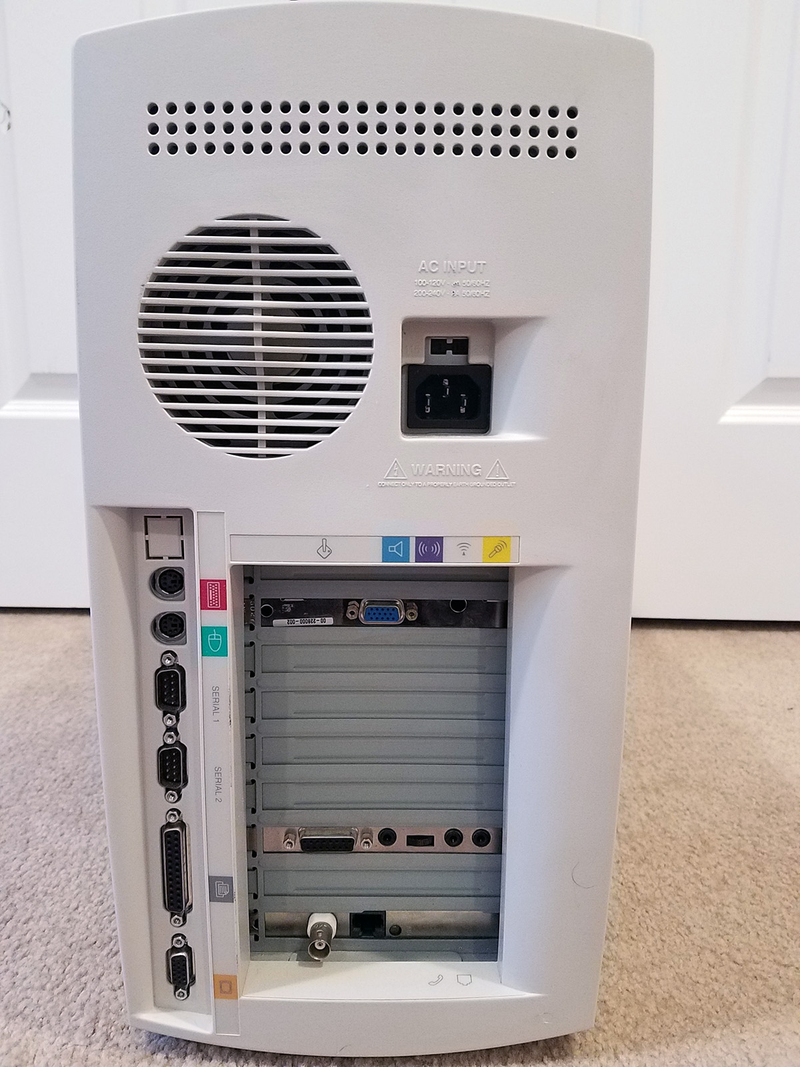

Rear plate is much improved.

Advertisement

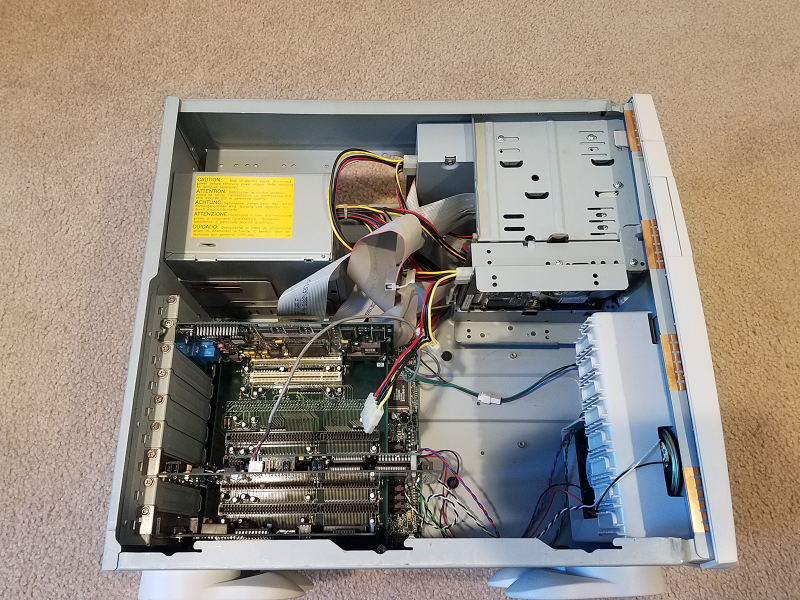

Inside is clean! And with upgrades! 2xPCI, 5xISA

Advertisement

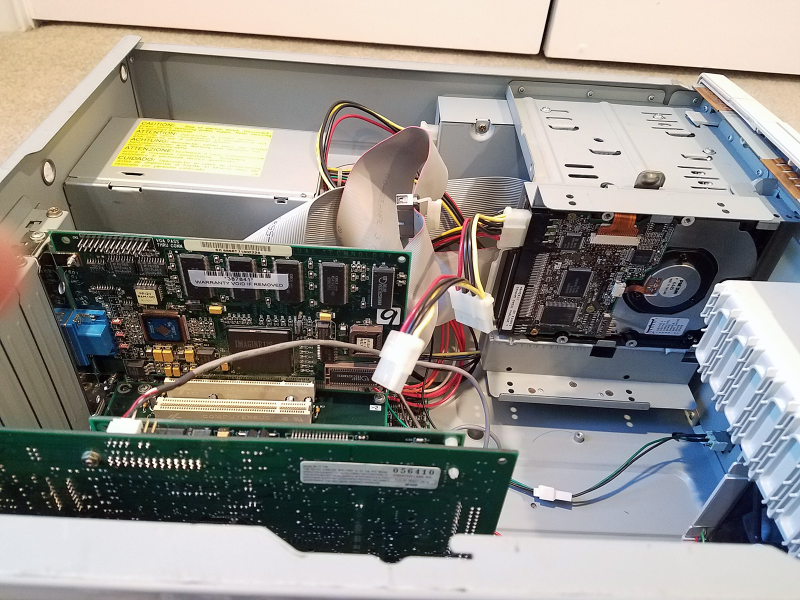

The hard drive and some addon cards

Advertisement

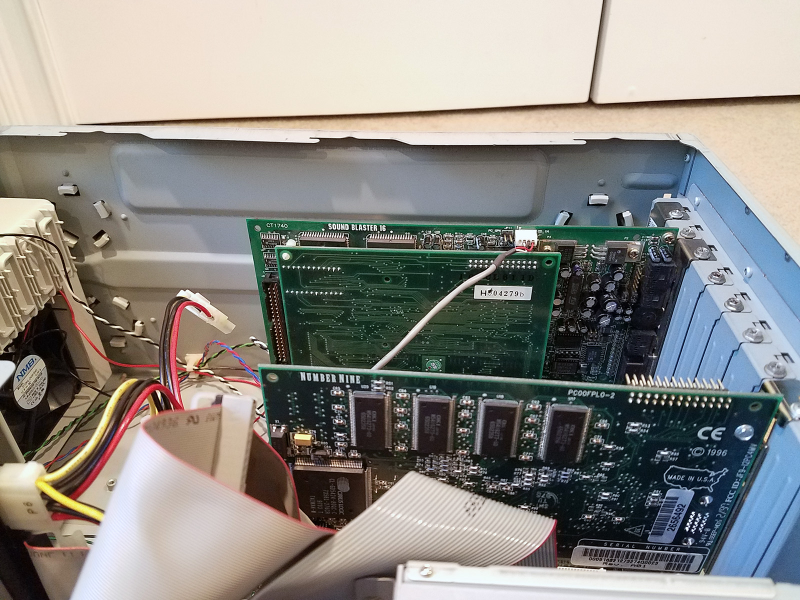

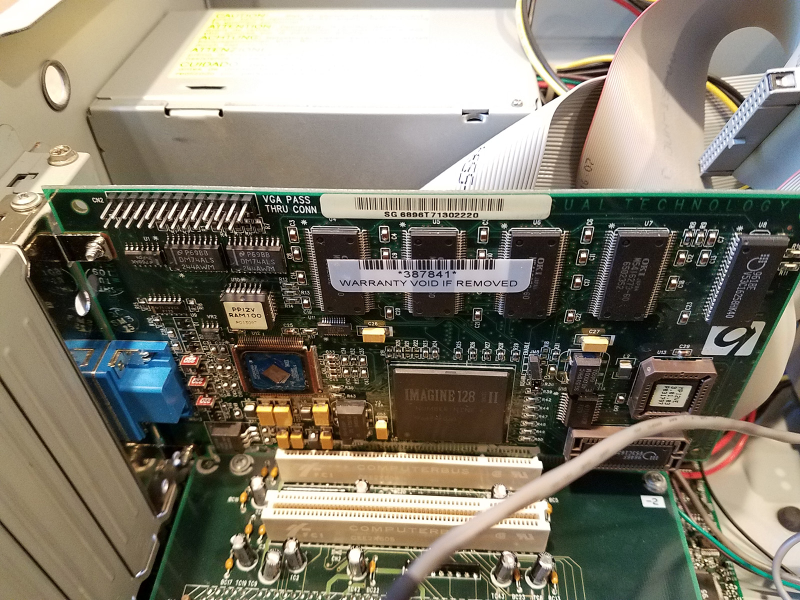

Closeup of video card which I will go into in a bit

Advertisement

Another glance at the inside.

Advertisement

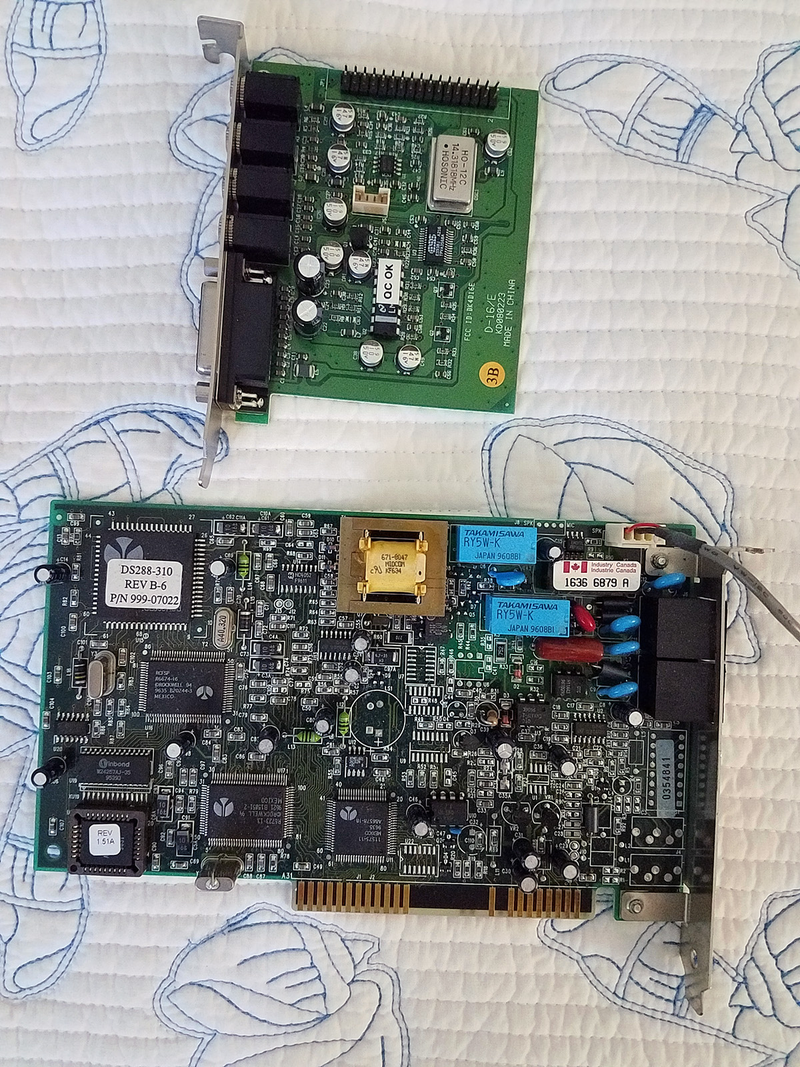

These are the cards it came with, a 28.8K ISA modem (bottom) and some proprietary sound card. DonÔÇÖt care for these.

Advertisement

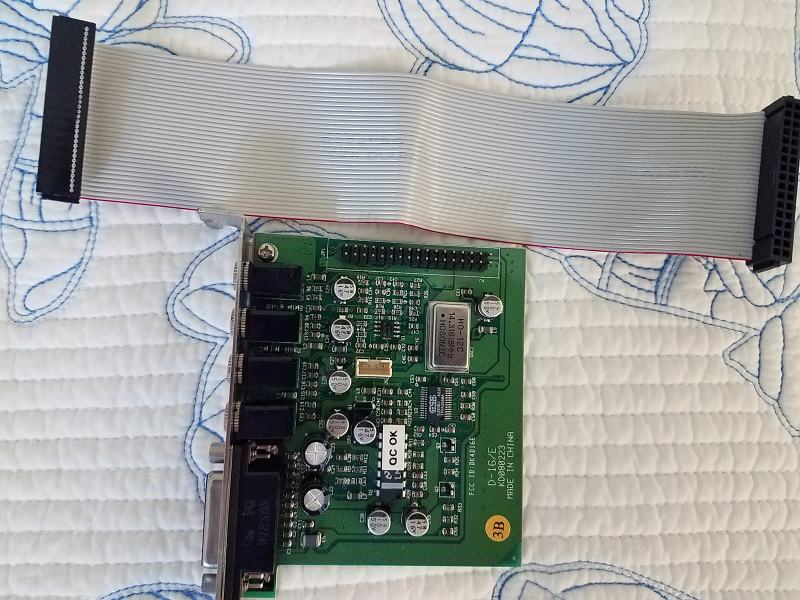

The sound card uses a proprietary cable to connect to the motherboard directly instead of using an ISA slot. Weird.

Advertisement

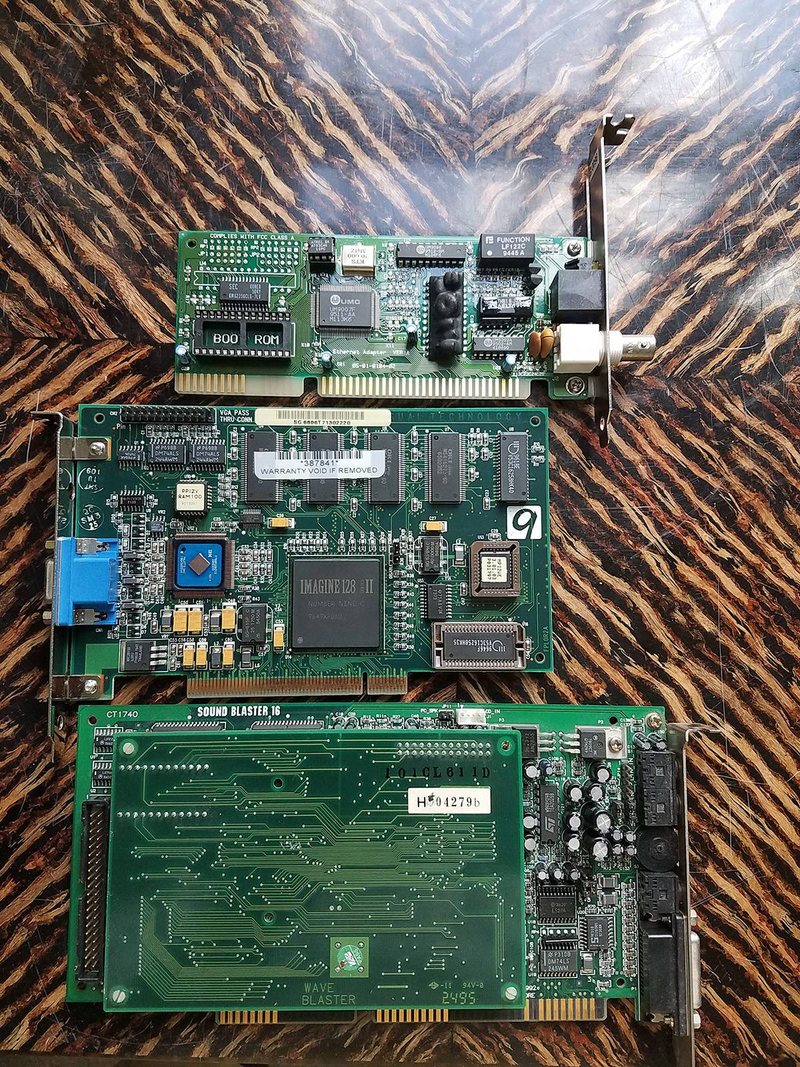

The addon cards!

Advertisement

A Novell NE2000 ISA ethernet card clone.

Advertisement

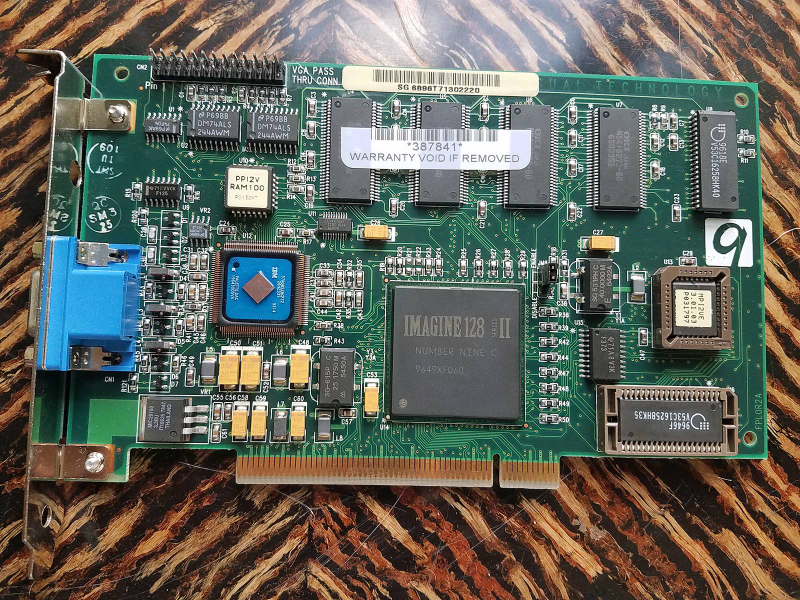

Number Nine Imagine 128 Series II 4MB PCI video card

Advertisement

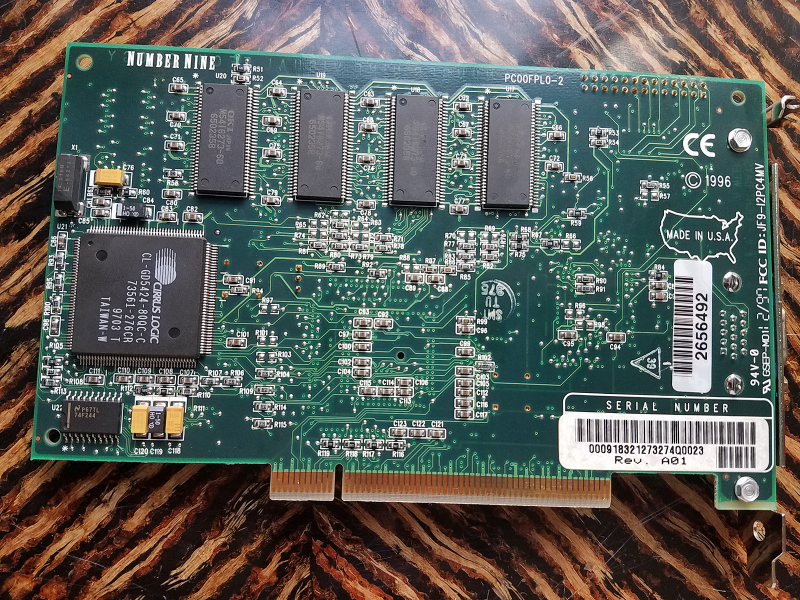

Other side of the Number Nine card... whatÔÇÖs that? A Cirrus Logic CL-GD5424 chip for use in MS-DOS! Pretty cool.

Advertisement

Creative Sound Blaster 16 with OPL3 YMF-262 chip and a Creative WaveBlaster II wavetable daughtercard. Note the manual volume wheel!

Advertisement

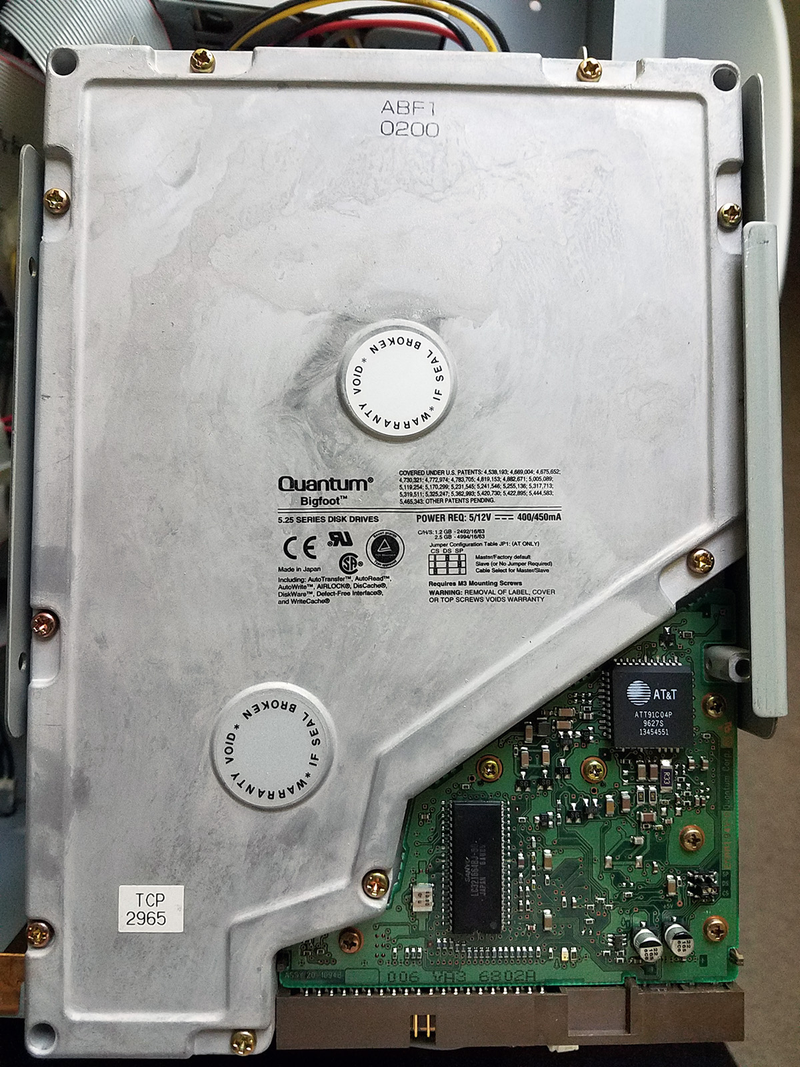

It came with a Quantum Bigfoot 3600RPM 5.25" 2.5GB hard drive. Slow as shit

Advertisement

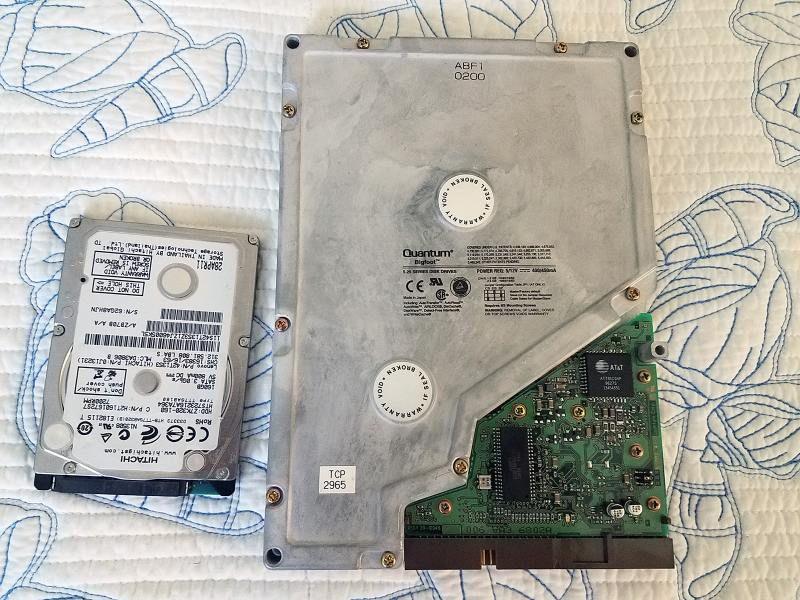

Size comparison against a 2.5" SATA laptop hard drive

Advertisement

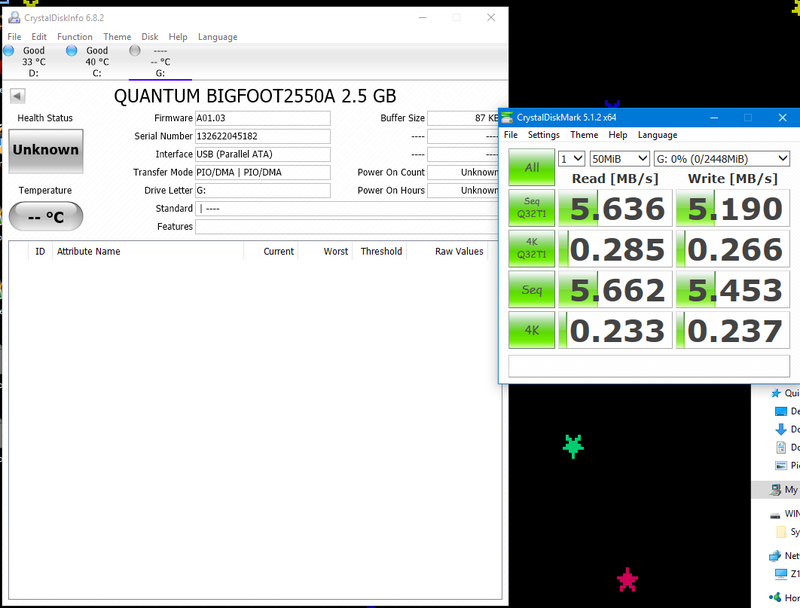

SLOWWWWWWWWWWWWW Bigfoot

Advertisement

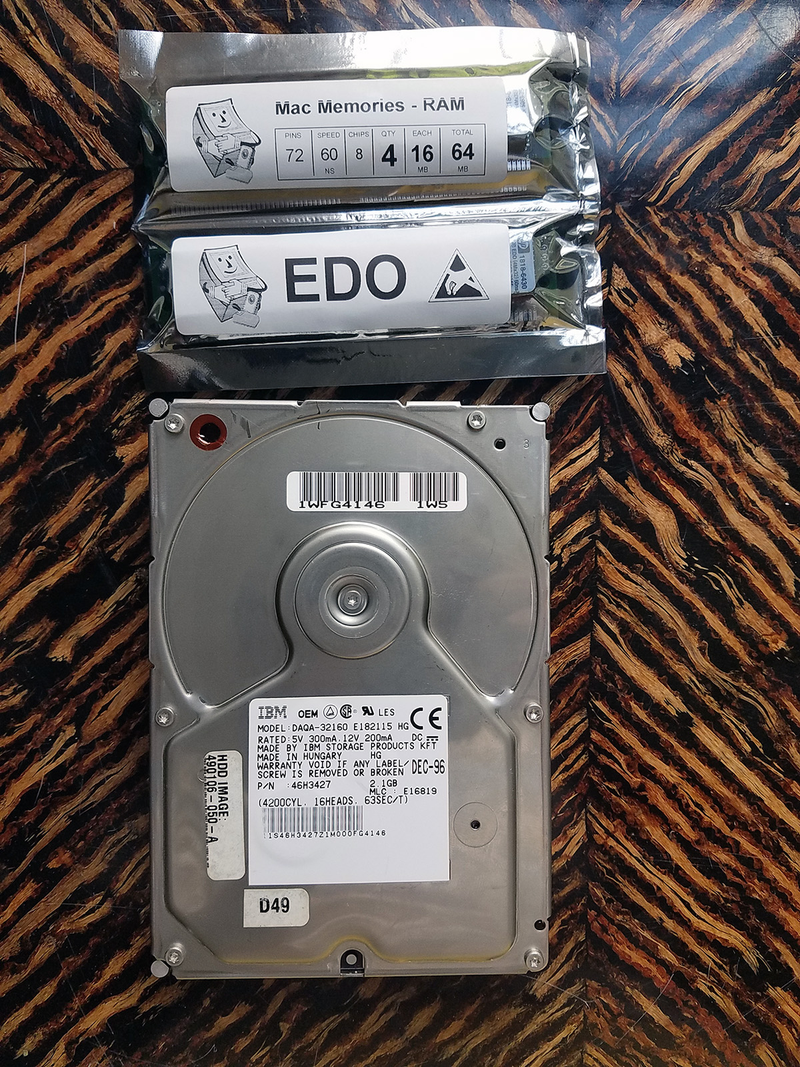

A 2GB 5400RPM IBM hard drive thatÔÇÖs faster and quieter than the Bigfoot. Using this instead. Also bumped up the RAM from 16MB to 64MB. Much better.

Advertisement

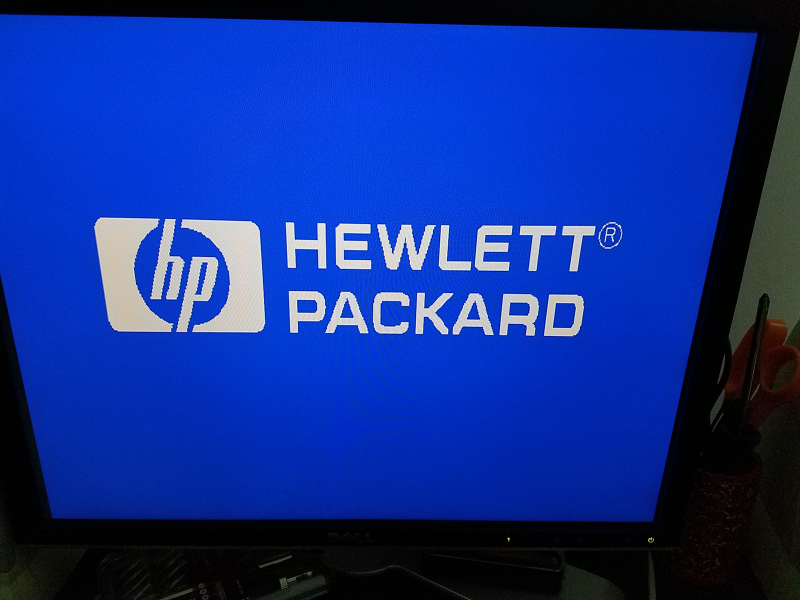

Boot screen

Advertisement

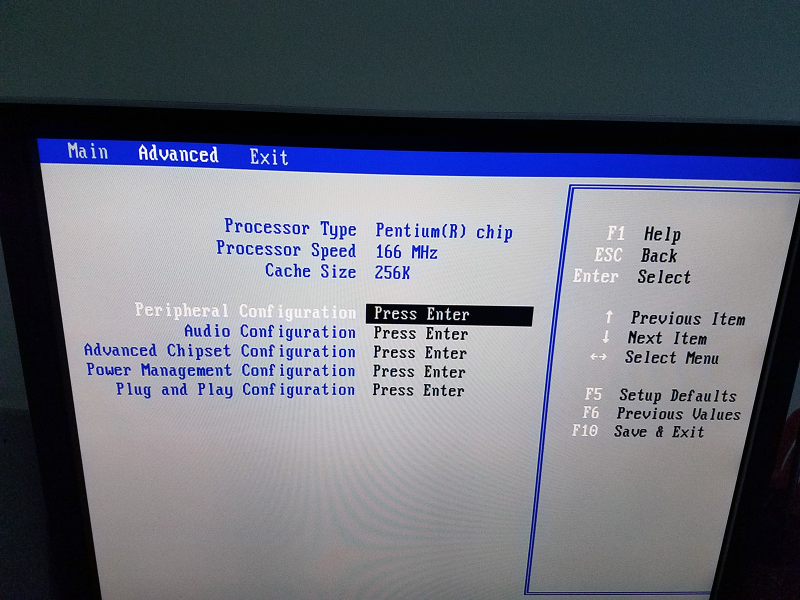

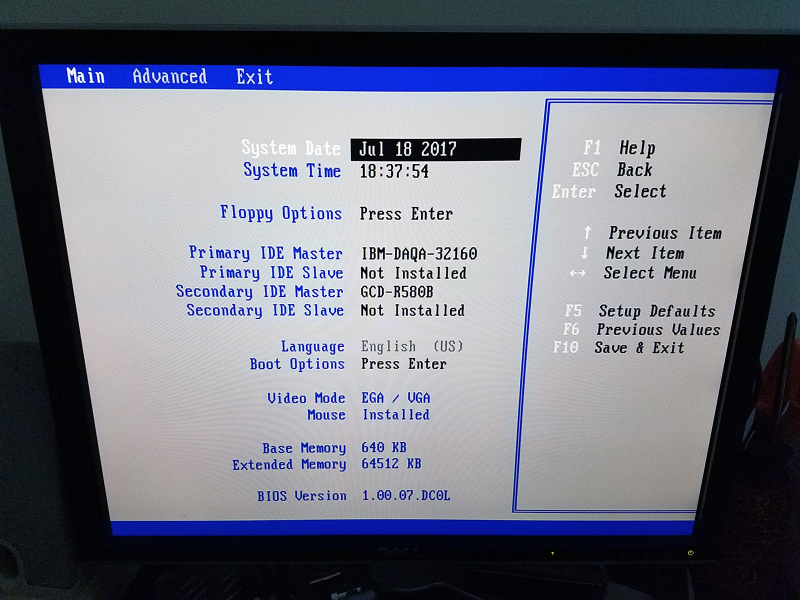

BIOS screen

Advertisement

BIOS screen 2

Advertisement

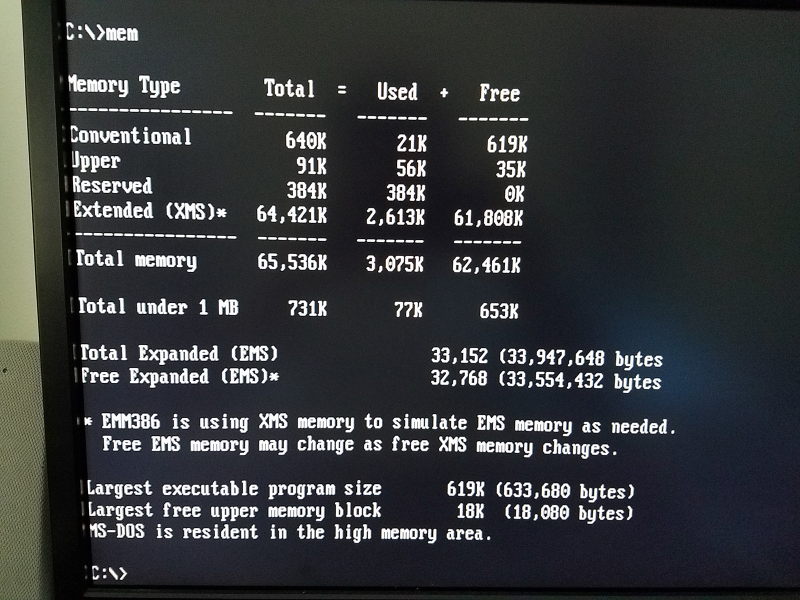

MS-DOS 6.22 memory management

Advertisement

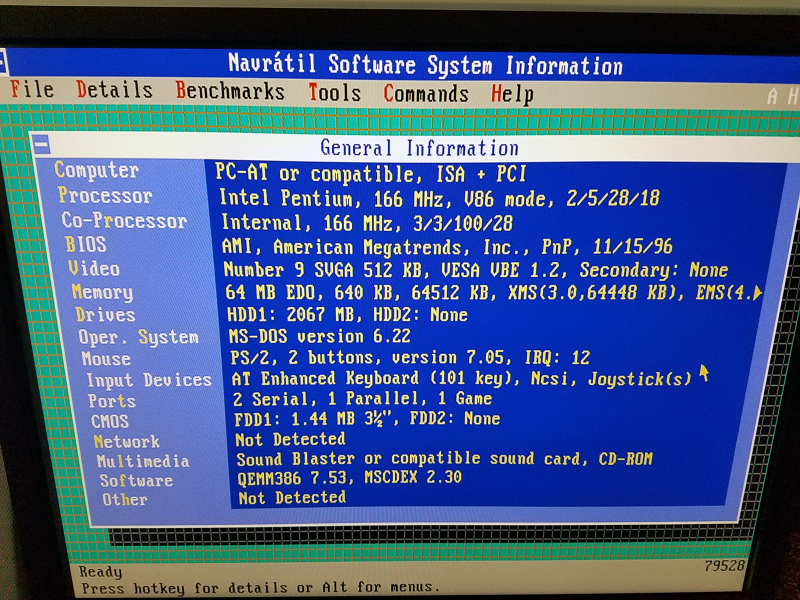

Specs using NSSI under MS-DOS

Advertisement

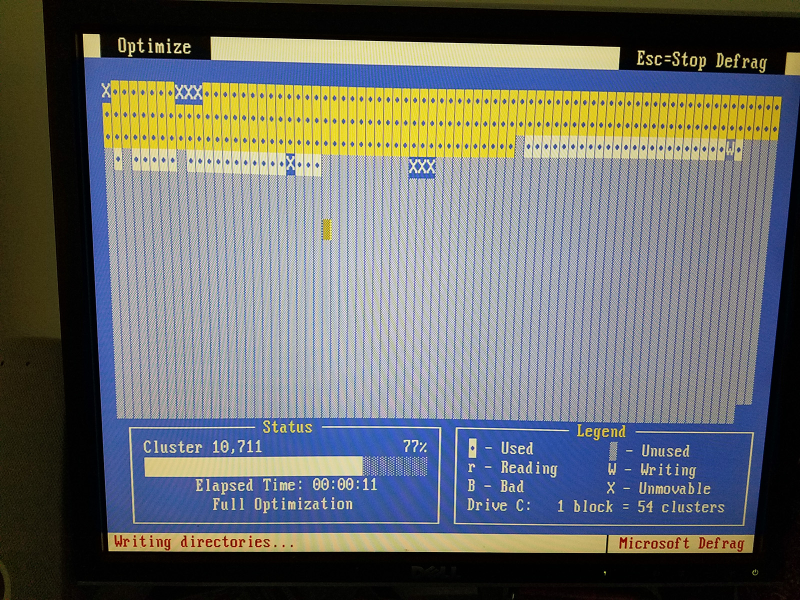

Defragging the drive after setting up everything

Advertisement

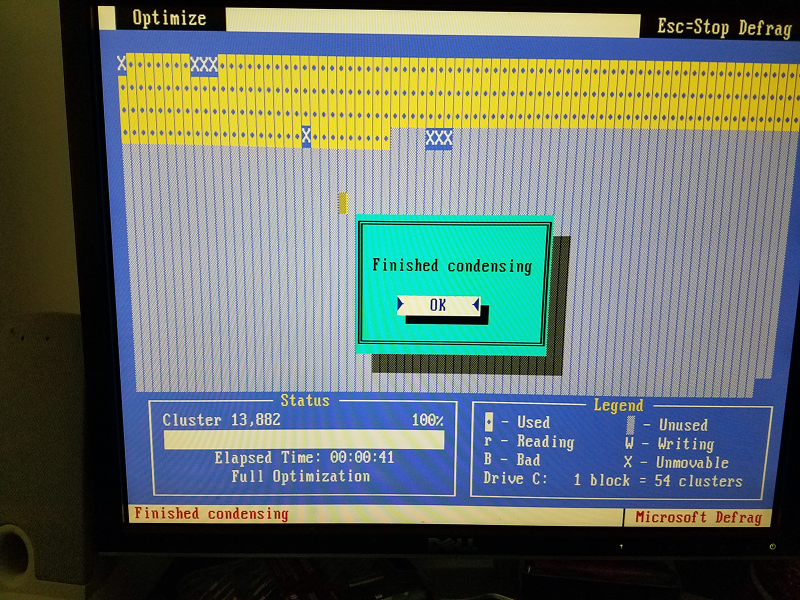

Defrag done. Quickly.

Advertisement

Windows for Workgroups 3.11!

There ya have it, kids. A wonderful retro computer. Ordered a CF to IDE adapter + 4GB Compact Flash card so I can eventually dual boot (with the aid of a boot manager) Windows 95 and MS-DOS 6.22
