Gutted an HP Compaq dc7600 mid tower. Standard ATX layout. Front panel was standard as well! Even the power and HD LEDs work.

Advertisement

Rosewill Glacier 700W Modular power supply
Gigabyte Z170HD3P motherboard
Intel i7 6700K
Zalman cooler
Arctic F9 rear fan
32GB RAM Samsung 950 Pro 256GB M.2 SSD Seagate 2TB 7200RPM hard drive DVD/RW drive 5.25" USB 3.0 front panel with 3.5/2.5 bay NVIDIA GeForce GTX1060 6GB video card

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

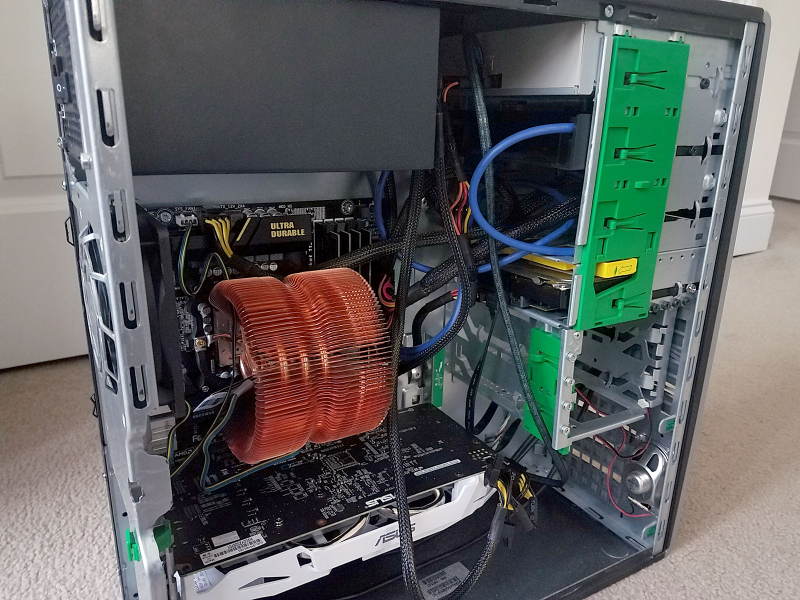

So the original power supply is slightly larger than standard ATX but the screw holes aligned fine for the first part. Addon cards do not require a screwdriver for installation.

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

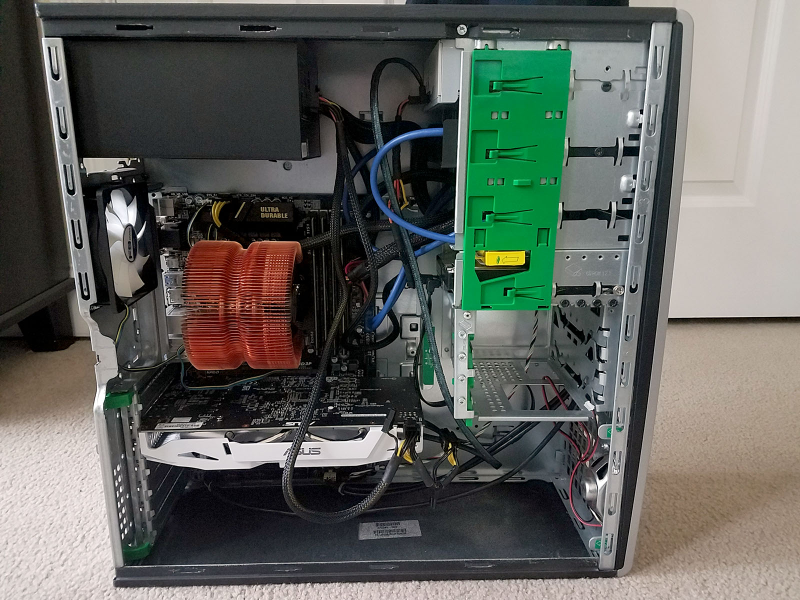

Side view of the interior

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

Hid the hard drive in there since the SATA power connector was jutting out and preventing the case from properly closing.

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

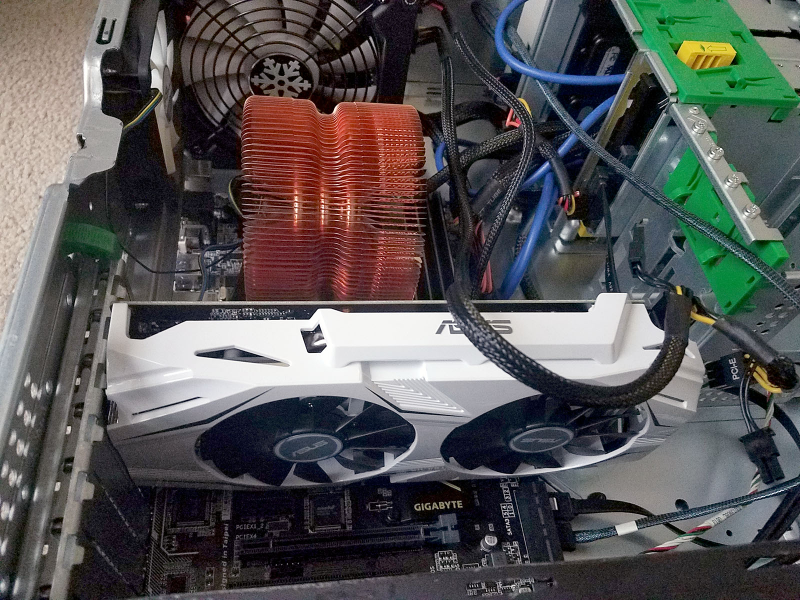

Roomy!

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

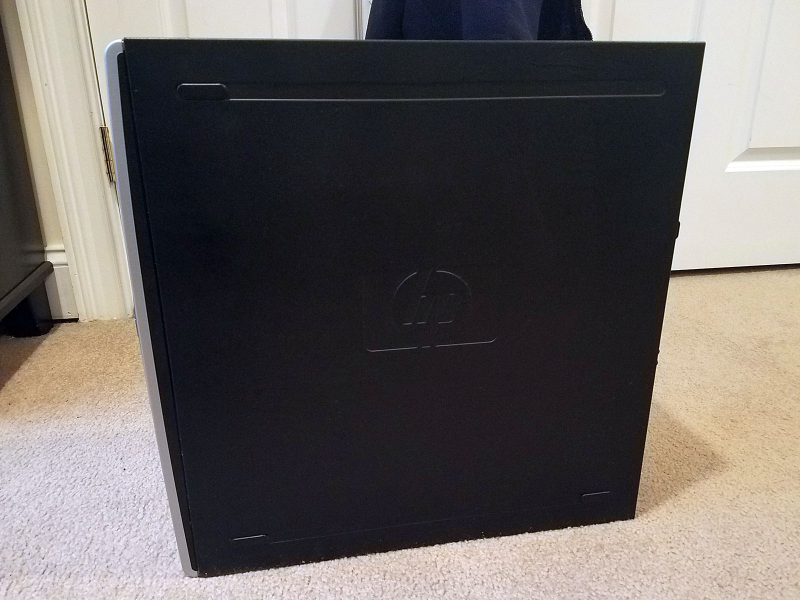

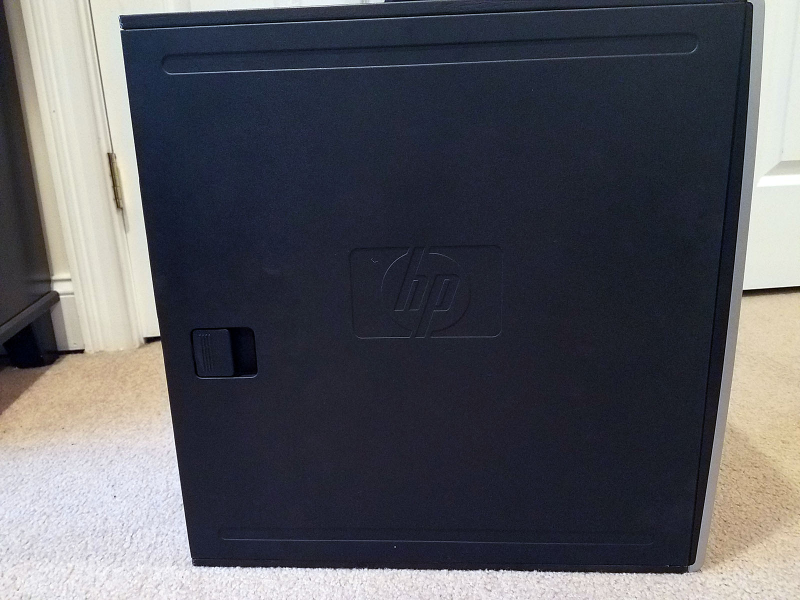

Side panel. The black frame is removable so I spray painted it black to make it look much better.

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

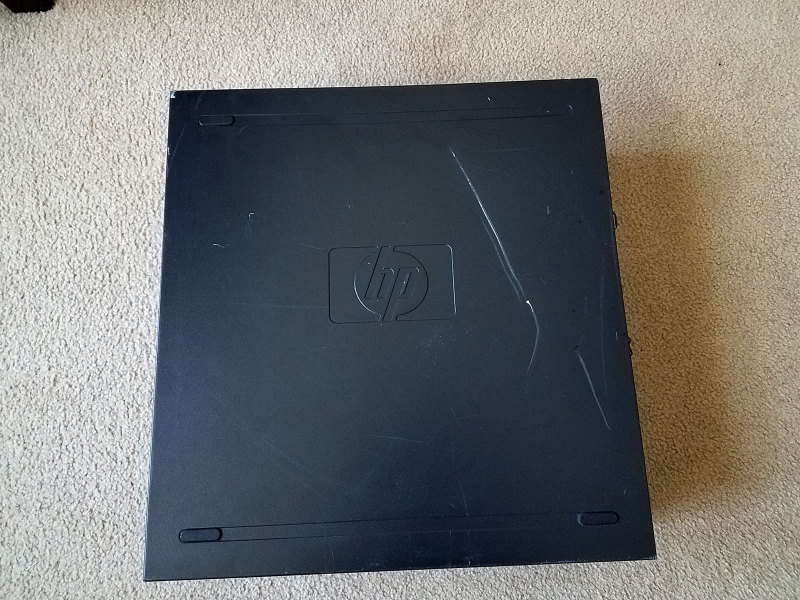

Other side. Missing one of the rubber feet.

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

Before spray painting

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

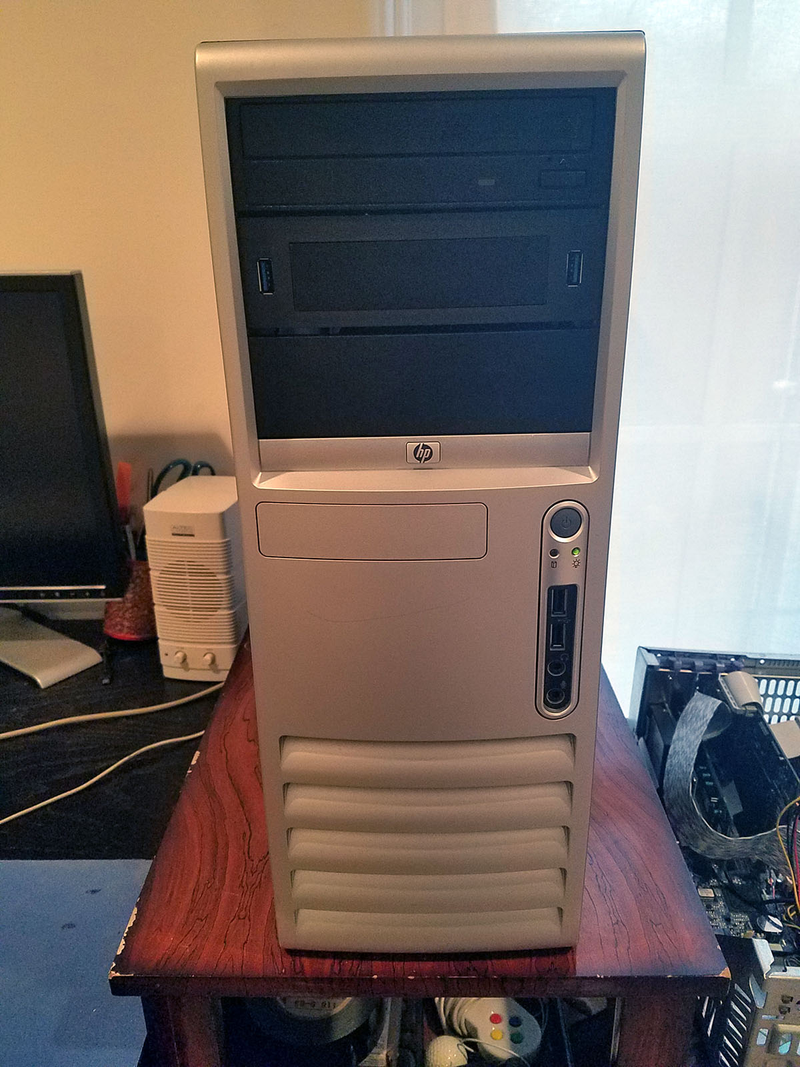

In action!

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

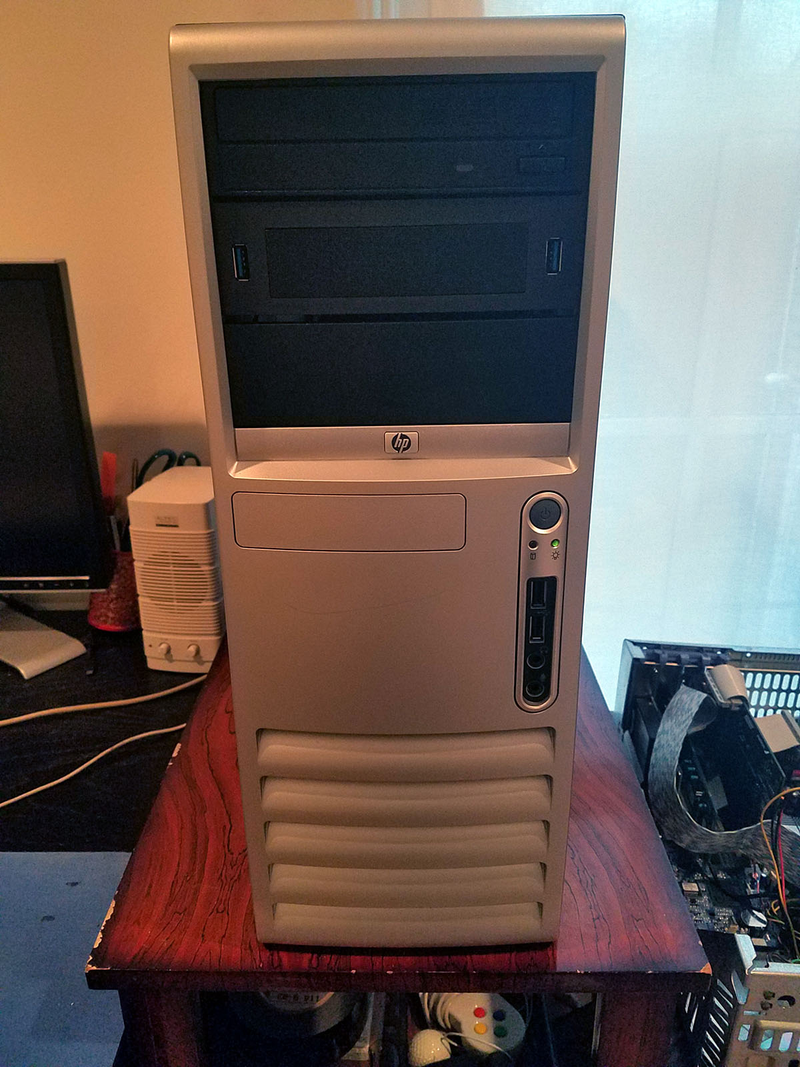

Front panel USB 2.0 + audio jacks work fine

Illustration for article titled em/emem/emReusing an old HP Compaq dc7600 tower
Advertisement

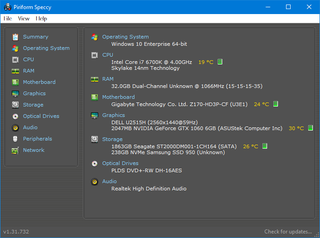

Specs + temps
