Was leaking about a quart a day, so I got a boxfrom a junkyard. This is the most involved project I’ve ever attempted. The following is various pictures with labeles, but not in any order.

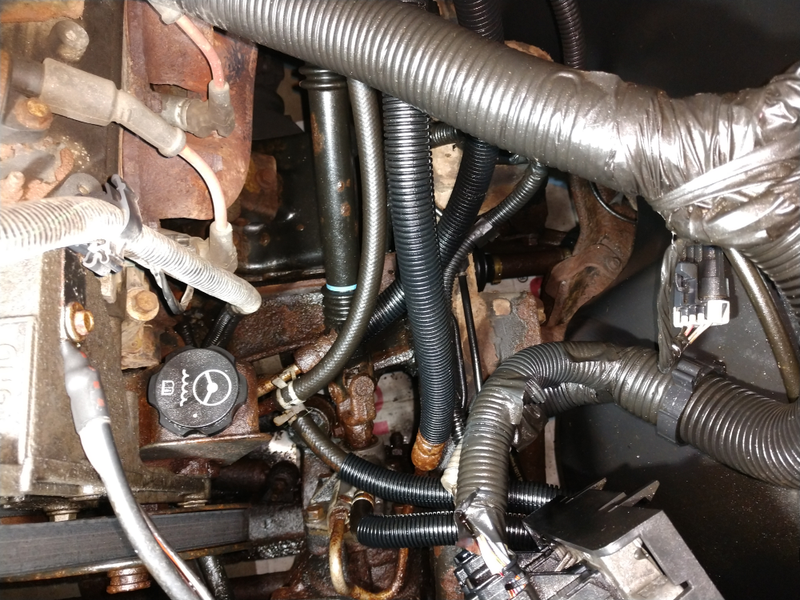

The hardest part was getting the pressure hardline out, 1/8th of a turn at a time

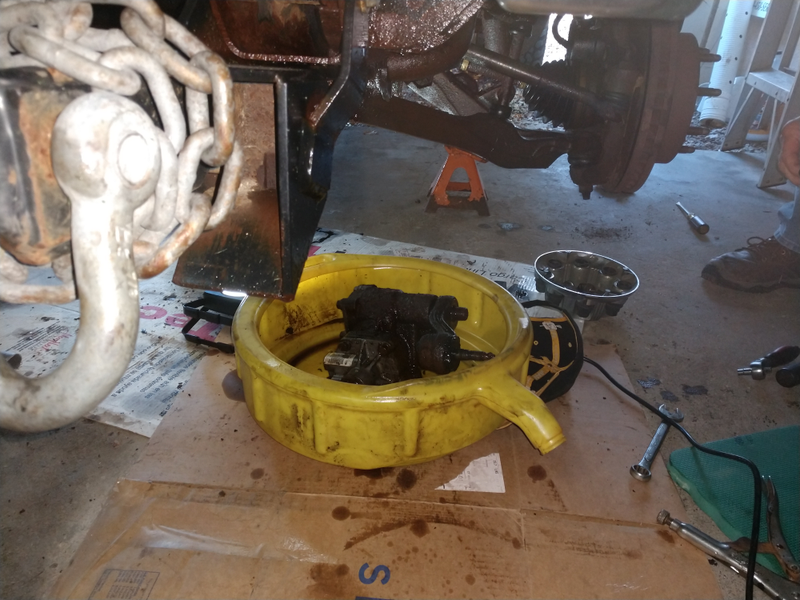

Box out
Advertisement
the coupling to the box was slid back

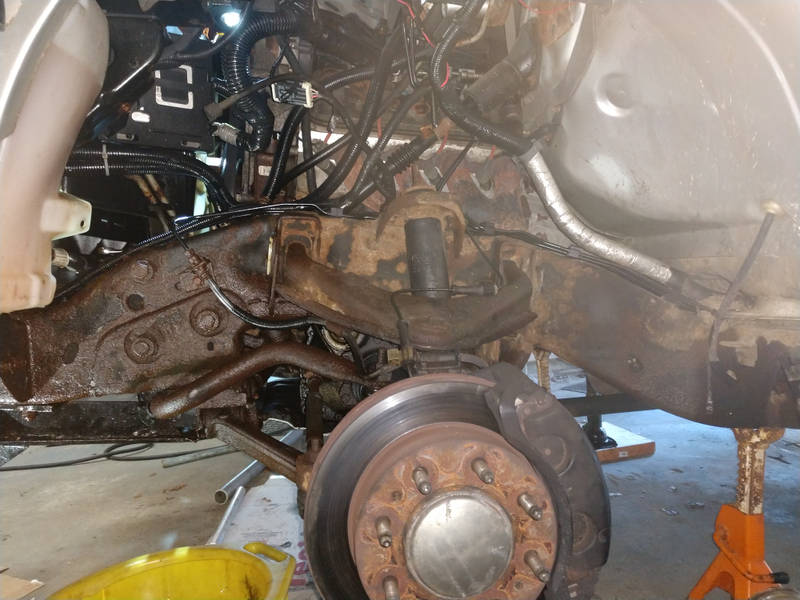

those three big bolts in the frame hold the box on

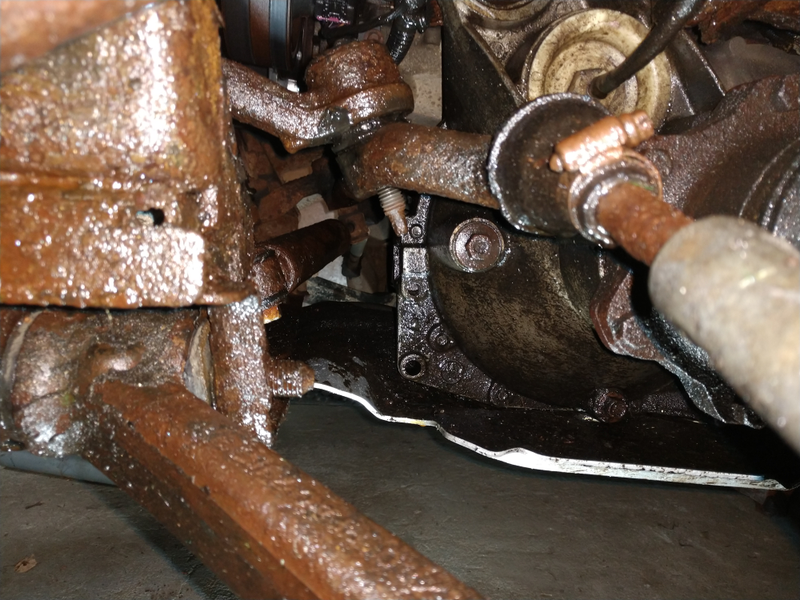

one picklefork later and the pitman arm is separated from the rack
Advertisement

Installation is just the reverse of the disassembly!

...
