Technically Formula 1 - Malaysian Gran Prix

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

Technical innovation is what makes Formula 1 so different from any other form of racing. The on track action is as much played out by the engineers and aerodynamicists as it is the drivers. We are here to admire, study, and discuss this beauty that exists on the ragged edge of what we think is possible, or at least what we thought was possible.

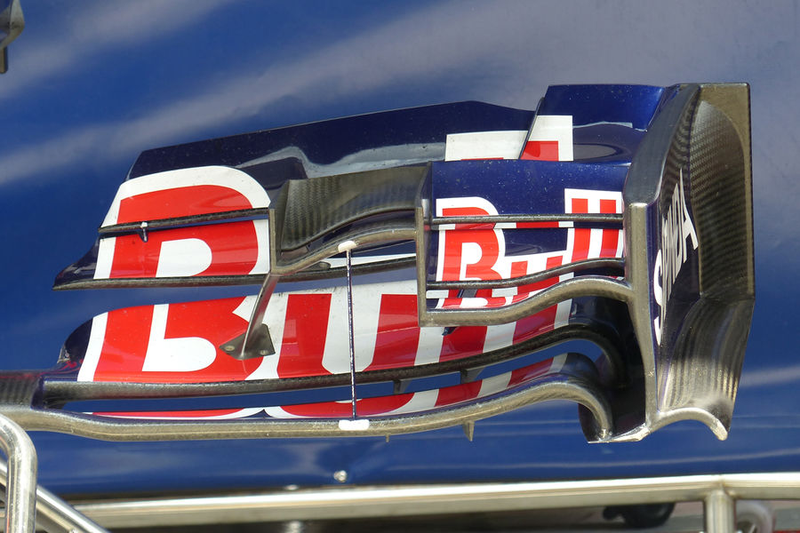

Advertisement

For more technical intrigue, be sure to check out this year's pre-season tests and the Australian Gran Prix.

Advertisement

This post will be updated as the weekend progresses. Discussions and questions are welcomed and encouraged in the comments section below.

Malaysian Gran Prix

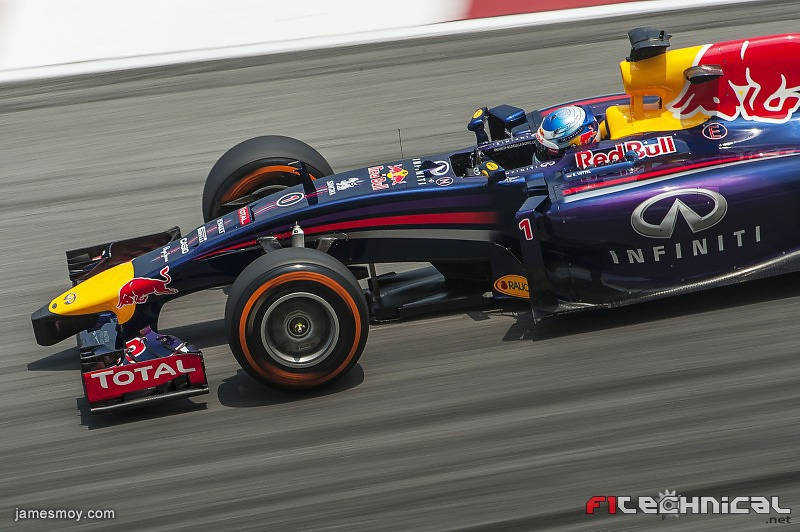

Red Bull RB10

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

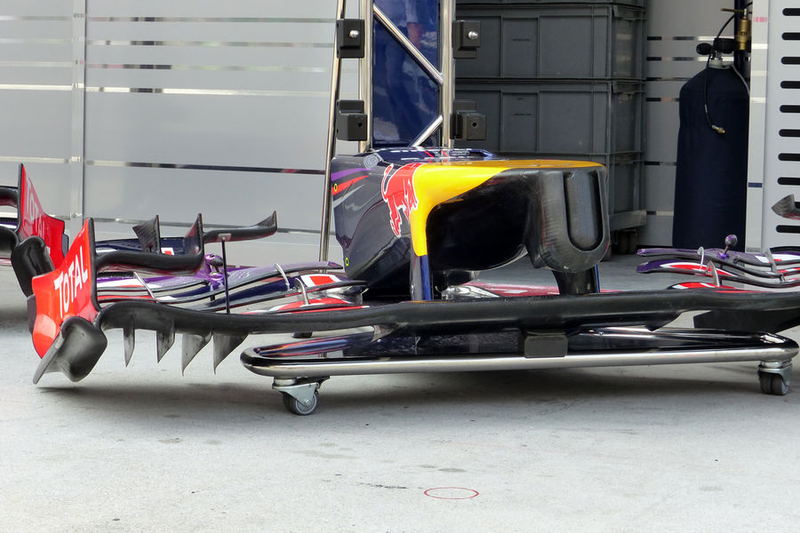

RB10 nose detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the strakes on the underside of the Red Bull's front wing to keep the air in line and support a low-downforce area underneath the wing.

Also note the driver-cooling inlet on the nose tip, and the bubble-shaped bodywork on the underside of the nose.

Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

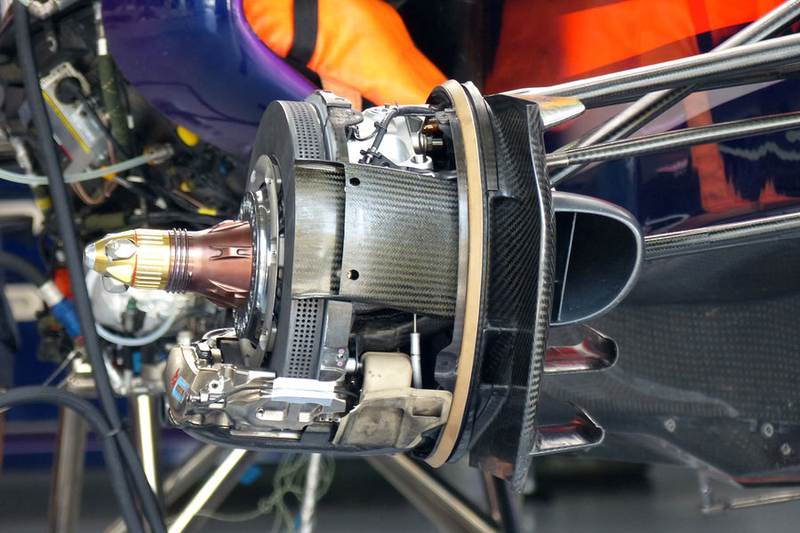

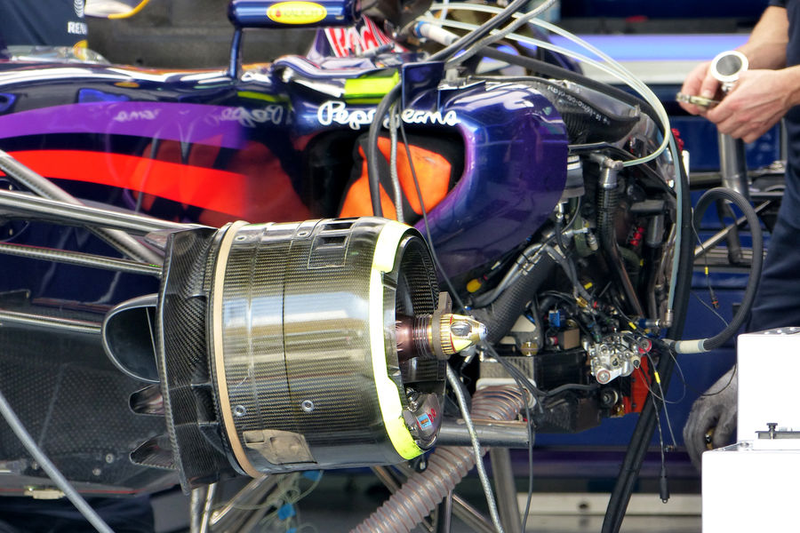

RB10 brake assembly detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

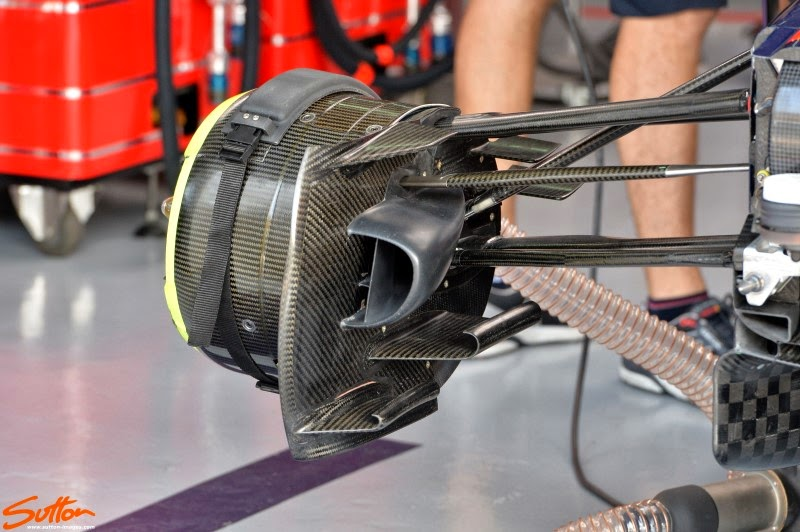

RB10 brake duct detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

RB10 brake assembly detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

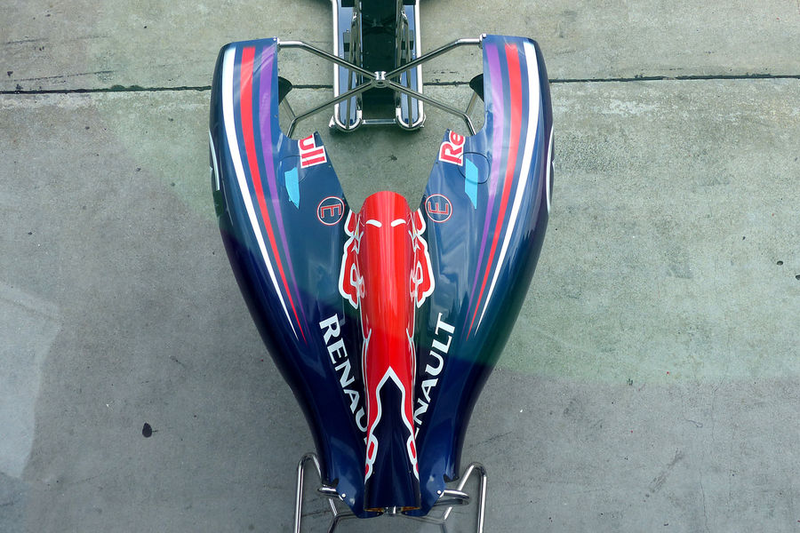

RB10 engine cover. Note the gold liner that helps reflect heat.

...Yes, real gold.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

The clean lines of Adrian Newey.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

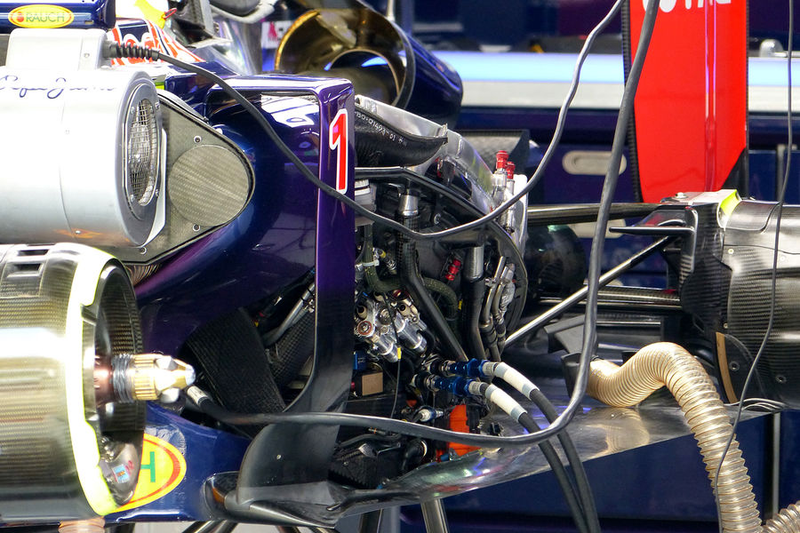

RedBull sidepods, the two pipes connected to the [valves] are the [engine] preheating system

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

Contrast to @MercedesAMGF1 the @redbullracing sidepod is ful or air-air intercooler and electronics

Advertisement

@ScarbsF1


Mercedes W05

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Just giving the safety car a wash.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

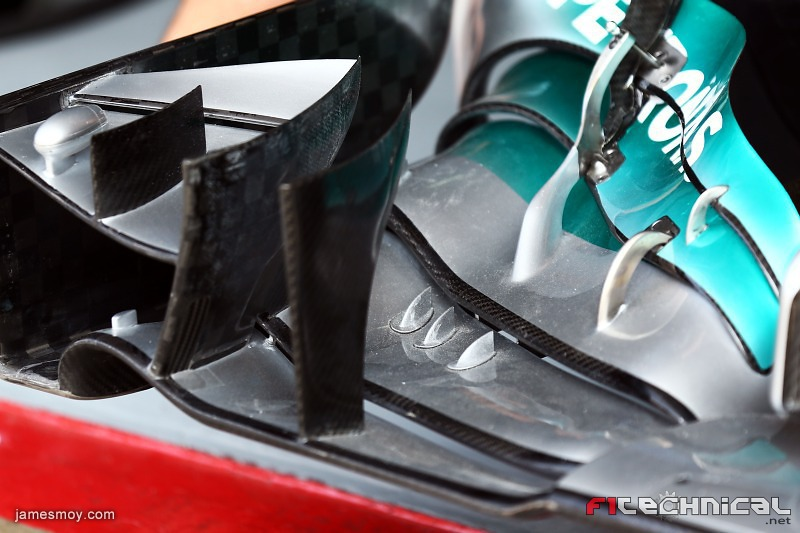

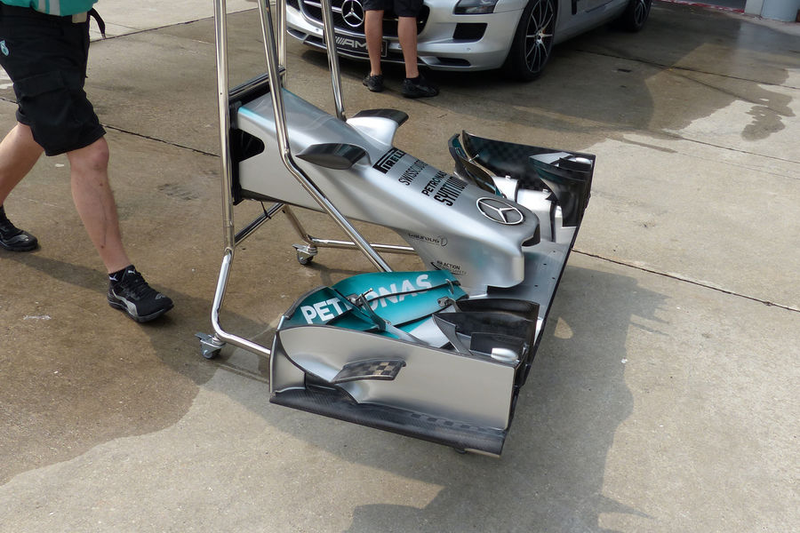

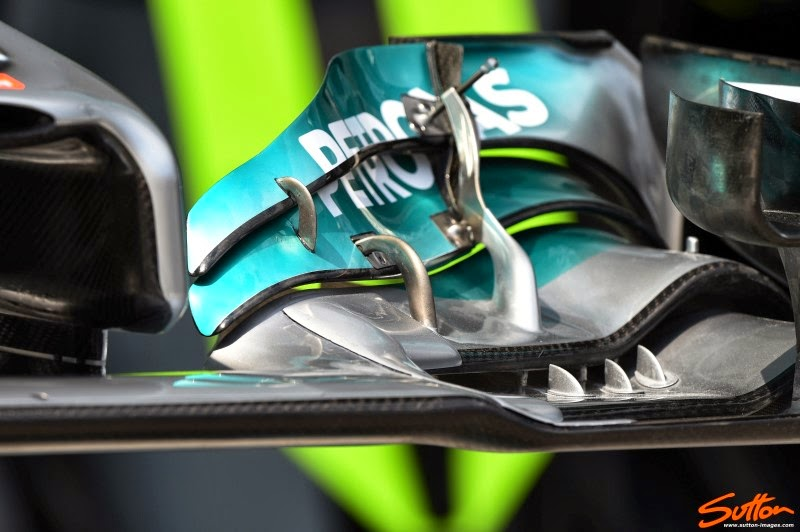

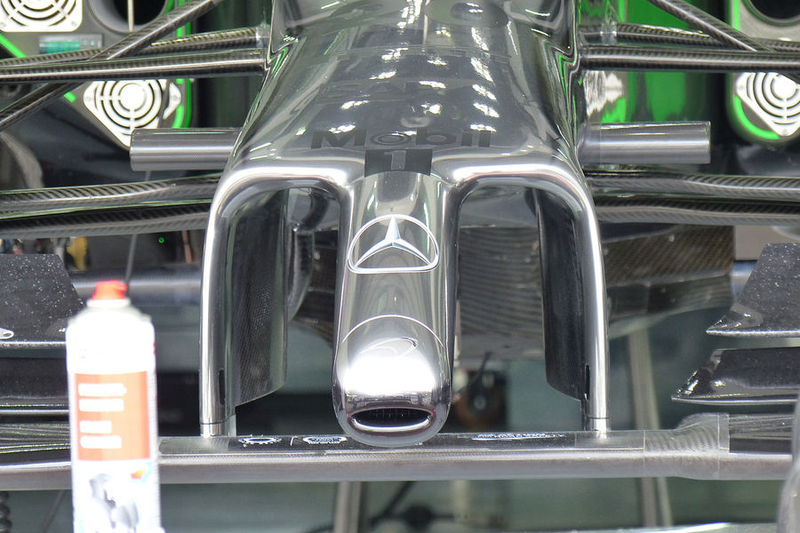

Mercedes WO5 Front wing, note the vortex generators on the second tier of the mainplane sit ahead of the strakes behind the wing. These disturb the airflow increasing the strakes efficiency

Advertisement

- SomersF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Closer?

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

A rear view of the Mercedes front-wing.

Mercedes FW, the rounded shape twixt wing and endplate shows how the vortex forms and curls around the front tyre

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

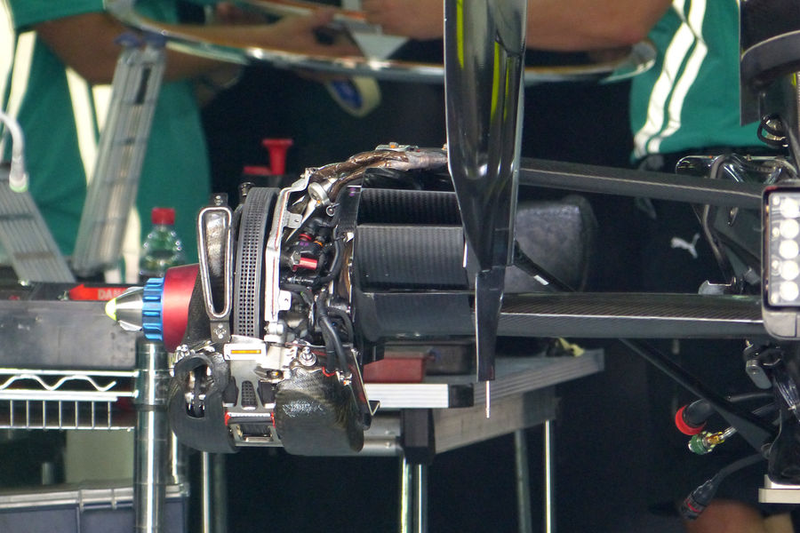

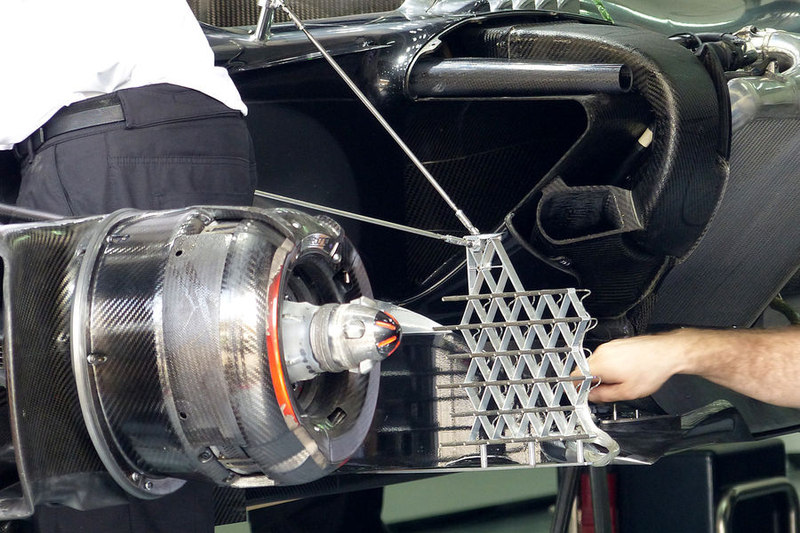

W05 brake detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

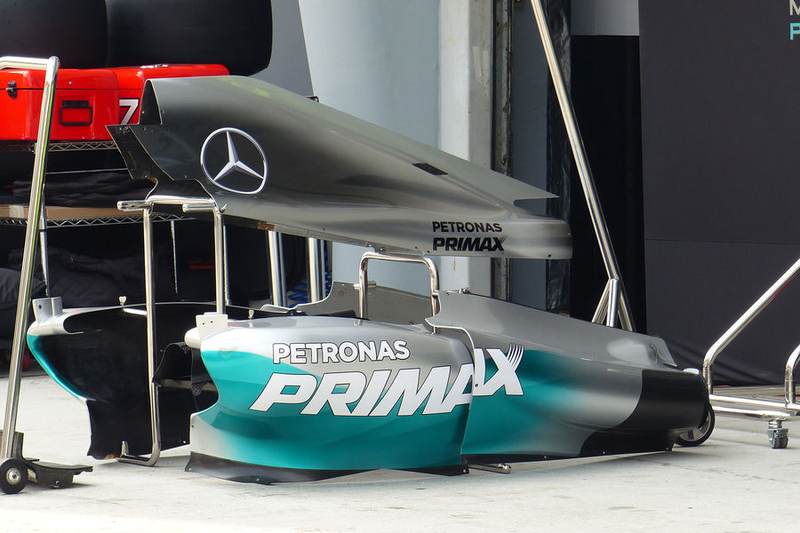

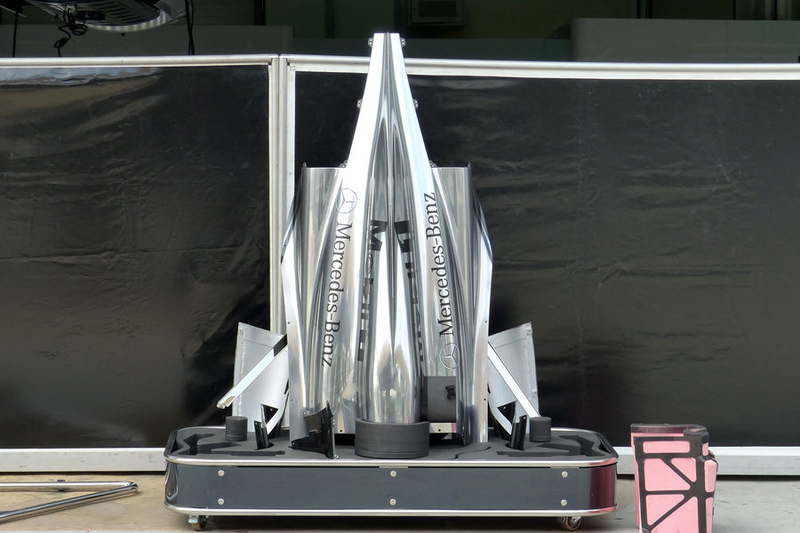

W05 engine cover, splint in 3 pieces.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

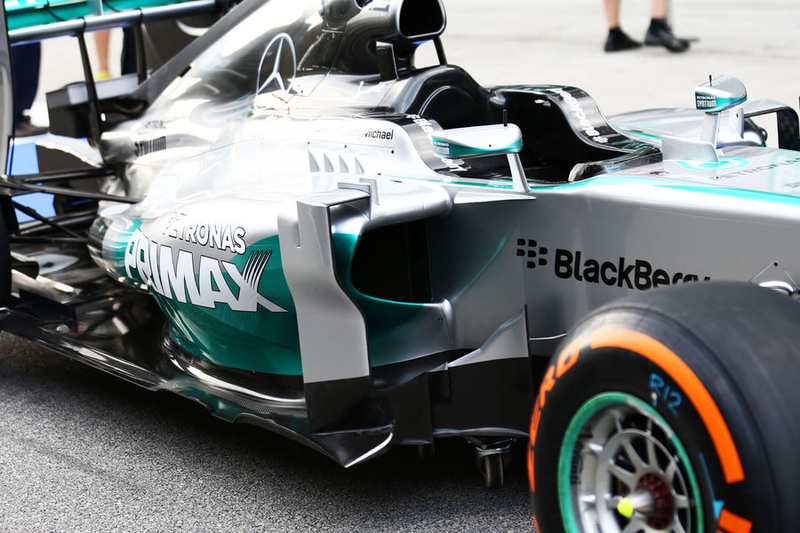

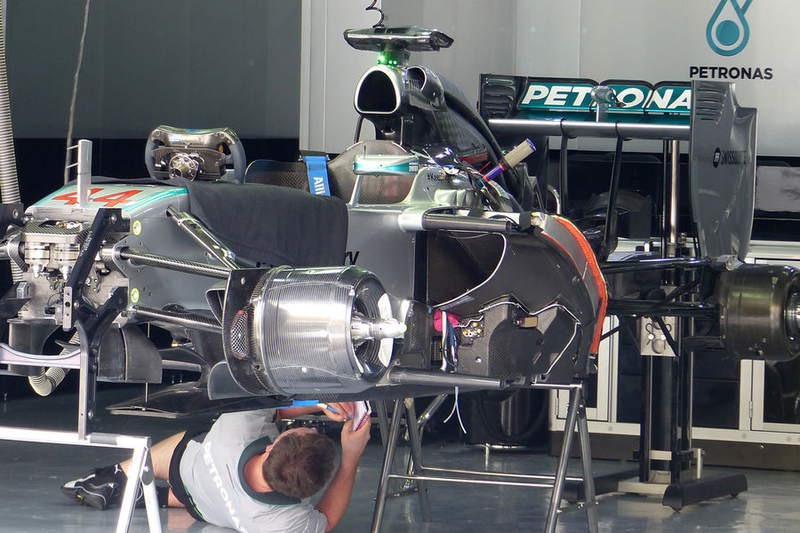

It looks as though Mercedes have newly shaped sidepods this week in Malaysia. The sidepod airflow conditioners are modified, but retain a similar shape from 2 weeks ago.

Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

Righthand sidepo @MercedesAMGF1 note the oil cooler above the engine fed by the roll hoop ducts

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

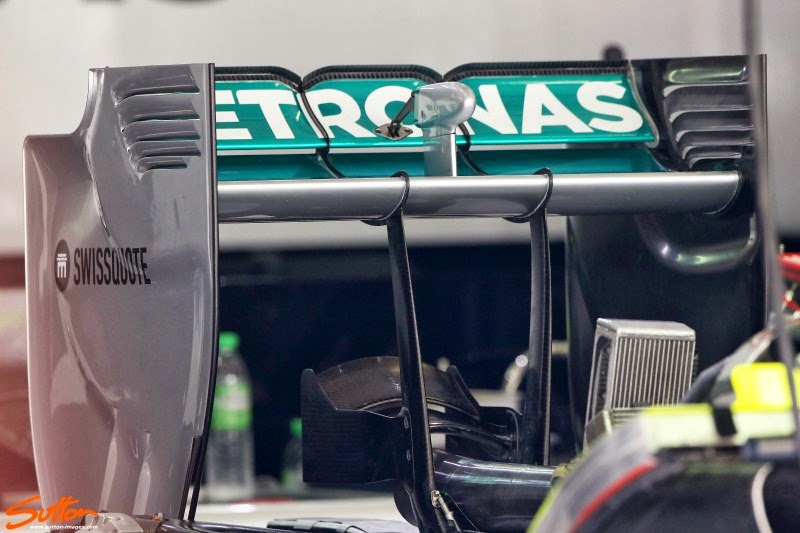

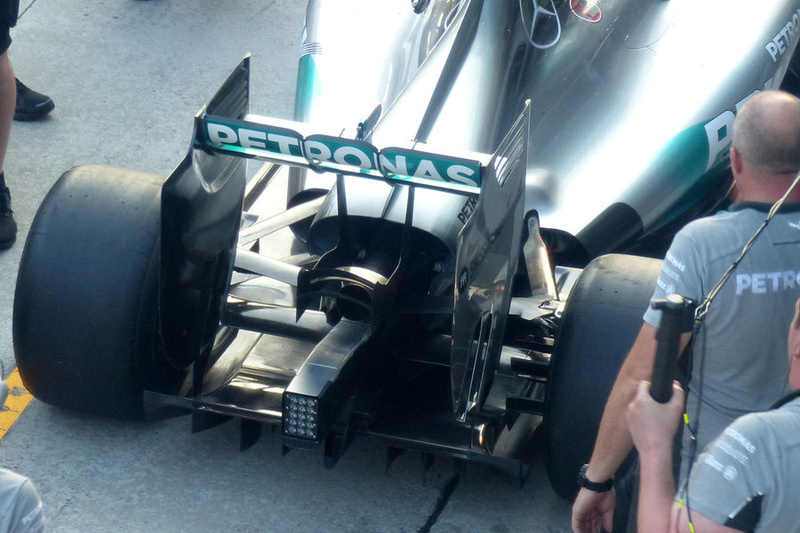

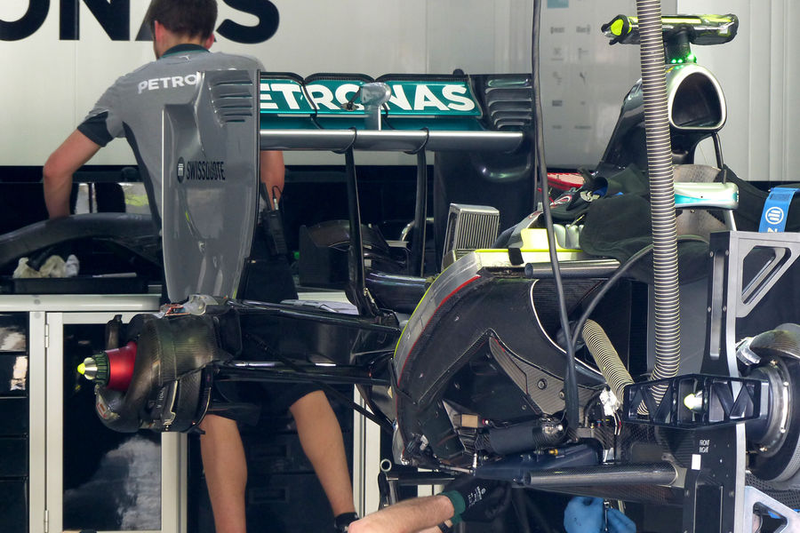

Mercedes WO5 Rear wing, note the oil cooler that sits astride the gearbox and resides within the engine covers central cooling funnel

Advertisement

- SomersF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the nostrils above the main airbox inlet.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

W05 turning vane detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

W05 rear-brake detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

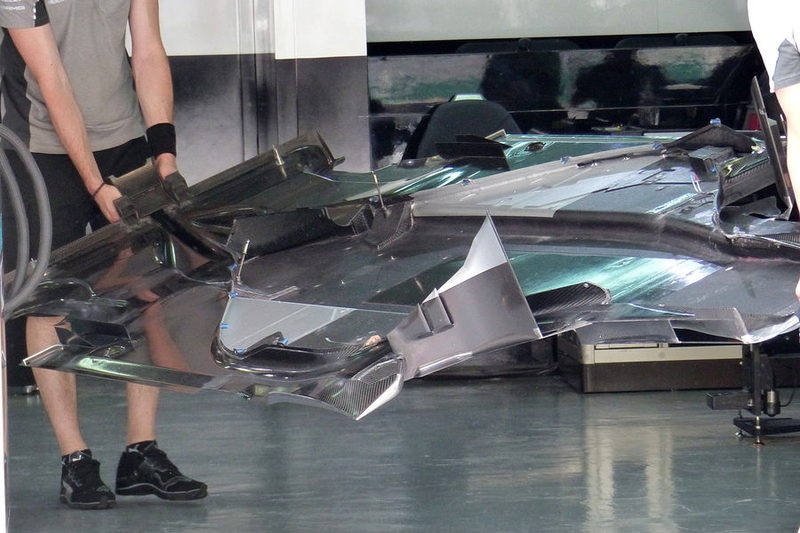

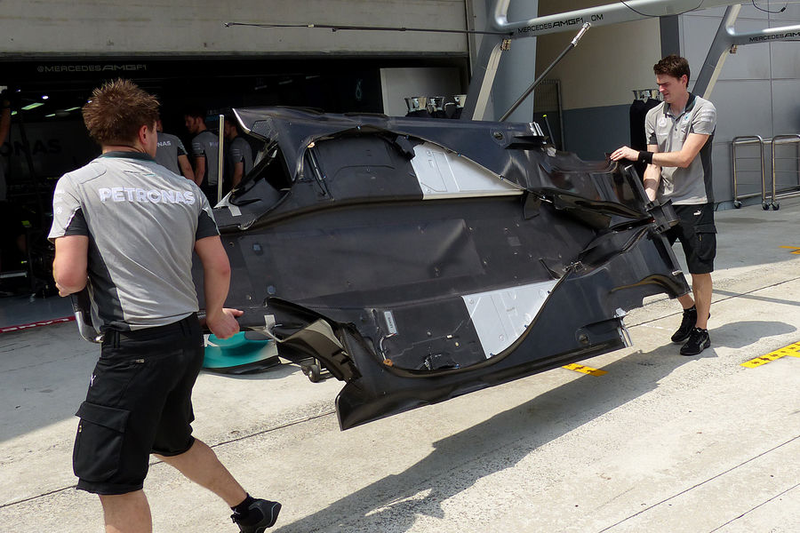

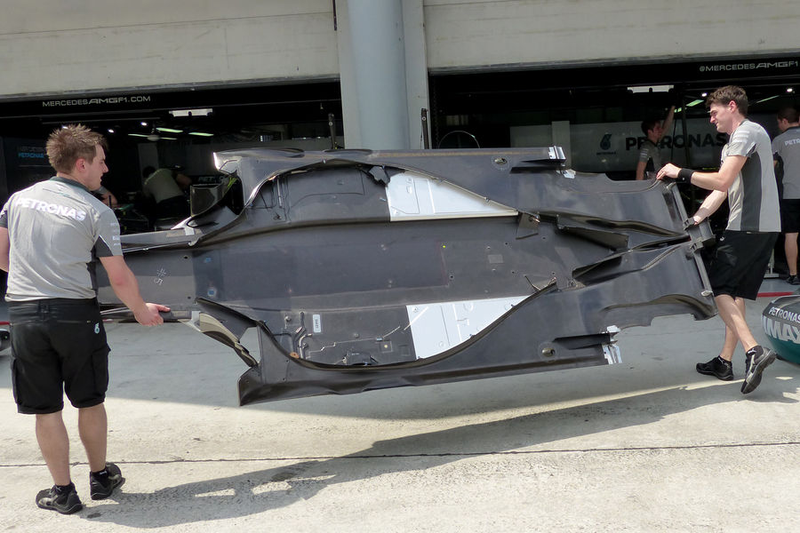

Mercedes floor that they probably shouldn't have let us see.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

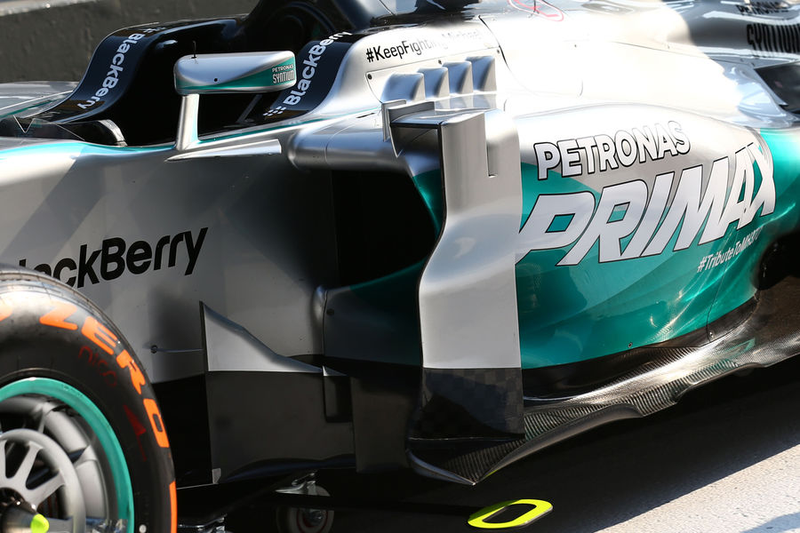

Note the slots on the @MercedesAMGF1 bargebaord and the vane next to the T-Tray

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the U-shaped floor leading to the rear diffuser. I assume that this is a way to vent hot air and increase the speed of the air flowing out of the diffuser though the flow of hot air's use.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

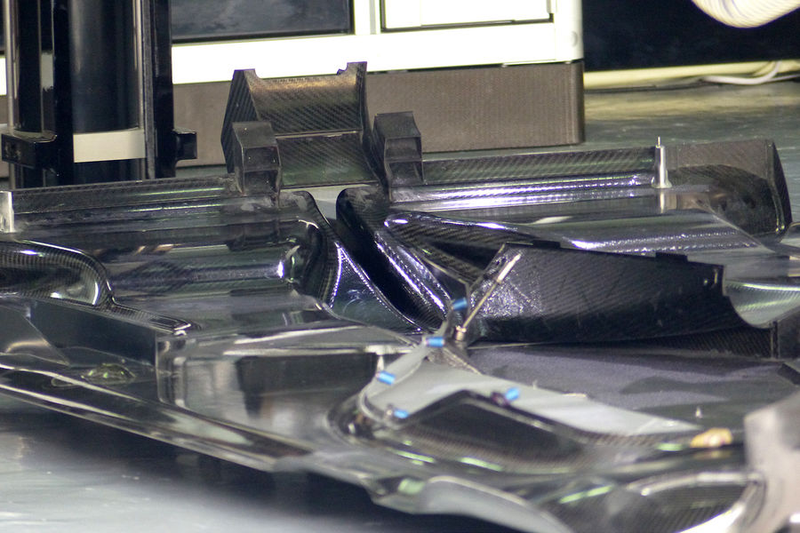

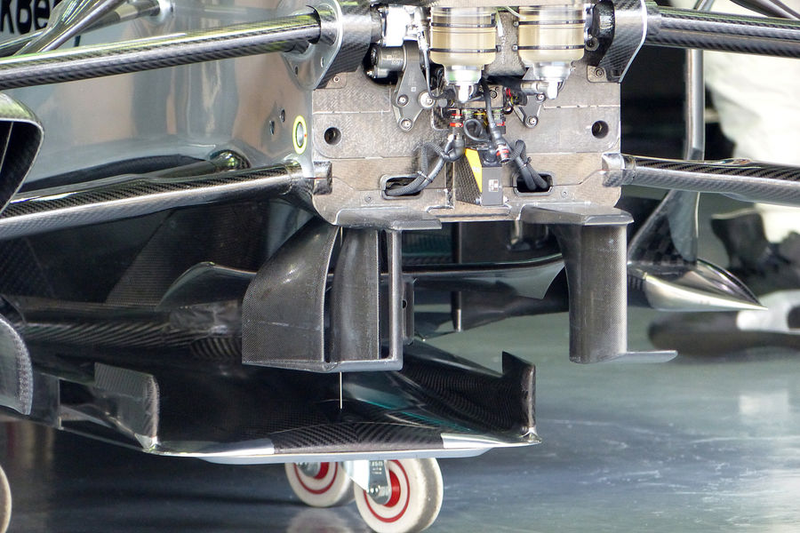

W05 rear diffuser detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

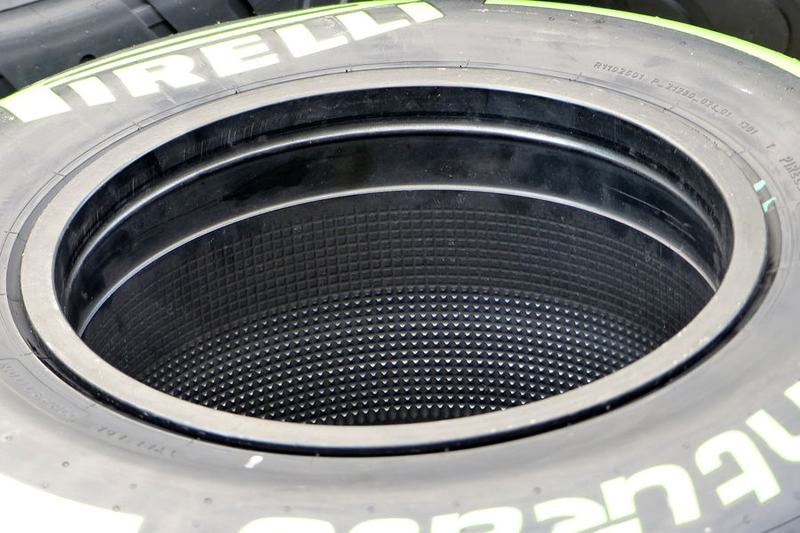

Like most teams the @MercedesAMGF1 wheel is polysil coated & knurled to absorb heat (not reflect as I said yesterday)

Advertisement

@ScarbsF1


Ferrari F14T

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

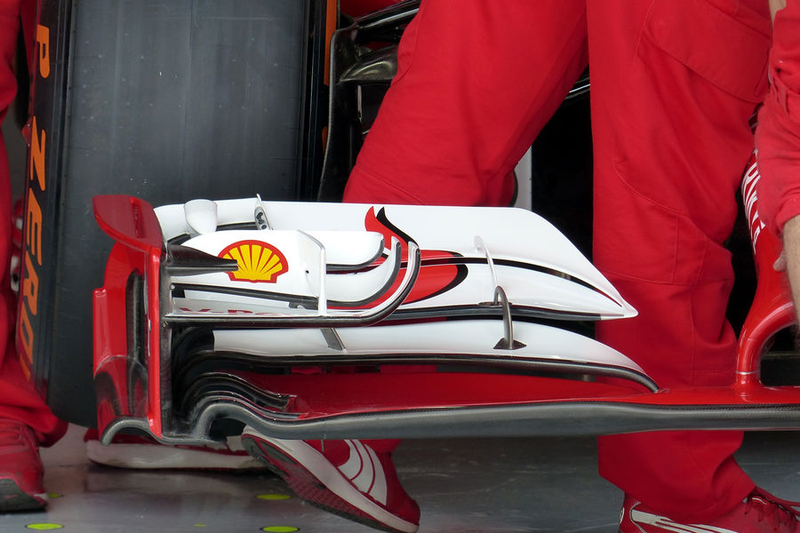

Ferrari front wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the NACA ducts on the F14T's nose, as well as the winglet on top of the airbox.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

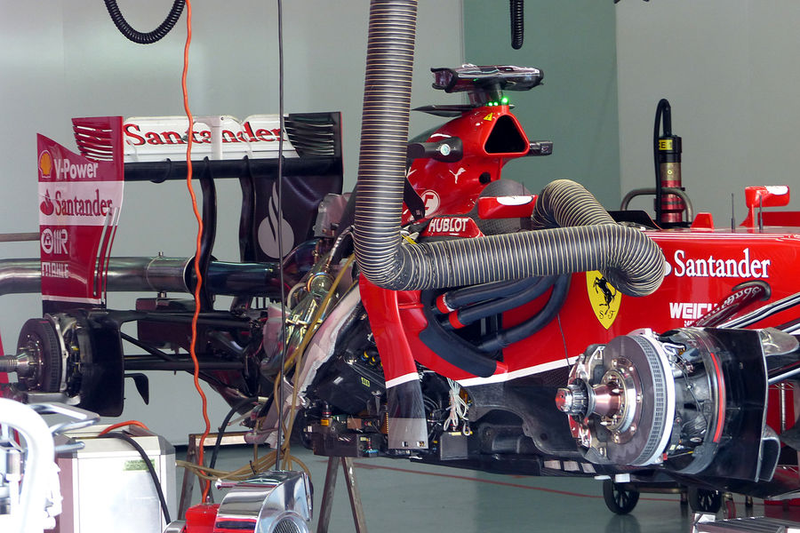

F14T brake and sidepod detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Most electronics are stored underneath the sidepods for the lowest center of gravity.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

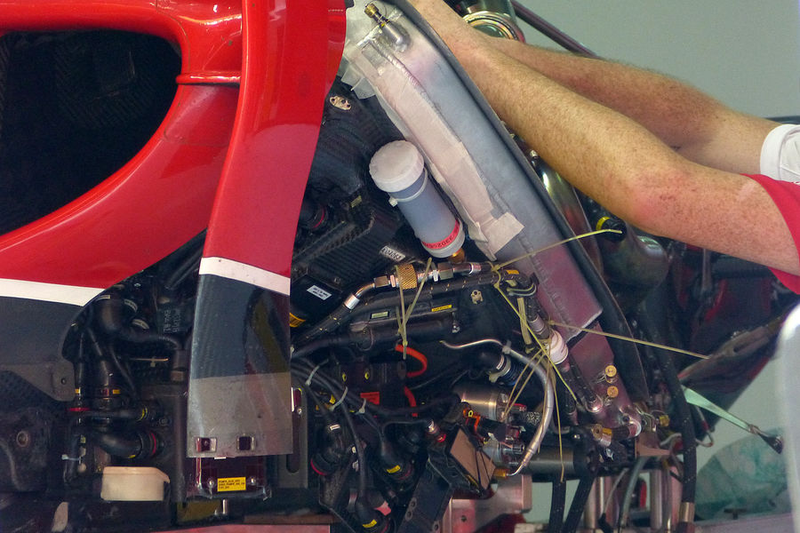

F14T sans engine cover and floor.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

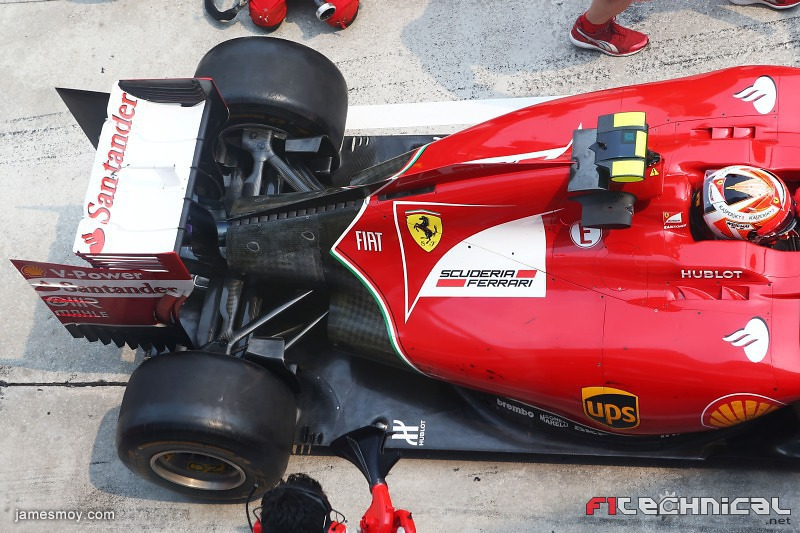

The Ferrari has added extra cooling slots on the rear portion of the engine cover.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

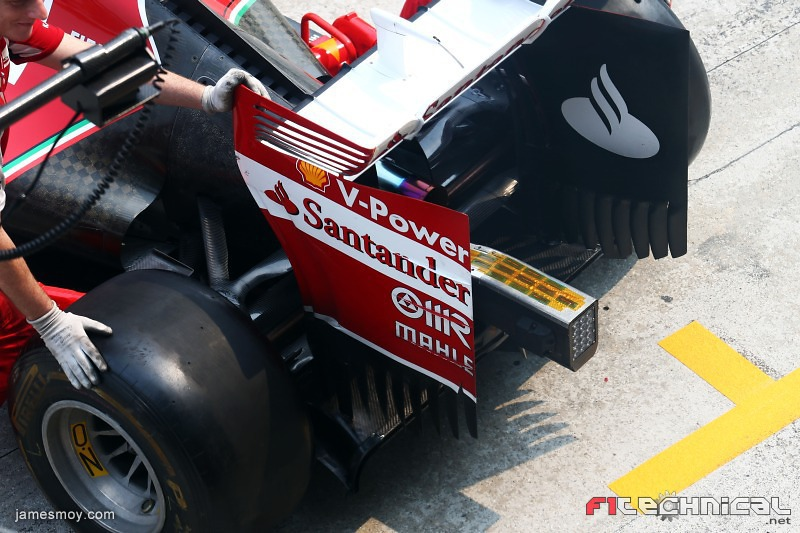

Temperature sensors on the rear crash structure.


Lotus E22

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

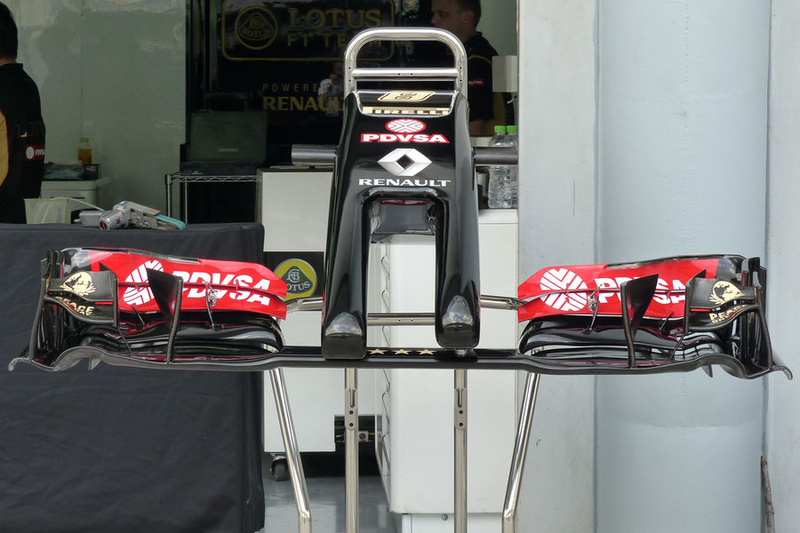

E22 nose and front wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

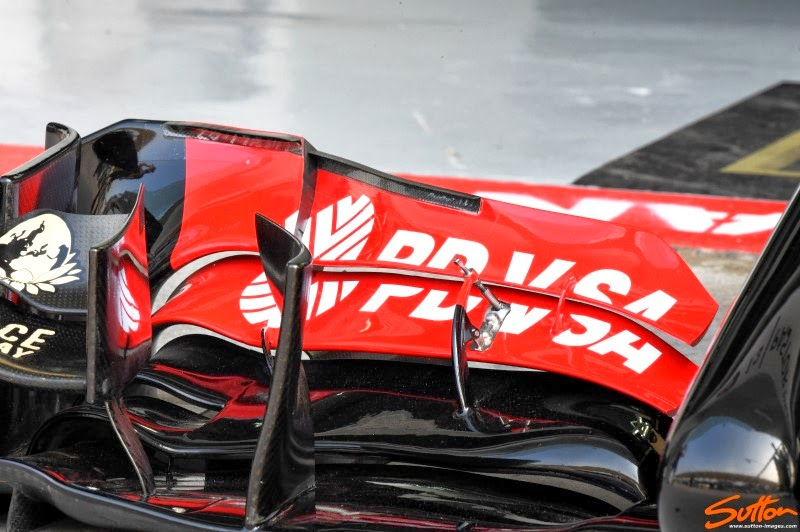

E22 front wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

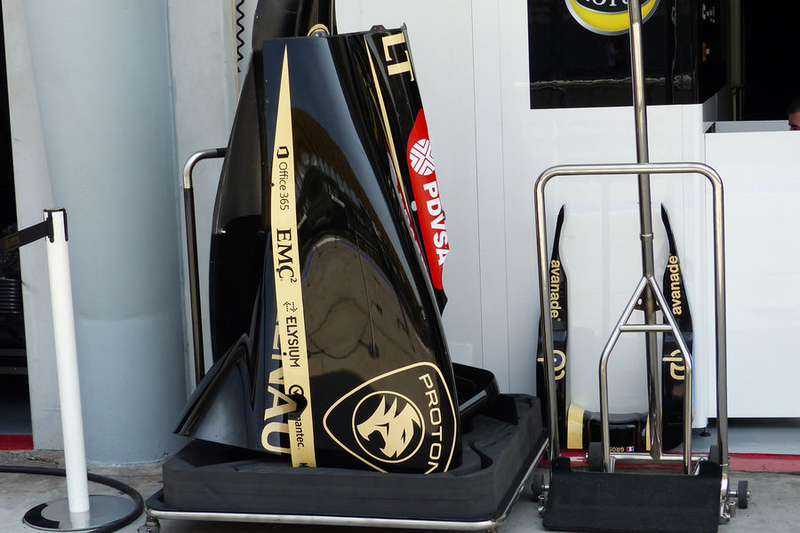

Lotus sporting new Proton sponsorship.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

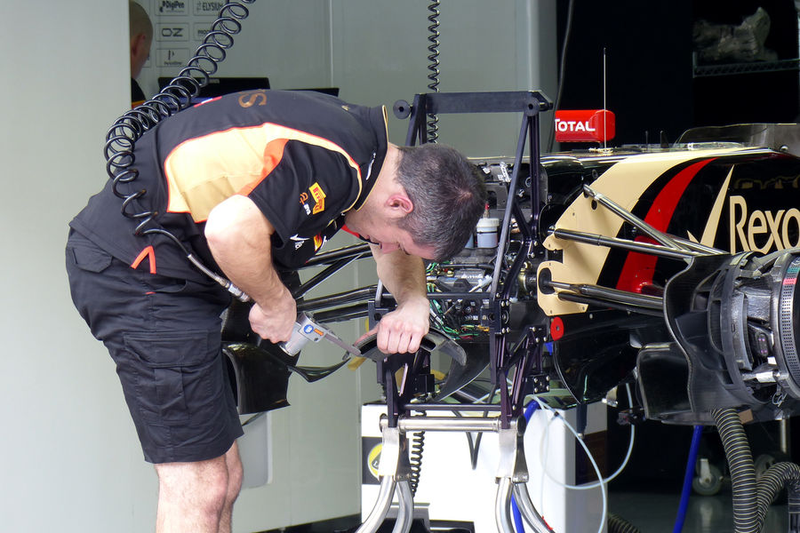

Lotus engineer cutting something. Looks like some sort of duct.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Also note Lotus' interpretation of the ductless brake duct. Most traditional brake ducts have a vertical sheet of carbon separating the tire sidewall and the brake duct. The E22 takes this sheet of carbon and molds it into a duct shape, using the tire sidewall as part of the duct.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Another view.

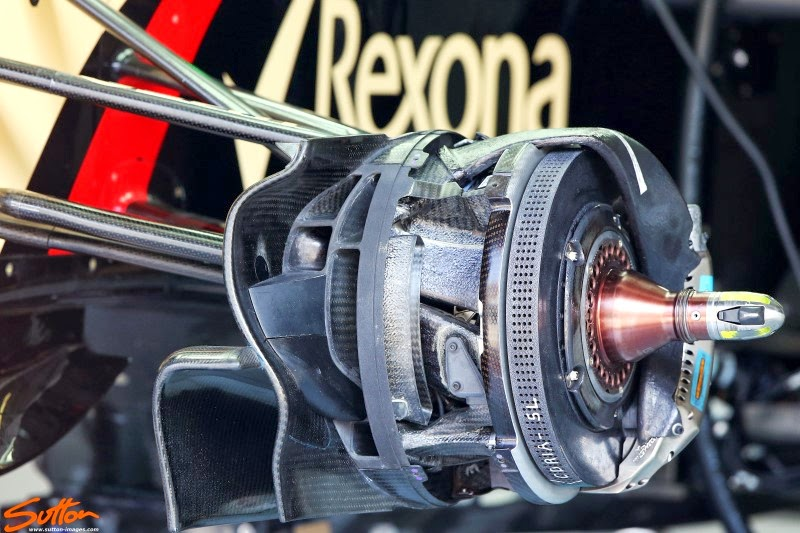

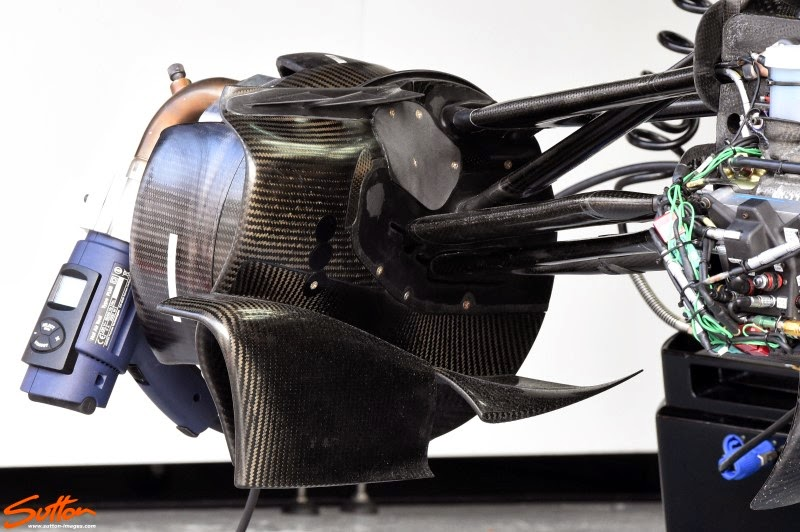

Lotus E22 front brake duct detail, note the proliferation of winglets on the top edge of the duct whilst the lower section is also treated to curved flow conditioners

Advertisement

- SomersF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

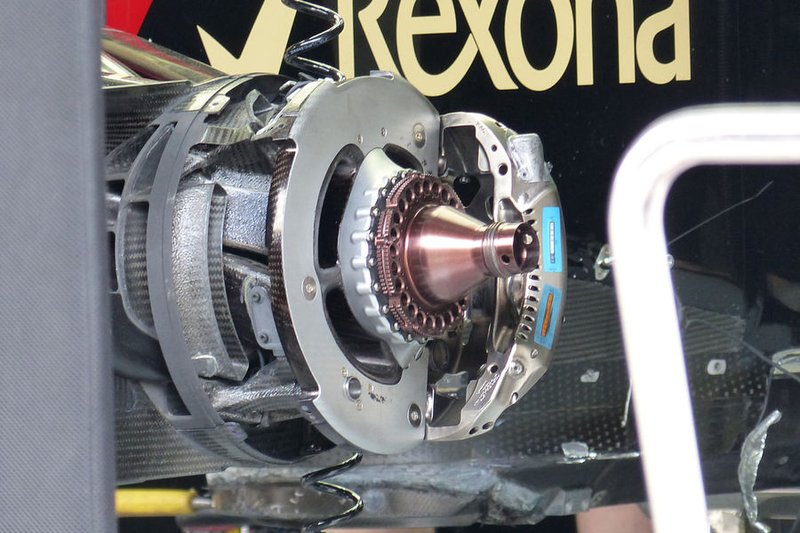

E22 front brake detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

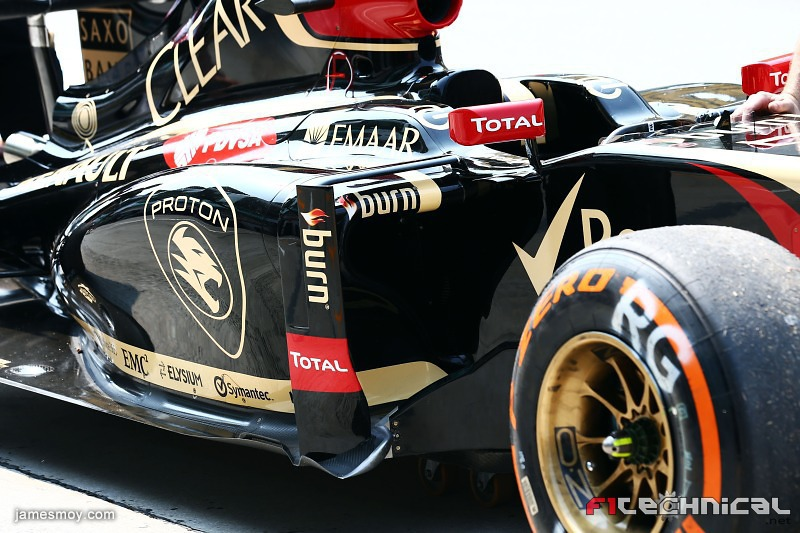

The E22's sidepods don't look traditional. I am assuming that the radidator(s) are packed inside that carbon box.

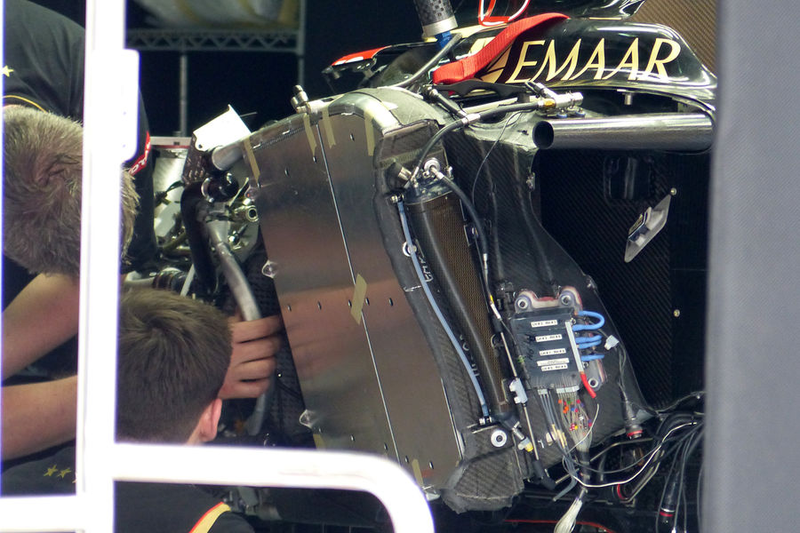

Lotus the box with the blue cables and bundle of clear tubes connected to it is for air pressure sensors on the floor

Lotus sidepod, the water radiator dominates the right sidepod, along with its header tank

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

E22 sidepod detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

E22 sidepod detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the near-90-degree angle on the air inlet piping; this provides the E22 with a noticeable difference in how the engine cover appears.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

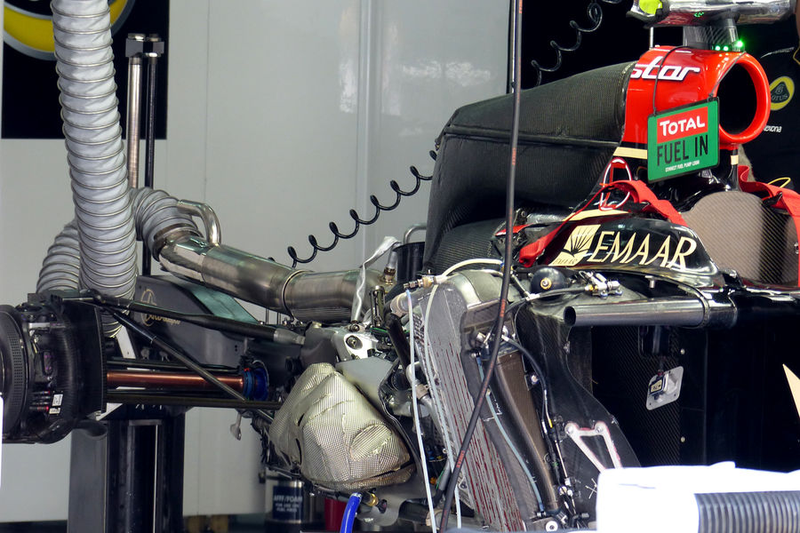

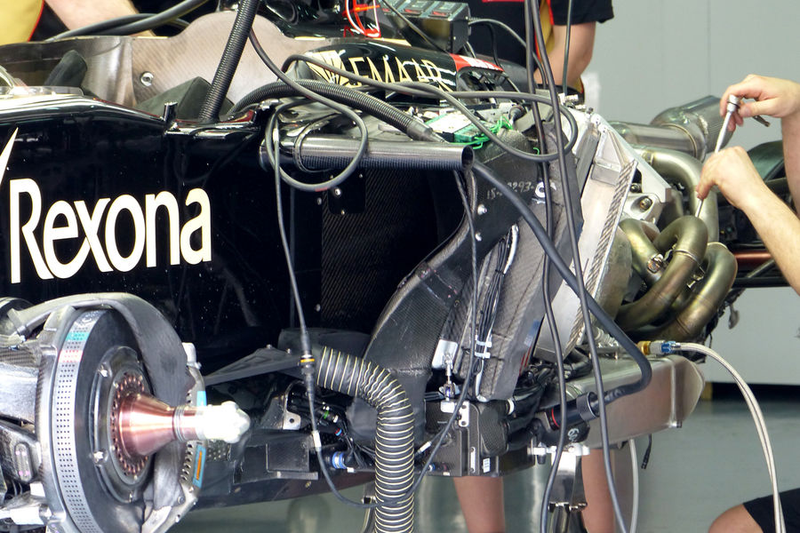

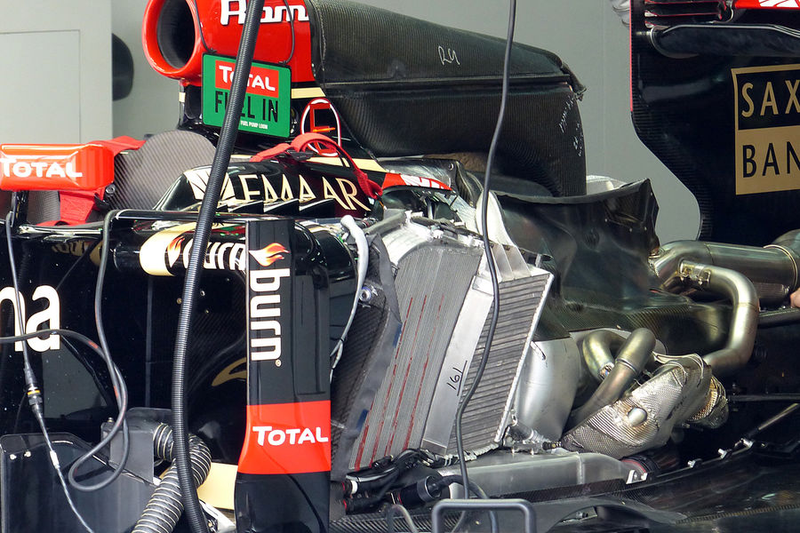

Lotus engine installation, the only water-to-air intercooled Renault, its the box on the floor below the exhaust

Lotus the radiator above cools the water inside (with 161 written on it) the intercooler

Advertisement

@ScarbsF1


McLaren MP4-29

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

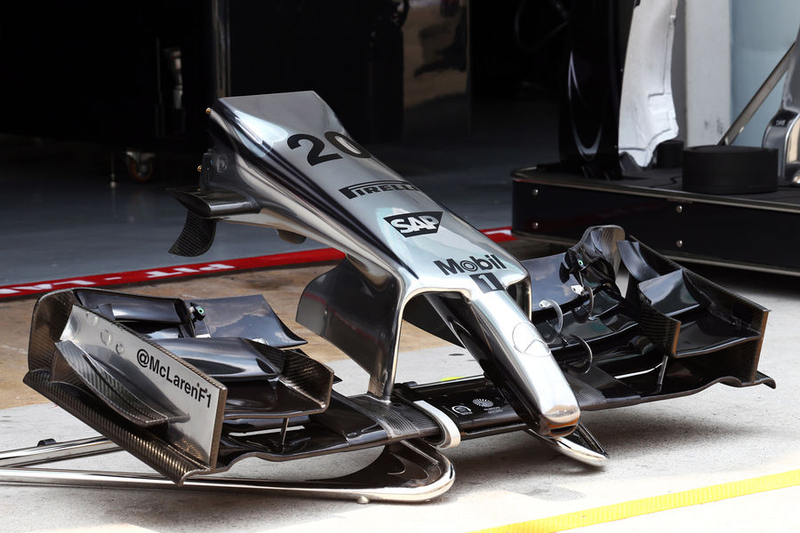

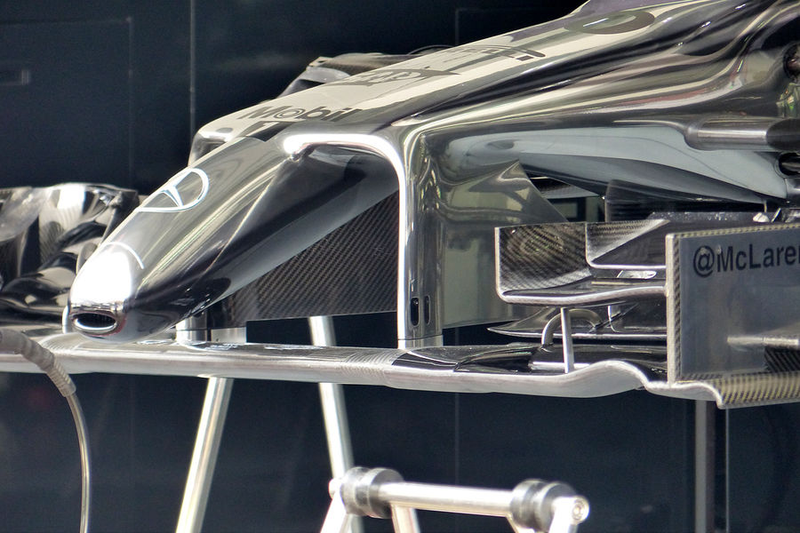

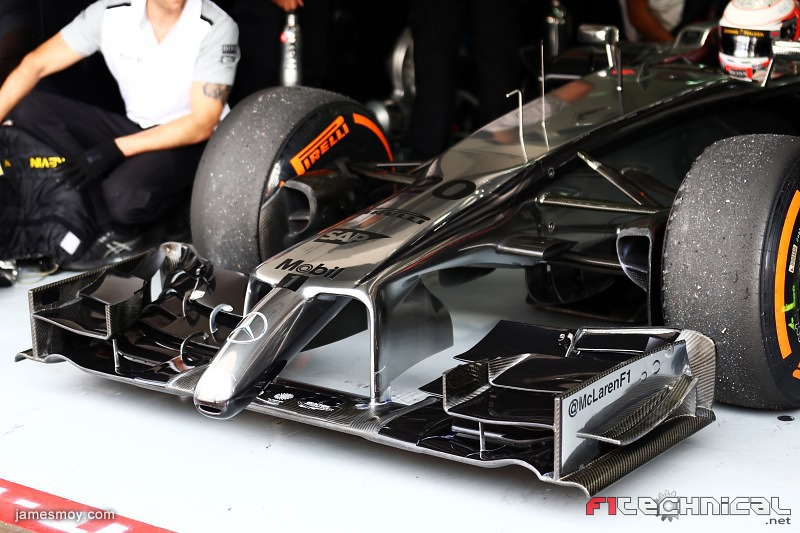

McLaren have a new nose!

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

This iteration is meant to allow more air underneath the nose and flow back around toward the rear diffuser.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

More nasal action.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the elongated pylon supports for the front wing.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

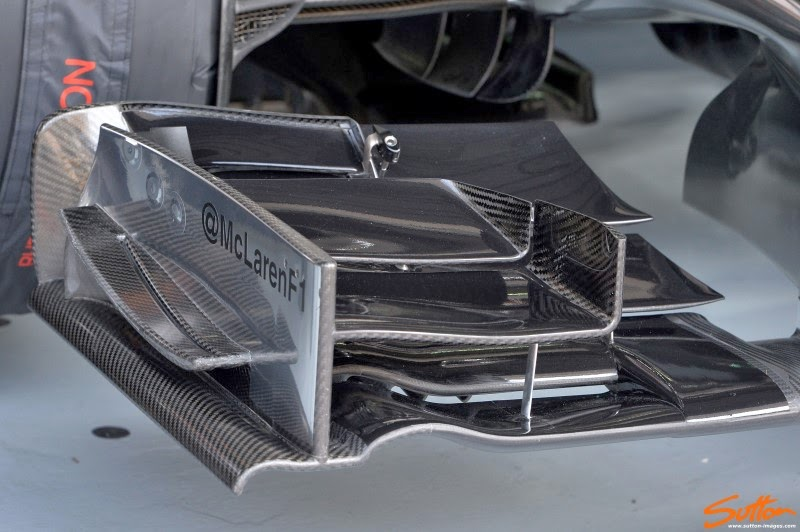

MP4-29 front wing detail; relatively simple for the Woking team this year.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

MP4-29 engine cover.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the side crash structures, one above and one belwow; these are now mandated parts by the FIA instead of the teams running a crash test with a team-designed part, like the nose is now.

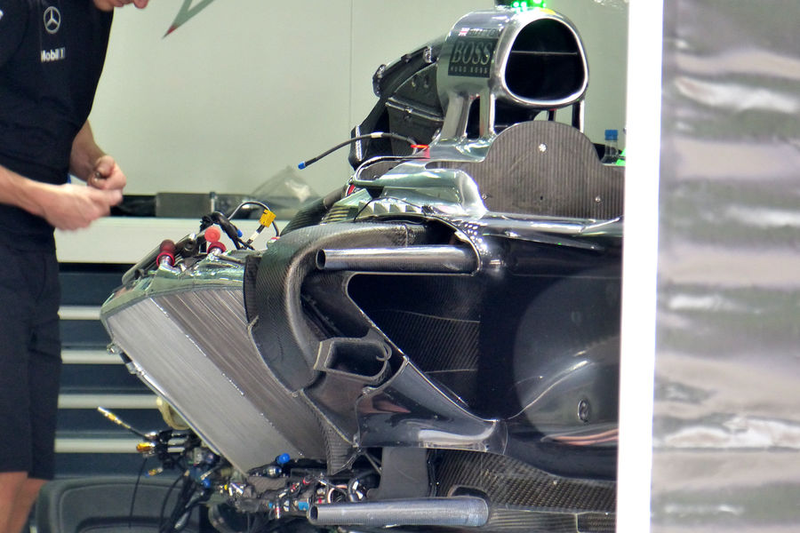

More McLaren note the unusual radiator angle and the duct feeding the outlet near the cockpit

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

MP4-29 sidepod detail.

McLaren the right sidepod is all water radiator, above the airbox feeds both the engine via a filter and oil coolers

Advertisement

@ScarbsF1

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

McLaren getting ready to pitot tube test the airflow approaching their sidepods as a result of their new nose.

Also note the carbon fiber ductwork for heat release.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

New turning vanes on the McLaren chassis.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

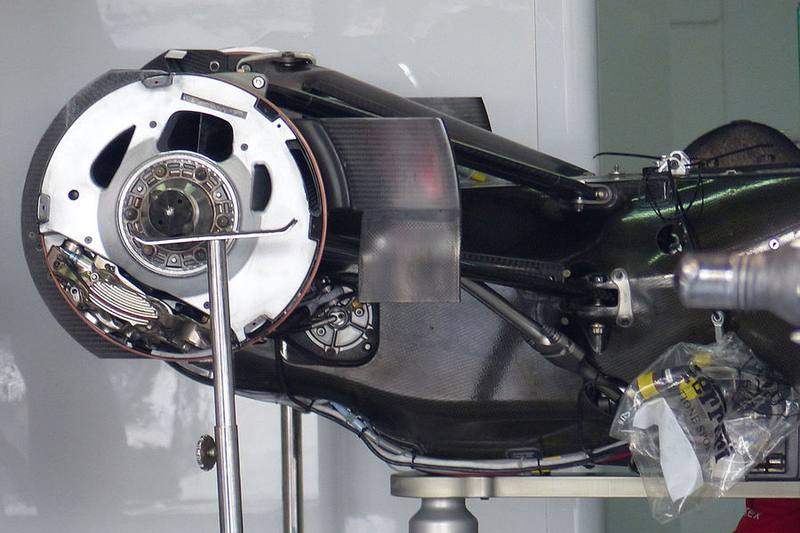

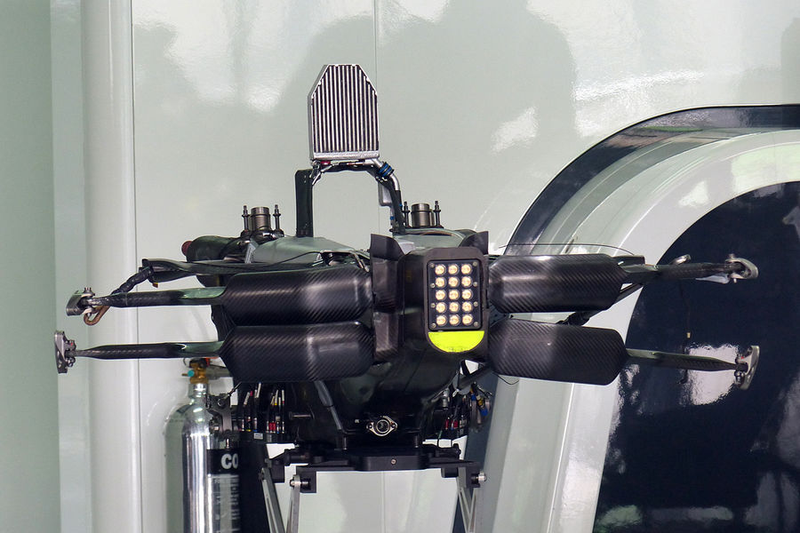

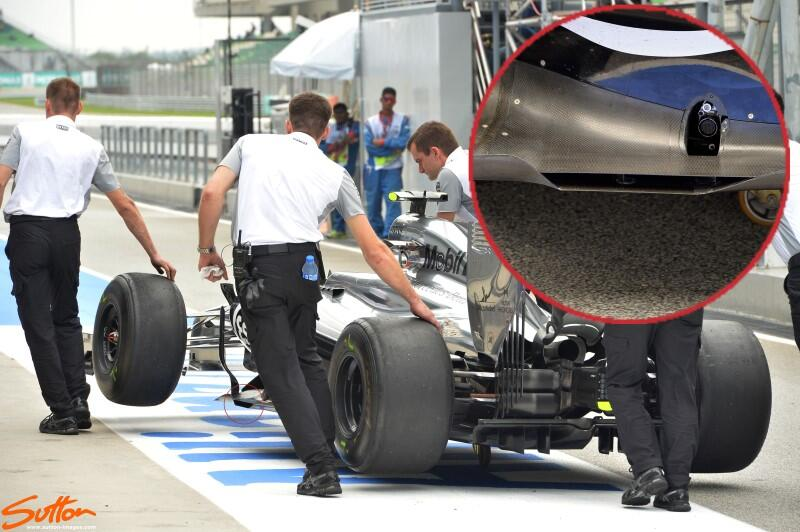

McLaren's not-so-secret rear suspension all alone.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

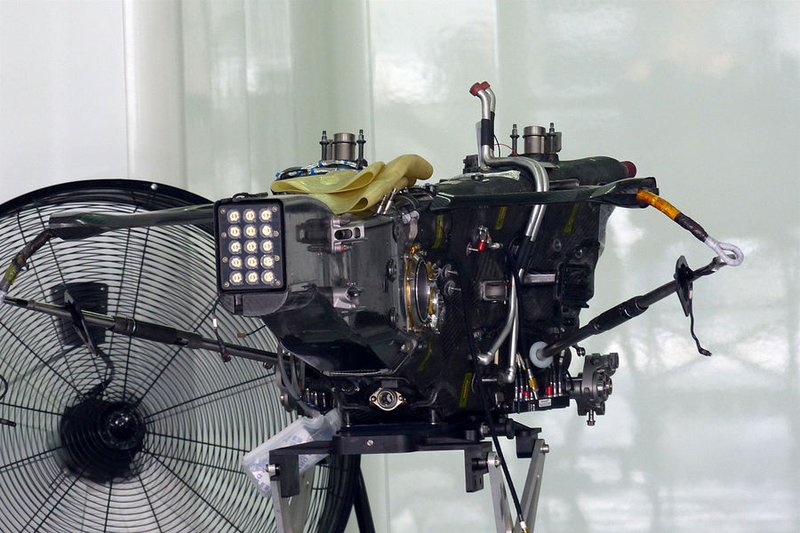

McLaren gearbox detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

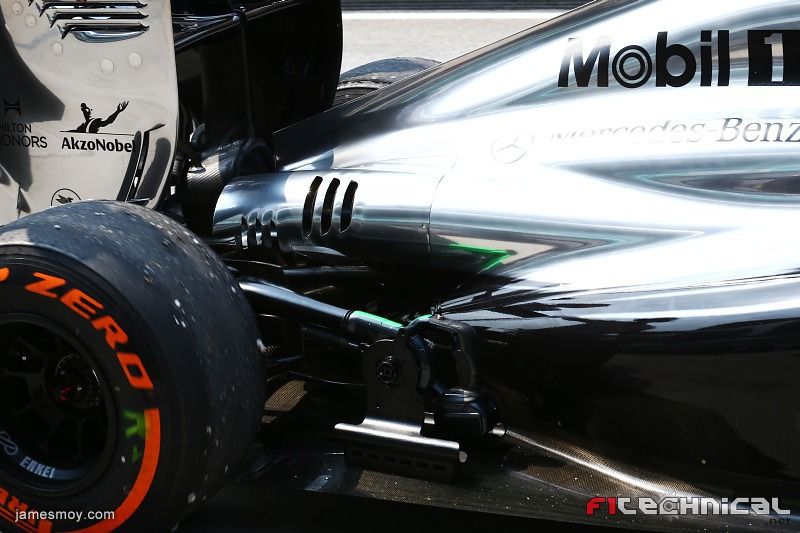

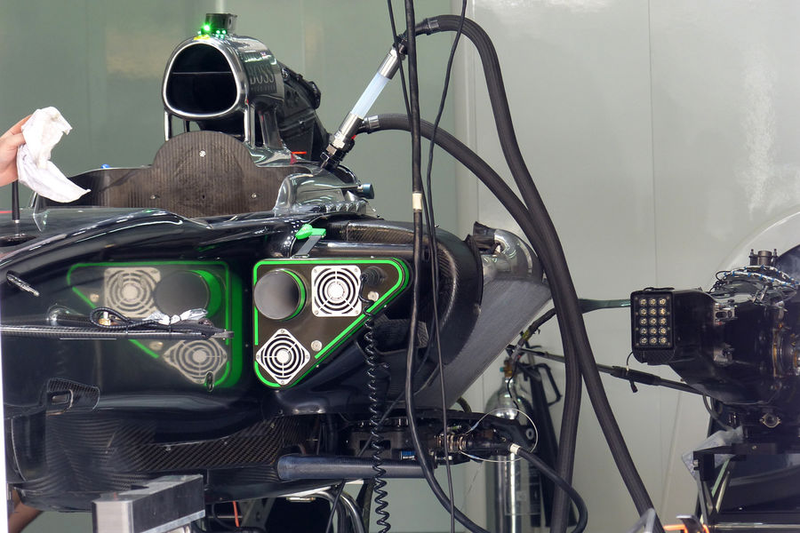

MP4-29 side heat vents in Malaysia, something the Lotus team are also experimenting with.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

I'm going to dub these "Silencer Holes", seeing how well my coinage of Shroomspension turned out (hint: it didn't...).

Advertisement

Force India VJM07

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

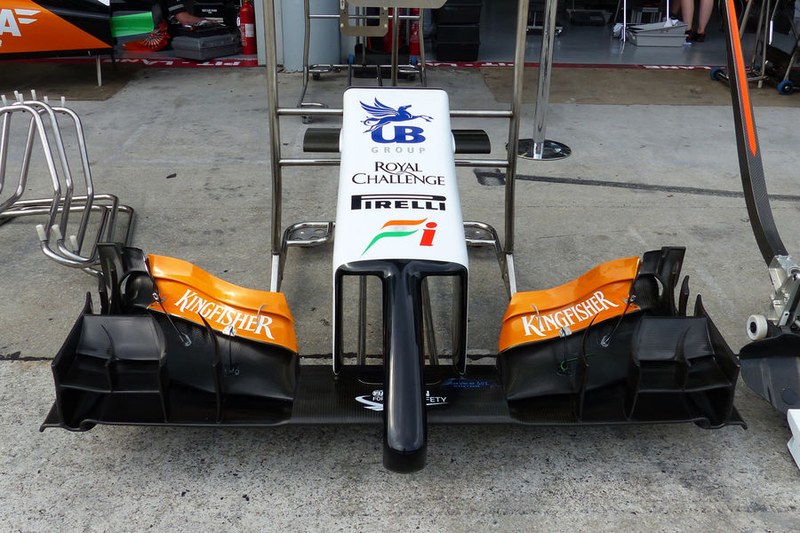

VJM07 nose detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

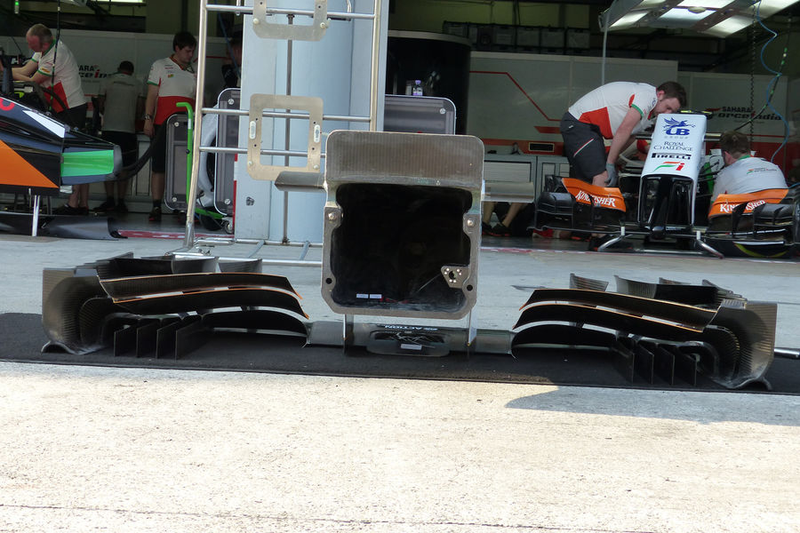

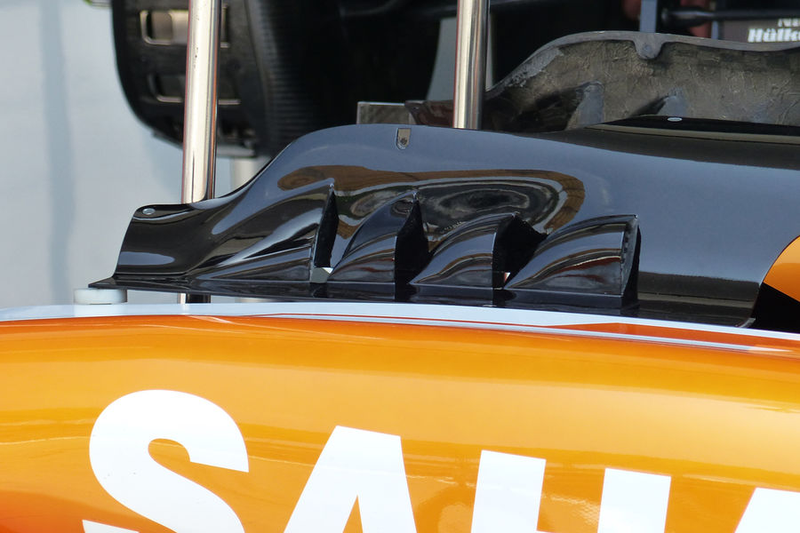

An inside view of a Force India front wing.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

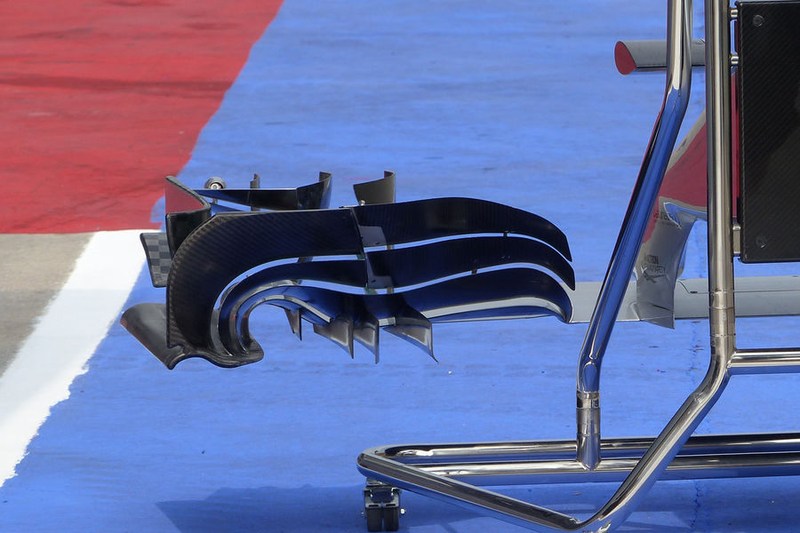

Force India front wing. Now that wing is smaller, teams are having to focus more energy on moving the air out of the tire's outside sidewall.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

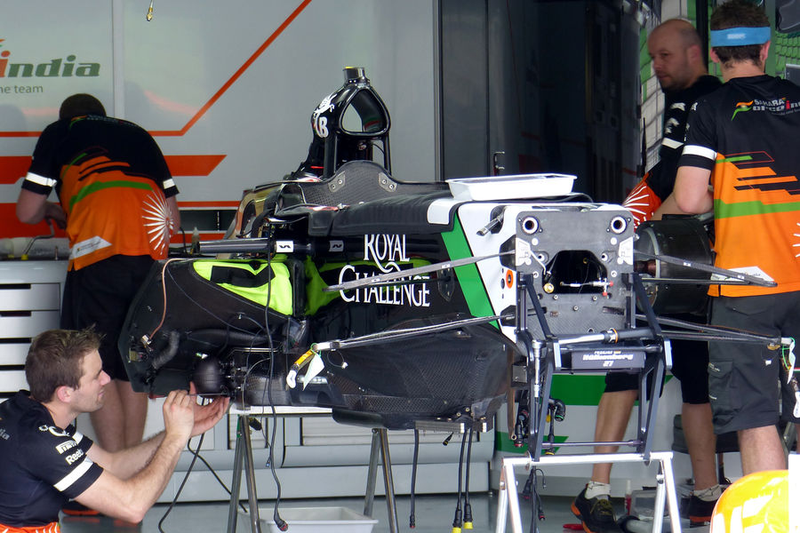

VJM07 build up.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

These are engine compartment cooling outlets on the Force India chassis that lie where the sidepod and the supports for the airbox meet.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

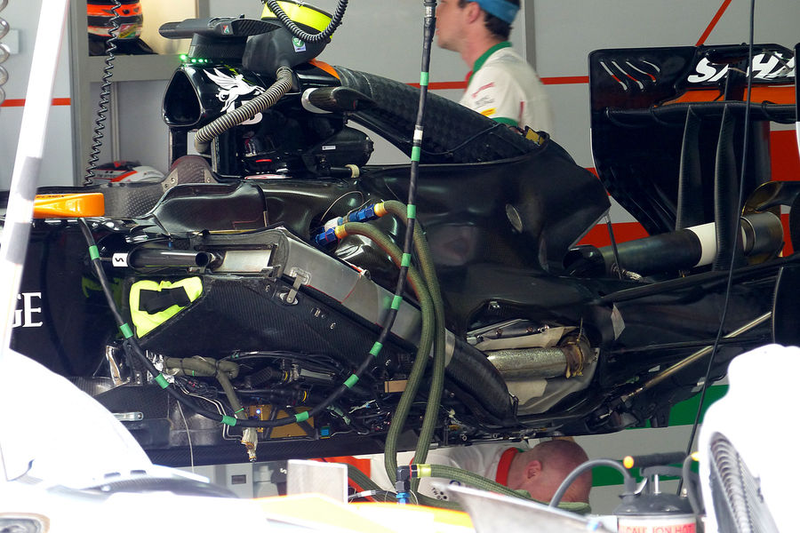

Force India where the turbo is air-to-air intercooled and the cooler fills this sidepod

Advertisement

@ScarbsF1


Sauber C33

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

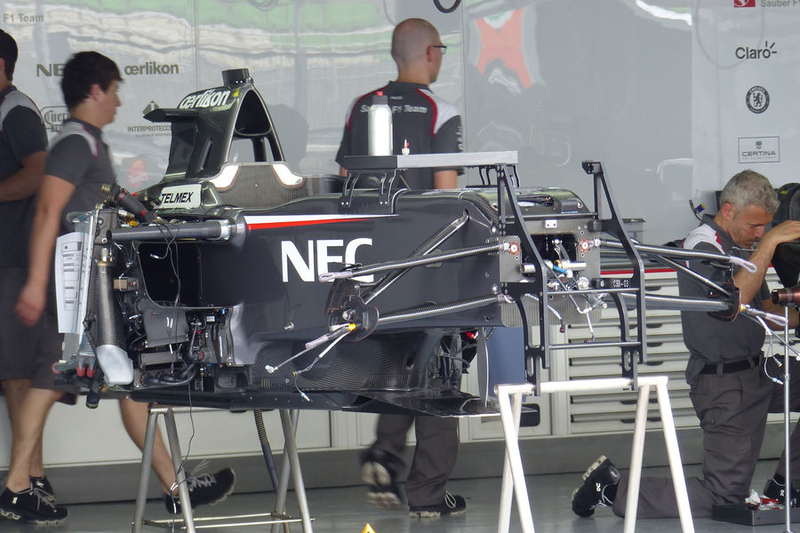

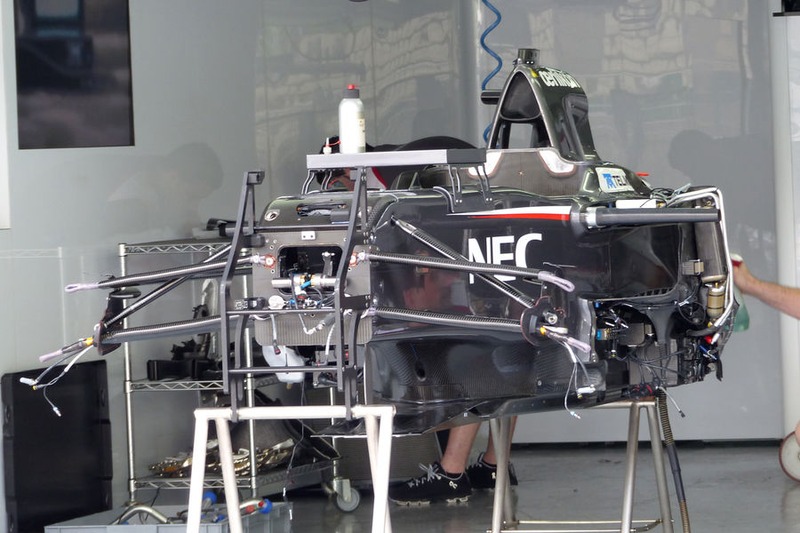

C33 build up.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

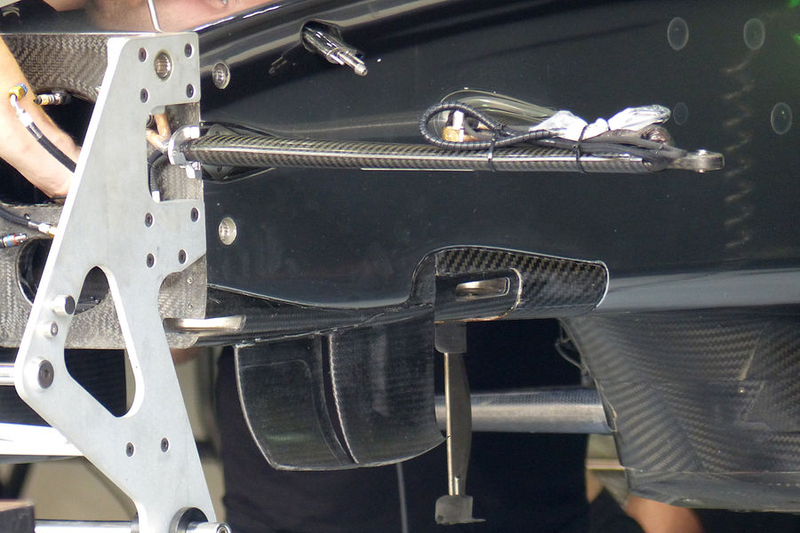

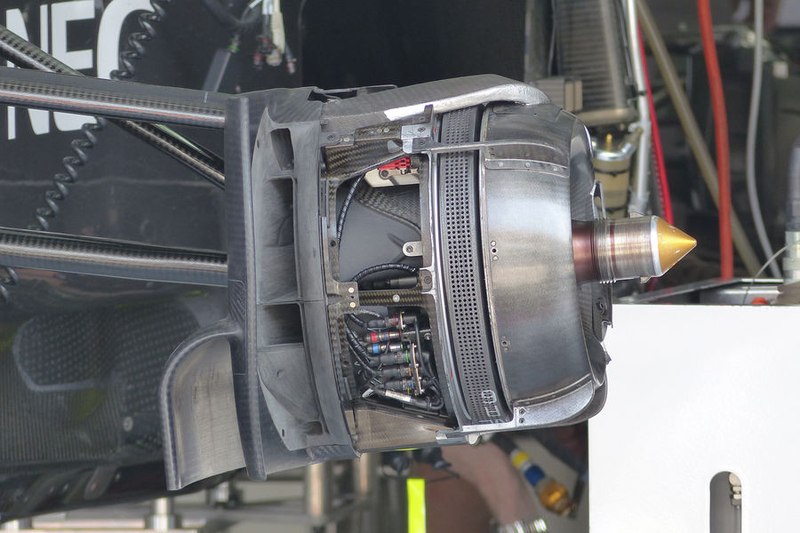

This is a perfect display of a ductless brake duct on the C33 chassis. The vertical vane of carbon forms the lefthand side of the duct and the tire sidewall forms the righthand side.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement
Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

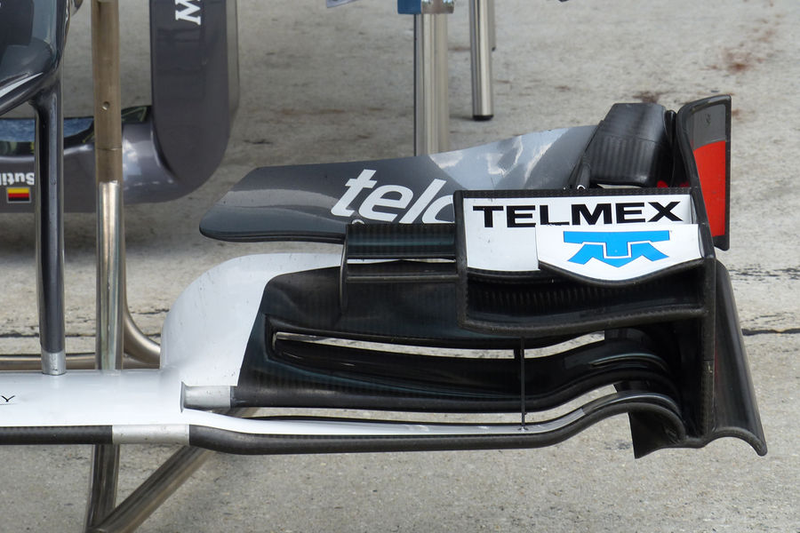

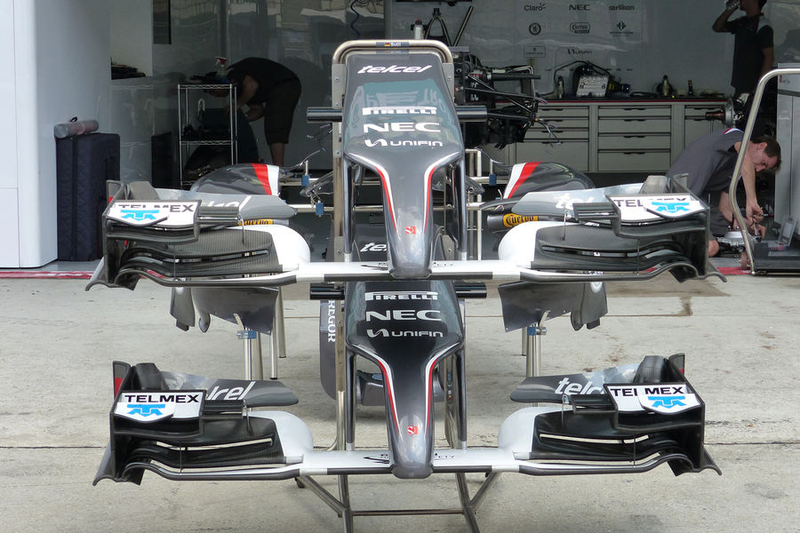

C33 front-wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the stepped chassis on the Sauber.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix

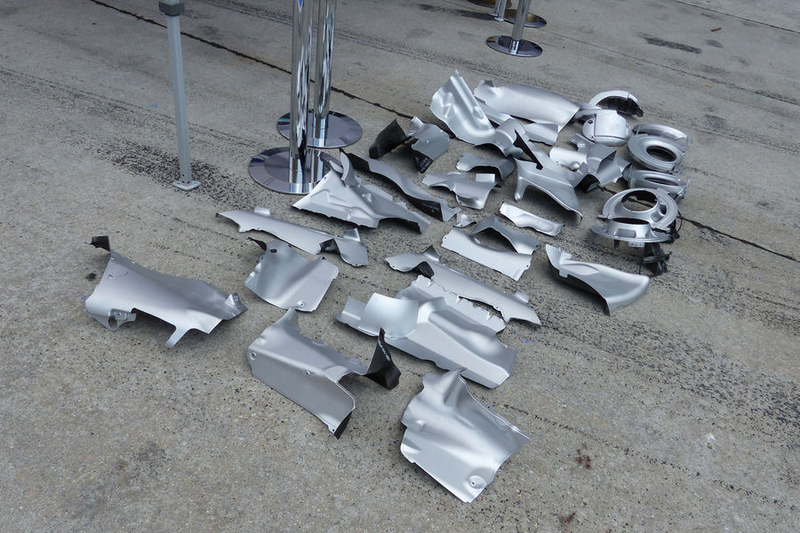

Sauber, you can appreciate the amount of heat shielding that is required around the new powerplants

Advertisement

@ScarbsF1

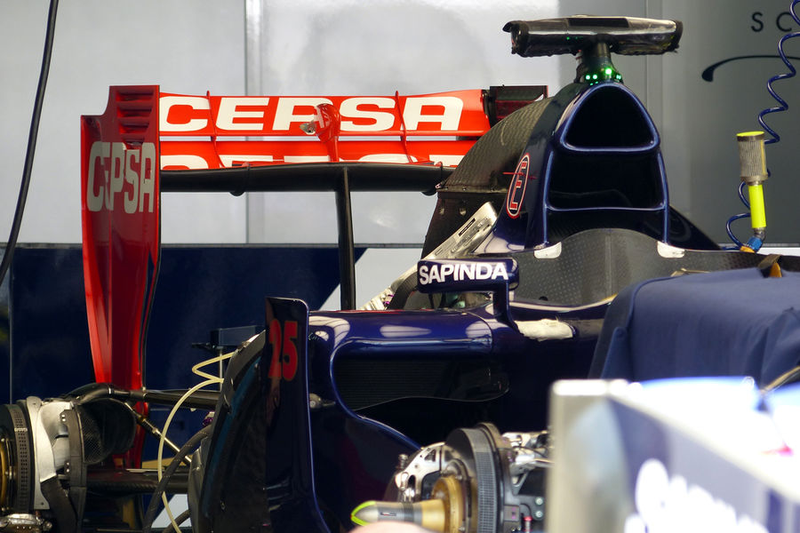

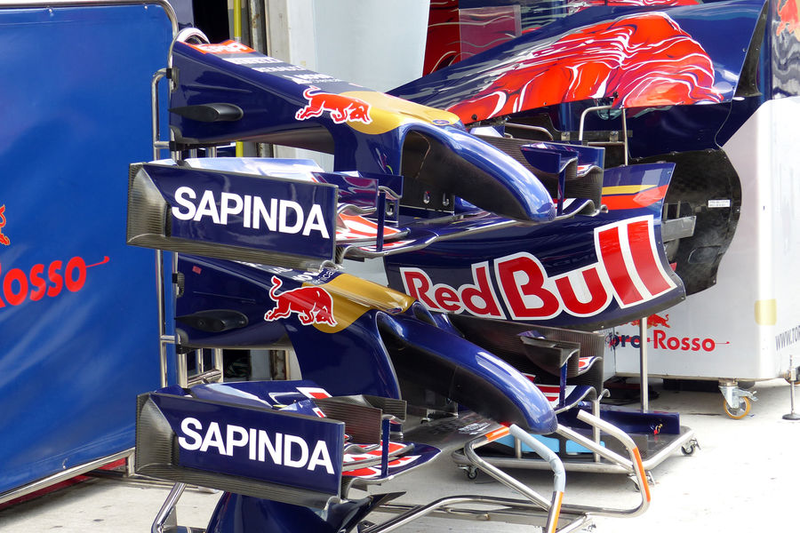

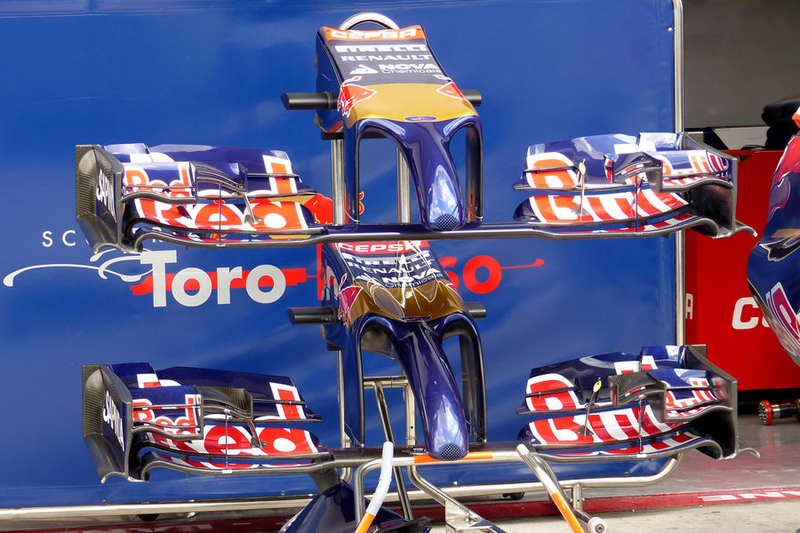

Toro Rosso STR9

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

STR9 front wings.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Toro Rosso have brought both iterations of the front wing to Malaysia: the original (above) and the new one that should allow more air underneath their chassis (below).

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

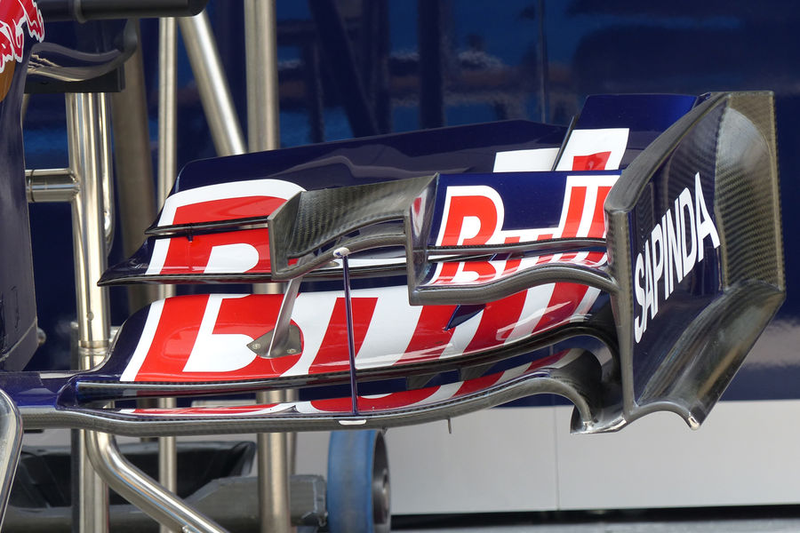

STR9 front wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

STR9 front wing detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Note the top flap of the rear wing and the split airbox inlet.

On the @ToroRossoSpy the roll hoop feed engine and the oil cooler, note the sidepod inlet is now split

Advertisement

@ScarbsF1


Williams FW36

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

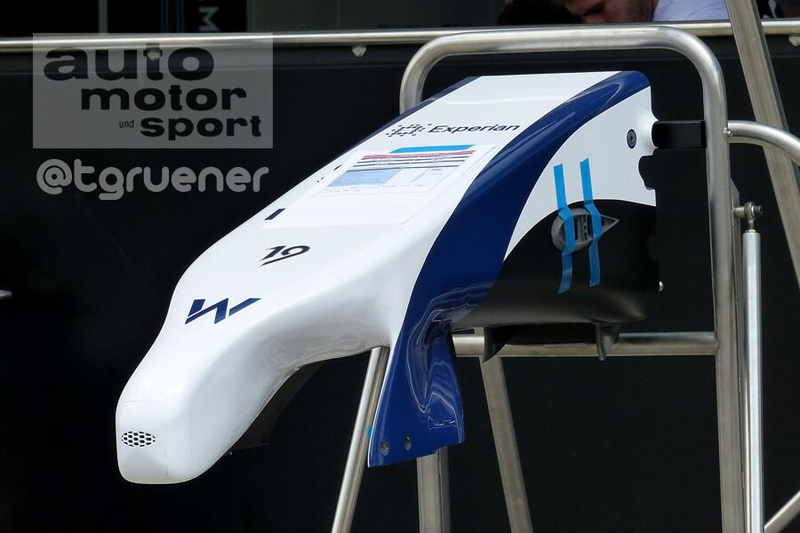

Williams noses.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

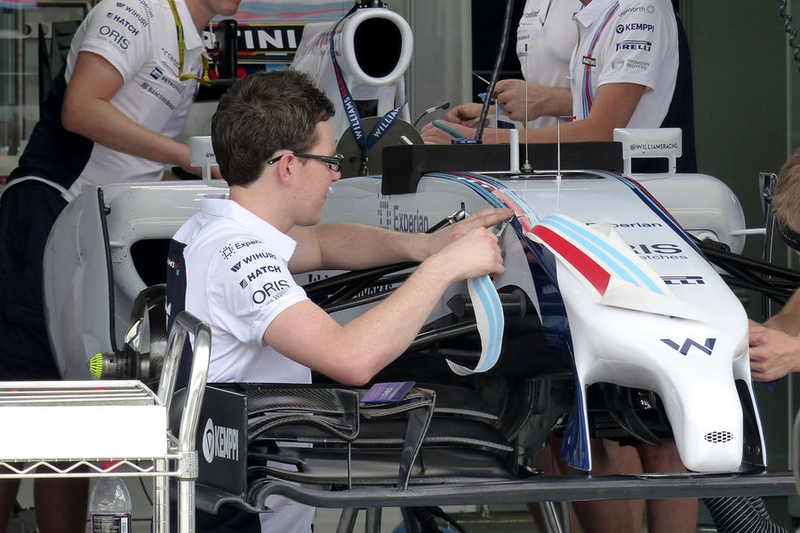

Is this one not finished painting?

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Yes.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

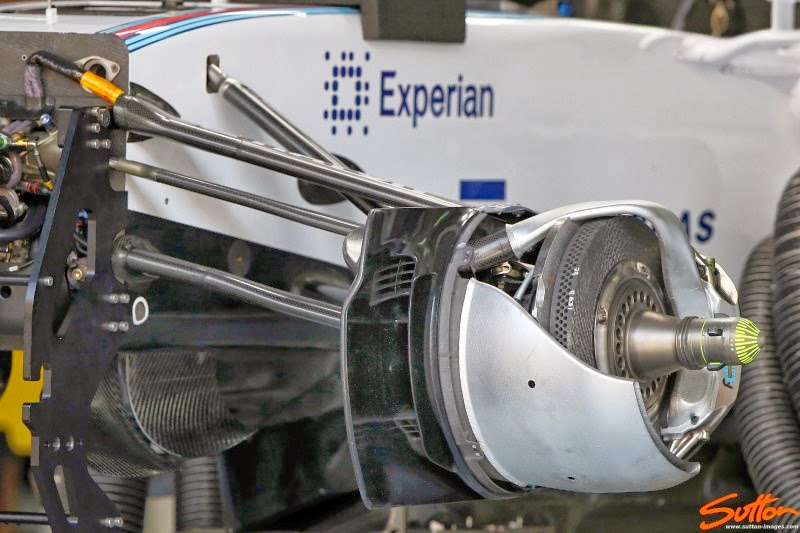

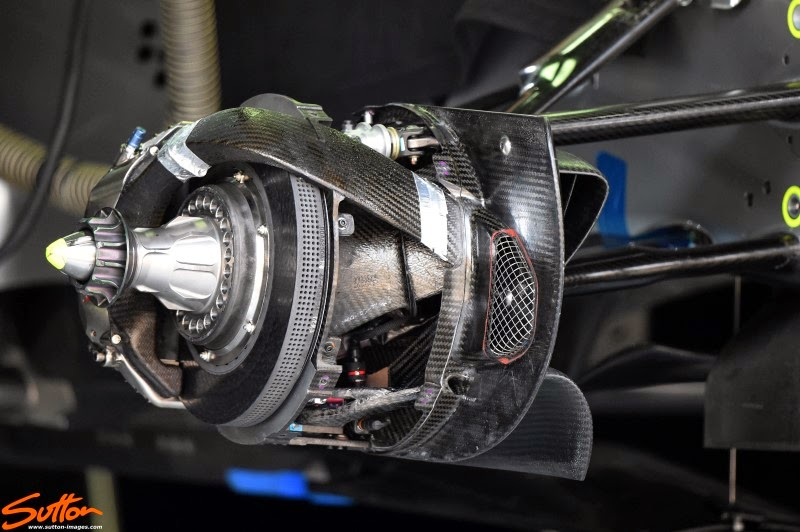

Williams FW36 "blown wheel".

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement


Martini livery... mmmmhh...

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

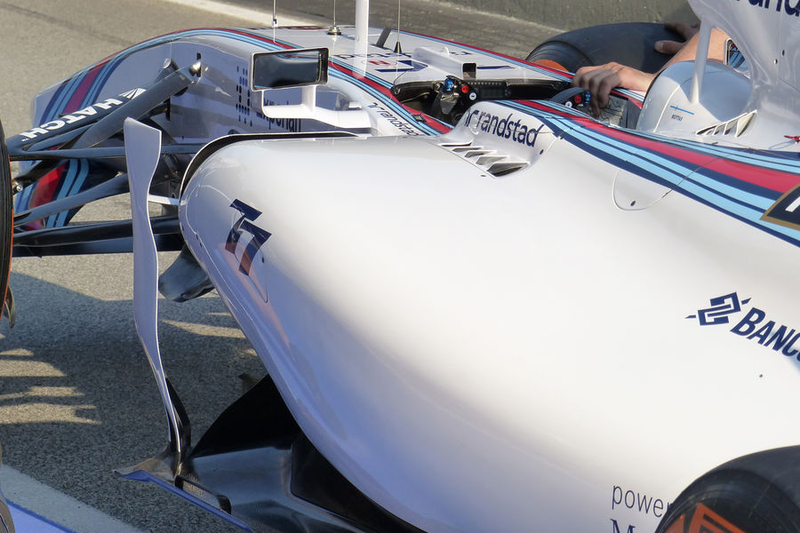

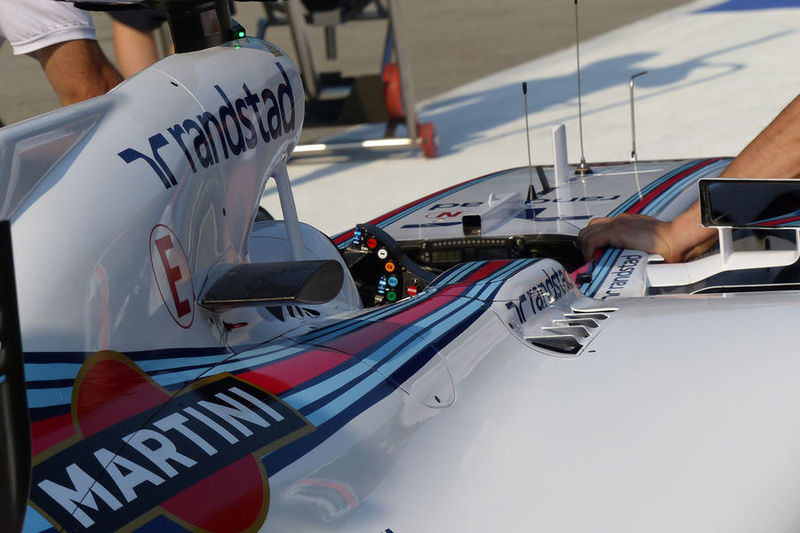

Note the Williams' unique wing mirrors. Also note the vane of carbon stretching from the sidepod to the vertical sidepod airflow conditioner.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

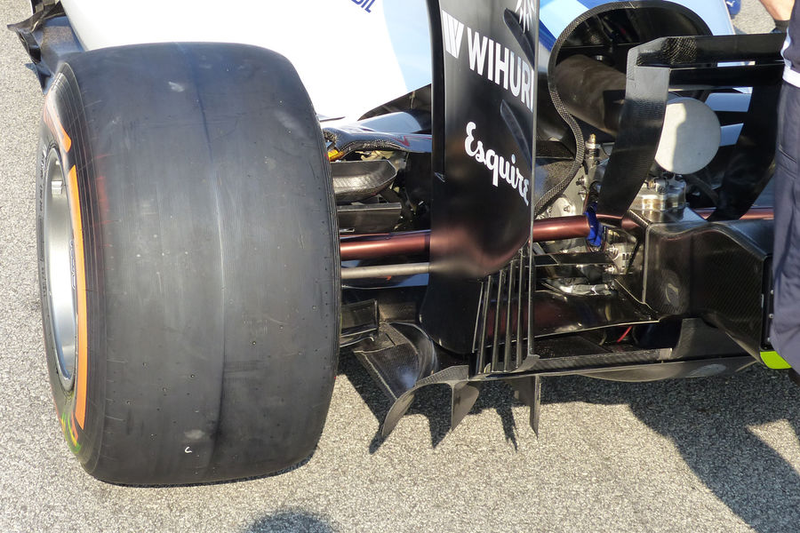

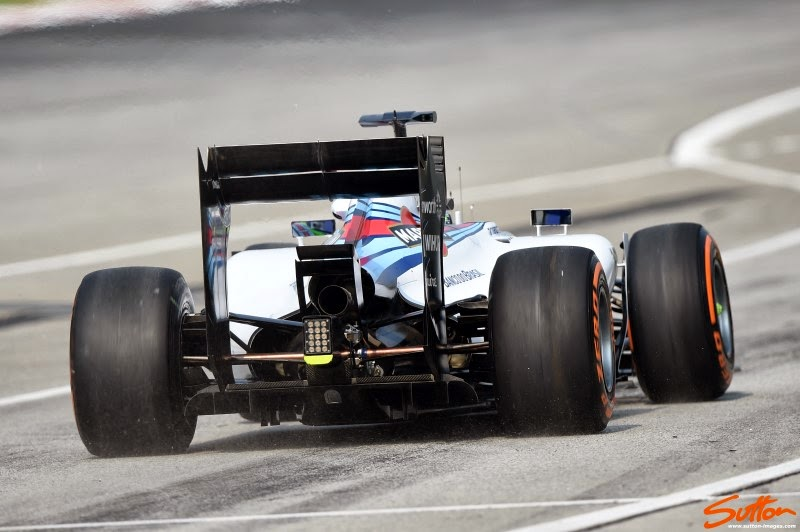

Williams FW36 rear diffuser detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

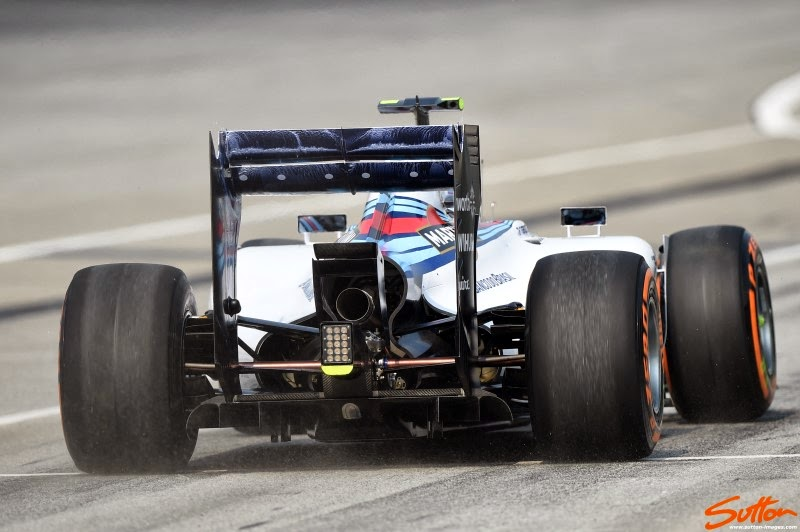

Williams testing different iterations of a "cannonball-style" heat outlet.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

A bigger version.


Marussia MR03

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

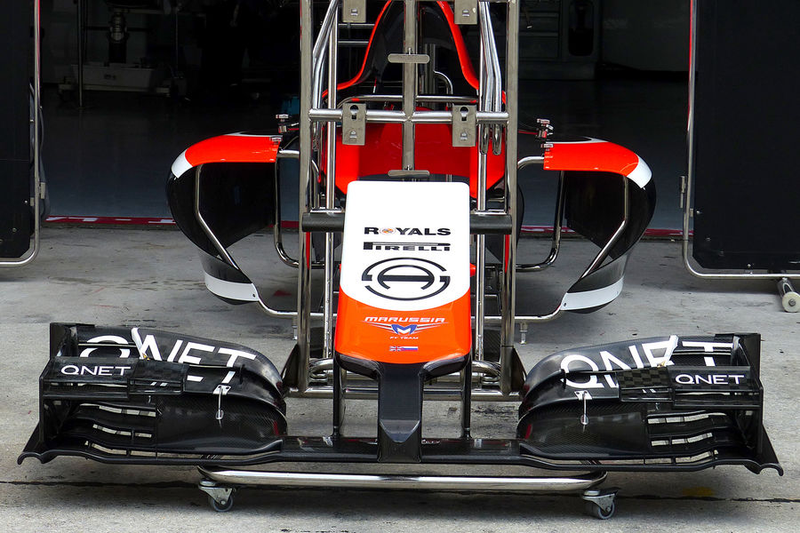

Marussia front wing, sidepods, and engine cover.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Marussia 7 element cascade structure.

A tad bit over done for a back-marker? You be the judge.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

Marussia gearbox detail.

Ferrari gearbox on the Marussia, note the relaitvely small rear brake caliper due to the ERS effect on braking

Advertisement

@ScarbsF1


Caterham CT05

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

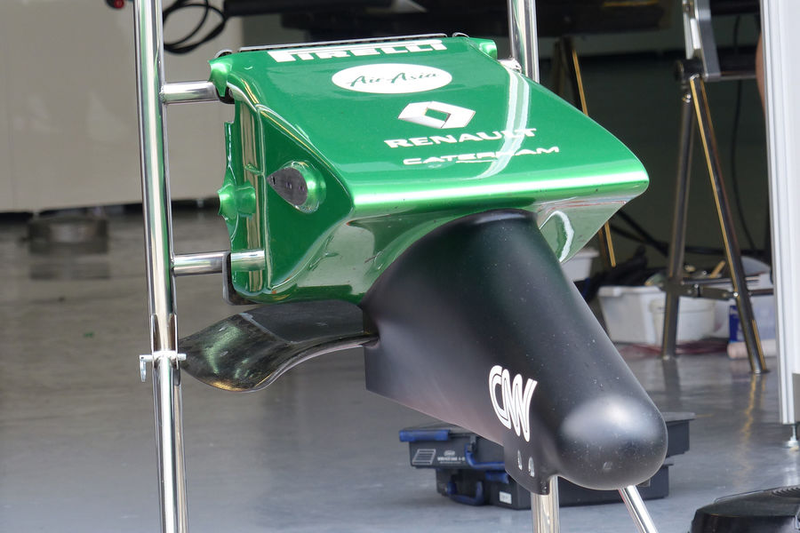

CT05 nose detail.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

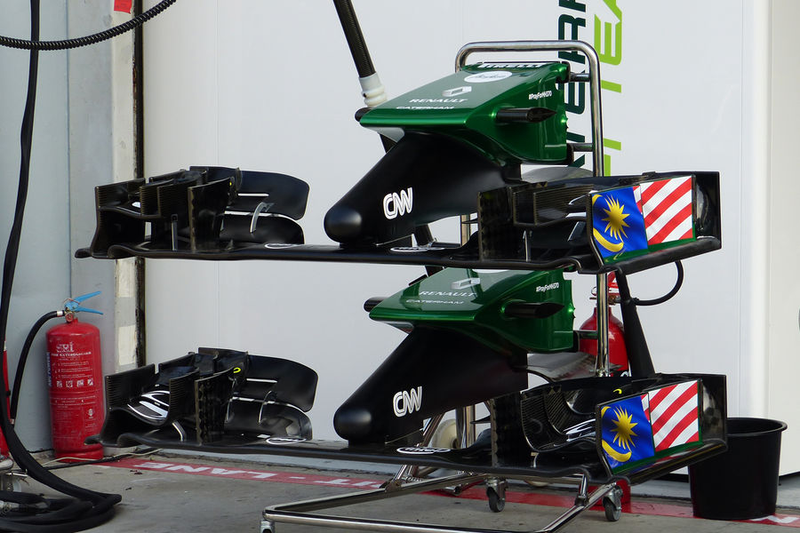

Caterham have brought two very different front wings to Malaysia.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

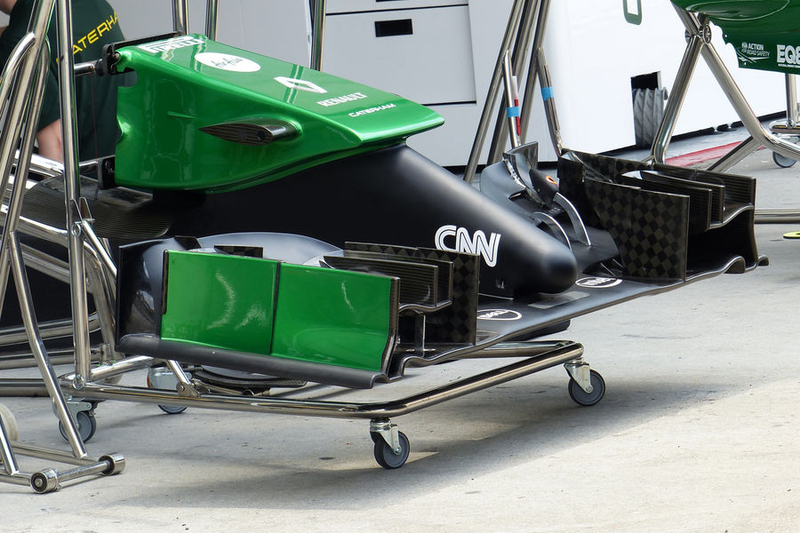

Note the quite large "turning vane" on the CT05's nose.

Illustration for article titled Technically Formula 1 - Malaysian Gran Prix
Advertisement

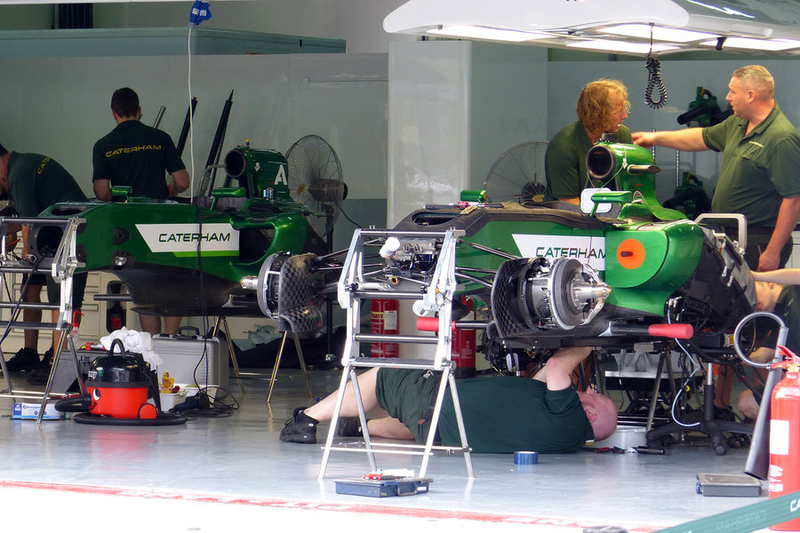

Caterham build up.


[Select images from Auto Motor und Sport, SomersF1, F1technical.net, @SomersF1, and @ScarbsF1]

Share This Story

Get our newsletter
