high end

AUTOEXEC.BAT


C:\WINDOWS\net start
SET BLASTER=A220 I5 D1 T4
C:\OPL3SAX\SETUPSA.EXE /S
SET MTCPCFG=C:\NET\TCP.CFG
C:\QEMM\LOADHI /R:2 /LO C:\DOS\ENVIMAX N+
C:\QEMM\LOADHI /R:2 /LO C:\DOS\SMARTDRV.EXE /X
C:\QEMM\LOADHI /R:2 C:\DOS\DOSKEY
@ECHO OFF
PROMPT $P$G
PATH C:\QEMM;C:\WINDOWS;C:\DOS
SET TEMP=C:\DOS
SET PATH=%PATH%;C:\CDROM
C:\QEMM\LOADHI /R:1 /LO MOUSE
C:\QEMM\LOADHI /R:1 /LO C:\CDROM\SHCDX33F.COM /D:MSCD000


CONFIG.SYS


SWITCHES /F
DOS=HIGH,UMB
device=c:\qemm\dosdata.sys
DEVICE=C:\QEMM\QEMM386.SYS RAM R:1
device=c:\qemm\dos-up.sys @c:\qemm\dos-up.dat
DEVICE=C:\QEMM\LOADHI.SYS /R:1 /SIZE=9872 C:\QEMM\QDPMI.SYS SWAPFILE=DPMI.SWP SWAPSIZE=1024
rem BUFFERS=11,0
buffers=20,0
FILES=50
LASTDRIVE=F
FCBS=1,0
STACKS=0,0
DEVICE=C:\QEMM\LOADHI.SYS /R:1 /SIZE=11488 C:\CDROM\VIDE-CDD.SYS /D:MSCD000
DEVICE=C:\QEMM\LOADHI.SYS /R:1 /SIZE=4848 C:\WINDOWS\IFSHLP.SYS
SHELL=C:\QEMM\LOADHI.COM /R:2 C:\COMMAND.COM C:\ /P

Advertisement


output of mem


Memory Type Total = Used + Free
โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”- โ€”โ€”โ€”- โ€”โ€”โ€”-
Conventional 640K 5K 635K
Upper 4,193,7 4,193,6 60K
Reserved 0K 0K 0K
Extended (XMS) 66,052K 3,060K 62,992K
โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”- โ€”โ€”โ€”- โ€”โ€”โ€”-

Total memory 66,112K 2,426K 63,686K
Total under 1 MB 60K 4,193,6 694K

Total Expanded (EMS) 65,744 (67,321,856 bytes)
Free Expanded (EMS) 62,992 (64,503,808 bytes)

Largest executable program size 635K (649,952 bytes)
Largest free upper memory block 59K (60,864 bytes)

MS-DOS is resident in the high memory area.

Advertisement


output of mem /c


Modules using memory below 1 MB:

Name Total = Conventional + Upper Memory
โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€”
SYSTEM 4,189 (4K) 725,069 (708K) 4,294,24 (4,193,
QEMM386 912 (1K) 912 (1K) 0 (0K)
LOADHI 112 (0K) 112 (0K) 0 (0K)
DOS-UP 224 (0K) 0 (0K) 224 (0K)
DOSDATA 5,296 (5K) 0 (0K) 5,296 (5K)
QDPMI 1,888 (2K) 0 (0K) 1,888 (2K)
VIDE-CDD 5,024 (5K) 0 (0K) 5,024 (5K)
IFSHLP 3,936 (4K) 0 (0K) 3,936 (4K)
FILES 2,688 (3K) 0 (0K) 2,688 (3K)
FCBS 96 (0K) 0 (0K) 96 (0K)
MOUSE 3,328 (3K) 0 (0K) 3,328 (3K)
SHCDX33F 6,352 (6K) 0 (0K) 6,352 (6K)
WKBUFFER 528 (1K) 0 (0K) 528 (1K)
LASTDRIV 544 (1K) 0 (0K) 544 (1K)
INSTALL 160 (0K) 0 (0K) 160 (0K)
COMMAND 2,928 (3K) 0 (0K) 2,928 (3K)
SMARTDRV 29,024 (28K) 0 (0K) 29,024 (28K)
DOSKEY 3,968 (4K) 0 (0K) 3,968 (4K)

Free 711,120 (694K) 649,968 (635K) 61,152 (60K)

Memory Summary:

Type of Memory Total = Used + Free
โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€”
Conventional 655,360 5,392 649,968
Upper 4,294,373, 4,294,312, 61,152
Reserved 0 0 0
Extended (XMS) 67,637,072 3,133,264 64,503,808
โ€”โ€”โ€”โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€” โ€”โ€”โ€”โ€”โ€”
Total memory 67,698,688 2,483,760 65,214,928
Total under 1 MB 61,616 4,294,317, 711,120

Total Expanded (EMS) 67,321,856 (65,744K)
Free Expanded (EMS) 64,503,808 (62,992K)
Largest executable program size 649,952 (635K)
Largest free upper memory block 60,864 (59K)

MS-DOS is resident in the high memory area.

Advertisement

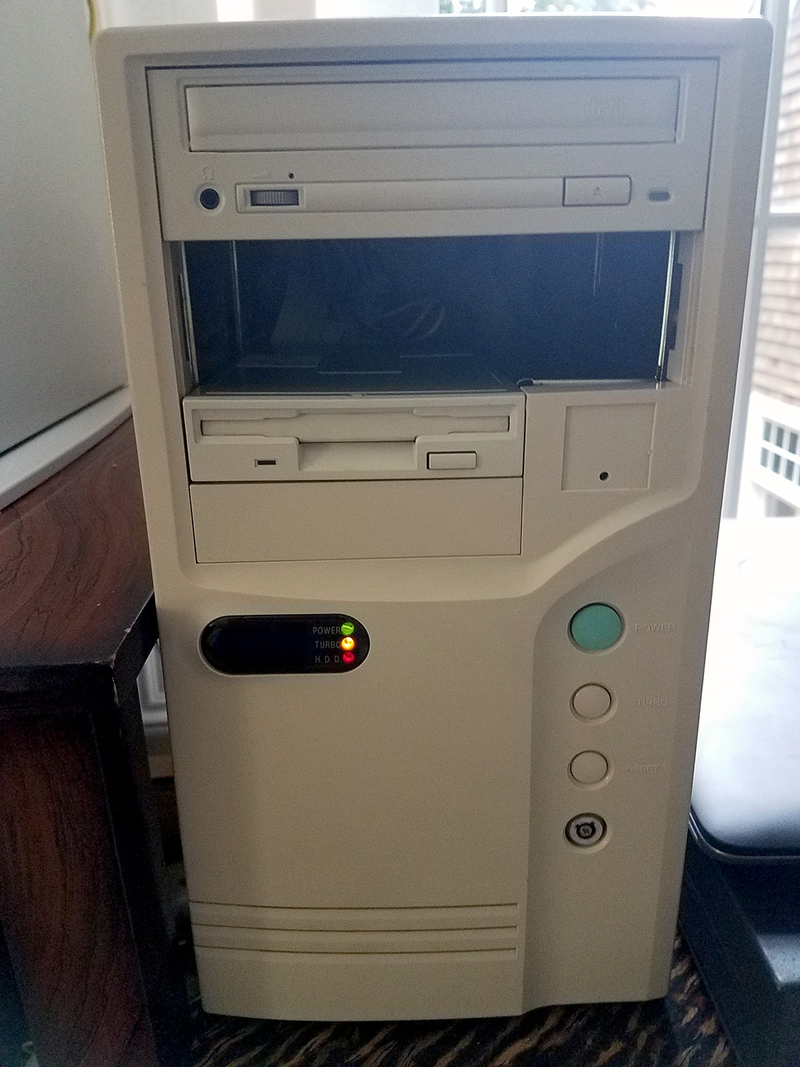

The tower

Advertisement

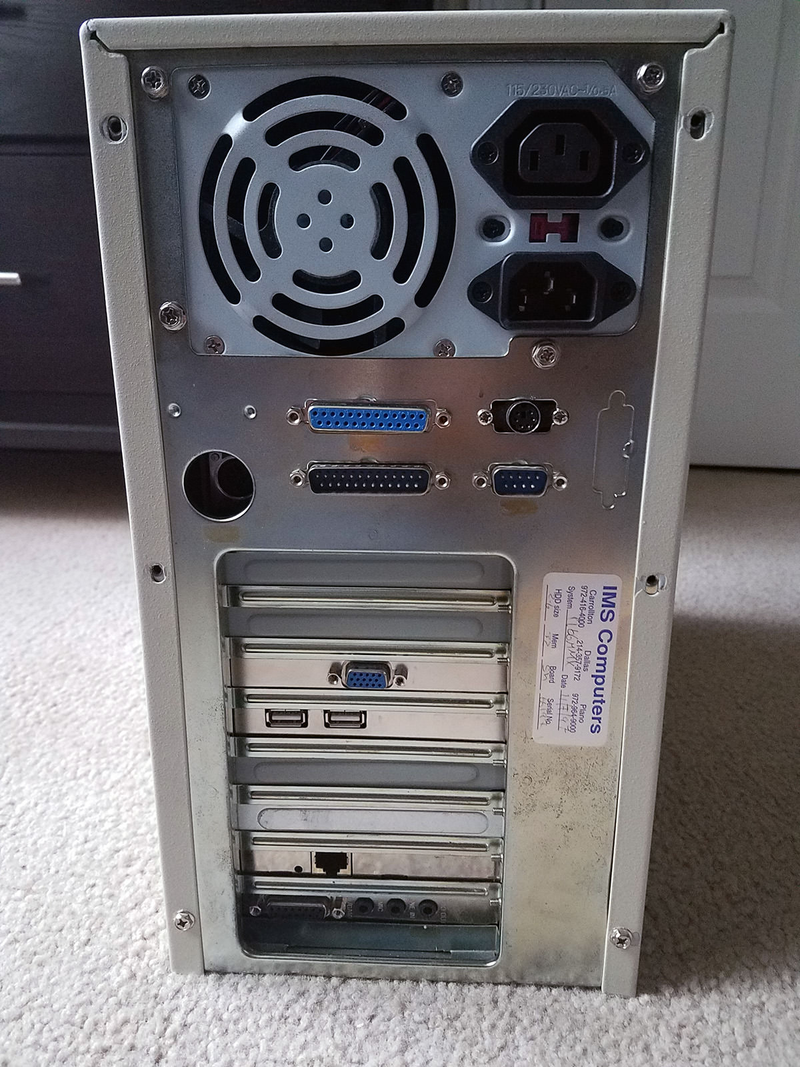

rear ports

250W AT power supply... it ate ok

Advertisement

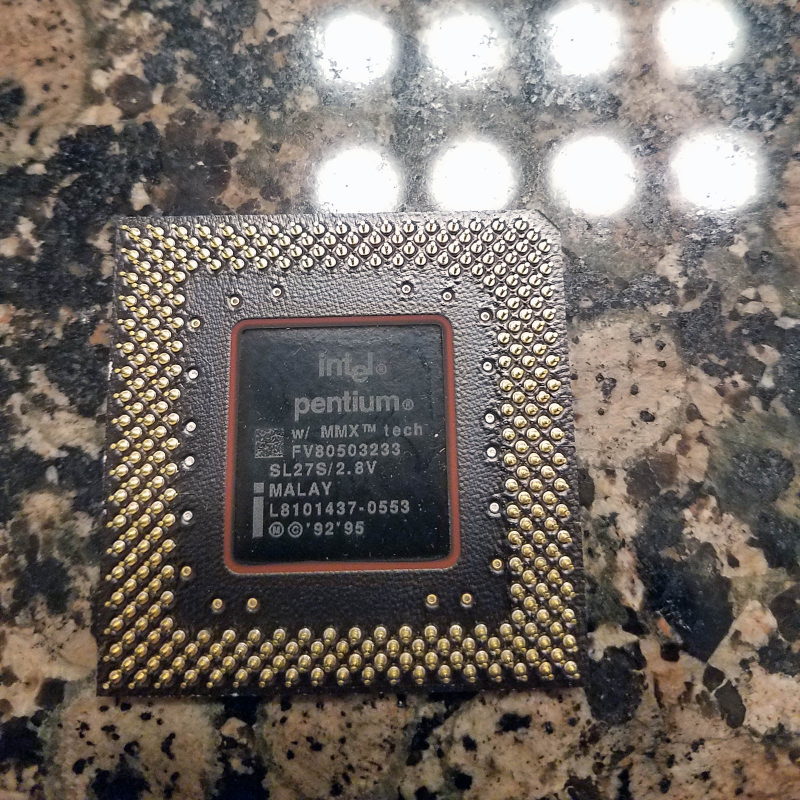

Pentium MMX 233MHz, top of the line for 1997

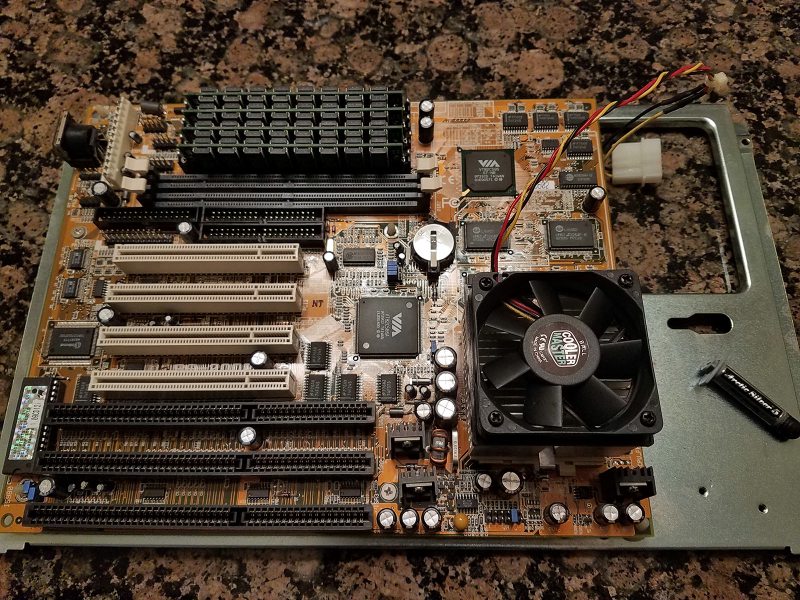

FIC PA-2007 Socket 7 baby AT motherboard

Advertisement

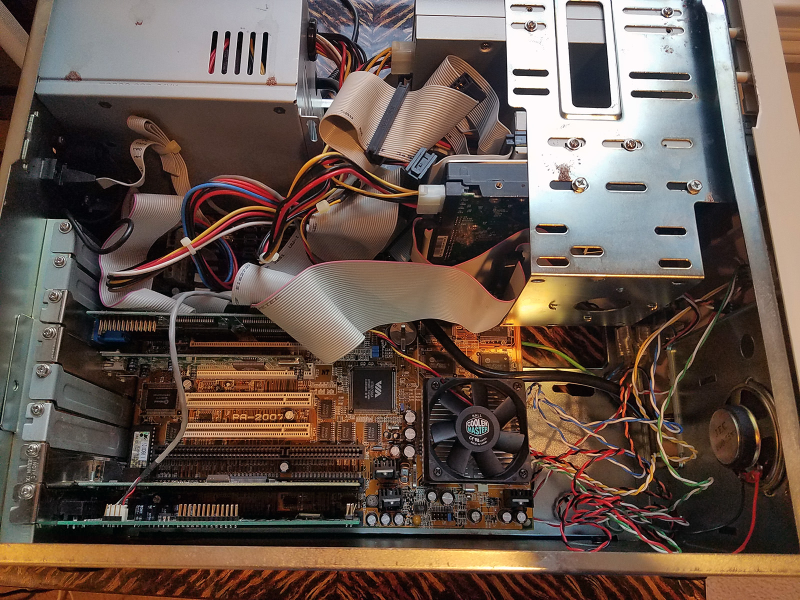

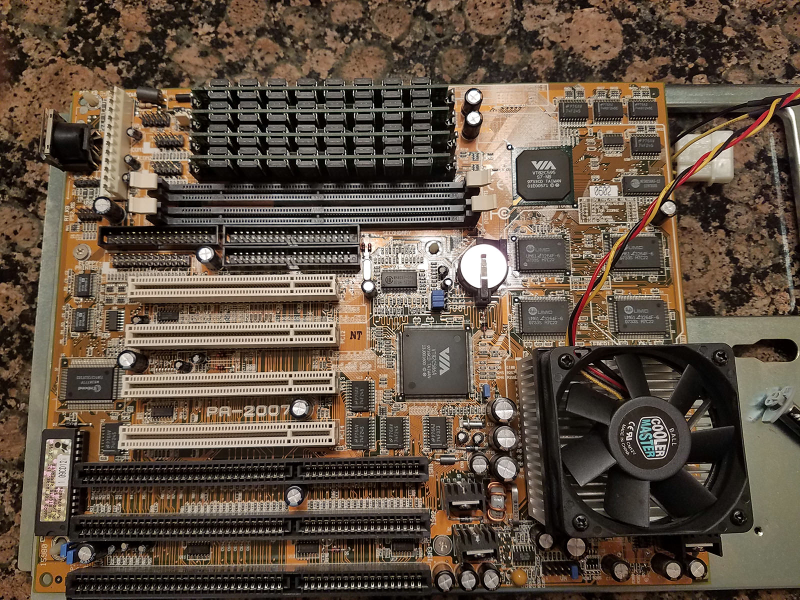

another shot of the board

components

Advertisement

specs:

Generic baby AT case
Sparkle 250W AT power supply
FIC PA-2007 Socket 7 Baby AT motherboard
Intel Pentium 233MHz processor
128MB SIMM RAM
3.5" floppy drive
Teac 24X CD-ROM drive (will also add a DVD-ROM drive)
20GB hard drive
Trident TGUI9680-1 2MB PCI video card (will replace with Matrox Millennium 4MB)
USB PCI card
3COM 3C509B-TPO ISA network card
Yamaha YMF-719 ISA sound card with OPL3 MIDI
Runs MS-DOS 6.22 + Windows for Workgroups 3.11... oh and Windows 95 as well!
