I already know what you’re thinking: it doesn’t look like much. In fact, on the outside, it looks like a generic Lenovo small form-factor computer. In all honesty, it really isn’t anything special. However, it is far from ordinary.

This is not meant to be a guide on how to build a computer. In fact, it can be viewed as a guide on how NOT to build a computer.

I never intended to build this computer. It just sort of happened. A few weeks before starting the build, during the summer of 2015, I bought a cheap Lenovo m58p small form-factor case off of eBay. The intent was to use it for another project, however that idea fell-through. Stuck with a case that I couldn’t use as I intended, I made a bit of a mistake: I started searching eBay...

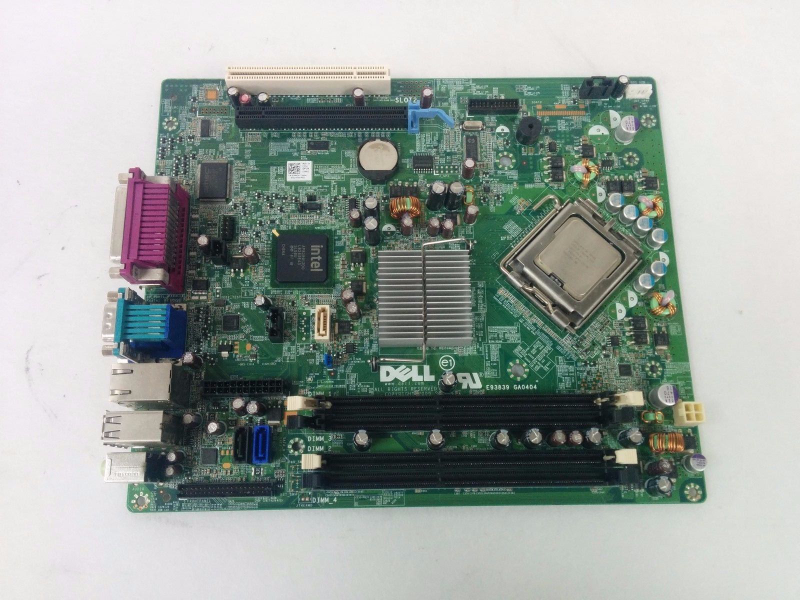

Used OEM computer parts are cheap for a reason. I knew this fully well going into this project. However, the deal I found was too good to pass up: a Dell Optiplex 780 motherboard, complete with E8400 3.0Ghz Core 2 Duo processor for $12. This was significantly better than any desktop I had owned before (Pentium D, anyone?), so...

Advertisement

With that decision made, it was time to find more components for the build. Back to eBay it was...a 275W Dell Optiplex 755 small form-factor power supply for $16, an Optiplex 740 heat sink for $6, and two 2GB cards of DDR3 RAM for $15. Everything else I used I already had on hand. Now that I had everything I needed, it was time to build.

I had worked on computers for several years at this point in time, so I was looking for a challenge. This computer certainly provided one. The first step was to mount the Dell motherboard into the Lenovo case. Simple enough, right? While everything on the motherboard lined up on the case, the case used rubber donut mount standoffs (probably not the proper term), which were incompatible with the motherboard. After dremeling, drilling, and tapping the original standoffs, the motherboard was finally mounted. It was during this time I also made brackets to mount the heat sink (what, you thought it would bolt right up?). Next up, getting power to the motherboard...

Advertisement

I chose an Optiplex 755 small form-factor power supply for two reasons: 1) it’s a 275W power supply, rather than 225W, (the power supply found in the Optiplex 780 small form-factor) 2) it was $10 cheaper.

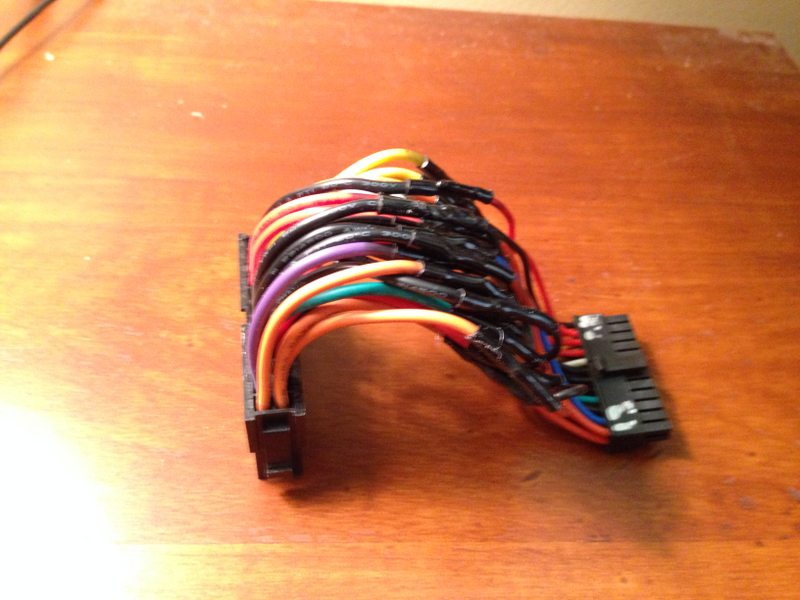

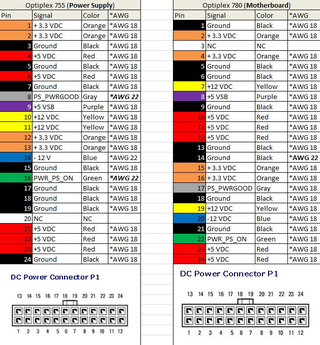

However, the 755 power supply was incompatible with the 780 motherboard. Not only did the 780 motherboard require a mini-atx 24 pin connector (the 755 power supply used standard atx), but the pinout was also completely different. No matter; with some research, and a bit of soldering work, I ended up with an adapter...

Sorry for the out-of-focus picture

Advertisement

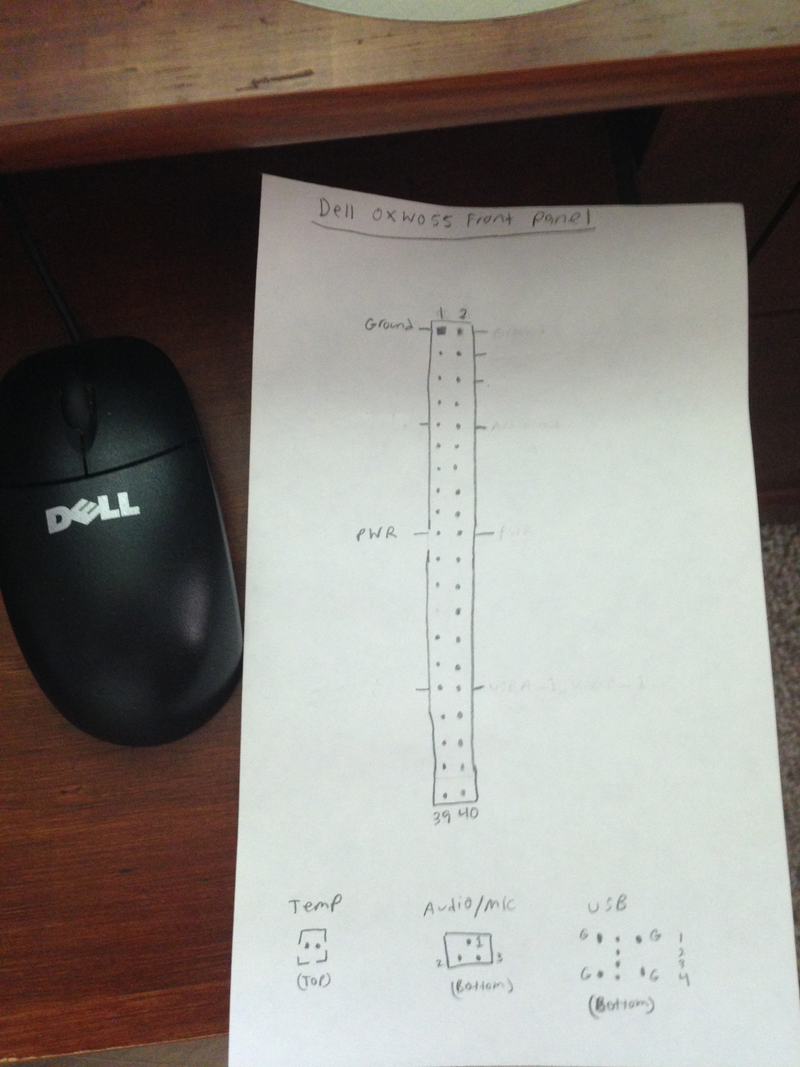

The last step was actually turning on the computer, another simple task made difficult by Dell. Most Dell computers use a proprietary front panel connector to control the power button, front audio jacks, and front USB connectors. The motherboard had solutions for the USB connectors, and I used a USB sound card for the front audio jacks, but that still didn’t solve the issue of the power button. After some probing with a multi-meter, I arrived at a solution:

Incomplete pin-out, but I only cared about the power switch

By using jumper wires from the Lenovo’s power button to the front panel connector on the Dell motherboard, I now had a computer I could turn on and use (so long as you are fine pressing F1 every time you start the computer).

Advertisement

A fresh install of Windows 7 Professional later, and I was good to go.

I used this computer nearly 2,000 hours over 8 months without a single glitch. However, after 8 months...

Advertisement

...the modding bug got me. Having read that it was possible to run an LGA 771 Xeon in an LGA 775 motherboard, I knew I had to try it. Details on the mod can be found here. Long story short, it requires a sticker to flip some pins on the processor, a small modification to the processor socket, and a BIOS mod. As a result, I managed to upgrade to a workable Quad Core processor for $25 (a straight compatible Core 2 Quad is upwards of $45).

Of course faster processors generally require better cooling; this was no exception...

Advertisement

After some initial temperature issues, I ended up solving the problem with a heat sink from a Pentium 4 Optiplex 740 ($8, I could have saved $6 had I bought this one in the first place), and an extra fan. A $20 2GB HD 6570 graphics card, an extra 2GB DDR3 card of RAM for $6, a spare SSD I had laying around (in addition to the old HDD), and a fresh copy of Windows 7 Ultimate rounded out the upgrades.

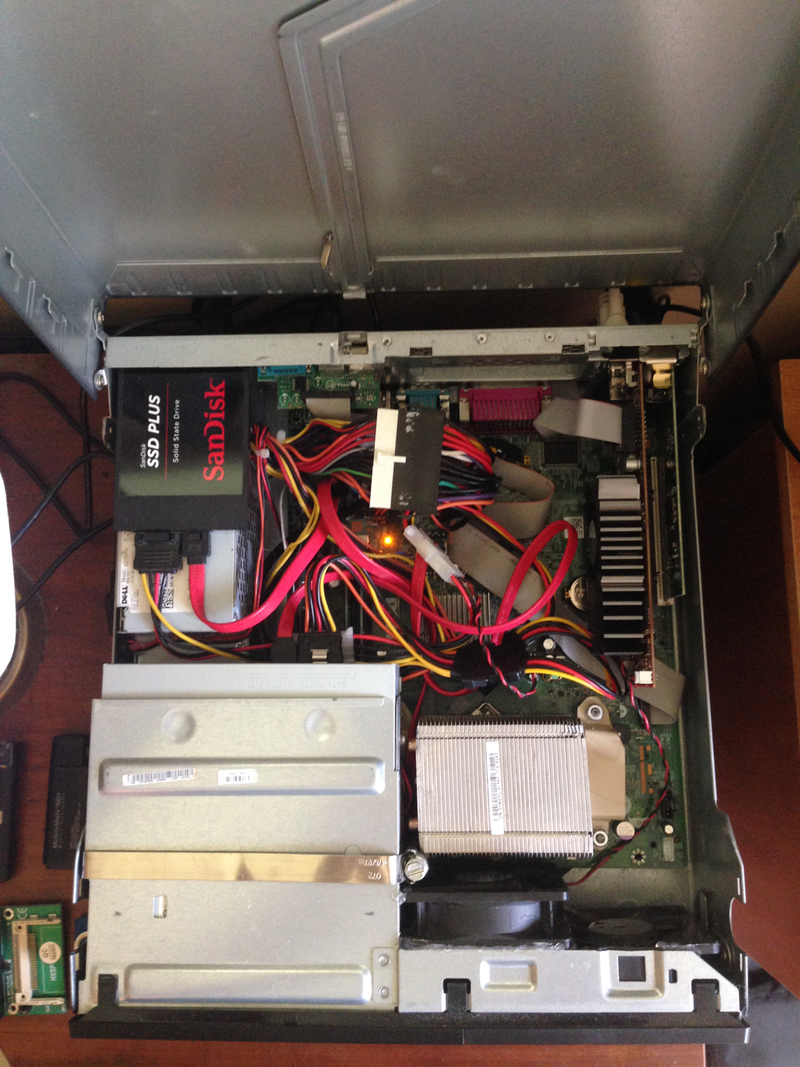

Those who don’t like looking at messy cables, look away now...

Advertisement

It’s running better than ever; twice as fast as the original configuration (which isn’t saying too much, however, it meets my needs). Would I have been better off just buying something equivalent outright? Probably. However, I had a lot of fun in the process, and I wouldn’t have it any other way.
