Welcome to This Date in Aviation History, getting of you caught up on milestones, important historical events and people in aviation from April 7 through April 10.

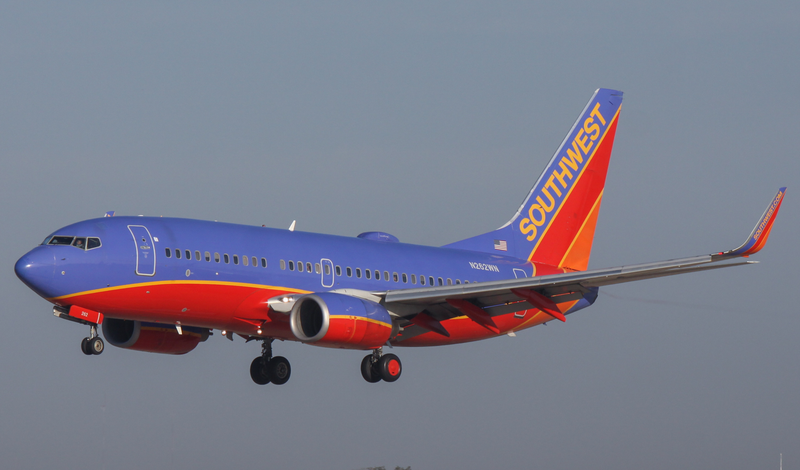

Boeing 737-700 of Southwest Airlines (Tim Shaffer)

April 9, 1967 – The first flight of the Boeing 737. At the start of the commercial jet era, the emphasis was on big airplanes. The four-engine de Havilland Comet was the world’s first jet airliner, but when that aircraft began suffering from an alarming string of fatal crashes, Boeing was poised to step in with its own four-engine airliner, the 707, and the 707 went on to become one of the most successful airliners of the era and an icon of the early jet age. But a new trend began to develop in the airline industry, one that called for smaller airliners to operate on shorter routes. Boeing followed the 707 with the 727 tri-jet, but airlines still wanted something smaller that would complement Boeing’s other offerings.

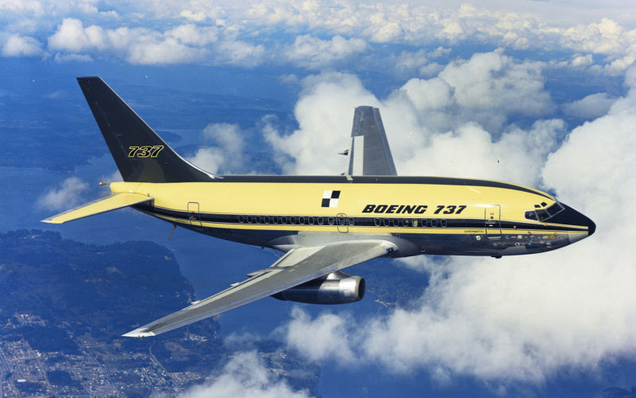

The prototype Boeing 737 (Boeing)

Development of the 737 began in 1964 with plans to create an airliner that would accommodate 50-60 passengers. The German carrier Lufthansa signed on as the launch customer a year later, and requested that Boeing increase the seating capacity to 100 passengers. When United Airlines signed on to the project, they wanted an airliner with still more capacity. So the 737 was lengthened again, with the Lufthansa version becoming the 737-100 and the United version becoming the 737-200. However, Boeing found themselves lagging behind competing airliners such as the Douglas DC-9, Fokker F28 Fellowship and British Aircraft Corporation BAC One-Eleven, all of which had advanced to the point of flight certification testing.

Advertisement

A 737-130, the second prototype, delivered to Lufthansa in 1968. It later saw service with America West and Ansett New Zealand. It was broken up in 1995. (Ken Fielding)

To speed the development process, Boeing based the fuselage of their new airliner largely on the 727, using 60% of the 727's fuselage shape, particularly the upper lobe. This gave the 737 the same cross section as its predecessor and allowed for the use of the same cargo pallets as the earlier airliner. Bringing in the 727 fuselage also meant the adoption of 6-across seating in coach, which gave the 737 a distinct advantage over its rival Douglas, which featured 5-across seating in their DC-9. The relatively short fuselage, when mated to its swept wings, resulted in an aircraft that was just about as long as it was wide, and the 737 was dubbed the “square airplane.” Boeing also eliminated the flight engineer position, helping to set a new industry standard for only two crew members in the cockpit. The first 737 was constructed at Boeing’s Plant 2 in Seattle, and was the last new airliner to be produced in the same building where the B-17 Flying Fortress, B-47 Stratojet and B-52 Stratofortress had been built. Despite the building’s size, the tail of the first 737 couldn’t be attached inside, so it was fitted outdoors using a crane before the airliner was rolled to the production facility known as the Thompson Site.

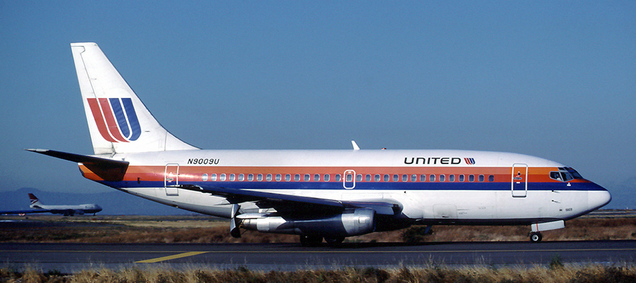

A United Airlines Boeing 737-200. The -200 was the first mass produced variant of the 737. (Eduard Marmet)

Advertisement

Though the 737 has since become the best selling airliner in history, its early days were less rosy. By 1970, Boeing had received orders for only 37 aircraft, and they were considering shutting down production and selling the 737 design to Japanese aircraft manufacturers. But, with the cancellation of the Boeing 2707 supersonic transport (along with the loss of 50,000 jobs), reduction in the production of the 747, and an order for the military T-43 version from the Air Force, Boeing was able to continue development of the 737 into a wider range of variants, including the convertible 737C model with accommodations for palletized freight, and the 737QC (Quick Change) variant that featured palletized seating and allowed for a rapid switch from cargo to passenger configurations.

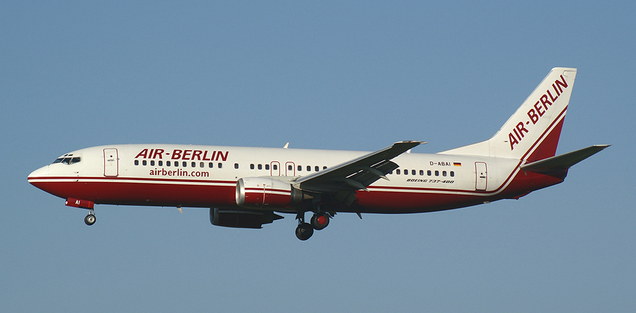

Air Berlin 737-400 Classic, (Kambui)

One of the secrets of the 737s success has been the airliner’s ability to continually adapt to changing times in a volatile airliner industry. Following the production of the 737-100 and -200, the last of which was delivered in 1988, Boeing began developing the -300/-400/-500 series, which would later be known as the 737 Classic, each offering improvements in range, economy and passenger capacity. Most importantly, the Classic moved the 737 into the age of modern high-bypass turbofan engines, leaving behind the cigar-shaped Pratt & Whitney JT8D low-bypass turbofans in favor of the CFM International CFM56.

Advertisement

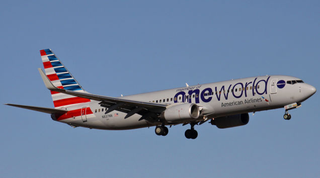

American Airlines Boeing 737 Next Generation (Tim Shaffer)

In the early 1990s, Boeing undertook further development of the 737 to compete with rival Airbus and followed the Classic with the 737 Next Generation, which encompasses models -600/-700/-800/-900ER. While much of the 737NG is essentially new, it retains enough commonality with earlier aircraft to make it attractive to airlines with older fleets of 737s. Development of the venerable 737 airframe continued into the 21st century with the arrival of the 737 MAX beginning in 2011. The MAX series, which includes the MAX-7, MAX-8 and MAX-9, with the -9 seating a maximum of 220 passengers, a load that exceeds even the highest capacity of the 707. the MAX features still more efficient CFM International LEAP-1B engines for greater range and fuel economy. Deliveries of the MAX began in 2017, and Boeing has orders on the book for more than 4,300 aircraft.

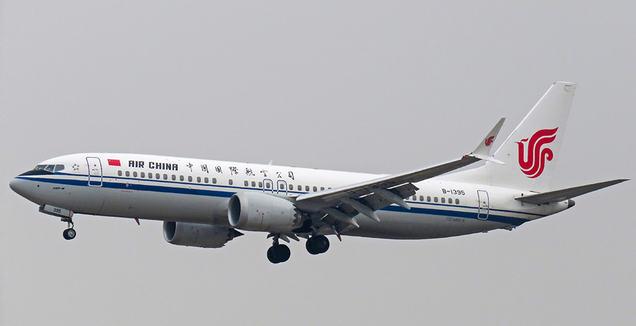

Air China Boeing 737 MAX-8 (N509FZ)

Advertisement

In July 2012, the 737 earned the distinction of being the first airliner to surpass 10,000 orders, and nearly 9,000 have been delivered so far. Today, two 737s are landing or departing every five seconds somewhere in the world. As for the prototype, it never entered commercial service, though it did operate as a flying laboratory for NASA for 20 years, and is now on display at the Museum of Flight in Seattle, Washington.


Short Takeoff


(NASA)

Advertisement

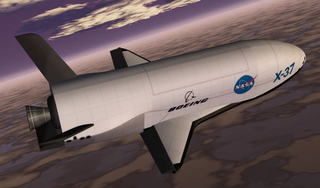

April 7, 2006 – The first free flight of the Boeing X-37. Also known as the Orbital Test Vehicle (OTV), the X-37 is an unmanned, reusable spacecraft that is a 120% scale derivative of the Boeing X-40. Similar to the much larger Space Shuttle, the X-37 is boosted into orbit by a launch vehicle, then returns to Earth to land as an unpowered aircraft. The X-37 is operated by the US Air Force and has completed five orbital missions carrying a classified payload. The fourth mission orbited the Earth for nearly 718 days, and the fifth mission was sent to the the X-37's highest orbit yet to carry out tests and deeply satellites. A sixth mission is slated for 2019.


(NASA)

Advertisement

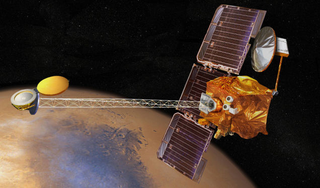

April 7, 2001 – The launch of 2001 Mars Odyssey, a robotic spacecraft launched into orbit around Mars to gather data about the Martian surface. The spacecraft mapped hydrogen distribution that led to the discovery of vast amounts of ice under the surface of the planet’s polar regions, and also took readings on the amount of radiation on the surface of the planet to help determine any risks associated with a manned landing. The orbiting spacecraft also serves as a communications relay for the Spirit and Opportunity rovers on the Martian surface, and has been responsible for 95% of all data transmitted to Earth. Imagery from Mars Odyssey will also help determine suitable landing sites for future missions.


Advertisement

April 7, 1994 – The attempted hijacking of Federal Express Flight 705. Disgruntled Federal Express pilot Auburn Calloway boarded the cargo flight as a deadheading pilot, carrying a guitar case filled with hammers and a spear gun. He planned to kill the pilots with the hammers (using the spear gun as a last resort), then crash the McDonnell Douglas DC-10-30F (N306FE) so his family could collect a $2.5 million life insurance policy. He used the hammers to make the crew’s injuries appear consistent with a crash. Though the pilots were seriously injured in the attack, they managed to subdue Calloway and land safely. Calloway claimed insanity, but was convicted and sentenced to two consecutive life terms.


Advertisement

April 7, 1967 – The first flight of the Aérospatiale Gazelle. Designed for light transport, scouting, and light attack duties, the Gazelle was the first helicopter to employ the fenestron enclosed tail rotor configuration, which reduces tip vortex loss, protects the tail rotor, and also protects ground crews from the spinning rotor. The Gazelle entered service in 1973, and currently serves the air forces of 20 nations and has seen combat in Lebanon, Rwanda and the First Gulf War. More than 1,700 Gazelles were produced between 1967-1996, and it remains in service today.


Advertisement

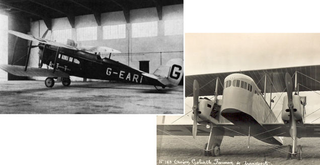

April 7, 1922 – The first mid-air collision between two airliners. One aircraft, a de Havilland DH.18A (G-EAWO), was flying mail from Croydon in England to Le Bourget in France. On board were the pilot and a young steward. The other aircraft, a Farman F.60 Goliath (F-GEAD), was flying in the opposite direction with a pilot, mechanic, and three passengers. With low clouds and drizzle, the pilots were flying just below the clouds and following a road, but the British pilot was keeping the road to his right, while the French pilot was keeping the road to his left, putting them on a head-on collision course. The aircraft collided 60 miles north of Paris, killing all seven occupants. As a result, rules were adopted to agree on a right-side offset when following roads, and official air lanes were adopted for heavily travelled routes.


(US Navy)

Advertisement

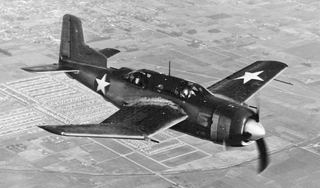

April 8, 1944 – The first flight of the Douglas BTD Destroyer. The Destroyer was designed in response to a 1941 US Navy request for a single aircraft to replace both the Douglas SBD Dauntless and the Curtiss SB2C Helldiver. Designed by noted Douglas engineer Ed Heinemann, the Destroyer featured a laminar flow wing and, in a first for a carrier aircraft, a tricycle landing gear. When the Navy changed its requirements, Douglas removed the extra crew member and the defensive armament. Still, only 28 were delivered before the war ended and production was canceled.


Advertisement

April 9, 1964 – The first flight of the de Havilland Canada DHC-5 Buffalo, a cargo and transport aircraft developed from the DHC-4 Caribou and designed for extremely short takeoffs, specifically from rugged or unimproved airstrips. Unlike its piston-powered predecessor, the Buffalo is powered by a pair of General Electric CT64 turboprop engines. It was originally pursued by the US Army as a replacement for the Caribou before all fixed-wing aircraft were transferred to the US Air Force, but the Air Force wasn’t interested in adopting it. Thus, only 122 were built, and the type certificates for all the de Havilland transports were purchased by Viking Air in Canada who plans to restart production of a newer, more powerful version of the Buffalo as the Buffalo NG (Next Generation).


(NASA)

Advertisement

April 9, 1959 – NASA announces the Mercury Seven, the first American astronauts who took part in the manned Project Mercury spaceflights from May 1961 to May 1963. Alan Shepard was the first Mercury astronaut to travel in space in 1961, just one month after Soviet Cosmonaut Yuri Gagarin. He was followed by Gus Grissom, then John Glenn, who was America’s first astronaut to orbit the Earth. They were followed by Scott Carpenter, Wally Schirra, and Gordon Cooper. The seventh member of the group, Deke Slayton, was grounded for health reasons, but served as NASA’s Director of Flight Crew Operations until 1972 and eventually went to space as part of the Apollo-Soyuz Test Project in 1975. The Mercury Seven formed the core of American astronauts, and members of the group played a role in all NASA space missions of the 20th century.


(University of Arkansas Libraries; US Navy, US Air Force)

Advertisement

April 9, 1899 – The birth of James Smith McDonnell. Following the failure of McDonnell’s first aircraft in 1927, the Doodlebug, McDonnell Aviation was founded in 1939 as a major aircraft parts producer during WWII. Though its first military aircraft, the XP-67 Bat, was also unsuccessful, McDonnell Aircraft found great success after WWII with the development of jet fighters such as the FH Phantom, the F2H Banshee, the F3H Demon, the F-101 Voodoo, and the legendary F-4 Phantom II. In 1967, McDonnell Aircraft merged with Douglas Aircraft to form McDonnell Douglas. The new company produced some of the most successful military and civilian aircraft in history, including the F-15 Eagle, the AV-8B Harrier, the F/A-18 Hornet, the DC-8, the DC-9 and its derivatives, and the DC-10, plus numerous helicopters, missiles and space vehicles. James McDonnell died in 1980, and McDonnell Douglas merged with Boeing in 1997.


Advertisement

April 10, 1963 – The first flight of the EWR VJ 101, a supersonic vertical takeoff and landing (VTOL) interceptor developed as a replacement for the Lockheed F-104G Starfighter. Two aircraft designated X-1 and X-2, were completed during the five-year test program. The X-1 performed the first successful hover in April 1963, then the first transition to forward flight in September 1963. In all, a total of 40 level flights, 24 hover flights and 14 full transitions were performed. On July 29, 1964, the X-1 reached Mach 1.04 without using an afterburner and, though the program showed promise, it was canceled in 1968 after its role was changed from interceptor to fighter.


Connecting Flights


Advertisement


If you enjoy these Aviation History posts, please let me know in the comments. And if you missed any of the past articles, you can find them all at Planelopnik History. You can also find more stories about aviation, aviators and airplane oddities at Wingspan.
