What is the sound of one piston slapping?
What is the sound of one piston slapping?
Illustration for article titled This might be the craziest one yet...

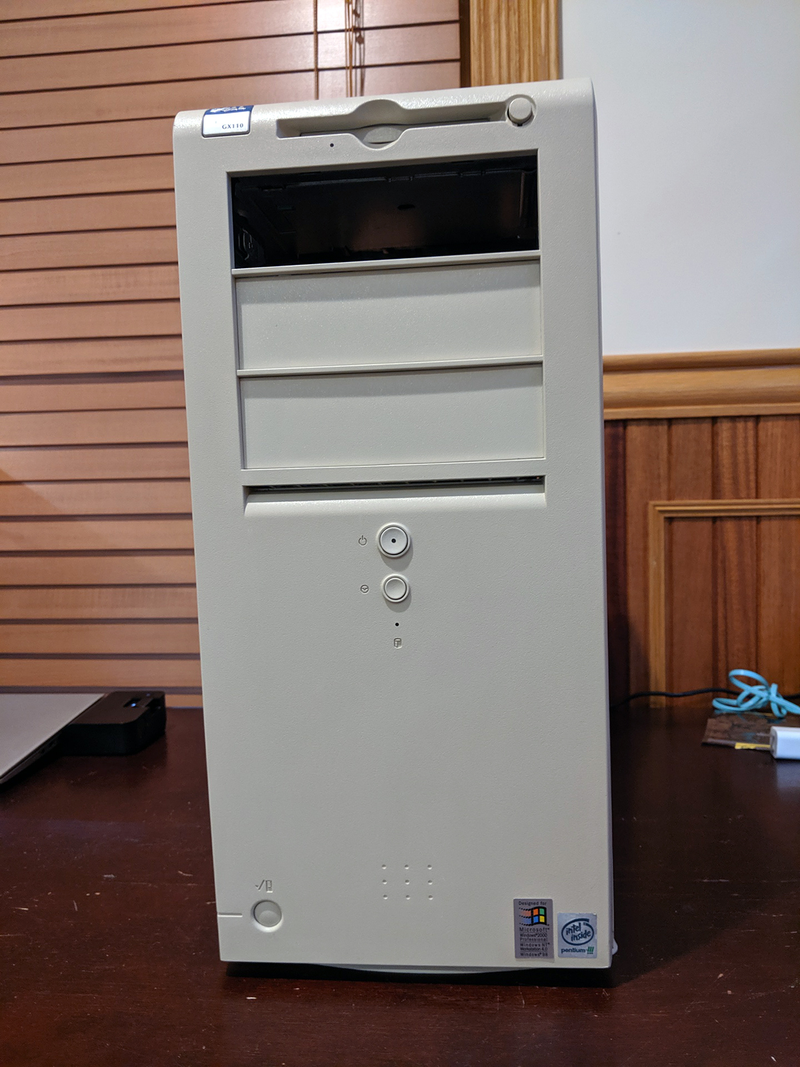

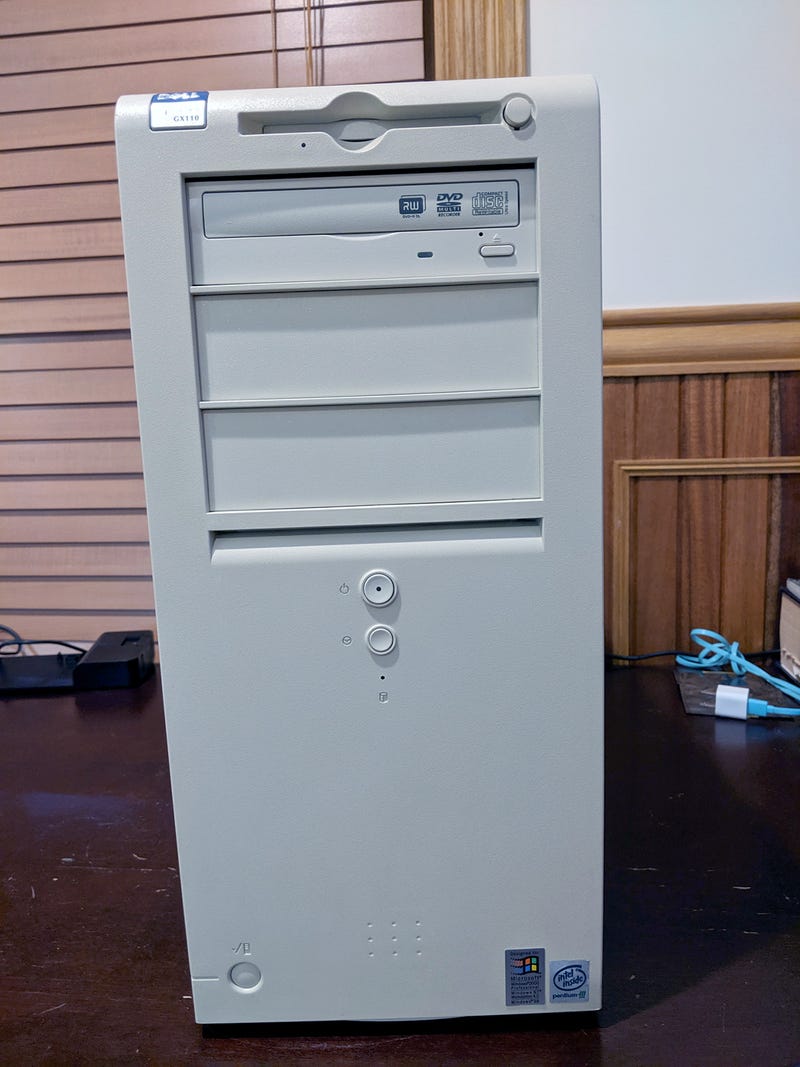

Take your typical Dell Optiplex GX110 from the year 2000. Add a modern optical drive.

Advertisement
Illustration for article titled This might be the craziest one yet...

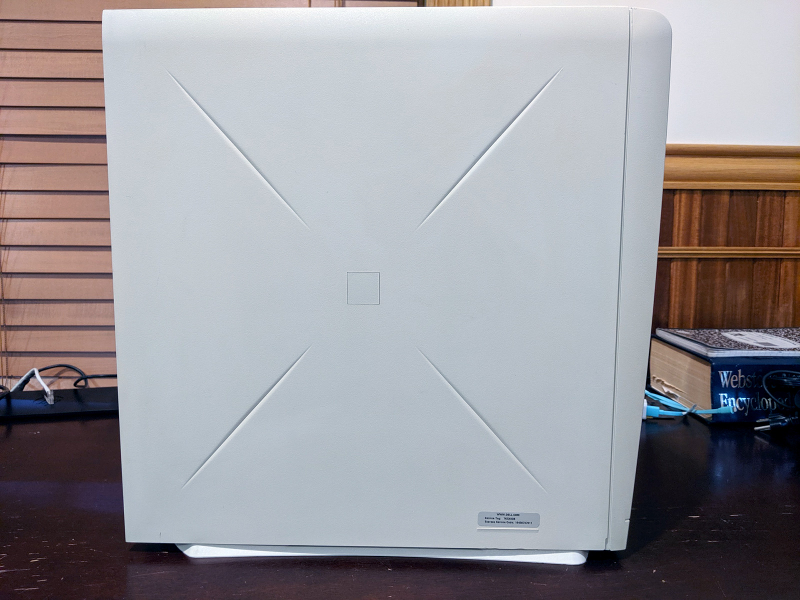

Note the side panel. That button on the bottom of the front bezel releases it and it swings upwards like a gullwing door.

Advertisement
Illustration for article titled This might be the craziest one yet...

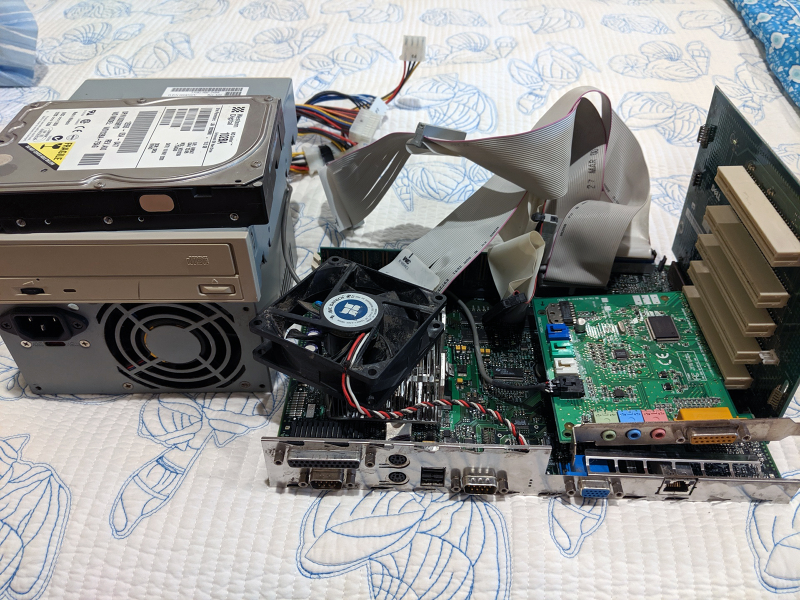

Gut the case. All these parts are going to a friend’s place. Original was a 600MHz Pentium III with 128MB RAM and 10GB HD.

Advertisement
Illustration for article titled This might be the craziest one yet...

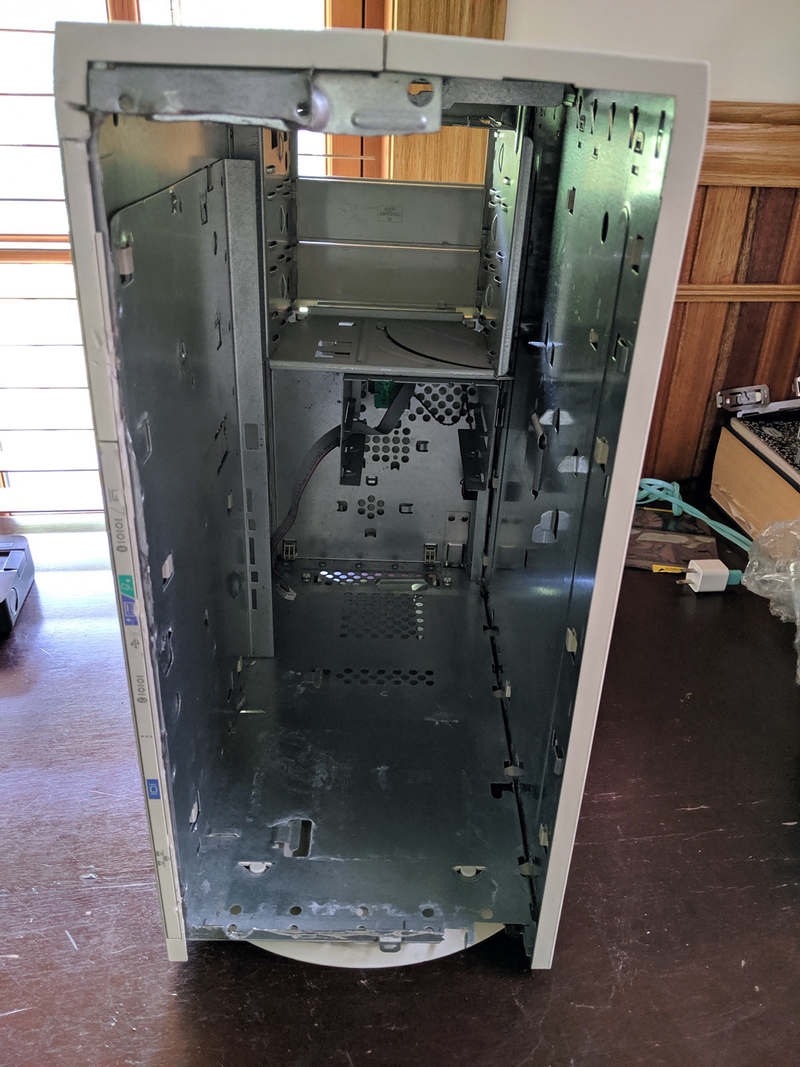

The front with everything removed.

Illustration for article titled This might be the craziest one yet...
Advertisement

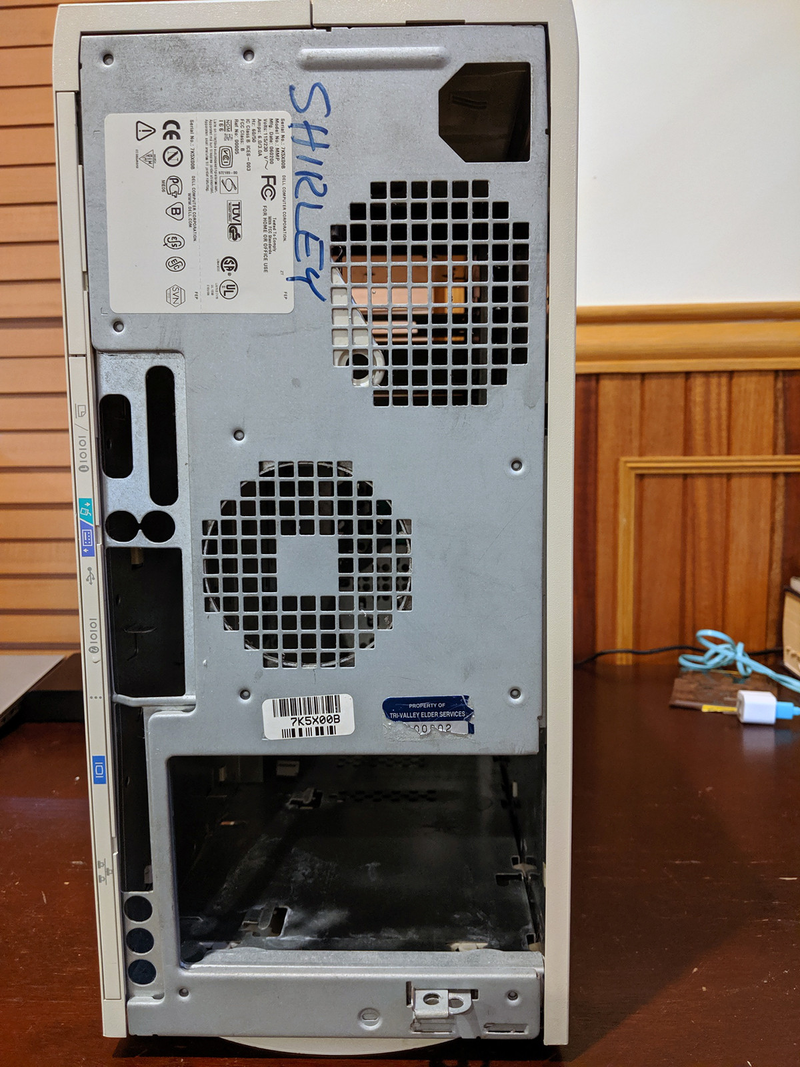

Note how utterly proprietary this is.

Illustration for article titled This might be the craziest one yet...
Advertisement

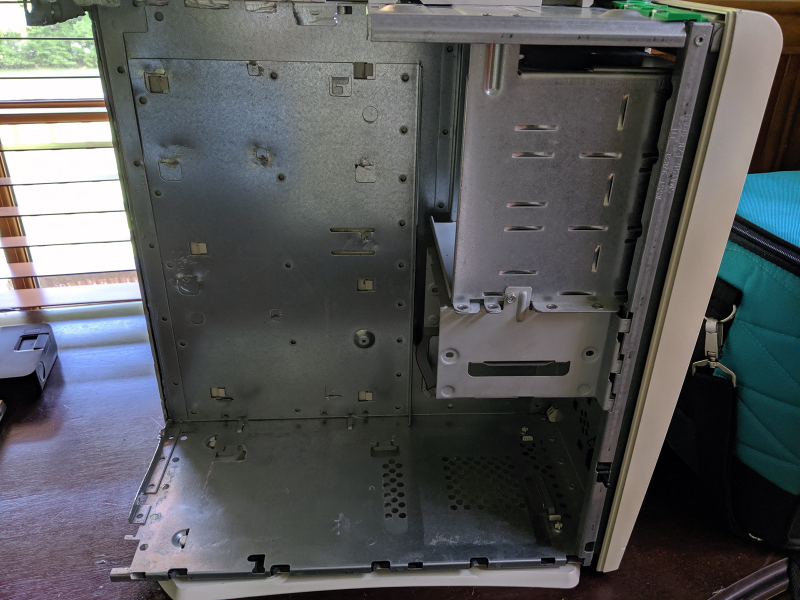

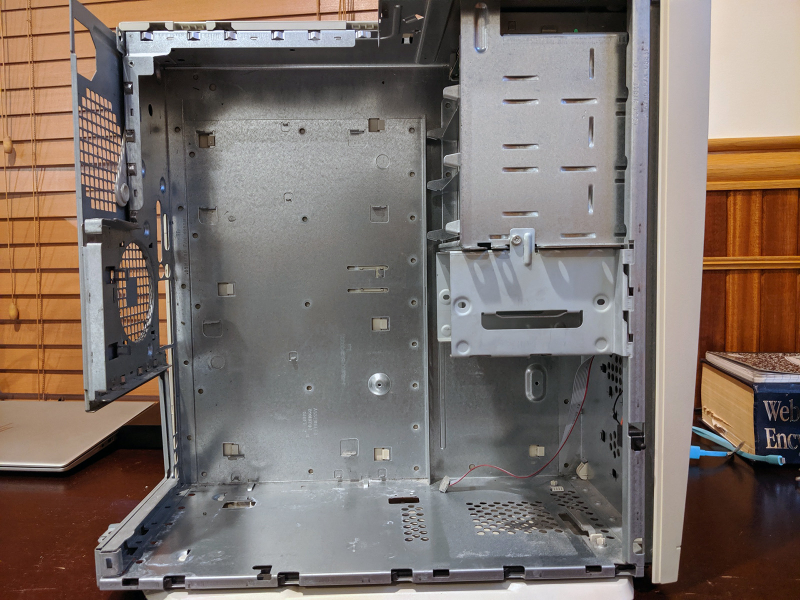

An inside view from the side

Illustration for article titled This might be the craziest one yet...
Advertisement

Removed or flattened these clips. Combination of a wire cutter and dremel. See that long thin metal tab near the drive cages? That was all flattened eventually by a hammer.

Illustration for article titled This might be the craziest one yet...
Advertisement

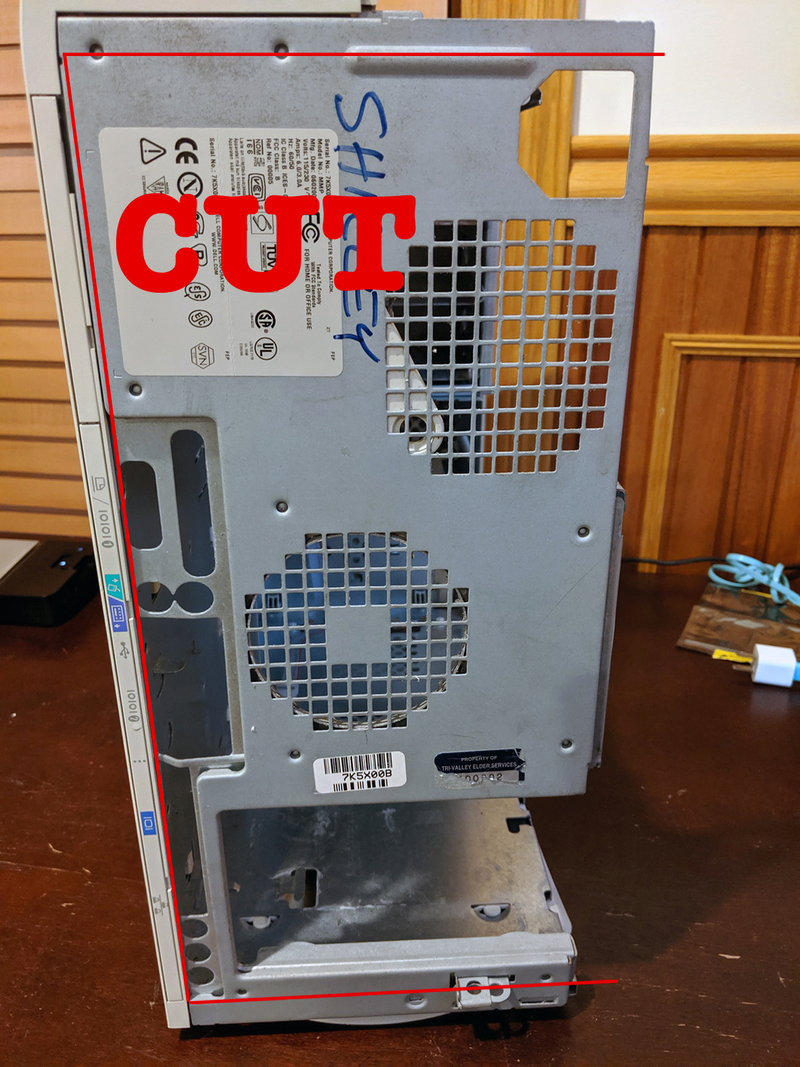

Cutting proposal

Illustration for article titled This might be the craziest one yet...
Advertisement

All cut. Not perfect but it’ll do. Ended up touching the edges a bit with the edge of a grinder.

Illustration for article titled This might be the craziest one yet...
Advertisement

Side panel doesn’t care about the rear being cut off. Fits just like it originally did.

Illustration for article titled This might be the craziest one yet...
Advertisement

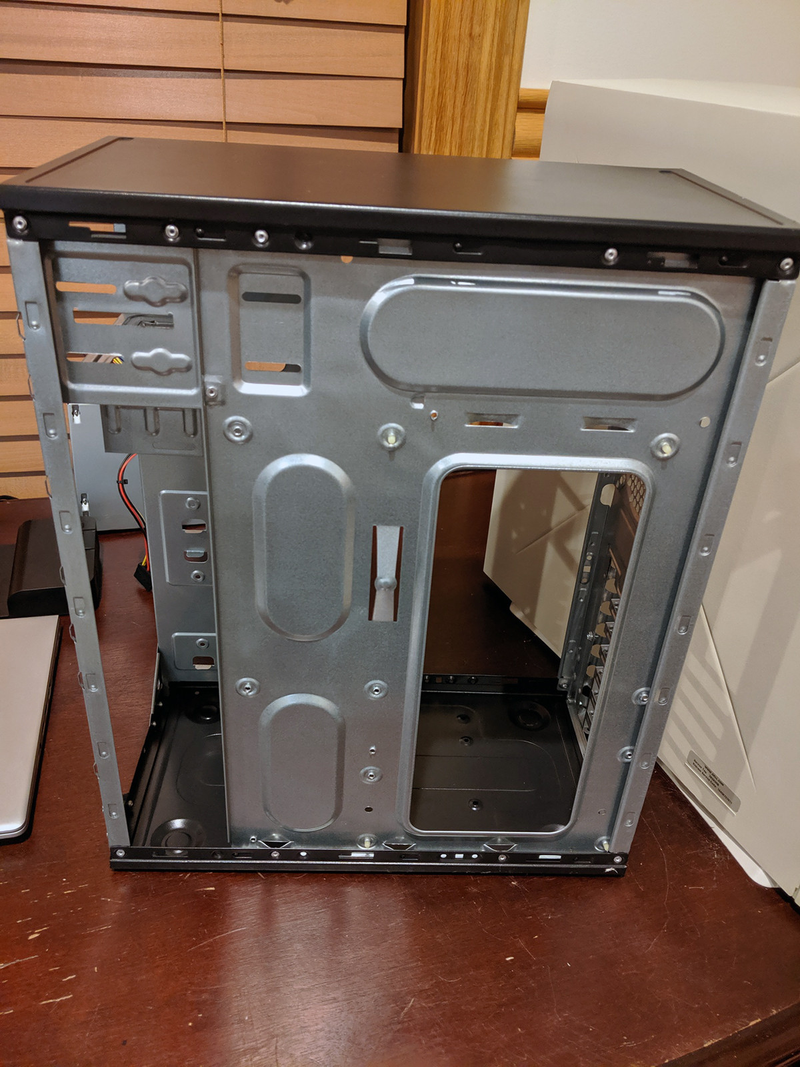

Cheap donor case.

Illustration for article titled This might be the craziest one yet...
Advertisement

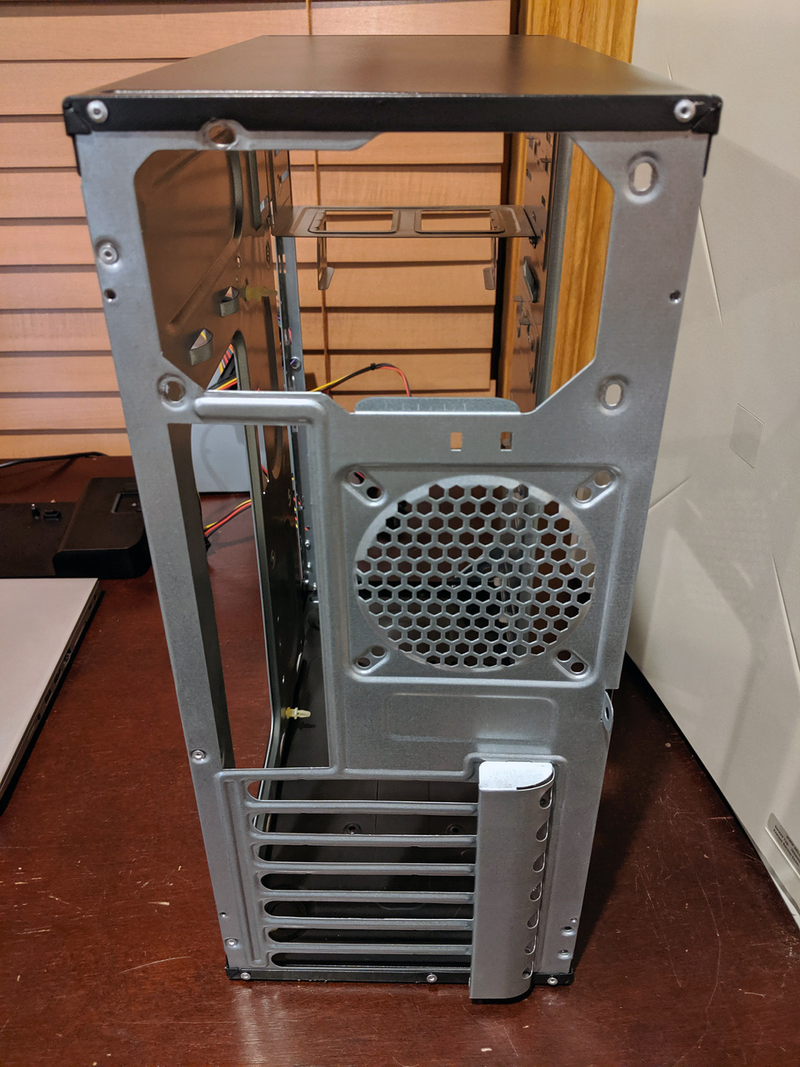

And we’re gonna reuse half of it.

Illustration for article titled This might be the craziest one yet...
Advertisement

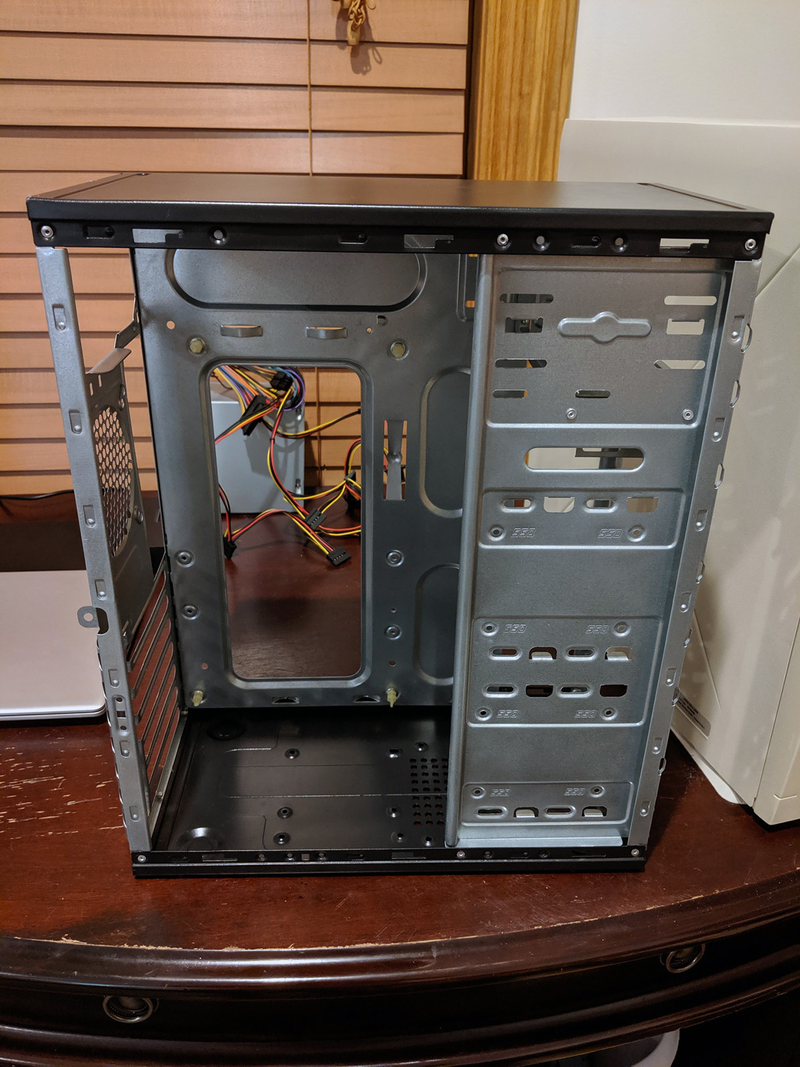

View from the other side. Also this was $25 shipped on ebay and it... came with a 240GB SSD sitting in it. Nice!

Illustration for article titled This might be the craziest one yet...
Advertisement

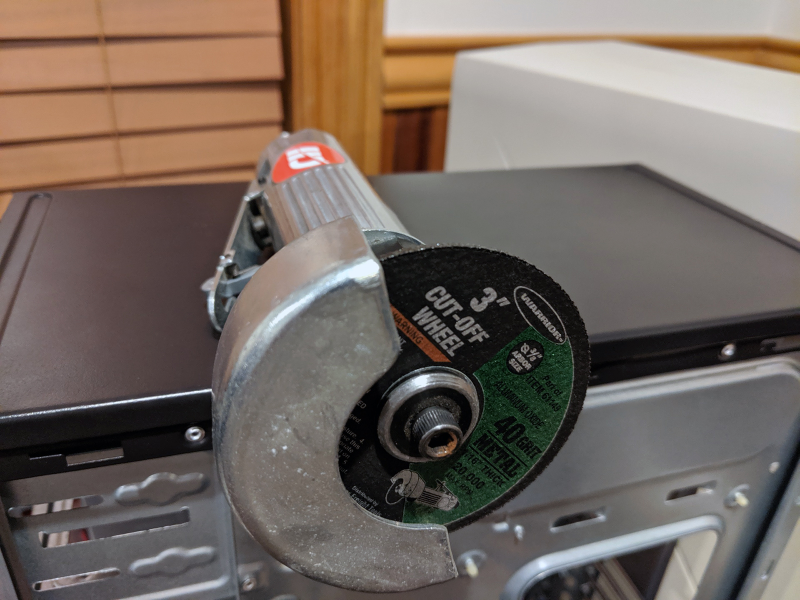

This air powered tool did the job (thanks Geoff for your advice). Haven’t tried it on human flesh yet.

Illustration for article titled This might be the craziest one yet...
Advertisement

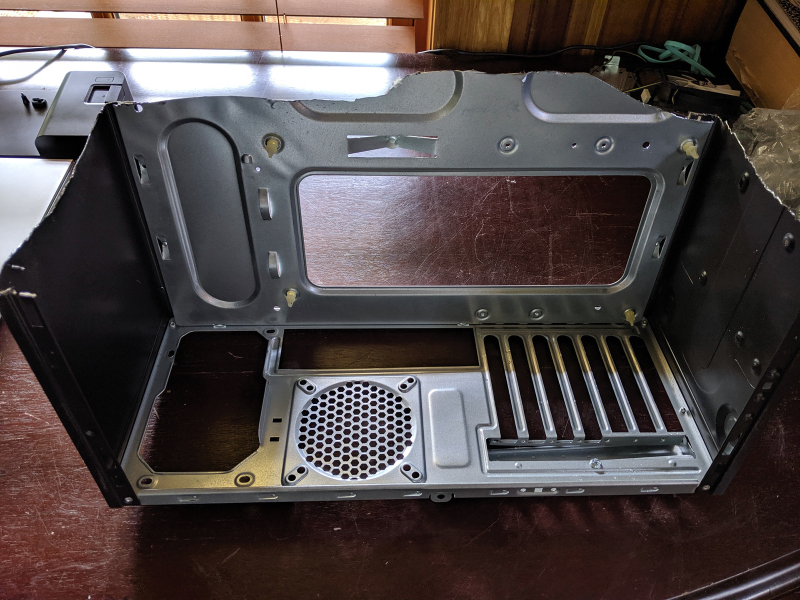

Cut it like so... and was able to drill some holes in the original case to screw this... half case into the new one.

Illustration for article titled This might be the craziest one yet...
Advertisement

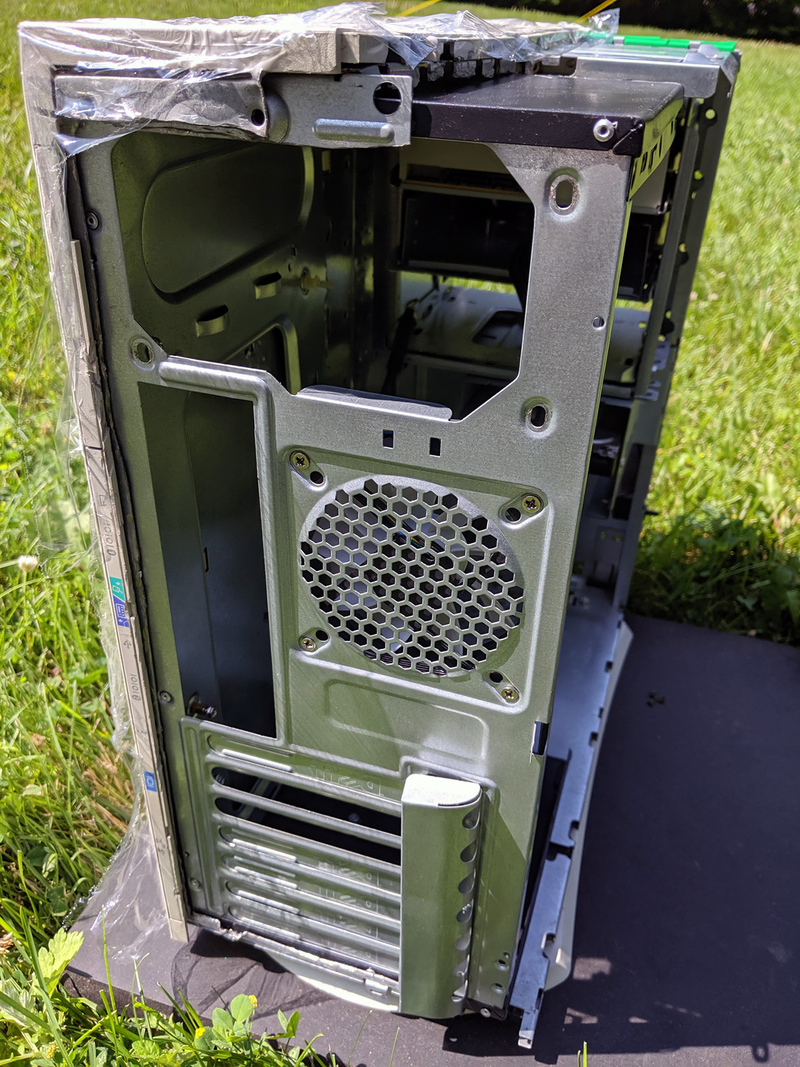

The rear... am retrobrighting the case right now.

Illustration for article titled This might be the craziest one yet...
Advertisement

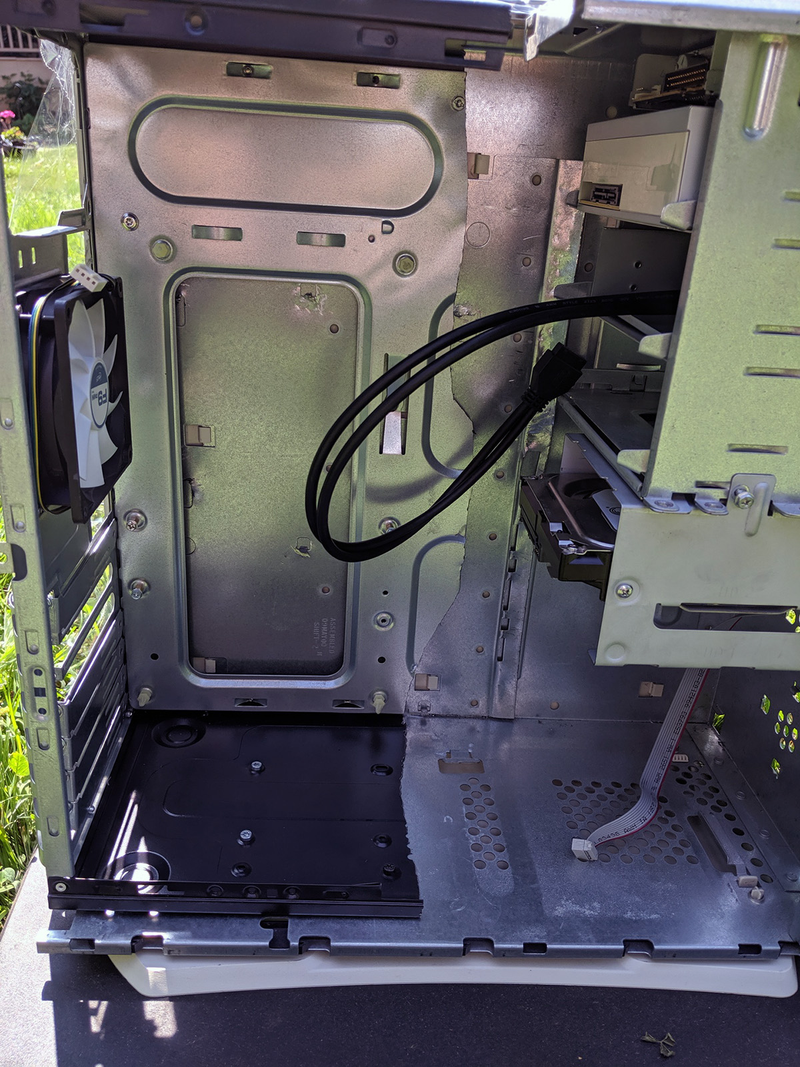

Here you can see how it is secured to the case. There’s also a USB 3.0 front panel I spray painted white.

Should be fun! Just waiting for the motherboard and it’ll be ready to go.
