Time to Change the Spark Plugs on the Trusty Camry

First I want to premise that this post is for the me of 4 years ago. 4 years ago I wasn’t in my mind very mechanically inclined. Up until that point I had only ever changed my own oil. Not that I am much of a mechanic now; but I am 100x more confident now than I was then. I owe most of that confidence to this blog. Big up OPPO!

an essay in photos...(some of which I couldn’t get oriented right because kinja)

Illustration for article titled Time to Change the Spark Plugs on the Trusty Camry
Advertisement

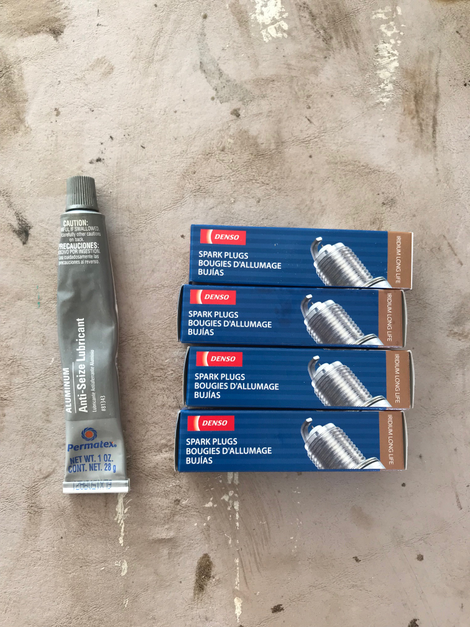

First off, time to gather the necessary parts and pieces for the job.

  • Plugs
  • Anti-Seize
  • Torque Wrench
  • 10mm Socket
  • Spark Plug socket and extender
  • Vacuum

It also wouldn’t be a bad idea to unhook your battery before messing with anything electrical. Just in case. I won’t know if you don’t though...

Advertisement

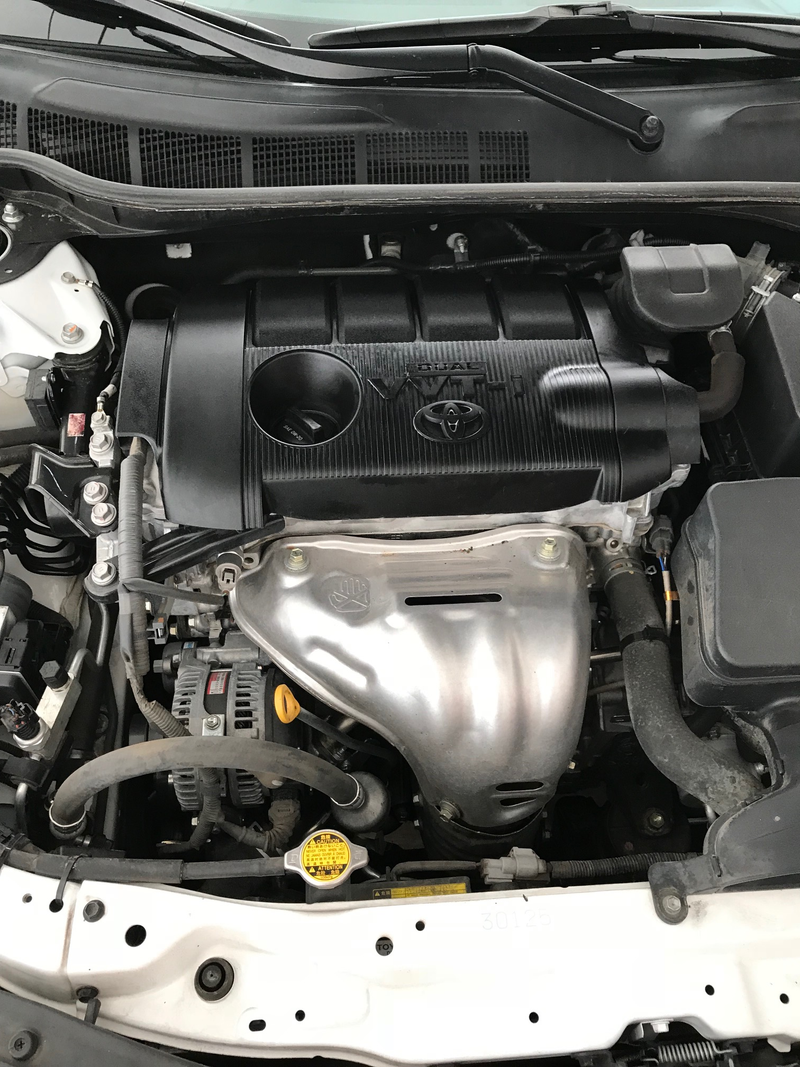

Remove Engine Cover
Remove Engine Cover
I tried so hard not to break the ignition coil clips. i was 2/4. I guess 7 years in the AZ sun+engine heat is a bad combination for such small clips.
I tried so hard not to break the ignition coil clips. i was 2/4. I guess 7 years in the AZ sun+engine heat is a bad combination for such small clips.
Advertisement

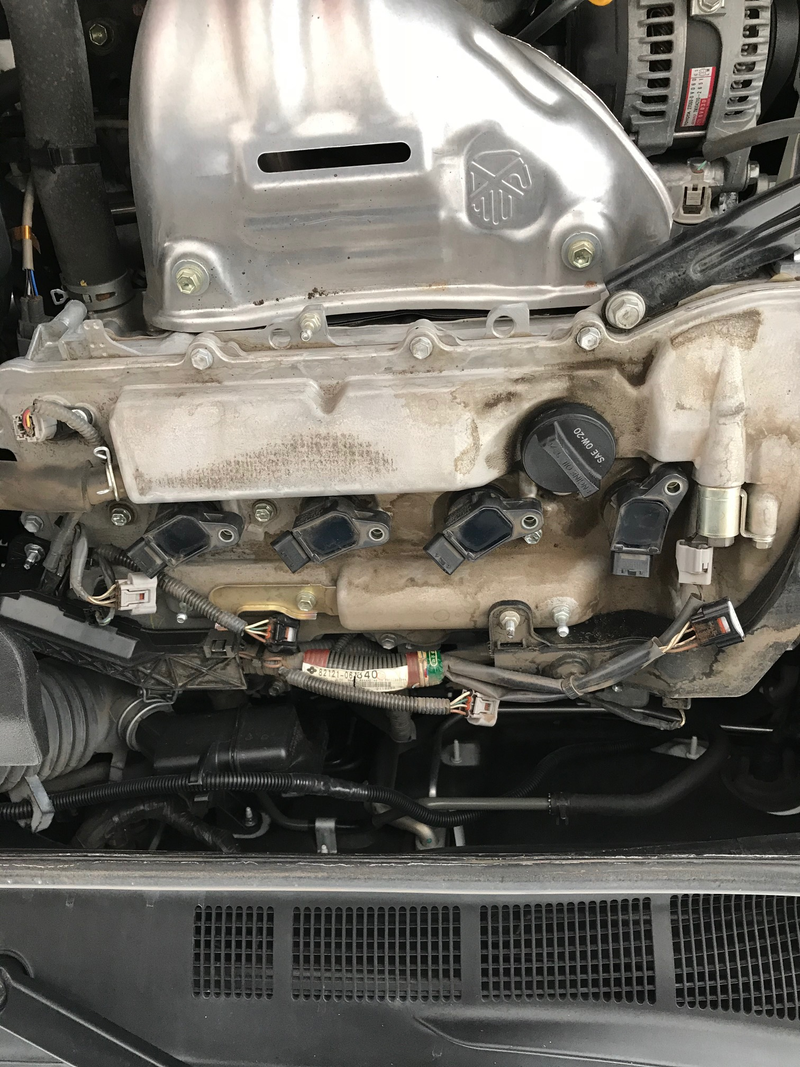

Ignition Coils un-clipped and the bolts removed with a 10mm socket.
Ignition Coils un-clipped and the bolts removed with a 10mm socket.

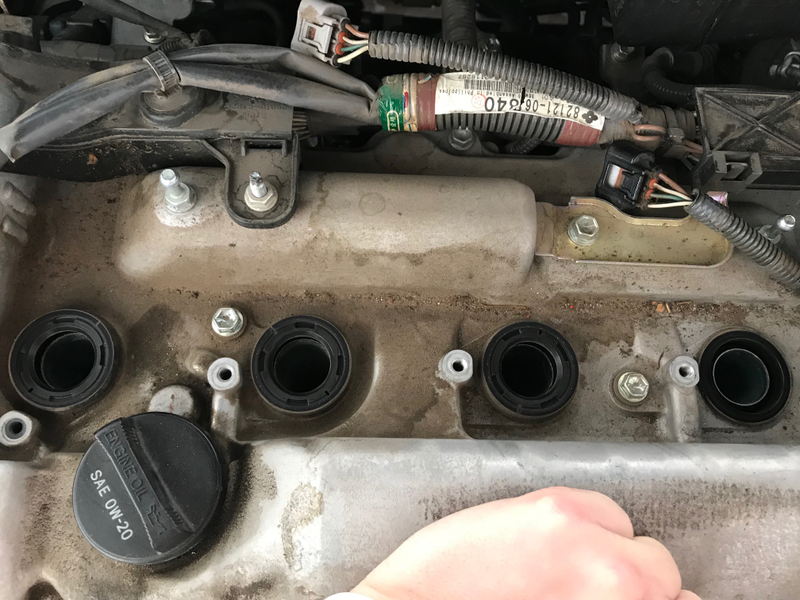

Ignition Coils all removed
Ignition Coils all removed
Advertisement

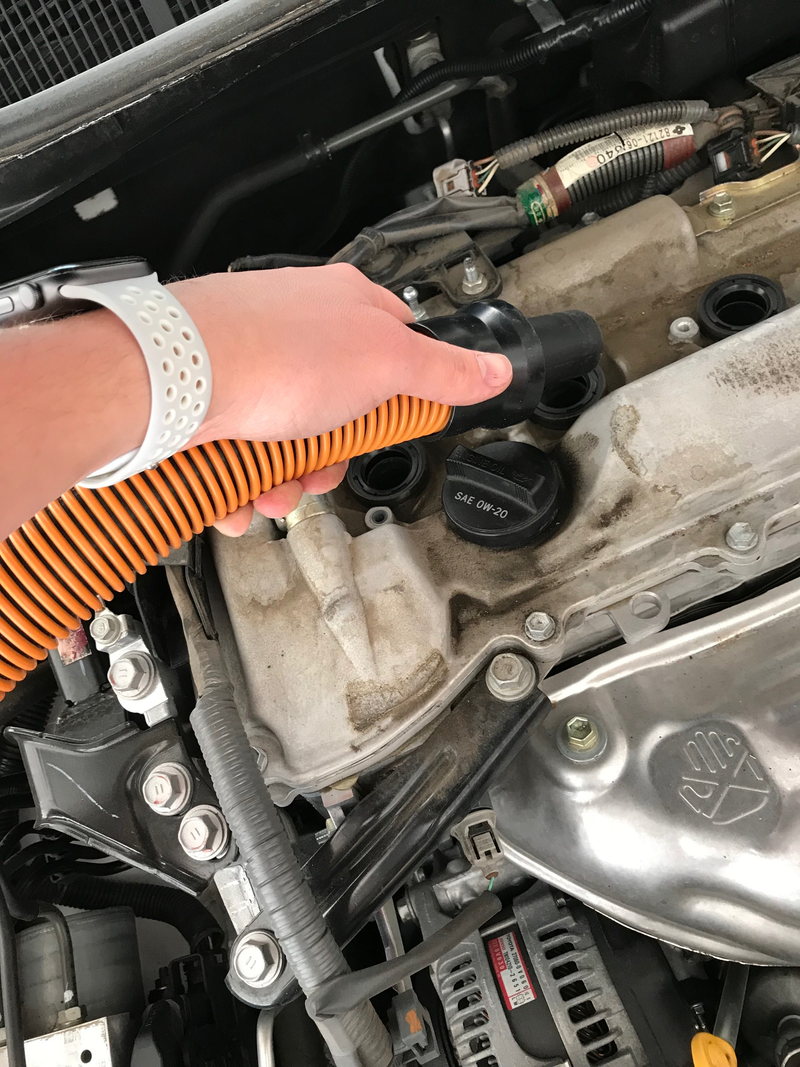

Time to vacuum up to make sure no loose dirt falls into the engine after the spark plugs get pulled.
Time to vacuum up to make sure no loose dirt falls into the engine after the spark plugs get pulled.

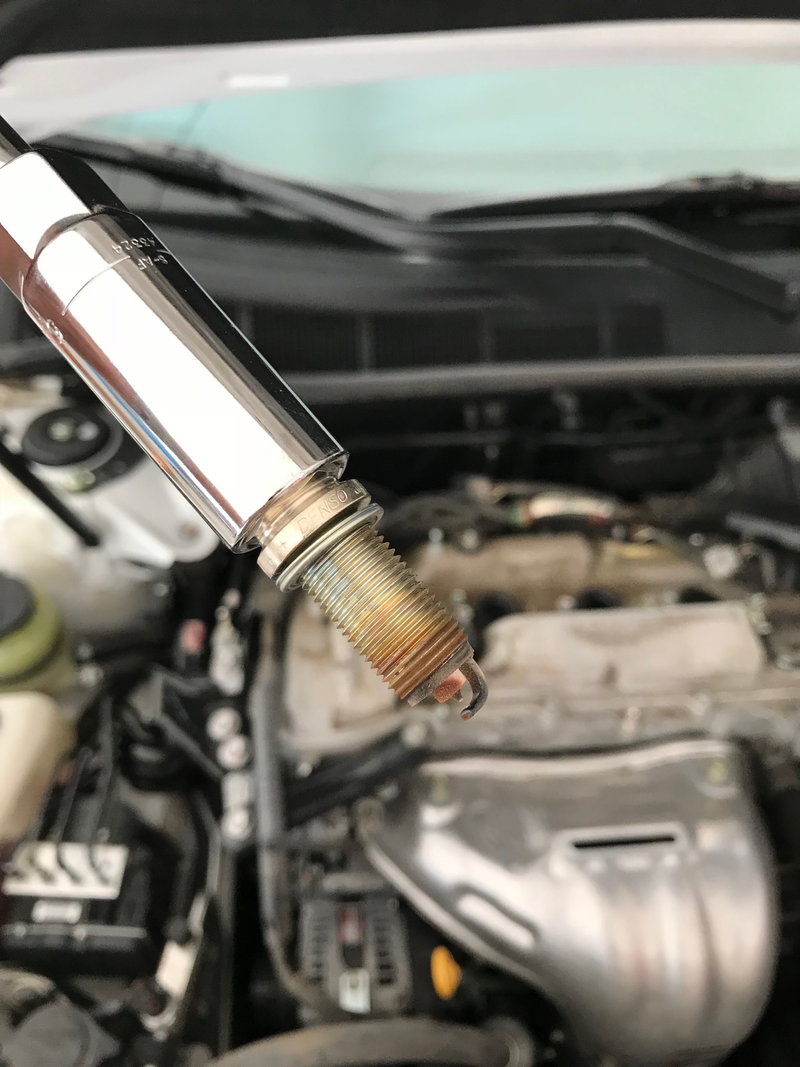

Out with the old plugs!
Out with the old plugs!
Advertisement

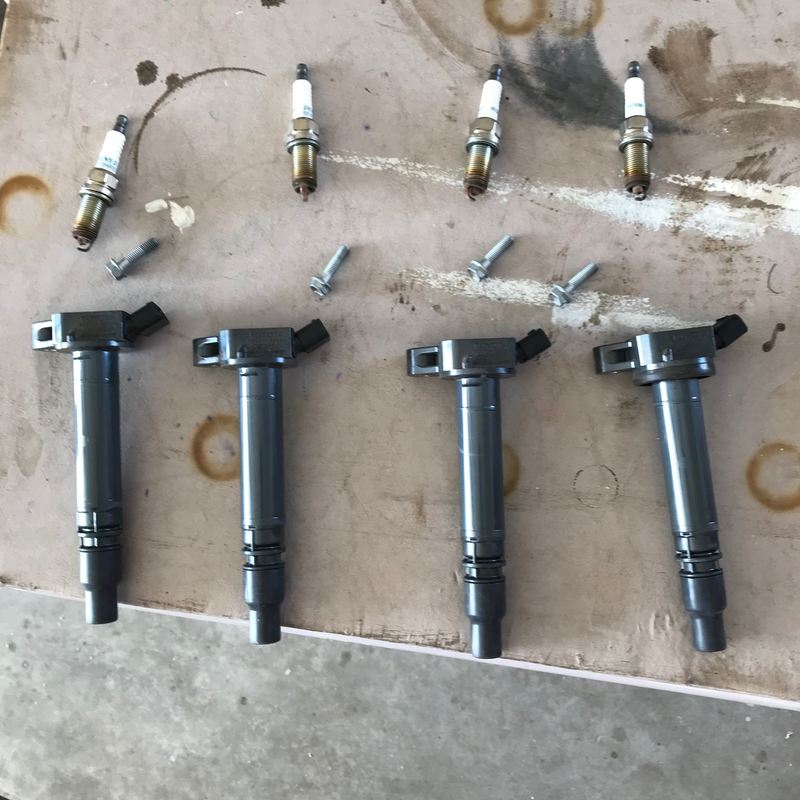

I try to stay organized
I try to stay organized

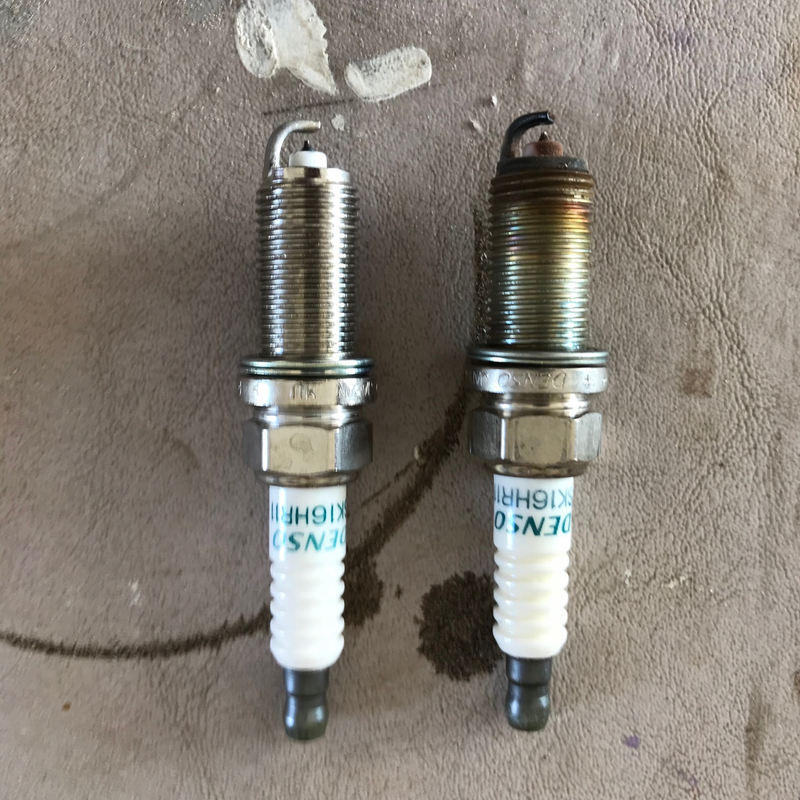

New VS Old
New VS Old
Advertisement

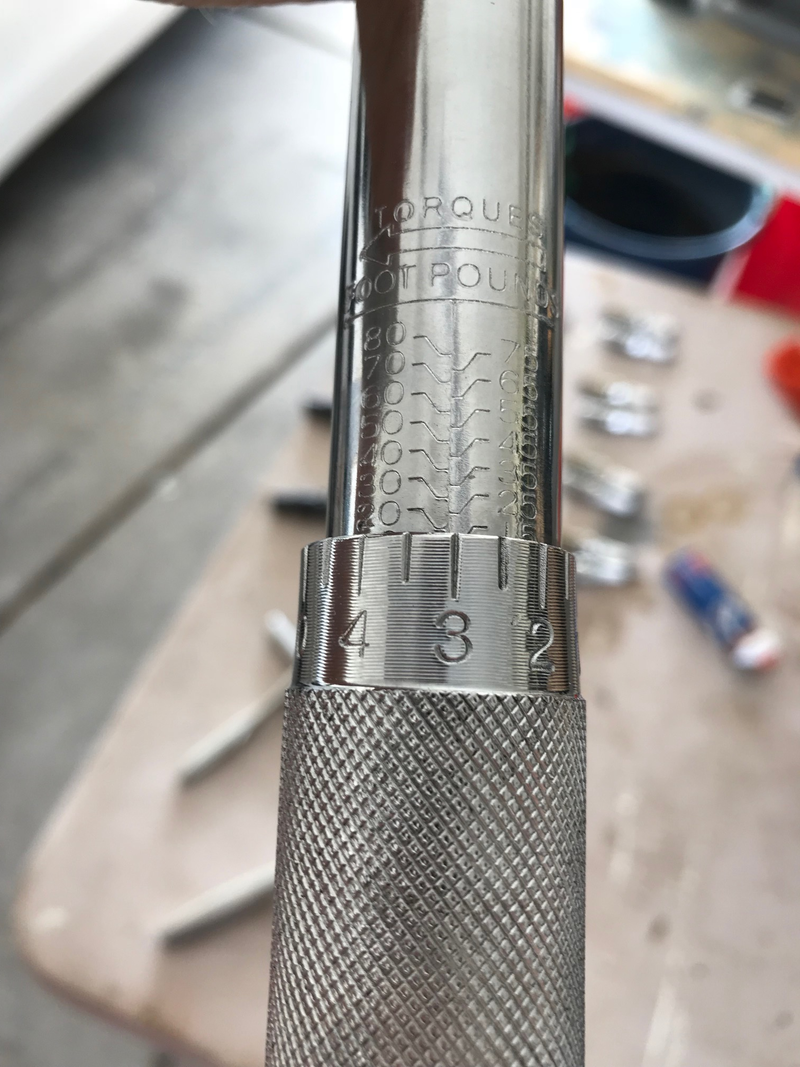

Setting the torque
Setting the torque

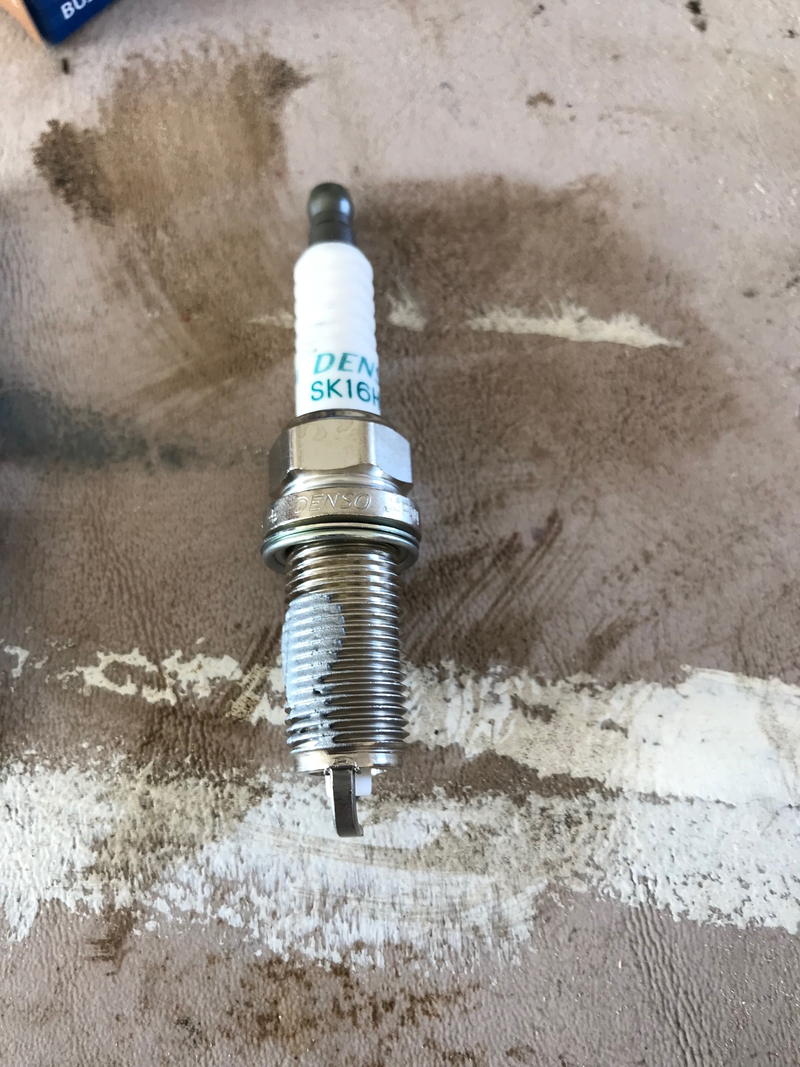

applying some anti-seize to the new plugs
applying some anti-seize to the new plugs
Advertisement

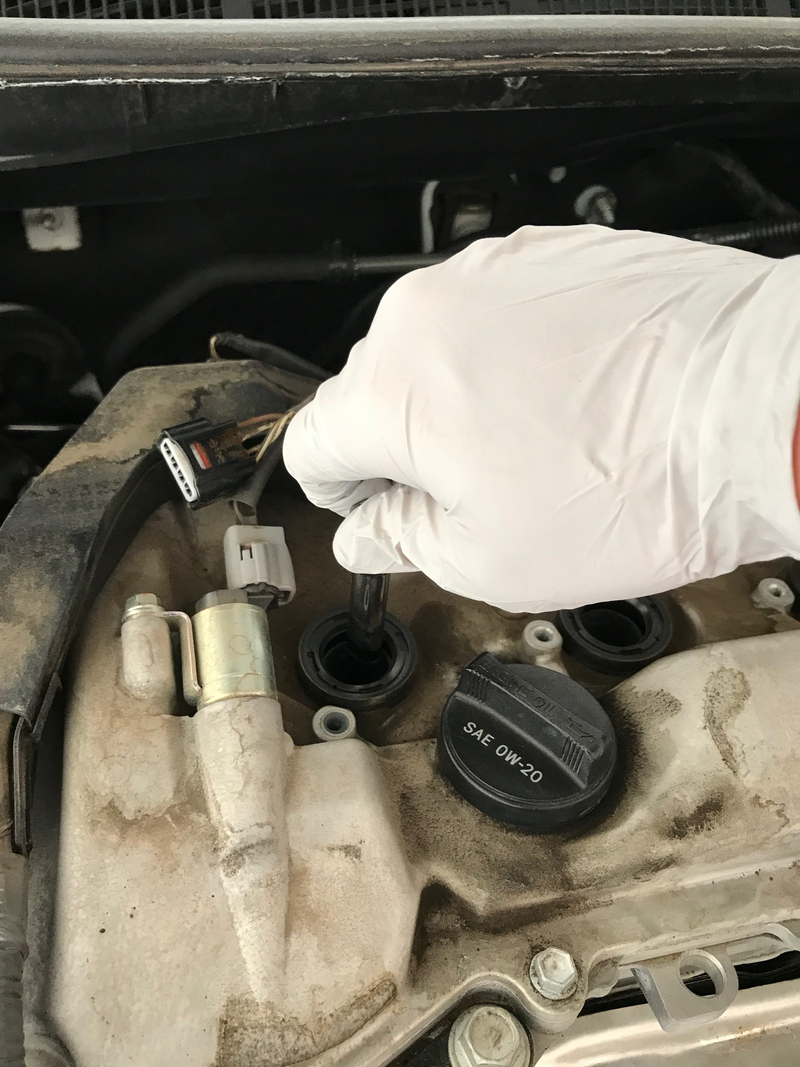

i always start the plugs by hand to ensure I don’t cross thread anything. That would be BAD.
i always start the plugs by hand to ensure I don’t cross thread anything. That would be BAD.

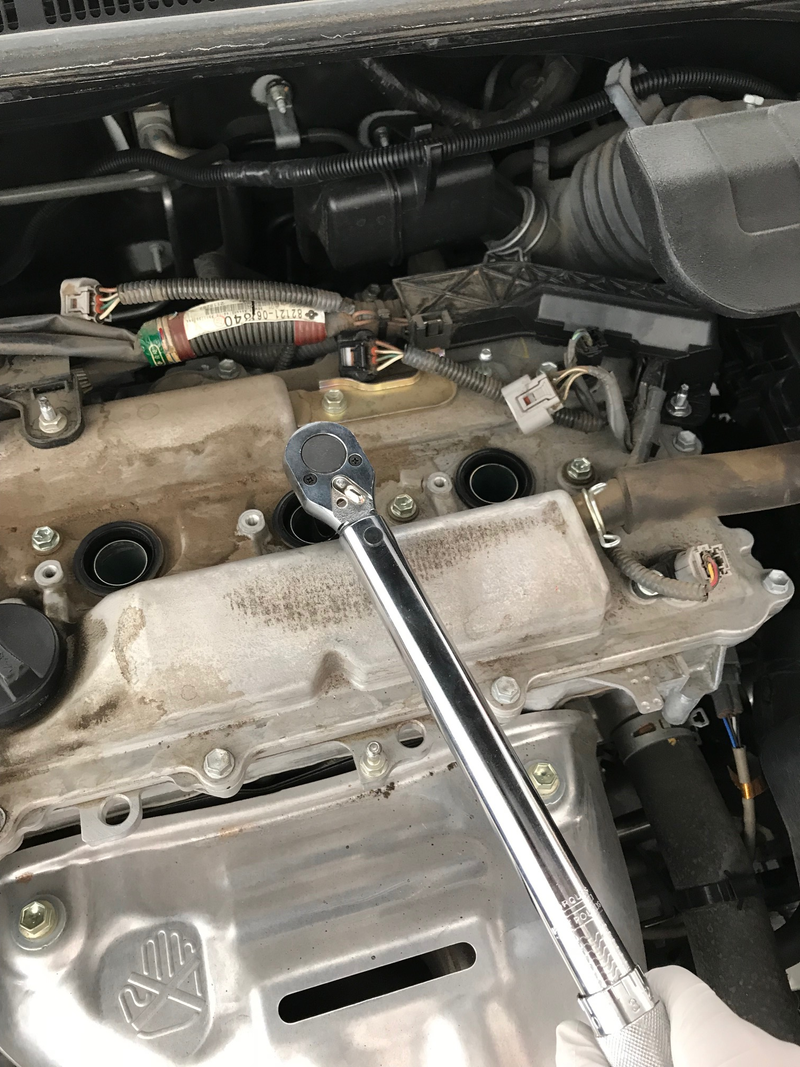

Then I bring out the torque wrench.
Then I bring out the torque wrench.
Advertisement

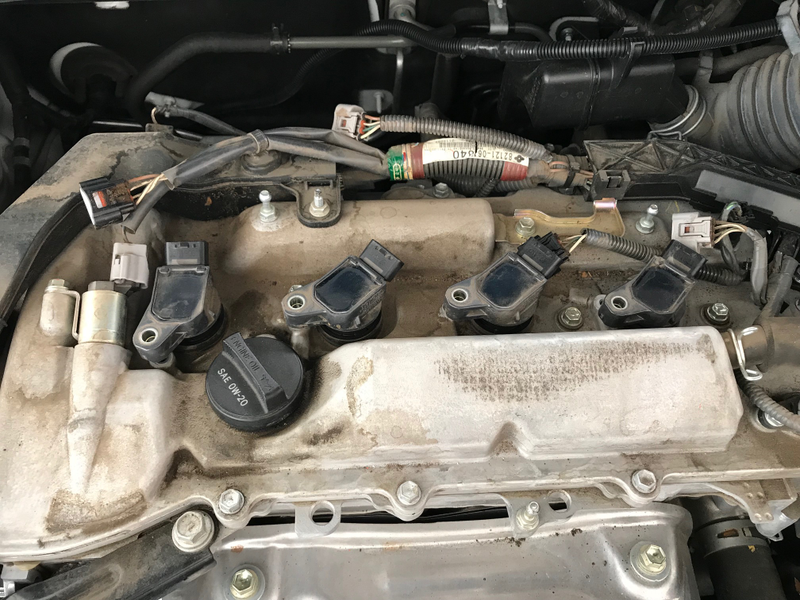

Ignition coils back in
Ignition coils back in

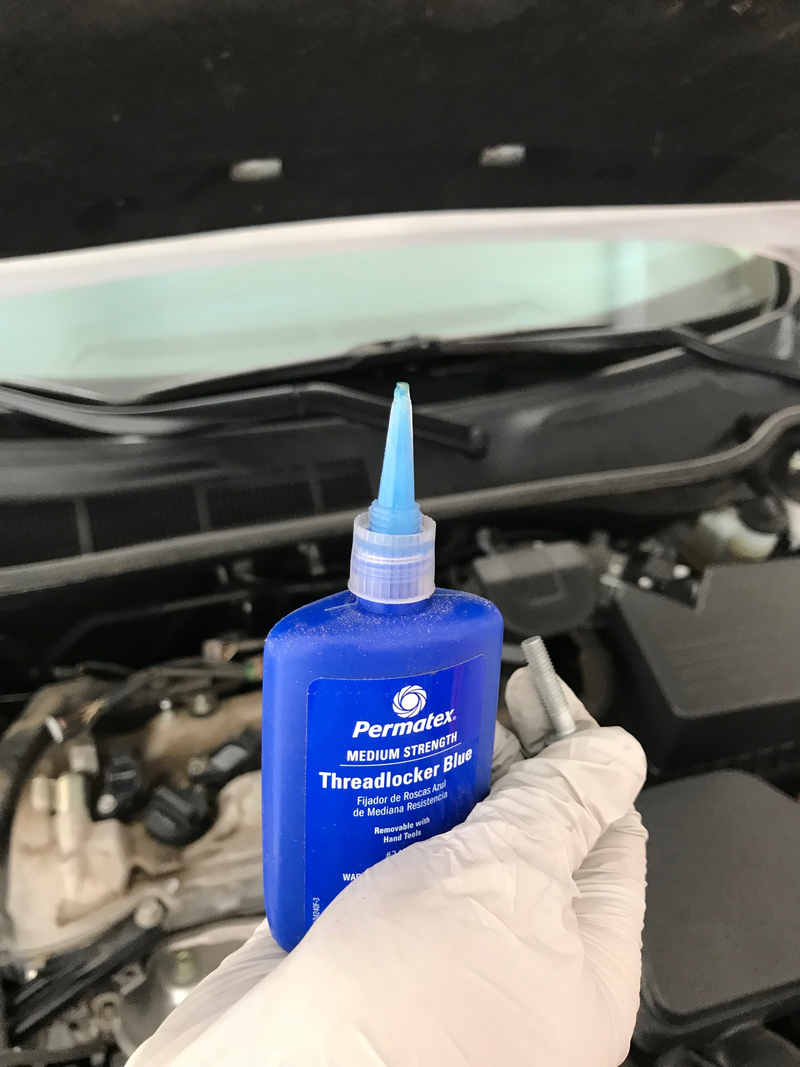

I add a little threadlocker on the bolts before putting them back in.
I add a little threadlocker on the bolts before putting them back in.
Advertisement
Torque the bolts to the proper spec. Here it was 7ft-lbs
Torque the bolts to the proper spec. Here it was 7ft-lbs

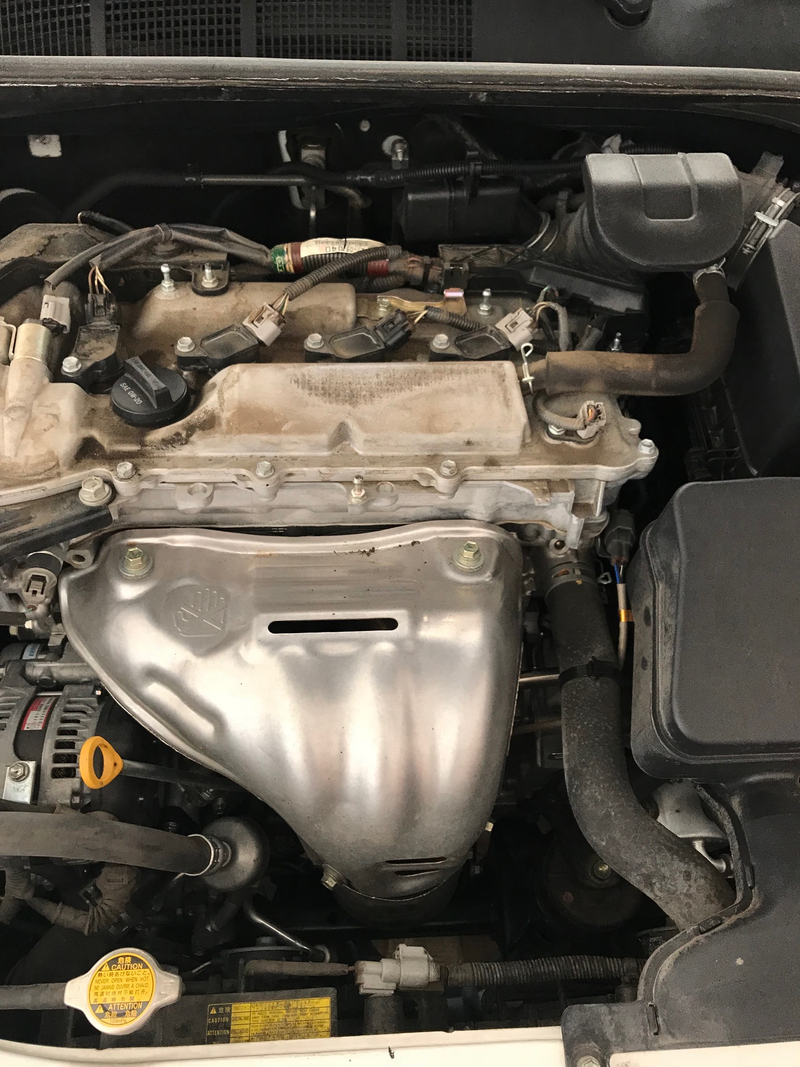

Engine cover back on. I cleaned it up a bit before I reinstalled it.
Engine cover back on. I cleaned it up a bit before I reinstalled it.
Advertisement
Illustration for article titled Time to Change the Spark Plugs on the Trusty Camry

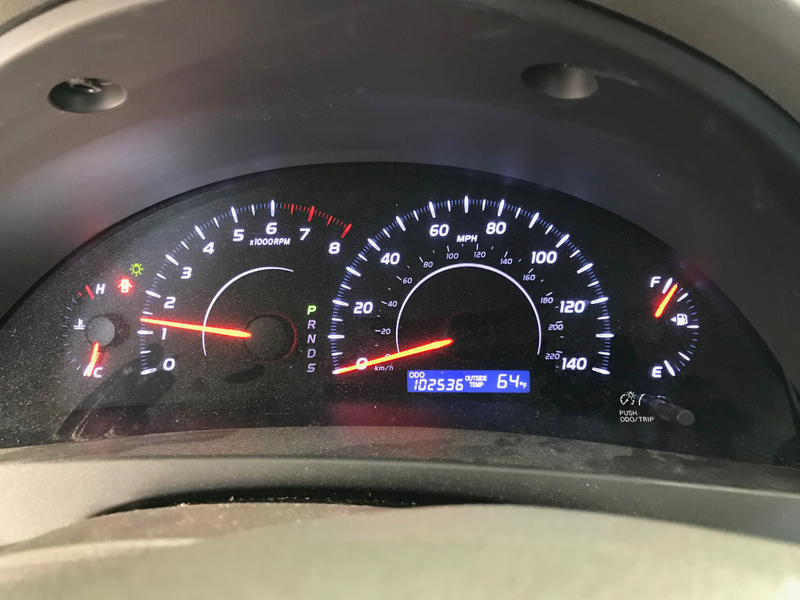

After getting everything put back together it’s time to fire her up! No check engine light is a win in my book! The Camry should be good for another 100K trouble free miles!
