Unexpected places to change gear

In a train.

Trains, especially relatively modern ones, are not vehicles usually associated with manual gearchanges.

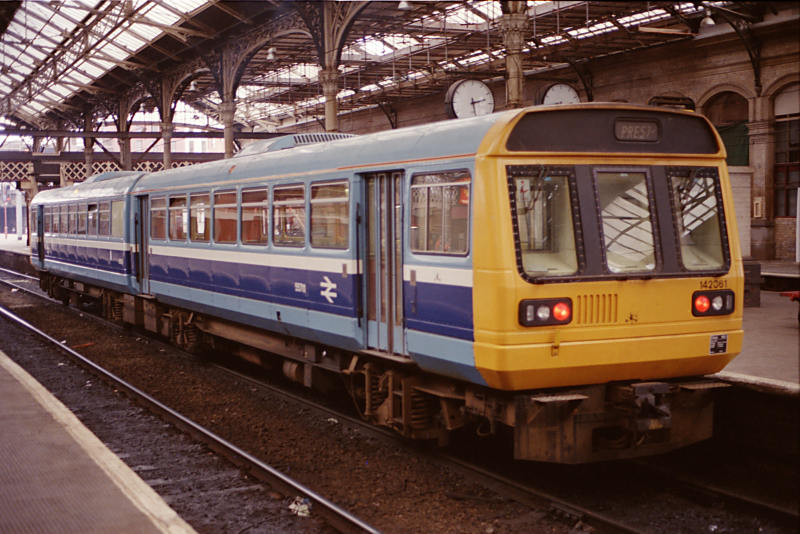

Here’s one that was. It’s a Class 142 multiple unit as found on commuter lines around Britain.

By Copyright ©1988-2009 K. Krallis SV1XV - Own work, CC BY-SA 3.0,
By Copyright ©1988-2009 K. Krallis SV1XV - Own work, CC BY-SA 3.0,

In the 1980s British Rail found themselves possessed of a need for light commuter trains and simultaneously not possessed of very much money. They therefore decided on a cheap alternative to a traditionally built train and turned to British Leyland, makers of many of the buses used in the UK at the time. Between them they came up with the idea of using what was essentially a bus body fitted to a chassis suitable for rail use. In keeping with the bus origins, the 142 doesn’t use the normal articulated bogies that you find on a train but instead has two fixed axles. Being fixed they don’t follow curved rails properly and you get a noisy and uncomfortable ride and unhappy passengers.

Being bus based BL decided to use their usual Leyland engines and SCG gearboxes. SCG stands for Self Changing Gears but they weren’t. The SCG box was a semi automatic with a torque converter for starting and a hydraulically operated manual gearchange. You got a gearlever then and should you ever find yourself at the controls of any Class 142s (or the various similar ones) that haven’t been converted to a more conventional train transmission you’ll need some driving instructions.


The internet has you covered. Thanks to some anonymous poster on a rail forum you can learn.

Here we go:

“While still stationary at the starting station, open the throttle with
the gears in neutral, and rev the engines for a few minutes to ensure
all power cars have plenty of control air. That almost certainly wasn’t
in the spec, but by the 80s it was necessary and a 6 (or even better, 9)
car Class 126 set standing in Platform 12 of Glasgow Central with all
engines roaring at maximum thrash was a truly spectacular sight and

Guard blows whistle and gives you two buzzes. Close throttle, let revs
drop, swing vacuum brake handle to “full release”. Vacuum starts to
build, brakes begin to release. Move direction selector level (IIRC aka
“the spoon”) to “Forward”.

Revs now down to idling, move gear lever into 1st, wait five seconds to
ensure all gearboxes engaged. Noticeable “clunk” from below unit.

Open throttle. Engine revs start to rise, unit begins to pull away as
brake continues to release. Give two buzzes back to the guard.

Open throttle all the way, enjoy the rising sound of the final drive on
the leading bogie beneath you as you start to pick up speed.

Watch the rev counter (if necessary, switch it back and forth between
No1 and No2 engines, if there’s a low reading on one). When it gets to
maximum revs, close the throttle.

Wait for engine revs to drop to minimum, change into 2nd gear. Wait
five seconds. Open throttle.

Repeat watching rev counter and changing up through 3rd and 4th gear,
once in 4th the unit will (eventually) accelerate to 70mph.

Eventually, when approaching the next station, shut off power, let revs
drop, knock the transmission back to neutral. Then slow the unit down
using the vacuum brake in the traditional manner, remembering that
vacuum braked units can do partial-release, so braking is reasonably
easy to control.”


So there you have it. Easy when you know how.
