I’m a huge fan of wind tunnels. I’ve been working in them for a significant portion of my professional life, starting in the government sector, now in the automotive industry. I was recently gifted a few interesting documents on the early days of full-scale automotive wind tunnel testing, so I figured I’d share some bits. These are all from a few really old SAE papers from the 60s, so I suspect that if you spent some time with the Googles, you can probably find better pics. Sorry for the grainy quality!

First up are a couple pics from Ford. The first is from 1937, the second from some time in the 1960s. Below them are a few showing the layout and machinery.

Advertisement

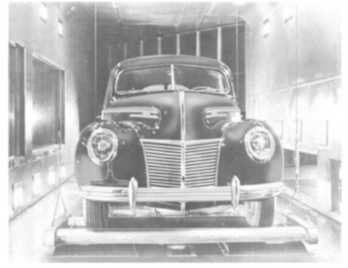

1937 Ford Test
1937 Ford Test

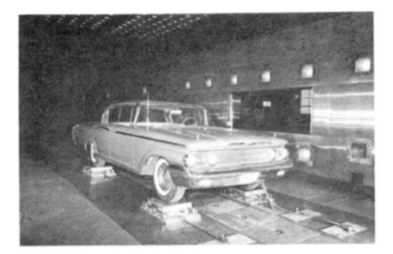

1960s Ford Testing
1960s Ford Testing
Advertisement

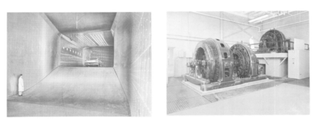

Ford wind tunnel pipc and equipment in the 1960s
Ford wind tunnel pipc and equipment in the 1960s

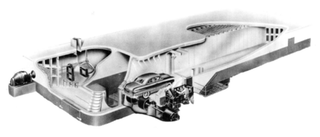

This is a diagram of the first full-scale wind tunnel Ford built. That blockage ratio hurts!
This is a diagram of the first full-scale wind tunnel Ford built. That blockage ratio hurts!
Advertisement

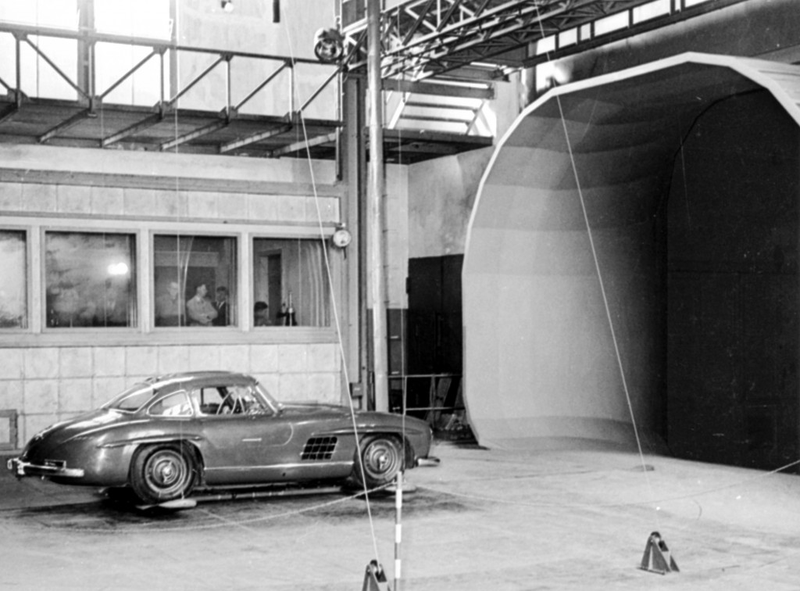

Around the same time, the Germans built a tunnel to do full-scale automotive testing. As near as I can tell, they started operations in 1939. Incredibly, it survived WW2 intact! Here’s a couple pics of their early tunnel in the post-war period:

Illustration for article titled What did automotive wind tunnel testing look like in the Bad Old Days?
Advertisement
Illustration for article titled What did automotive wind tunnel testing look like in the Bad Old Days?

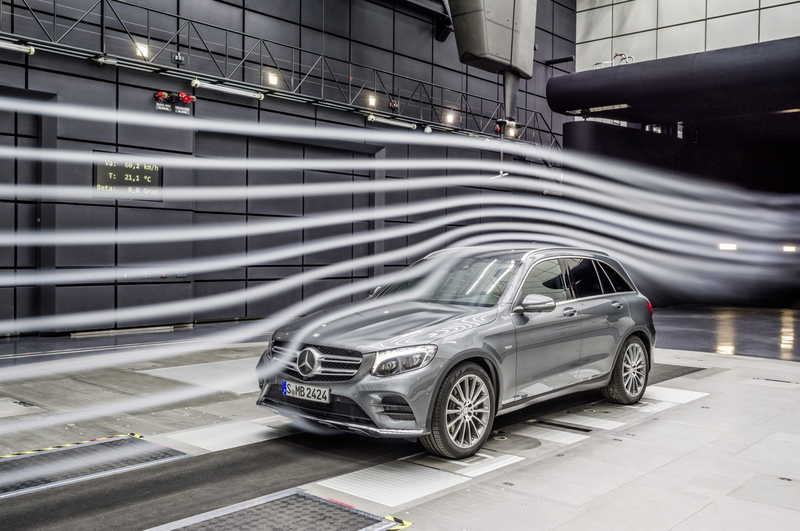

For comparison, here’s a pic of what full-scale automotive wind tunnel testing look like today:
