Last week, we took a look at the giant numbers and letters painted on each end of airport runways. But runways have other markings that provide information for pilots. What do those other markings mean?

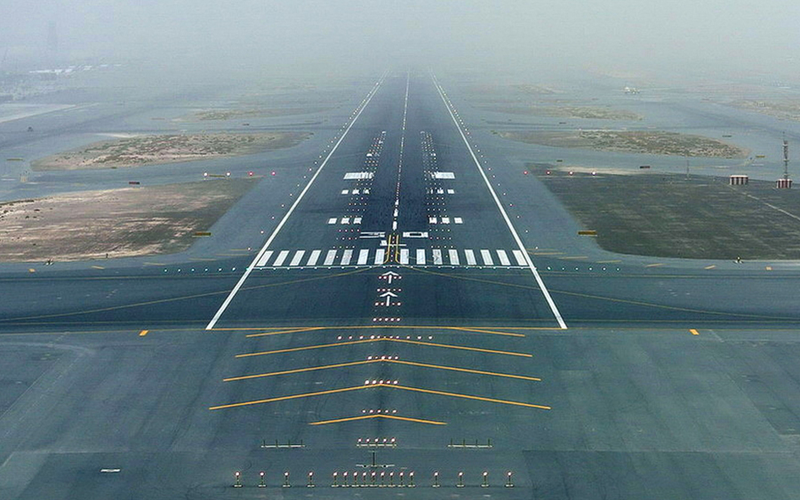

Runway 30L at Dubai International Airport (OMDB). (Photo by UR-SDV via Wikimedia Commons)

Runways come in three basic categories: visual, non-precision, and precision. Since most of us will be flying in a modern jet airliner to, we’ll take a look at the precision runway markings, since those provide the most information.

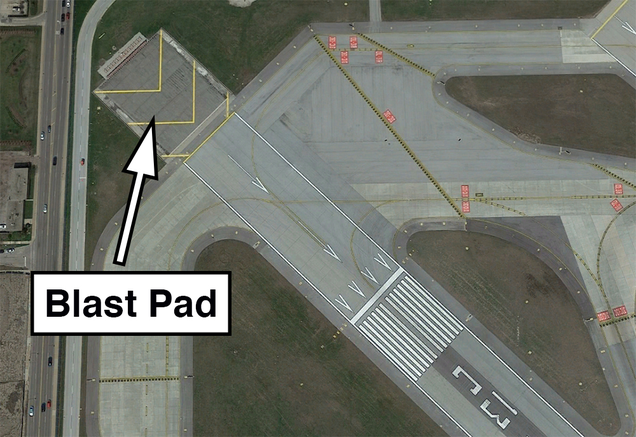

The blast pad at Chicago’s Midway International Airport (KMDW) for runway 13 center. (Google Earth)

The first thing you might see is an area with yellow chevrons painted on it. This is called the blast pad, and while it sounds like you might blast off from this point, it is actually a paved area that prevents jet blast from departing from ripping up the ground. Not only would this damage the ground, it might also kick up debris that could find its way into jet engines and damage them. The pavement on the blast pad is relatively thin, so aircraft can’t use this area for landing, even in an emergency. The weight of the aircraft, and the force of the landing, would damage the concrete, as well as the undercarriage of the aircraft.

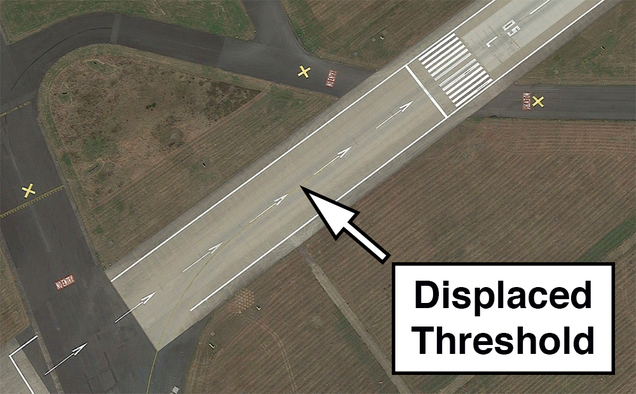

A lengthy displaced threshold of runway 05 left at Düsseldorf Airport (EDDL) in Germany (Google Earth)

Advertisement

The next area you might see is a section of runway that has white arrows painted on it, leading to a thick white line. This area is known as a displaced threshold, and it is a space that can be used to extend the takeoff distance, but not for landing. Like the blast pad, the concrete in the displaced threshold is not always reinforced, so it would not withstand the pressure of a landing aircraft. If the arrows on the displaced threshold are painted white, that means it is part of the runway and may be used for takeoff. If they are yellow, then it is considered part of the taxiway and may not be used for takeoff.

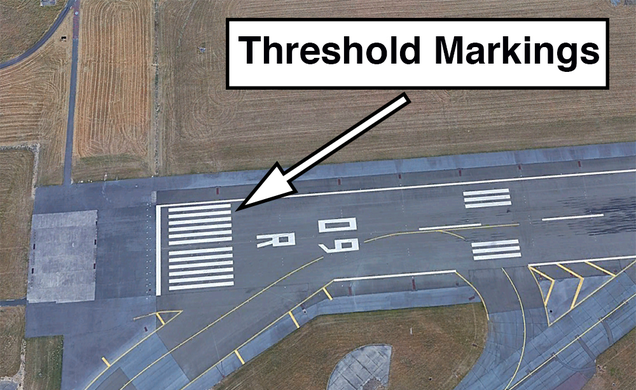

The landing threshold at Paris Charles de Gaulle Airport (LFPG). A total of 12 stripes indicates a runway that is 150 feet wide. (Google Earth)

At the end of the displaced threshold (if there is one) is a heavy white line, which is the threshold itself. The threshold indicates the point of the runway after which planes may land. Just past the threshold is a series of 150-foot long parallel white lines called threshold markings. Not only do these lines give a visual cue for the beginning of the actual runway, but the number of lines will tell a pilot how wide the runway is. Four stripes will indicate a runway that is 60-feet wide, and the number of stripes increases to as many as 16, which indicate a 200-foot wide runway.

Advertisement

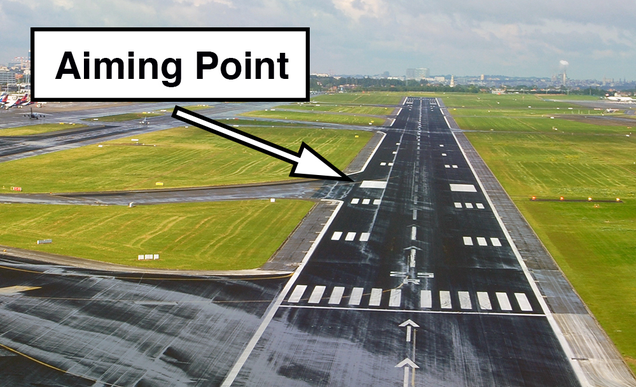

The aiming point for runway 25 right at Brussels Airport (EBBR). (Photo by Lucash via Wikimedia Commons)

Following the the threshold markings is the runway designation number, which we discussed that last week. Set 500 feet from the runway threshold line is a series of bars that indicate the beginning of the touchdown zone, and 500 feet away from that are two large, solid rectangles called the aiming point (some European countries use three offset blocks). As the name implies, the aiming point is what the pilots aim for while landing. The aiming point is the first in a series of lines called fixed distance markers, each 500 feet apart, that help the pilot know just how long the runway is. All of the lines together, including the aiming point, are included in the touchdown zone. And, the number of lines at the beginning of the touchdown zone tell the pilot how long the runway is. For example, one line indicates a runway less than 900 meters long, while 6 lines indicate a runway that is 2,400 meters long or more.

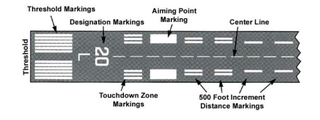

(Federal Aviation Administration)

Advertisement

All of these markings help pilots land, but before you can land you have to take off, and before you can take off you have to taxi from the gate to the runway. In the next installment of “Did you know?” we will take a look at taxiway markings and runway lighting.


Wingspan will be taking a couple of weeks off for the holidays. Look for return flights starting back up in January. Happy Holidays to all, and thanks for reading!
